Portable micro 400w 3 phase wind turbine generator
- Category: >>>
- Supplier: Jiangsu Naier Wind Power Technology Development Co. Ltd.
Share on (60820943273):
Product Overview
Description

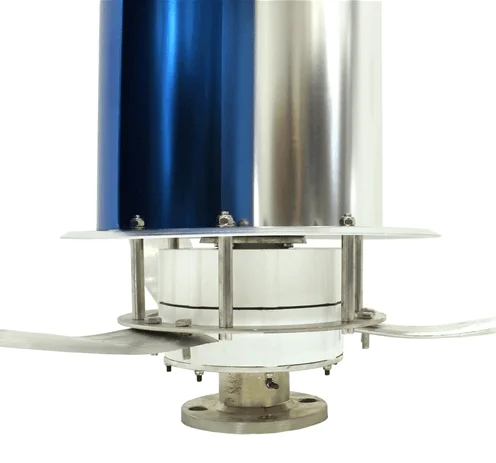

vertical axis wind generator pictures:
Techinical data:
Model | NE-400Q4 |
generator power | 400w |
Wheel diameter | 1.38m |
turbine height | 1m |
Blades material | Casting aluminum alloy |
Number of blades | 7 |
Rated wind speed | 11m/s |
Start-up wind turbine | 1.5m/s |
Survival wind turbine | 45m/s |
Output voltage | 12/24V |
Net Weight | 25.5kg |
Generator type | Outer Rotor PMG |
Control system | Electromagnet |
Speed regulation | Automatically adjust windward direction |
Lubrication way | Lubrication grease |
Working temperature | From -40℃ to 80℃ |
Details
Features:
1. Low start up speed; high wind energy utilization; beautiful appearance; low vibration
2. Human friendly design, easy installation, maintenance and repair.
3. Precise injection molding blades together with the optimized design of aerodynamic
contour and structure, the blades have such advantages: high utilization of wind energy
which contributes to the annual energy output.
4.The generators, with a special kind of stator design, efficiently decrease resistance torque.
Meanwhile, it makes the wind generators match the generators quite well and increase
its reliability.
System showing :
Package :

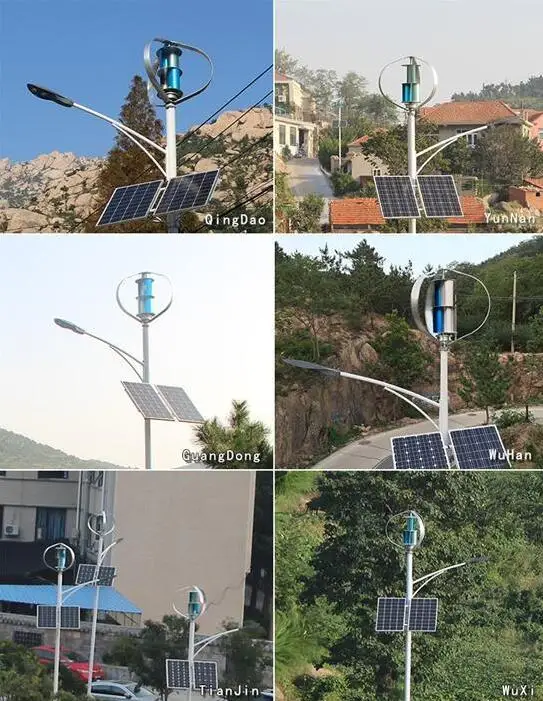

Projects :
