Paddy cleaner and destoner wheat destoner machine rice cleaner and destoner

Product Overview

Description



General description

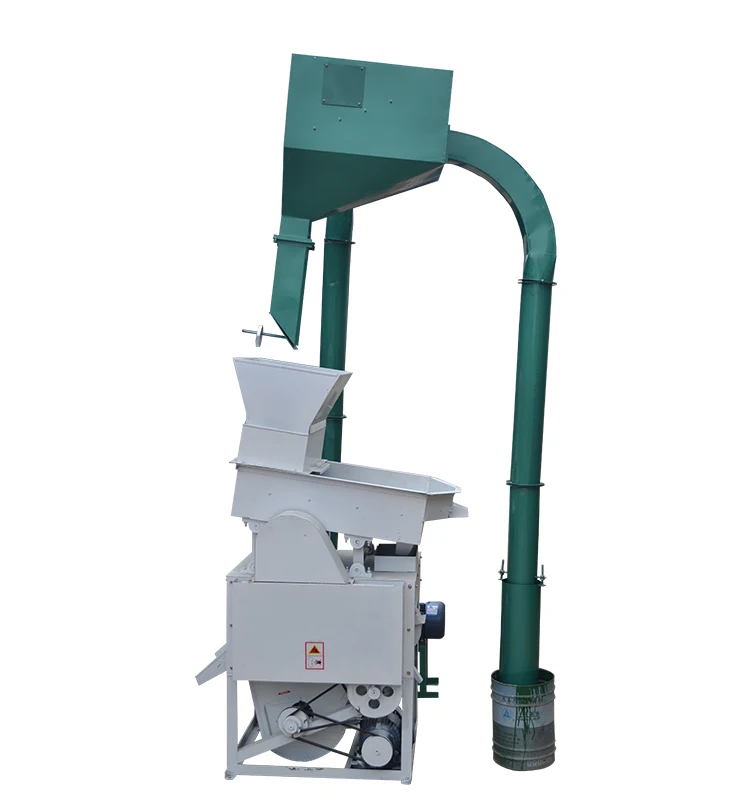

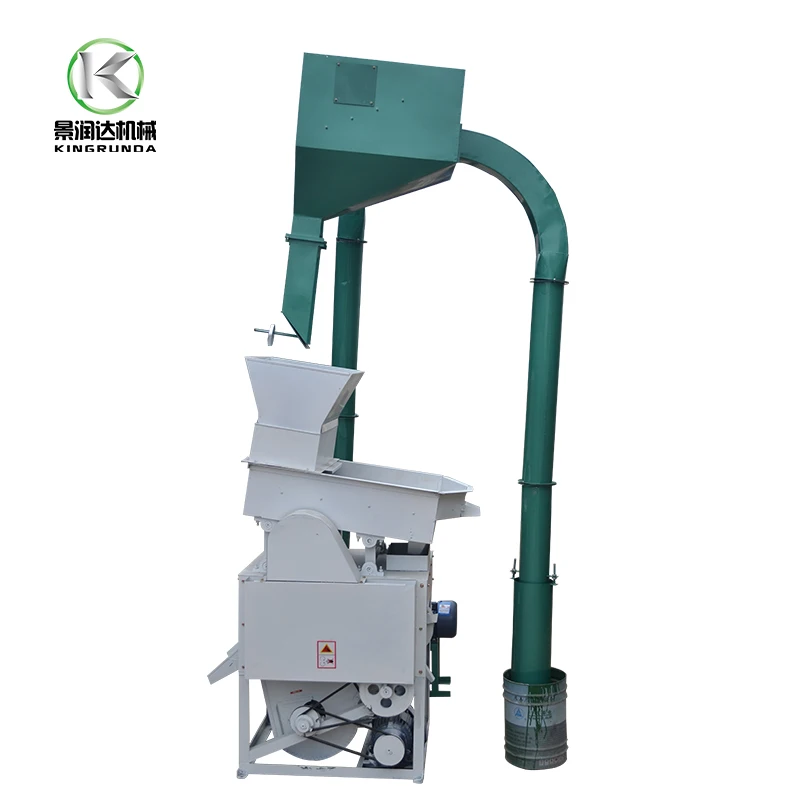

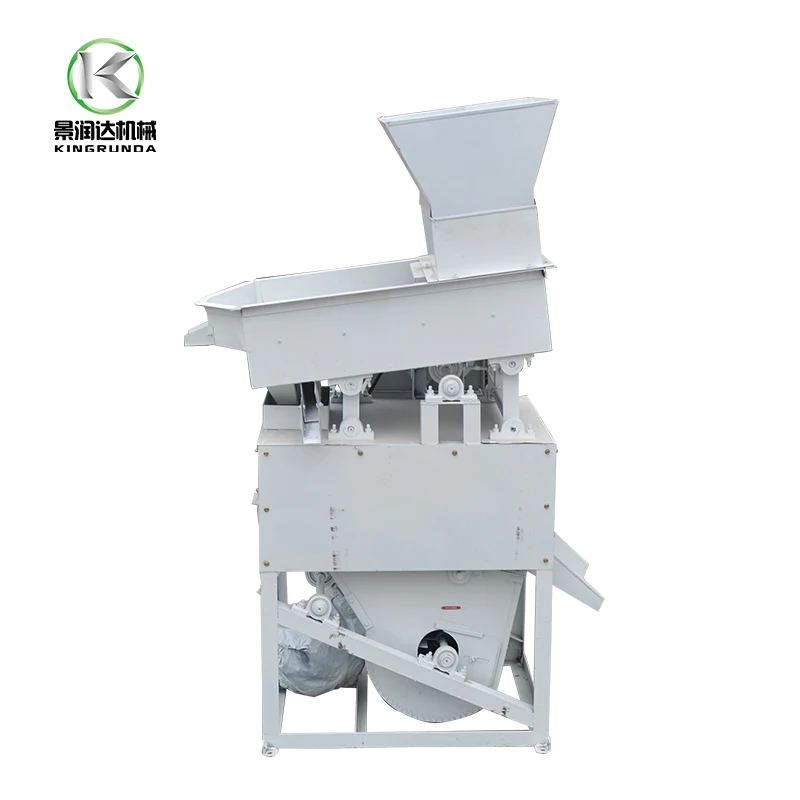

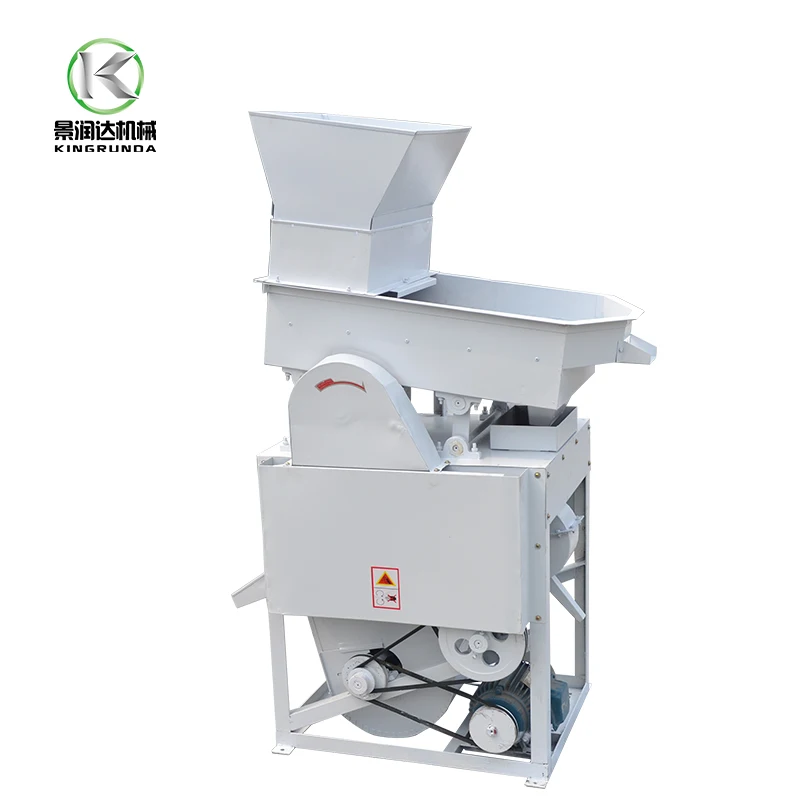

SQ50A Combined de-stoner is mostly common use de-stoning cleaning equipment for capacity 20-60 ton/day rice/corn milling plant. It is a smart design to combine vibrating cleaning and gravity de-stoning theory and technology into one machine.



Structure



1.    It works with an elevator. The elevator takes raw material corn/rice paddy to the 1^st layer screen sieve. 1^st layer screen mesh size is big. Big impurities will be removed from this stage and small impurities will go into 2^nd layer.

2.    2^nd layer is small mesh size screen for removing small impurities out. Screen mesh hole size is 2.5x2.5mm.

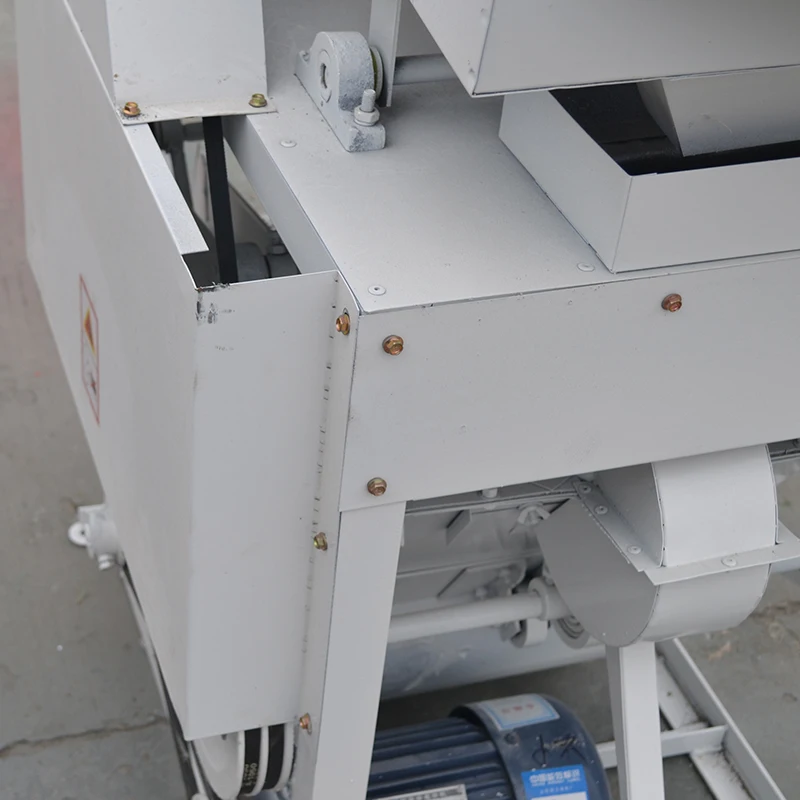

3.    Machine frame is made in high grade square tubes. A rubber vibration damper is mounted on top of machine frame.

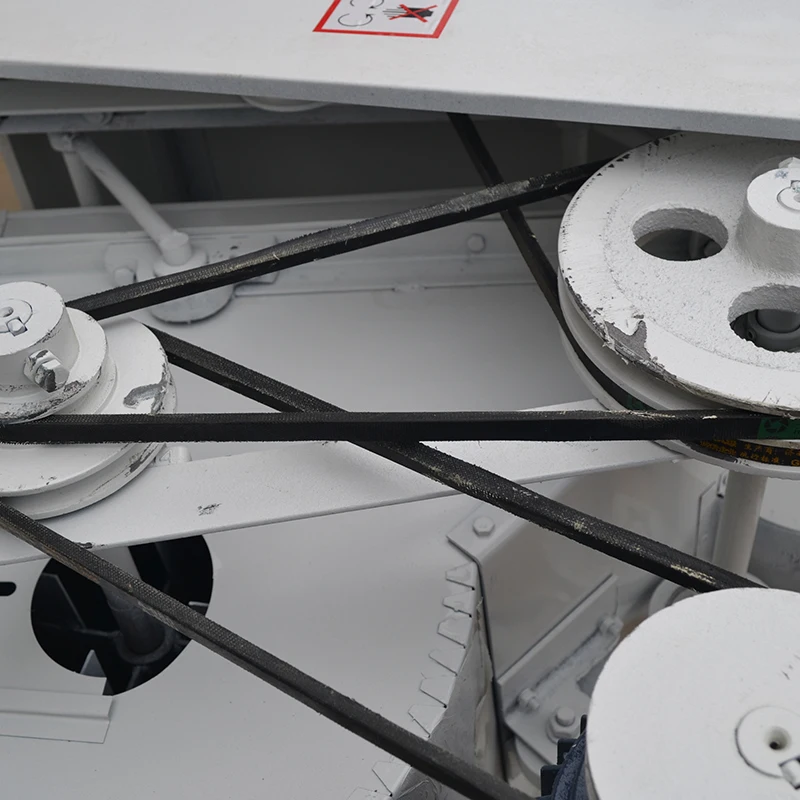

4.    We call the heart destoning part “destoning screen boat”. The  “destoning screen boat” is connected to the machine frame with 4 connecting poles. And  eccentric drive system of   “destoning screen boat” is connected to the bottom of machine frame.





Technical advantage



1.    Multifunctional to clean various different grain, such as wheat, rice, corn, and beans.

2.    Excellent cleaning performance to be 98%. Cleaning without breaking.

3.    Compact strong structure, easy to operate, 0% failure rate, suitable for export. No risk for after-sale service.

4.    No wear part, more than 10 years service life without changing any part.

5.     Little power consuming, small space occupying

6.    Excellent destoning and cleaning performance







Model	SQ50A
Name	Combined rice cleaning machine
Brand	Kingrunda
Condition	New
Production capacity	1.5-2ton/hour
Motor power	1.5kw, 3p
Cleaning performance	99%
Working principle	Wind, gravity
Automation	automatic
Usage	Wheat, rice, corn, soyabean, yellow peas, etc
Usage scope	Medium sized food processing plant
Package size	74X110X140cm
Quality assurance	1 year
Certification	CE, ISO9001, SGS
Net weight	100kg
Gross weight	120kg
