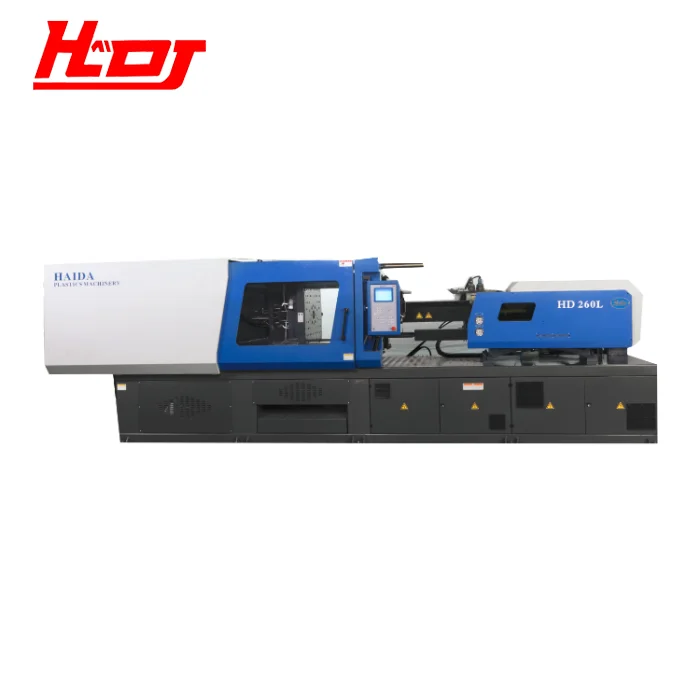

HD260L High Precision Servo Energy-Saving Plastic Injection Machine
\t
Number Item
\t
HD260L
\t
Category
\t
HDL Series
\t
OEM
\t
Available
\t
Warranty
\t
1 Year
\t
Factory
\t
Yes

Application>>

Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.

Technical Parameters >>

\t
MODEL
\t
      HD260L
\t
ITEM
\t
UNIT
\t
 DATA
\t



INJECTION UNIT
\t
Screw Diameter
\t
mm
\t
55
\t
60
\t
65
\t
Screw L/D Ratio
\t
L/D
\t
22.9
\t
21
\t
19.4
\t
Injection Volume
\t
cm3
\t
606
\t
721
\t
846
\t
Shot Weight
\t
g
\t
551
\t
656
\t
770
\t
Injection Rate
\t
g/s
\t
210
\t
250
\t
293
\t
Injection Pressure
\t
Mpa
\t
210
\t
176
\t
150
\t



CLAMPING UNIT
\t
Clamping Force
\t
KN
\t
2600
\t
Opening Stroke
\t
mm
\t
550
\t
Space Between Tie-Bars
\t
mm
\t
580X580
\t
Mould Thickness(Min-Max)
\t
mm
\t
220-580
\t
Ejector Force
\t
KN
\t
70
\t
Ejector Stroke
\t
mm
\t
165
\t





GENERAL
\t
Pump Pressure
\t
MPa
\t
16
\t
Motor Power
\t
KW
\t
22
\t
Heater
\t
KW
\t
15.6
\t
Machine Dimension
\t
m
\t
6.3X1.5X2.25
\t
Machine Weight
\t
t
\t
8.5
\t
Mould Orientation Ring Diameter
\t
mm
\t
Φ160
\t
Nozzle Radius
\t
mm
\t
SR15




Characteristics >>


HAIDA L series high precision Servo Energy-saving Injection Machine

New series model launched on the basis of the original series, to meet higher requirements of customers. Coexisted specificity and generality, screw of multiple diameters are optional for each model ,to realize optimized product quality.


Superior Energy Efficiency. To Save Power Consumption. Cooling phase, the motor does not need to work, power consumption is 0.
Saving Water And Fuel. Compared with the traditional hydraulic power system of the hydraulic oil consumption reduce 1/4 ~ 1/3, can achieve without cooling, thus greatly saving water.



Similar Products >>

Detailed Images


\t\t\t\t\t\t\t\t\tAbout Us \t\t\t\t\t\t\t


WHY CHOOSE US


HAIDA Machinery established in the year 1991 at Ningbo, is one of the top 10 Chinese injection molding machinery manufacturer. Nearly 30 years, we had established more than 60 sales and service agencies in China and overseas.


We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton. These products find application in various industries for several functions.

We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.
