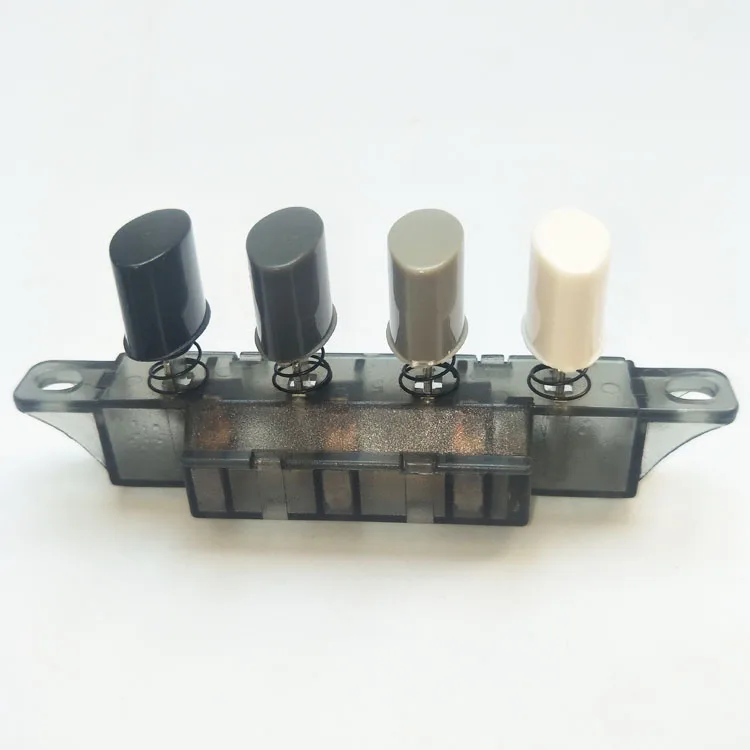

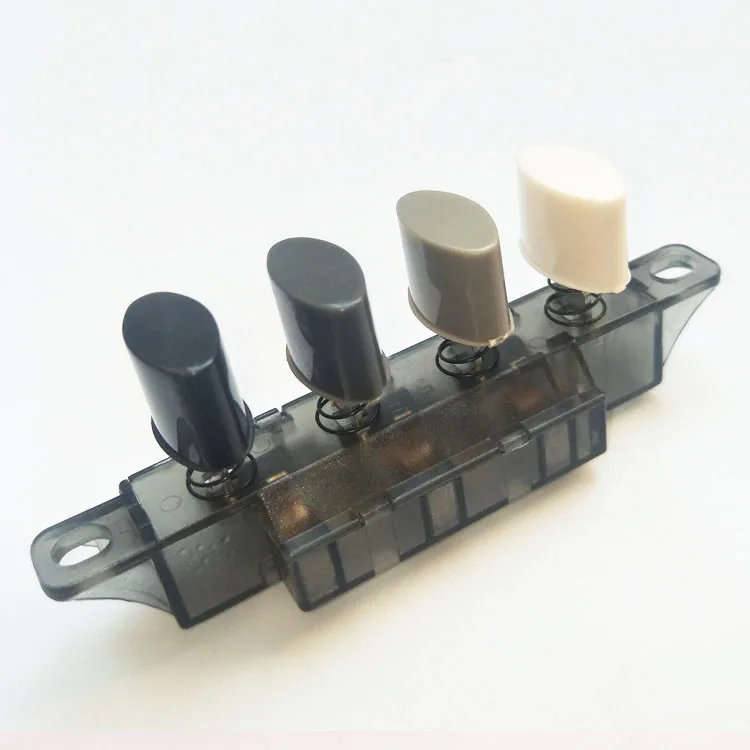

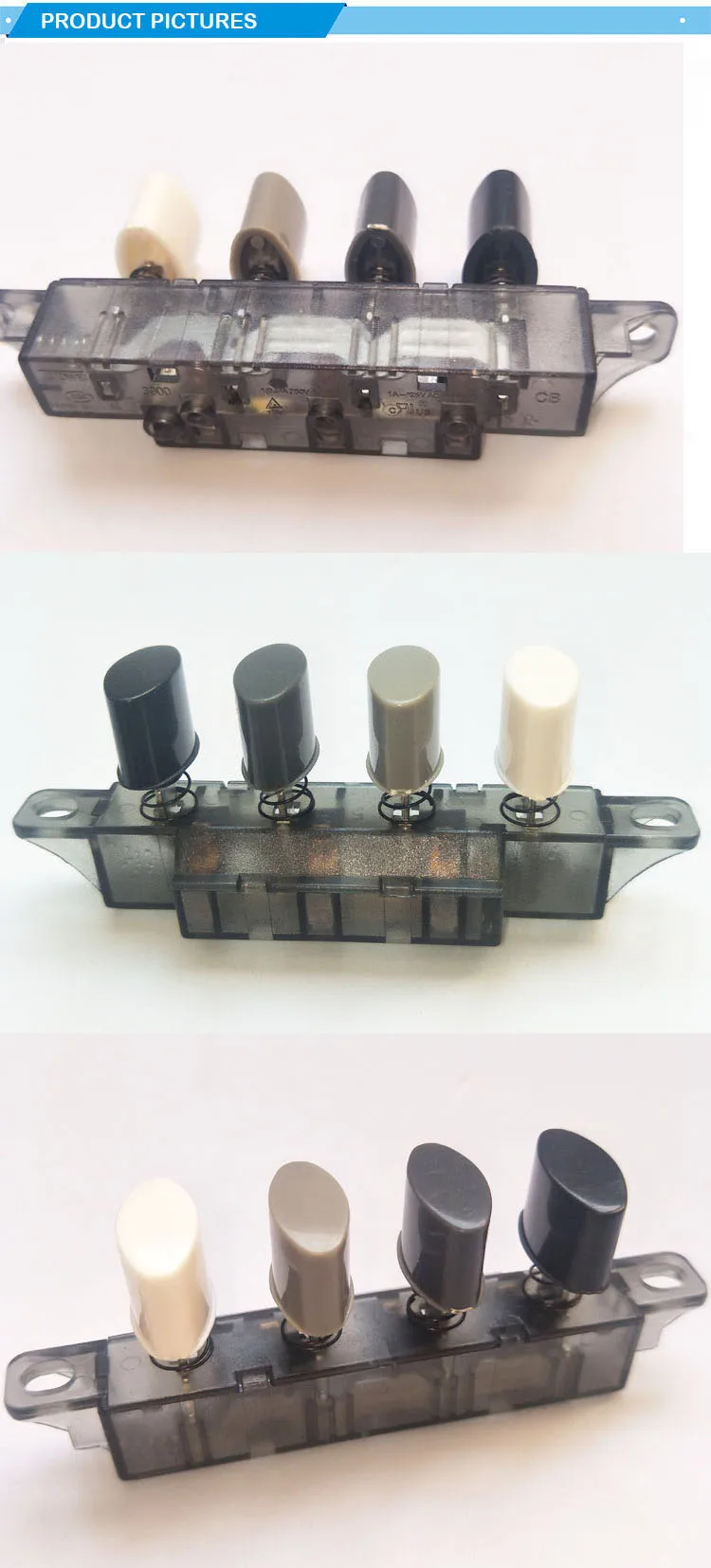

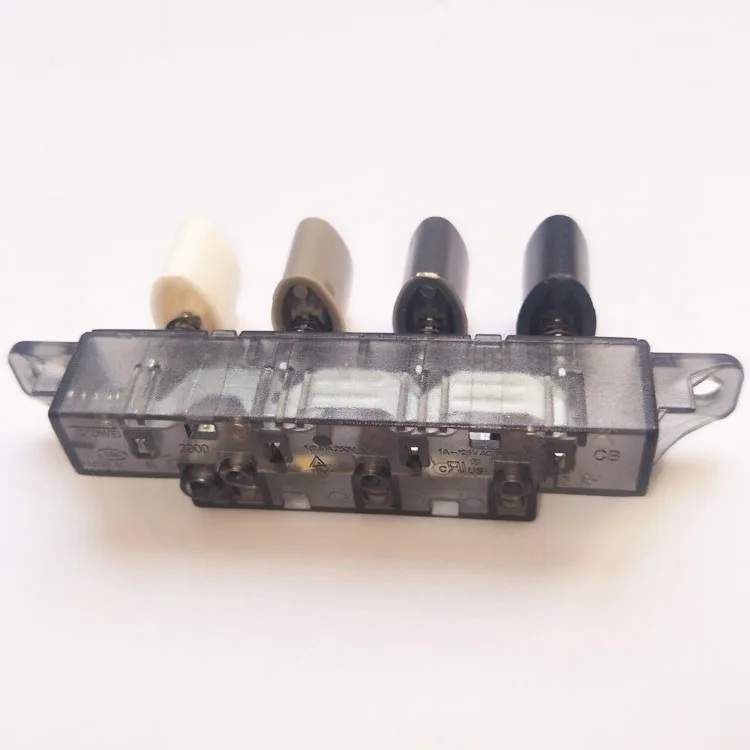

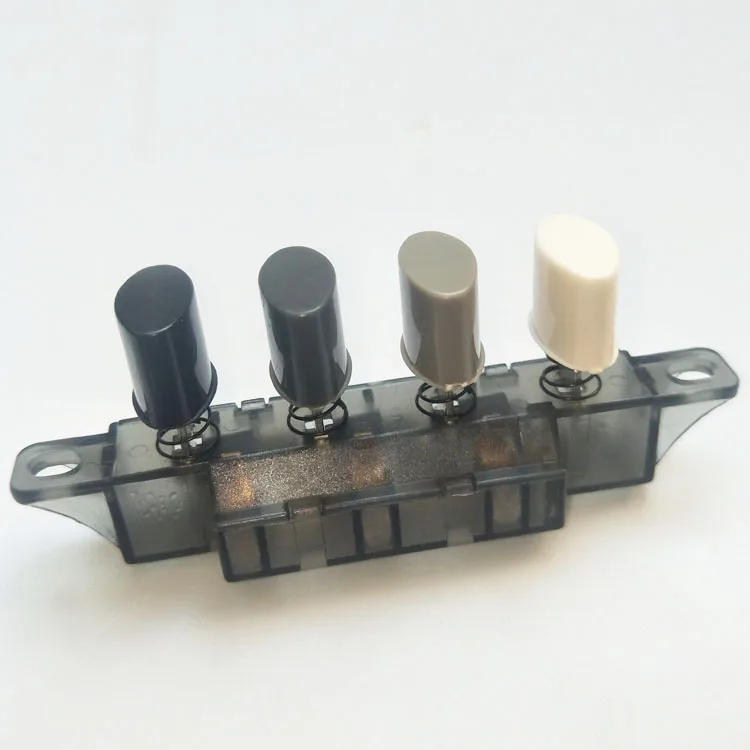

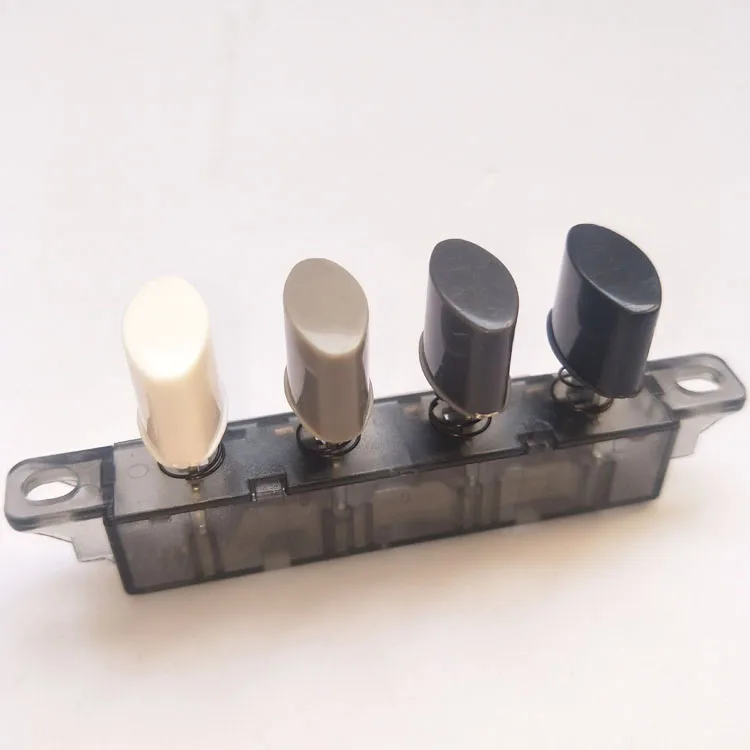

Factory direct sales electric fan push button inserting wires 4 Key keyboard switches

Product Overview

Description



      Factory direct sales high quality Electric Fan push button inserting wires 4                                      Key keyboard Switches Item No.:3900-4



Technical Parameter
Electrical Rating	1A ~120V.AC.   1(0.5)A~250V.AC.

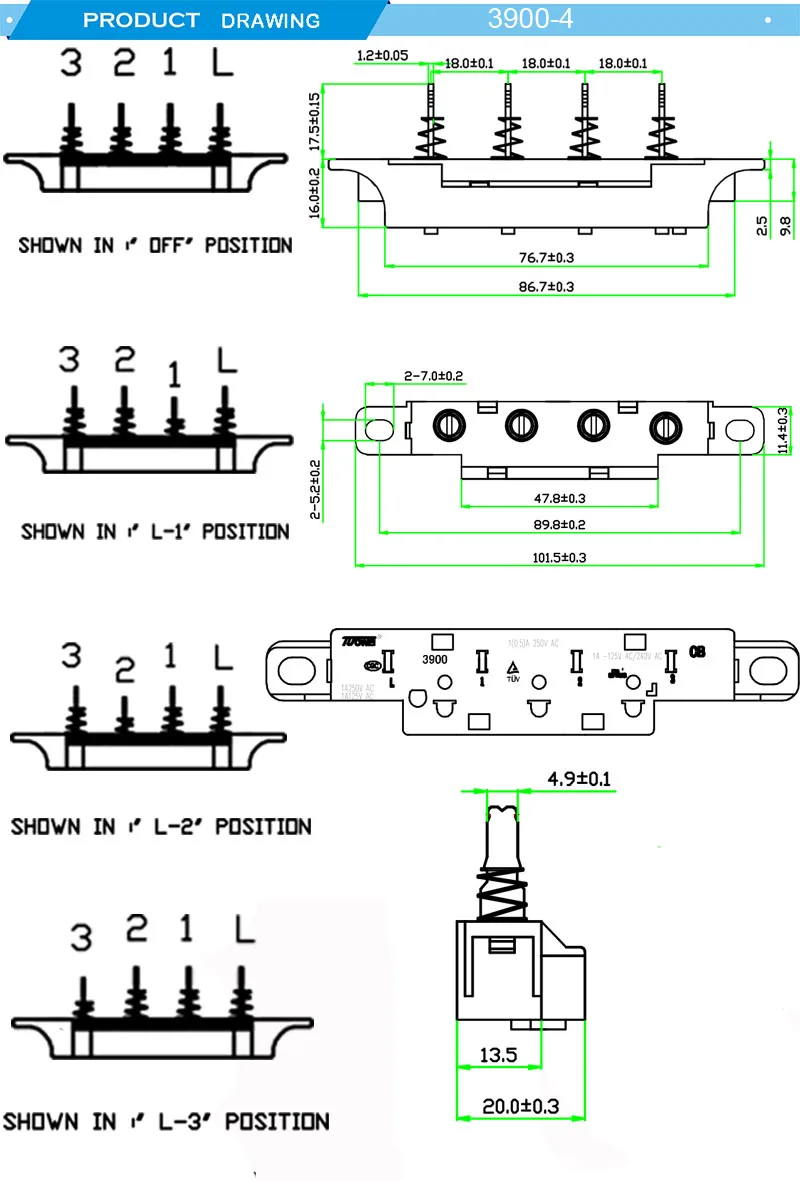

Function	OFF, L-1, L-2, L-3
Position	4
HZ	60/50
Load	Res/ Mot
Temp(C)	75°C
Pol/Thr	1/ 1
PP/Circuit	--/A
Endur	10K
SPCOA	24-18AWG UL1015
Material:
Housing: PC                    Flame rating: V-0                      Temperature: 130°C             Blocking plate: Steel
Cover: PC                         Flame rating: V-0                     Temperature: 130°C             Terminal spring: stainless steel
Push block: PA66              Flame rating: V-0                    Temperature: 130°C             Stationary terminal:Copper alloy
Actuating Tip:Copper         Spring: Steel                          LPush spring : steel              Button : Stainless steel
Locking plate: Zinc Plating Iron
Apply to:
Electric Fan and other home appliances..
