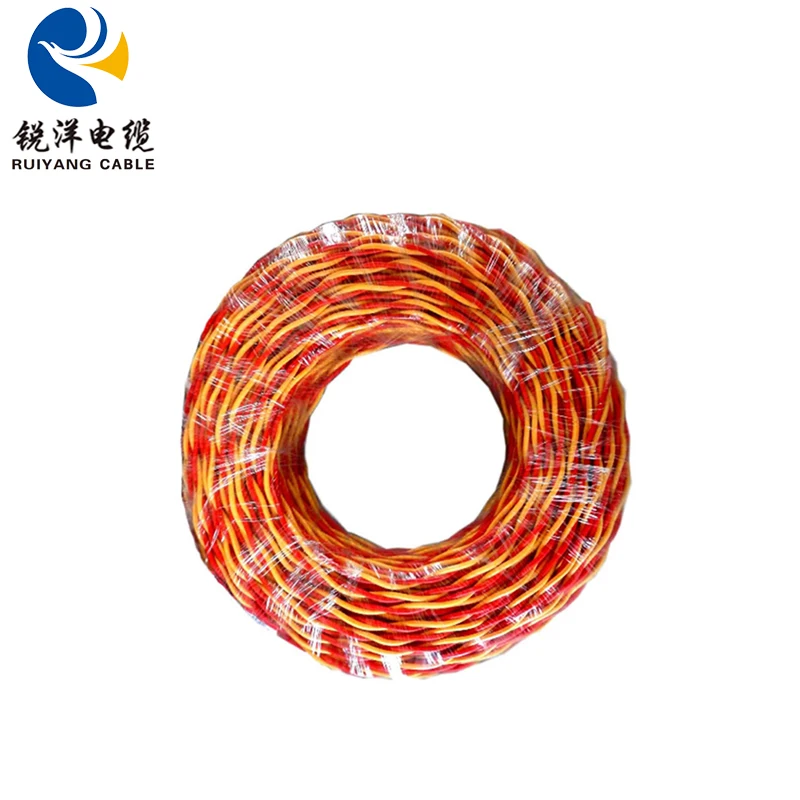

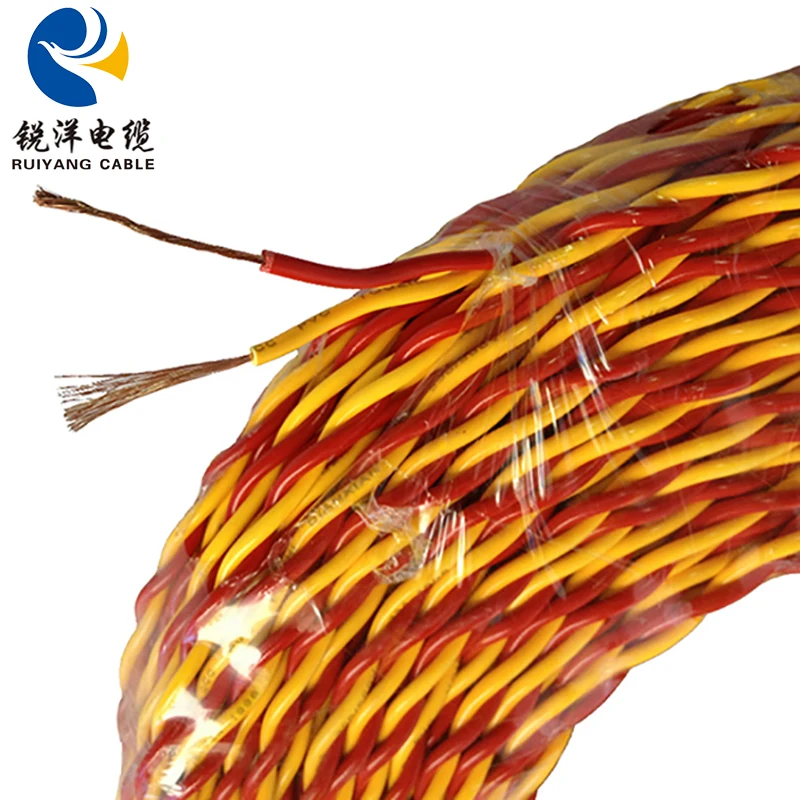

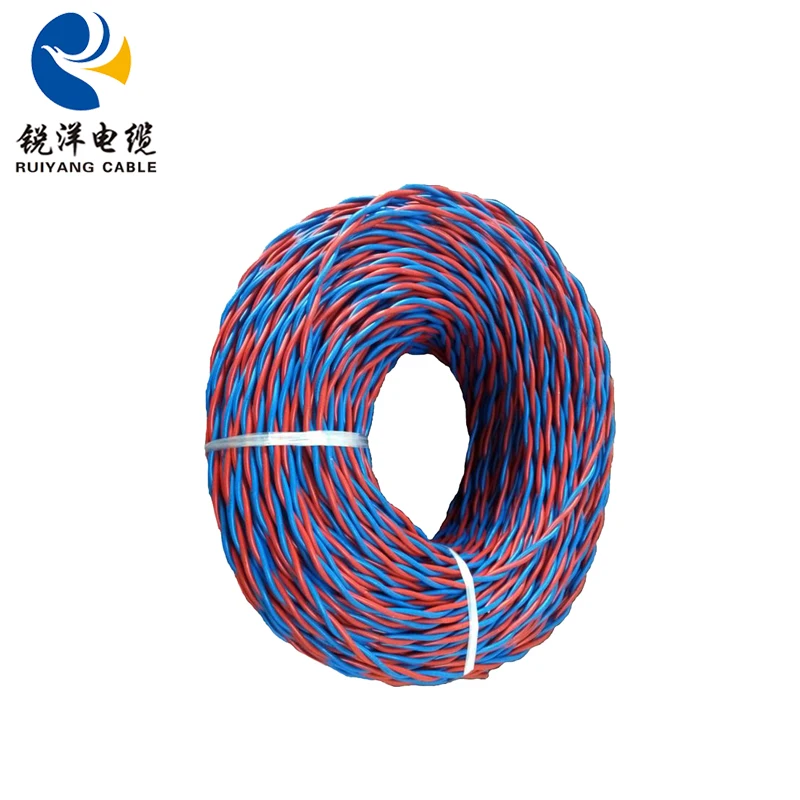

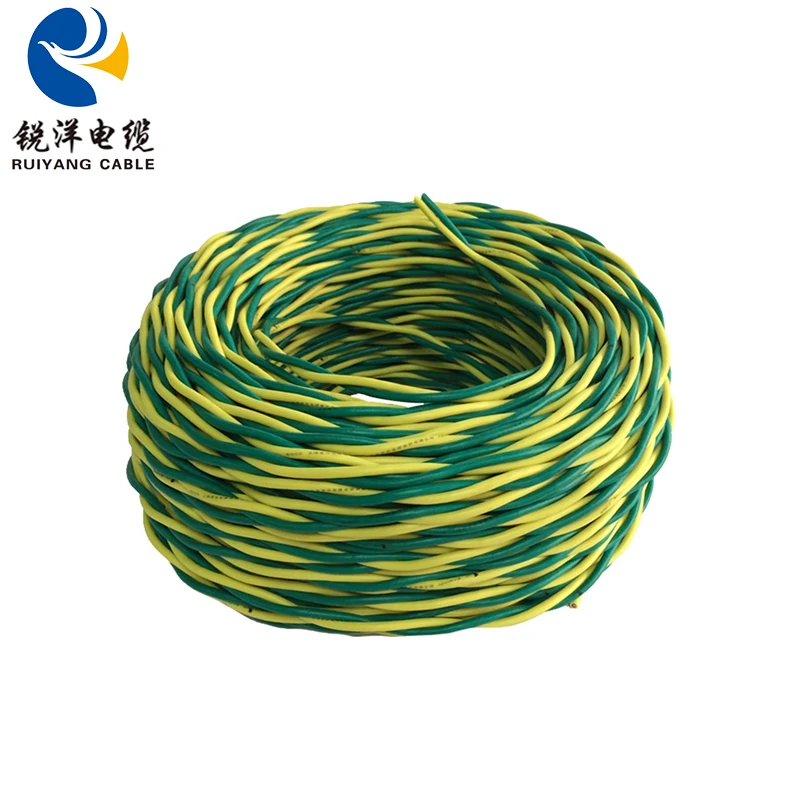

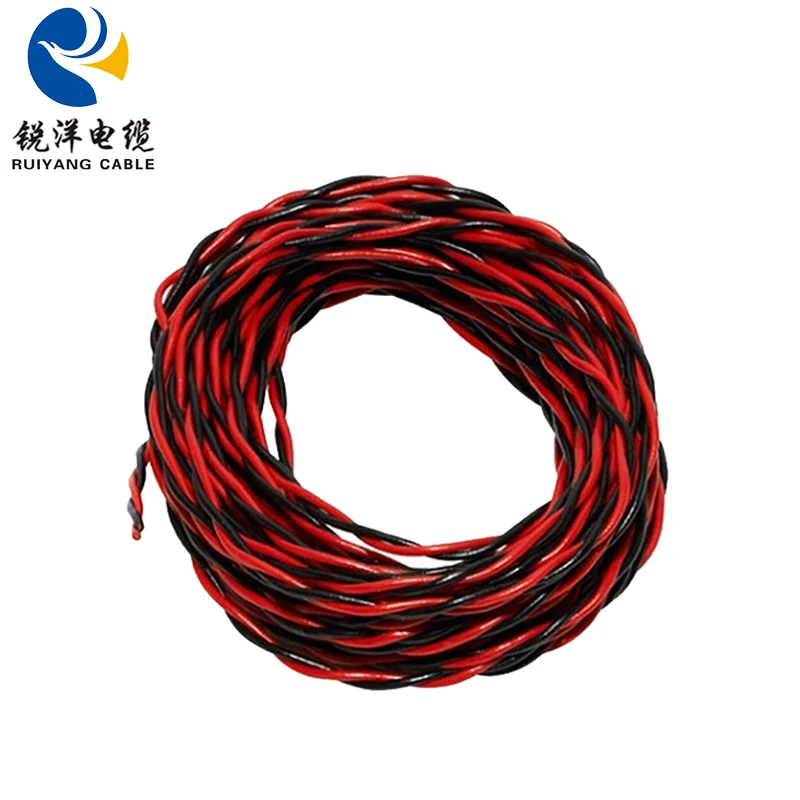

Twin Twisted Cable Pvc Insulated Rvs 2*1.5mm2 Electrical Wire Roll
- Category: >>>
- Supplier: Ruiyang Group Northeast Cable Co. Ltd.
Share on (60821103576):
Product Overview
Description
Product details
Detailed Description | The product is fit for a crated voltage 450/750V and below of domestic electrical appliances of smaller size electric tools,instruments,various meters and motorized lighting installations. |
Use characteristics | 1. Rated temperature: 70°C; 2. Rated voltage: 300/500V, 450V/750V ; 3. Tinned or bare stranded copper or copper clad aluminium wire conductor 0.5mm2~25mm2; 4. RoHs PVC Insulation 5. Passed GB 18380.1 vertical flame test; 6. Uniform insulation thickness to ensureeasy stripping and cutting; 7. Resistant to acids, oil, alkali, moisture and fungus . |
| our service | 1.Quickly and professional response; 2. China manufacturer with 8 years experience; 3. Excellent quality with reasonable price; 4. Sufficient support for our tendering representatives; 5. OEM service available based on official & legal authorization; 6. Strict quality control system; 7. Faster lead time than our competitors; 8. Cable solutions to your particular requirements; 9. Free sample is available with economic express fee; 10.12 months quality guarantee after delivery. |
Related products
| PVC insulation flexible wire(GB/T5023.3-2008) | ||||
| Model | Name | Voltage(V) | Nominal section(mm2) | Number/diameter of core (mm) |
| RV | Copper core PVC insulation jointed flexible line | 300/500 | 0.3 to 1.0 | 16/0.15 to 32/0.2 |
| 300/500 | 1.5 to 10 | 30/0.25 to 80/0.30 | ||
| RVB | Copper core PVC insulation paralled jonted flexible line | 300/300 | 2×0.3 to 2×1.0 | 2×16/0.15 to 2×32/0.20 |
| RVS | Copper core PVC insulation twisted joint flexible line | 300/300 | 2×0.3 to 2×0.75 | 2×16/0.15 to 2×32/0.15 |
| RVV | Copper core PVC insulation sheath paralled joint flexible line | 300/500 | 2×0.75 to 5×2.5 | 2×24/0.2 to 5×49/0.25 |
| RVVB | Copper core PVC insulation sheath paralled joint flexible line | 300/300 | 2×0.5 to 2×0.75 | 2×16/0.2 to 2×24/0.2 |
| RV-105 | Copper core heat-resistance 105 PVC insulation joint flexible line | 450/750 | 0.5 to 6 | 16/0.2 to 84/0.30 |
| RVS 300/300V | |||
| Nominal section (mm²) | Number/diameter of core (mm) | Maximum outer diameter (mm²) | Reference weight(Kg/Km) |
| 2*0.3 | 2*16/0.15 | 4.3 | 12.8 |
| 2*0.4 | 2*23/0.15 | 4.6 | 16.2 |
| 2*0.5 | 2*28/0.15 | 5.8 | 22.9 |
| 2*0.75 | 2*42/0.15 | 6.2 | 19.6 |
