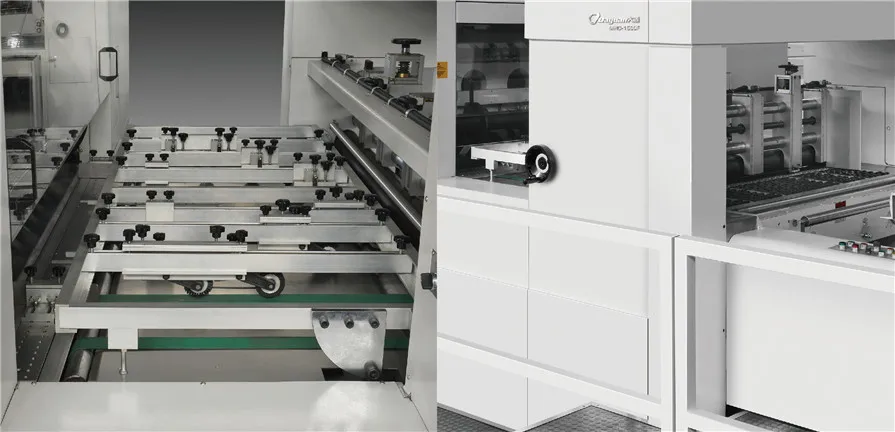

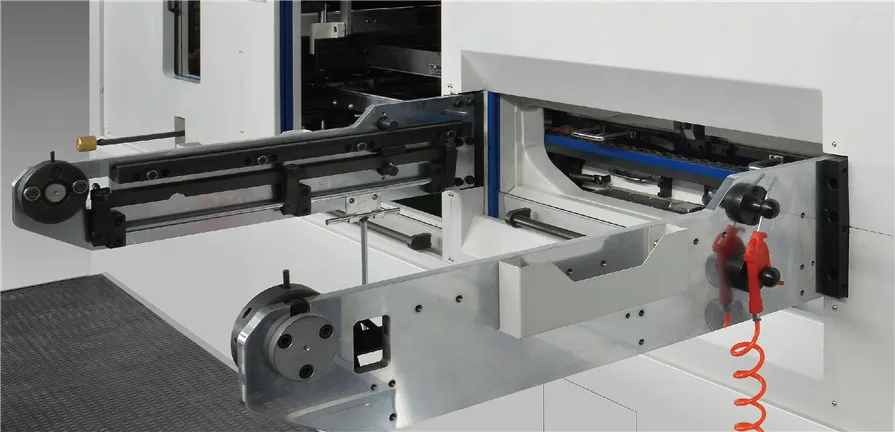

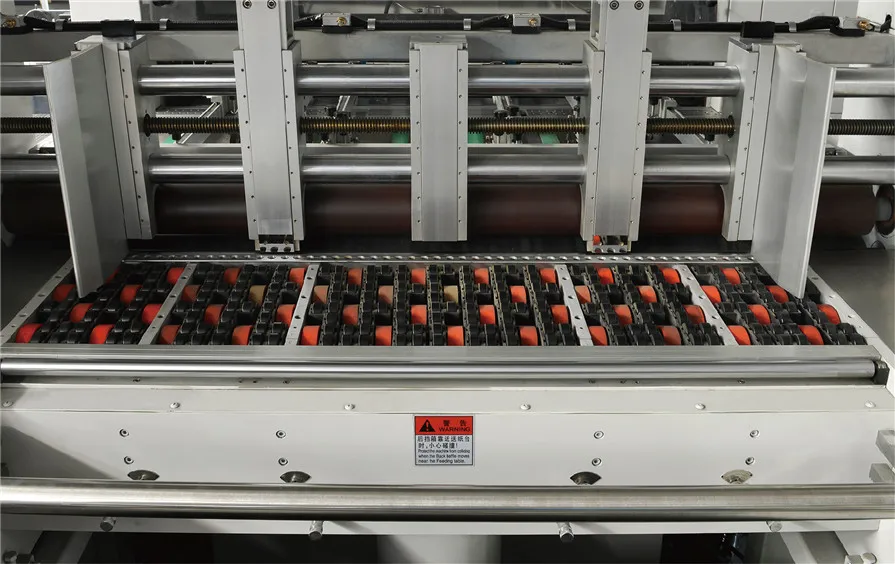

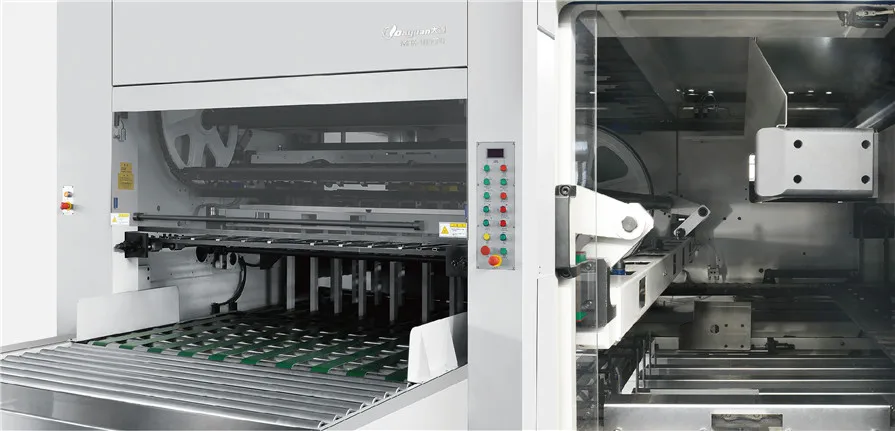

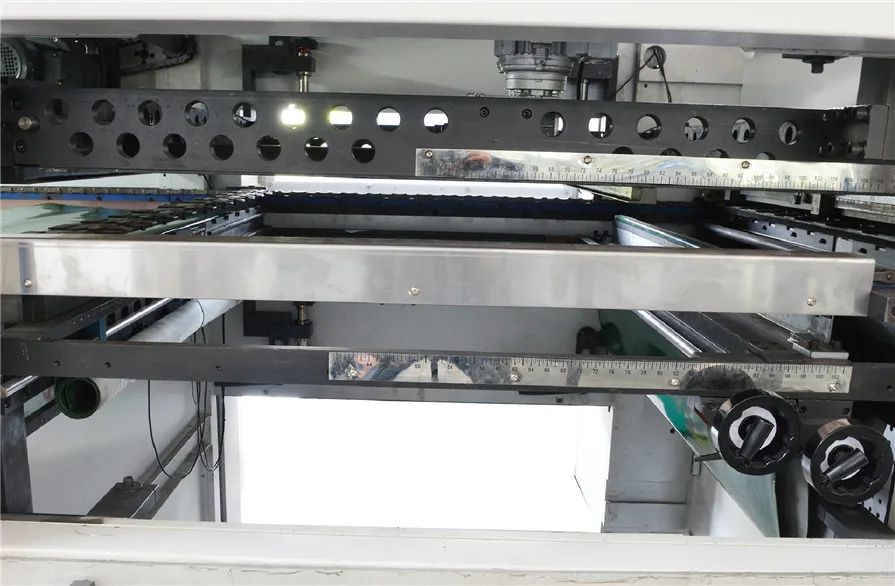

Dayuan Full Automatic die cutting machine with stripping unit
- Category: >>>
- Supplier: Zhejiang Dayuan Machinery Co. Ltd.
Share on (60821141072):
Product Overview
Description
Product Description
| PARAMETER | ||||

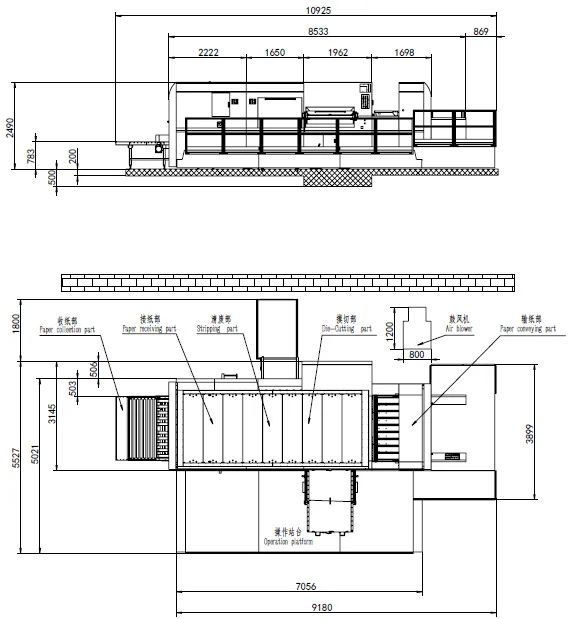

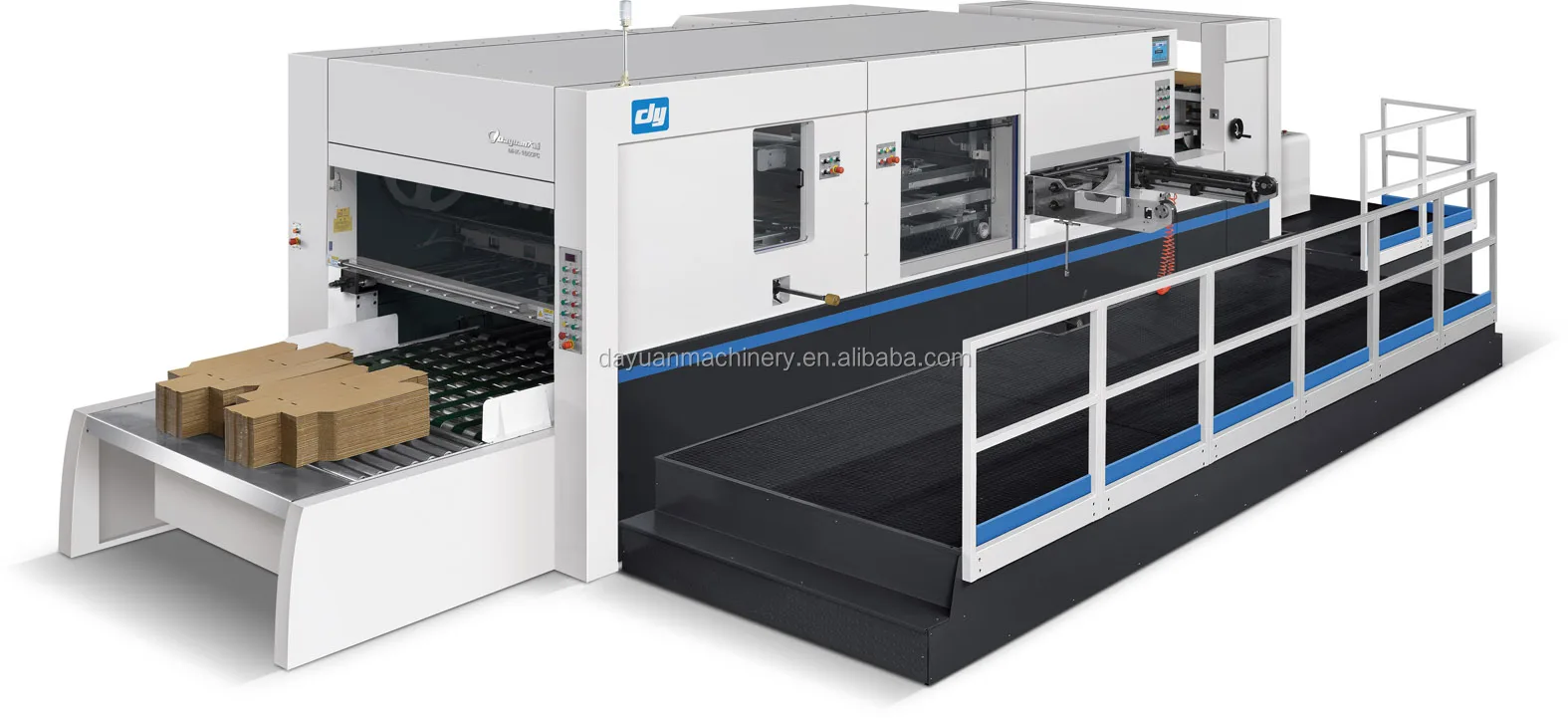

| Model | MHK-1300FC | MHK-1500FC | MHK-1650FC | MHK-1900FC |
| Max. sheet size | 1290*940mm | 1500*1100mm | 1650*1210mm | 1900*1400mm |
Min. sheet size | 480*480mm | 480*480mm | 650*500mm | 650*550mm |
| Max. die cutting size | 1280*920mm | 1480*1080mm | 1620*1180mm | 1870*1380mm |
| Min.gripper margin | 6-12mm | 6-12mm | 6-12mm | 6-12mm |
| Min.gripper waste | 12mm | 12mm | 12mm | 12mm |
| Cutting rule height | 23.8mm | 23.8mm | 23.8mm | 23.8mm |
| Inner chase size(mm) | 1310x970 | 1520x1130 | 1650x1230 | 1900x1430 |
| Sheet size | ≤8.5mm | ≤8.5mm | ≤8.5mm | ≤8.5mm |
| Max. working pressure | 400ton | 400ton | 400ton | 450ton |
| Max. working speed | 6000s/h | 6000s/h | 6000s/h | 5000s/h |
| Total power | 27kw | 32kw | 40kw | 40kw |
| Electrical power | 380V,50HZ,3PH | 380V,50HZ,3PH | 380V,50HZ,3PH | 380V,50HZ,3PH |
| Air pump displacement | 1.05m3/MIN,12kg/cm2 --(prepared by user)
| |||
Pressure adjusting range | ±1.5mm | ±1.5mm | ±1.5mm | ±1.5mm |
Machine dimension(mm) | 10700x4800 x2355 | 11700x5000 x2355 | 11600x5530 x2500 | 12000x5800 x2500 |
Machine weight | 22ton | 25ton | 36ton | 41ton |
More Products
Company Information
Packaging & Shipping
FAQ
1. Q: What is your delivery term?
A: FOB,CIF,CFR usually.
2.Q: What is your payment?
A: T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.
3.Q: What is your delivery time?
A: Die cutting machine, 30-40 days usually. If urgent, 15 days only.
Paper cutting machine, 20-30 days usually. If urgent, 15 days only.
4.Q: What is your warranty and other terms?
A: One year warranty. Spare parts are free for customer in 1 year, but customer have to pay delivery. We can send our engineer to customer factory for 7 days free installing and trainning, customer have to pay tickets, visa, meals and hotel. If need more training, $100.00 per day to our engineer.
