Airport equipments 2.5ton 3 ton airport baggage tow truck with CE certification
- Category: Truck >>>
- Supplier: Xiamen LTMG co. ltd
Share on (60821303633):
Product Overview
Description
Product Description

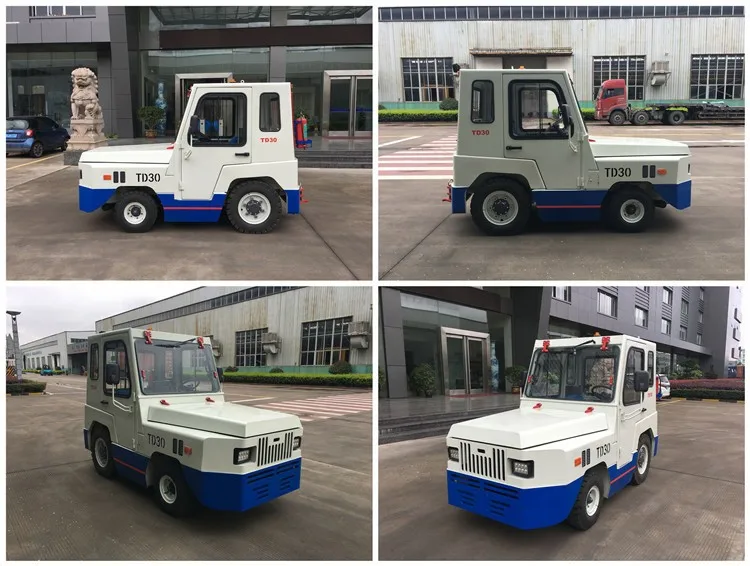

Airport equipments 3 ton airport baggage tow truck with CE certification
Specifications of 3 ton baggage tow truck | ||||
Model | TD30 | |||
Power Type | Diesel | |||
Max. drawbar pull | KN | 30 | ||
Max. towed weight at dry even concrete surface With one trailer/With a train of trailers | Kg | 38000 / 58000 | ||
Max. travel speed Forward/Backward | km/h | 29/13 | ||
Max. gradeability(No load) | % | 35 | ||
Overall length(with coupler) | mm | 3150 | ||
Overall width | mm | 1440 | ||
Overall height | mm | 1450 | ||
Wheelbase | mm | 1600 | ||
Front overhang(with coupler) | mm | 900 | ||
Front tread | mm | 1200 | ||
Rear tread | mm | 1190 | ||
Min. turning radius(Outer) | mm | 3250 | ||
Floor height | mm | 460 | ||
Seat height | mm | 940 | ||
Center height coupler | mm | 304.8/400 | ||
Coupler length | mm | 260 | ||
Min. ground clearance | mm | 150 | ||
Tire size Front/Rear axle | 6.50-10-10PR/7.00-15-12PR | |||
Truck weight( No load) | kg | 4100 | ||
Weight distribution Front/Rear axle | kg | 1350/2750 | ||
Model | Imported engine | |||
Displacement | cc | 3319 | ||
Rated output | kw/rpm | 42.1/2300 | ||
Rated torque | kg | 177.6-196.3/1600-1800 | ||
Our Company

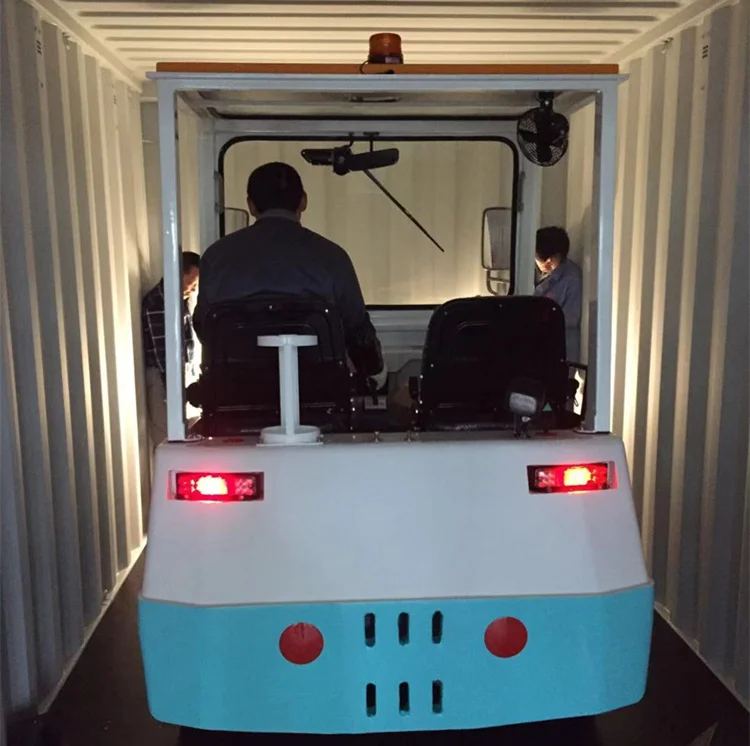

Packing & Delivery
Service At Airport
Our Customers
Our Service

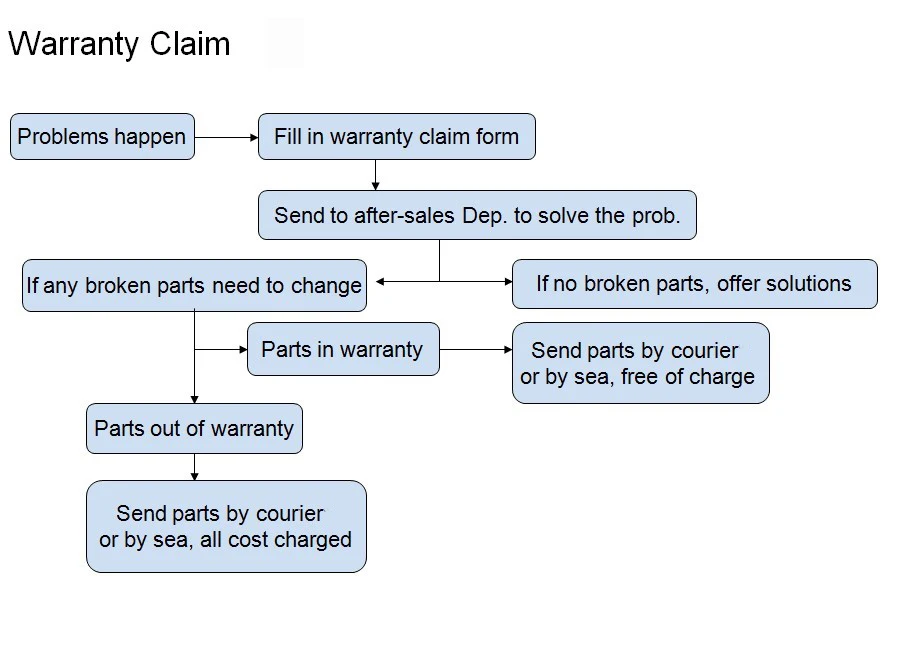

After-sale Service
LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
