Mini lathe chuck 100mm 3 jaw Self centering manual type scroll chuck metal lathe chuck 3 jaw K11 100

Product Overview

Description

3 jaw self-centering chuck 100mm

Specifications:
Jaws material: Hardened Steel
Model: K11-100
Max RPM: 4200 r/min
Jaw: 3 Jaw
Power: Manual

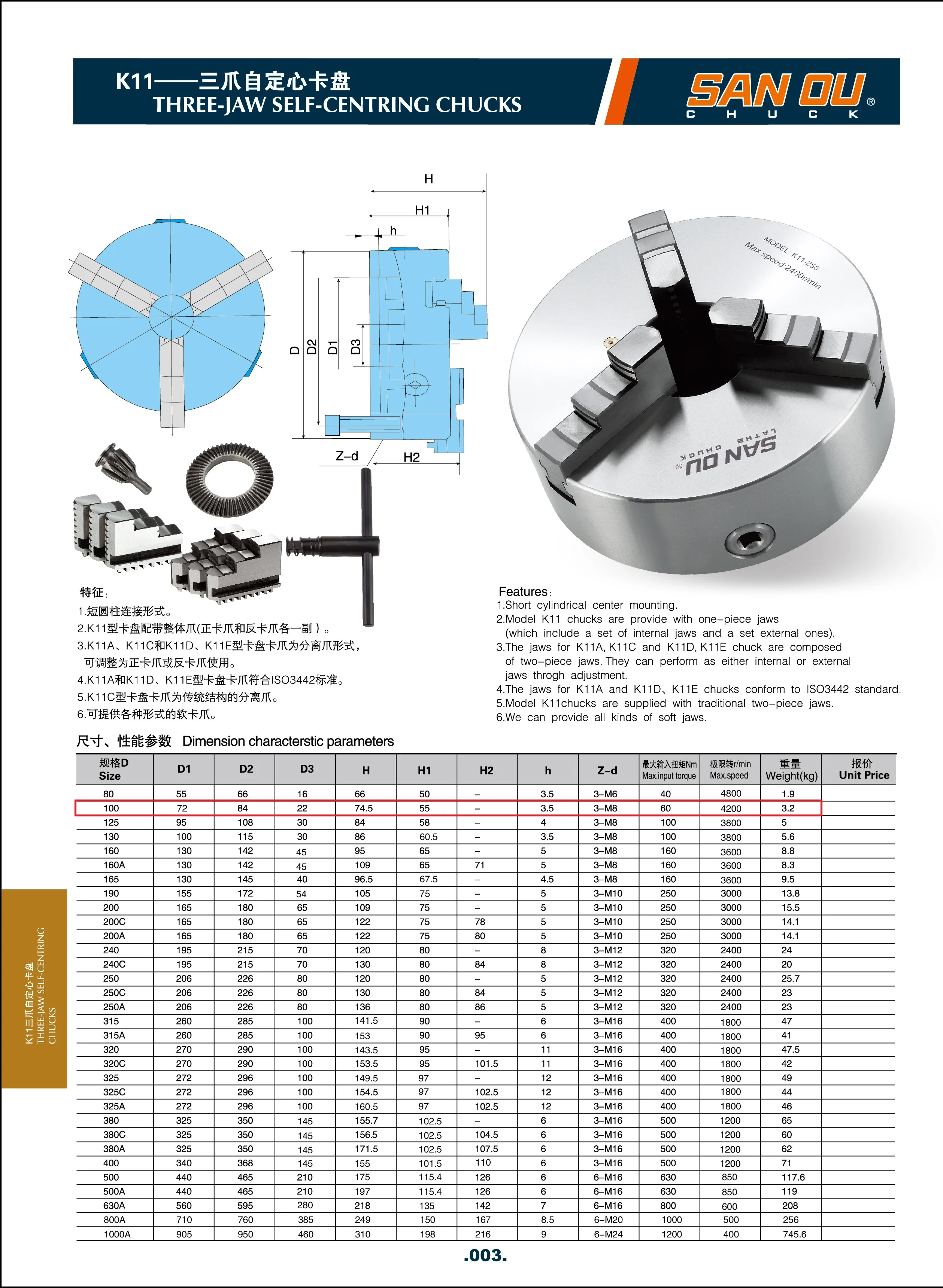

Features:
1. Short cylindrical center mounting .
2. Model K11 chucks are provided with one- piece jaws(which include a set of internal jaws and a set of external ones ).
3 .Model K11 chucks are supplied with traditional two-piece jaws.

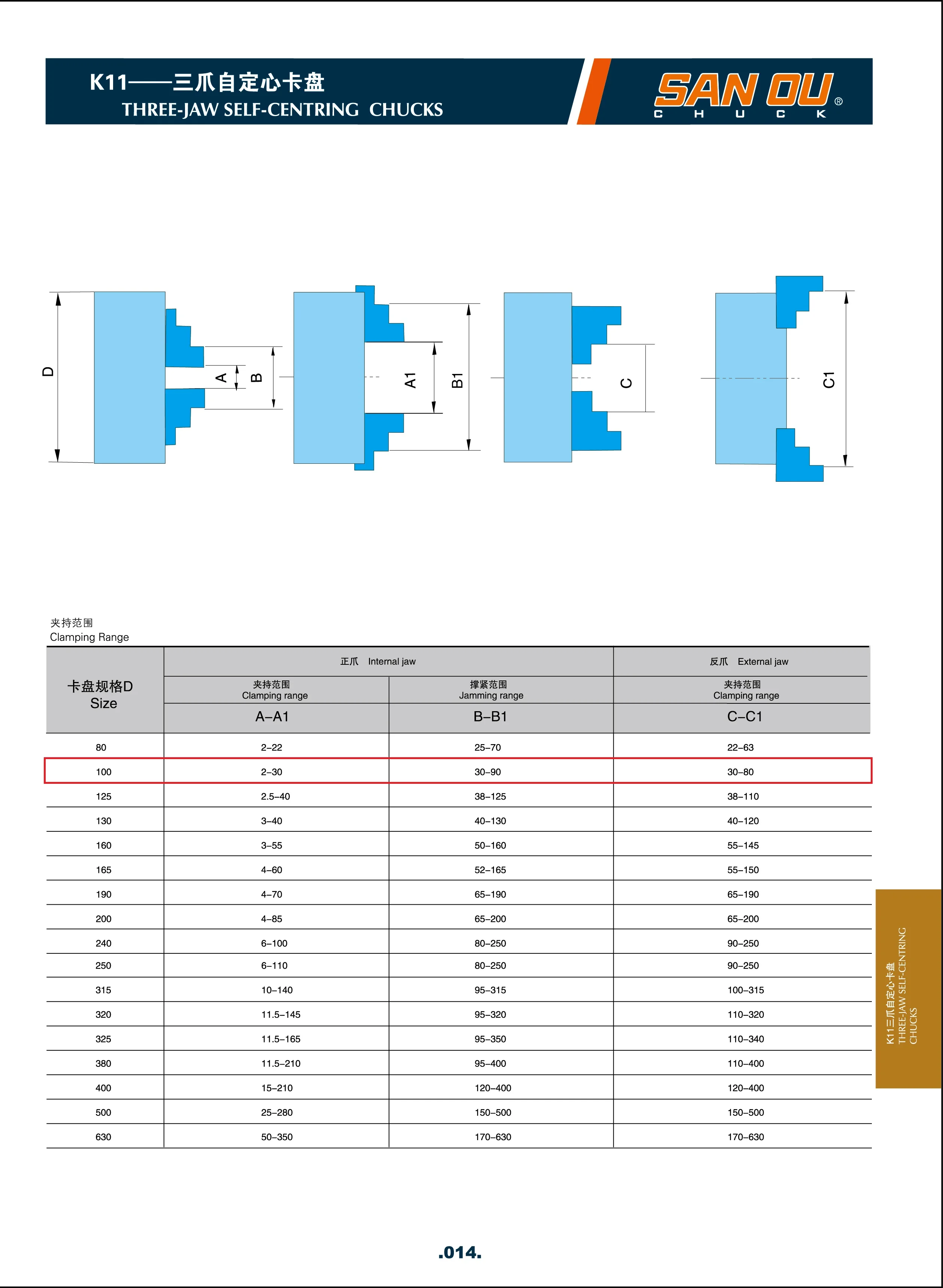

Internal Jaw:
Clamping Range A-A1: 2- 30mm
Jamming Range B-B1: 30- 90mm
External Jaw
Clamping Range C-C1: 30- 80mm

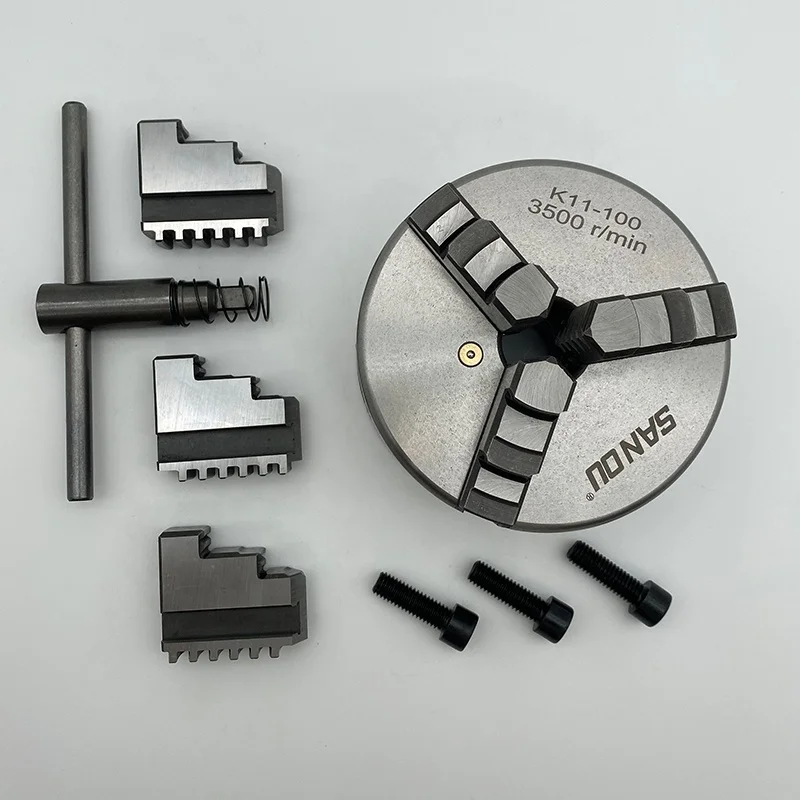

Packaged included :
Self-Centering chuck body x1
Inside jaws x 3
Outside jawslarge x 3
Safety chuck key x 1
Mounting bolts x 3
