Hole Punching Machine Hidrolik Press Hydraulic C Type 40 Ton 80 Ton Hydraulic Press for Square Washer Hole Punch Machine Size

Product Overview

Description

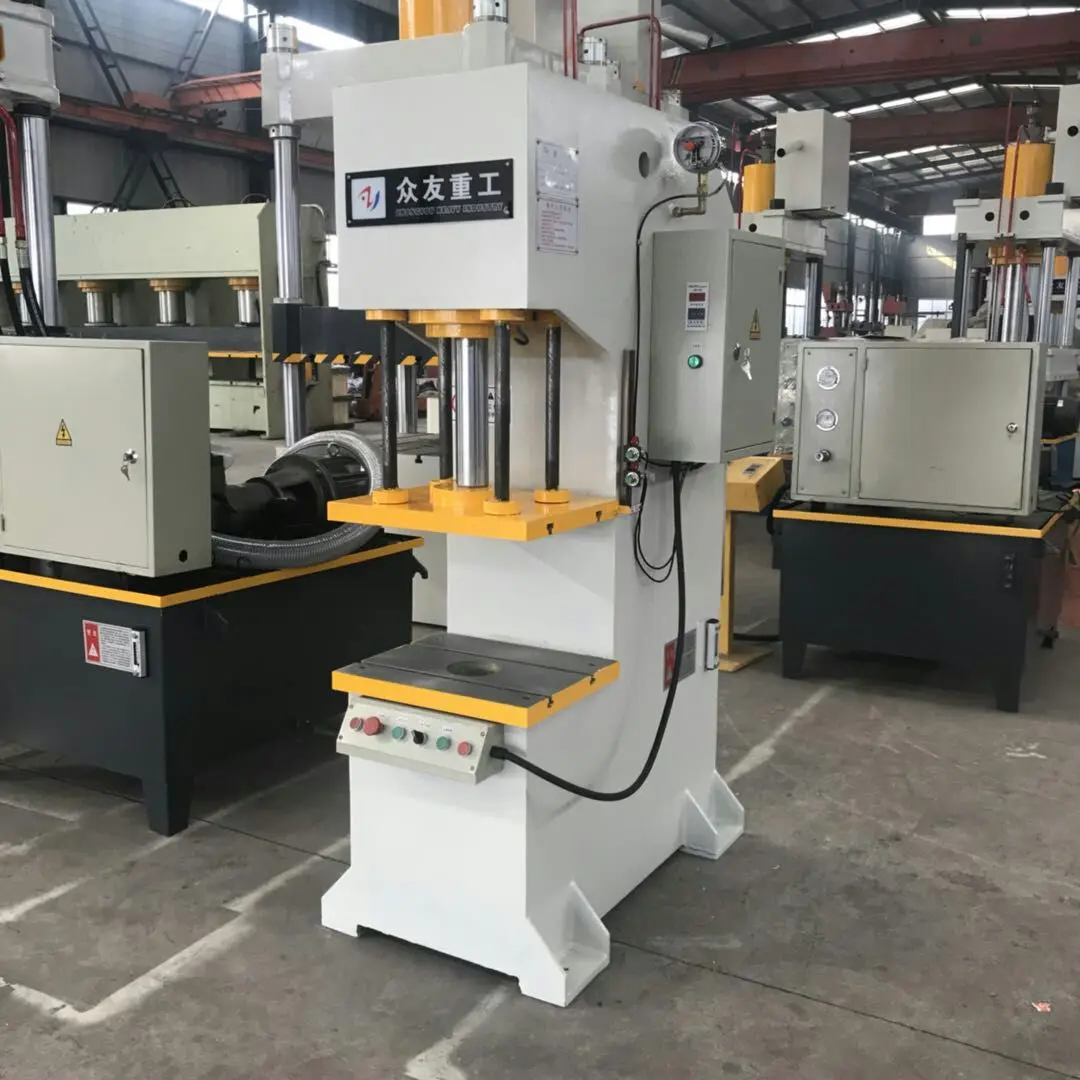

Hydraulic C type 40 ton 80 ton hole punching machine hidrolik press



Parameter name	Unit	YQ41-20T	YQ41-40T	YQ41-63T	YQ41-100T
Nominal force	KN	200	400	630	1000
Max stroke of the slide	mm	260	260	280	320
Max opening height of the slide	mm	600	600	700	700
throat depth	mm	200	220	240	280
Slider down speed	mm/s	16	19	13	10
Slider return speed	mm/s	19	25	17	13
Workbench effective area	mm	500×400	500×400	600×450	700×500
Blanking hole diameter	mm	80	100	120	200
Machine dimensions (L × W × H)	mm	980×630×1670	1080×650×1800	1180×700×2020	1380×800×2120



Safety devices for hidrolik press:
1) Stationary and emergency stop button: Press the “Still” button when an error occurs, and the operation stops. Press the "emergency stop" button to stop the operation of the 5-ton single-column hydraulic motor.

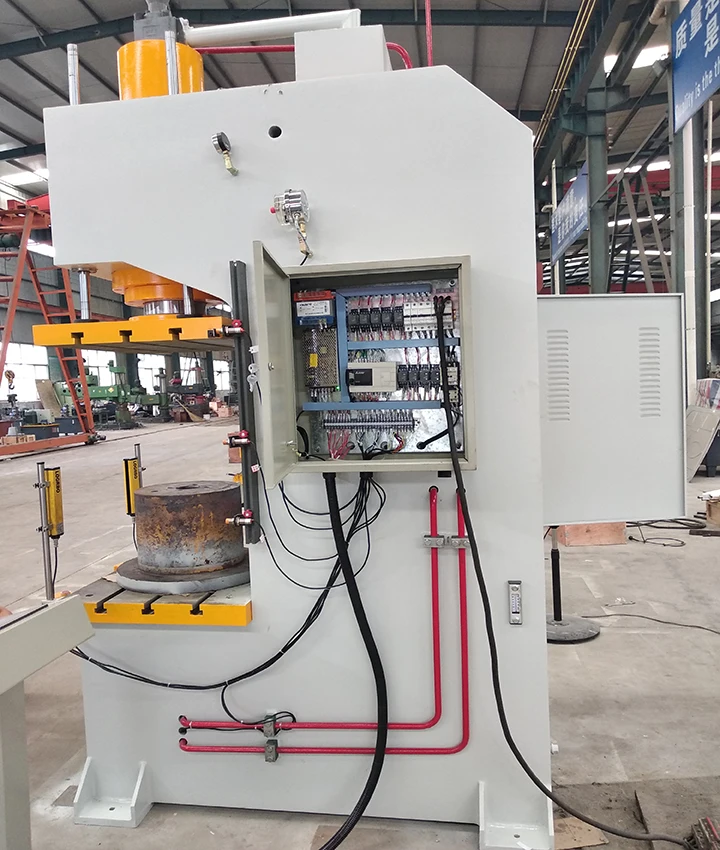

2) The single-column hydraulic motor control part has thermal protector, circuit breaker and other devices to protect the motor from damage and over-current short circuit protection.
3) Single cylinder hydraulic cylinder master cylinder lower chamber control block is equipped with non-slip drop device and safety valve, the slider can be at any position, to prevent the slider from falling out of control.

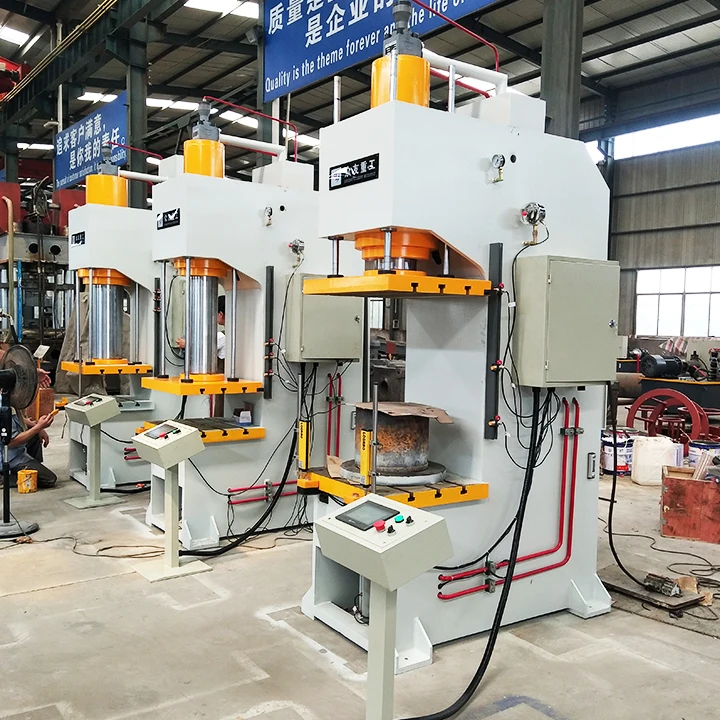

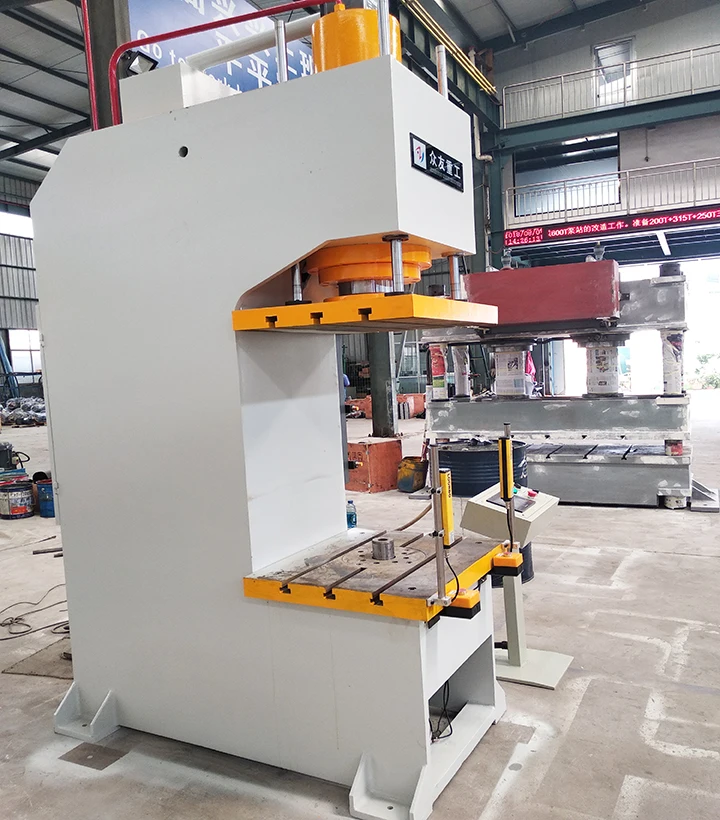

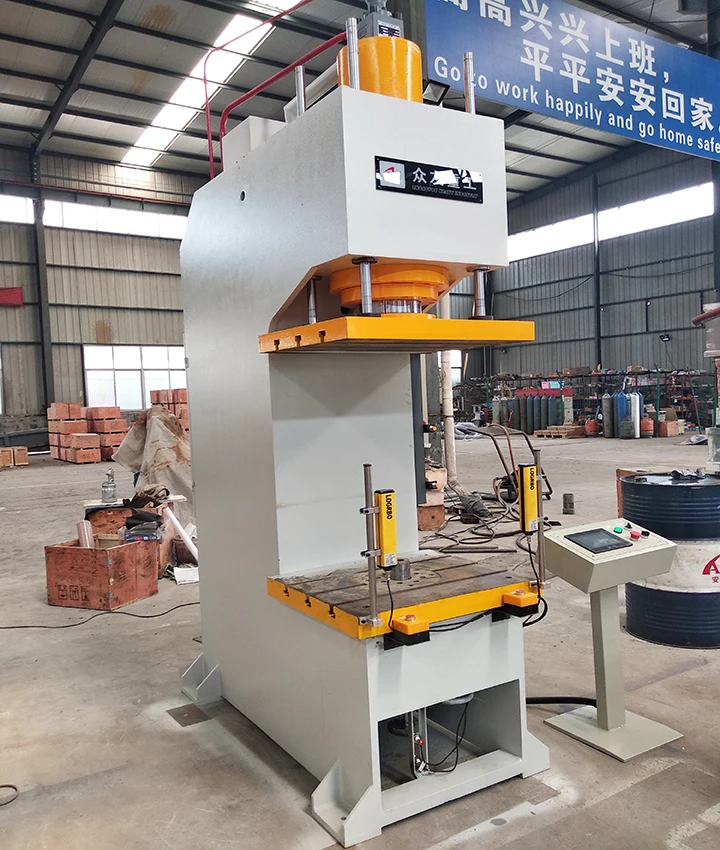

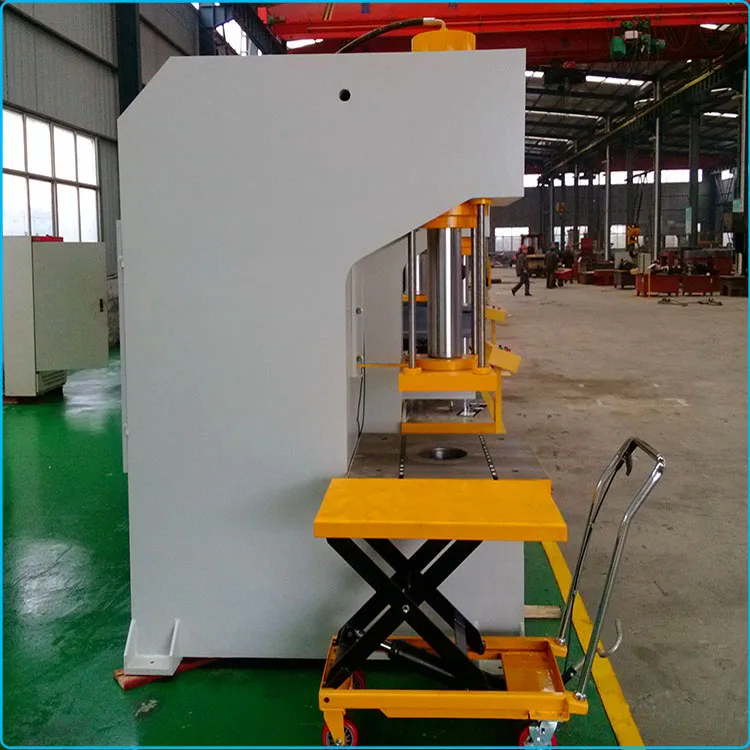

40T 80T C Type hydraulic press:

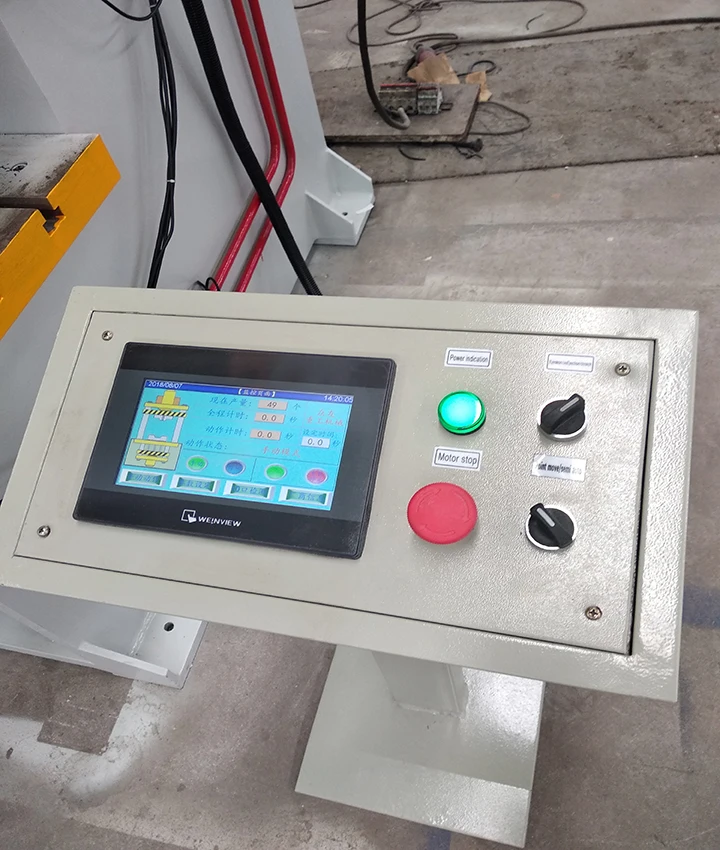

1.PLC control,photoelectric protection device are available.
2.With centralized control button, manual and semi-automatic two mode of operation.
3.Small size,easy to move,cheap price but good quality
4.Two switch:foot switch and hand switch can be choose
5.With T-slot,easy to ut mould





              Wheelbarrow making machine            Four column hydraulic press                 Animal licking Salt block press machine

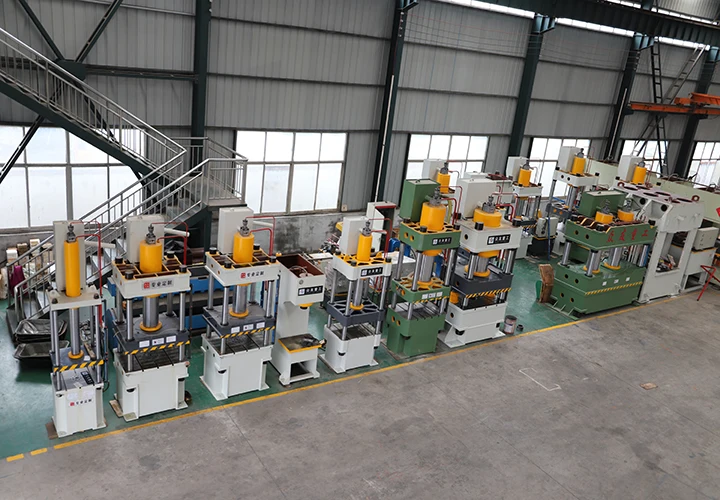

TengZhou Zhongyou Heavy Industry Machinery Equipment Co.,Ltd is one of professional producing hydraulic press machine companies in our country.The company has many equipments,such as:large floor type boring and milling machine,heavy machine tool,milling machine,planing machine and so on.And mainly producing various C type hydraulic machine punching hole press machinery.



FAQ:

1.How to control quality?

all hydraulic press machines shall be inspected by the inspection personnel of the manufacturer before they go out.

2.Are we a manufacturer?

Yes, we are engaged in the production of hydraulic machinery manufacturers.

3.Where is our company?

No.219,Xingye North Road,Economic Development Area,Tengzhou City,Shandong Province.
