Автоматический рапир для образцов ткацкого станка, вставка уток, подходит для различных пряжи

Автоматический рапир для образцов ткацкого станка, вставка уток, подходит для различных пряжи

Category: Weaving Machines >>>
Supplier: Anytester,(hefei),Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

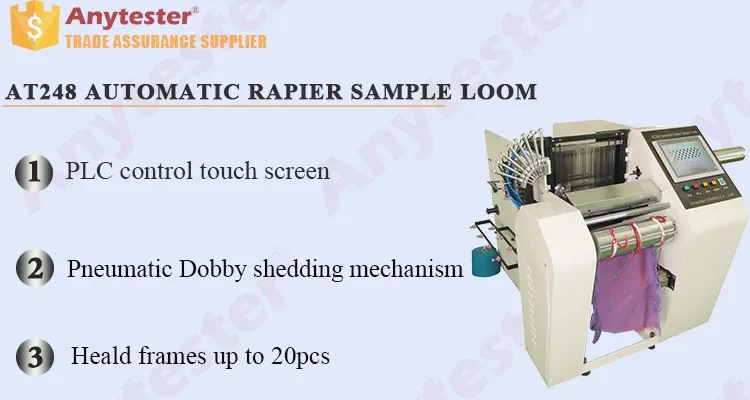

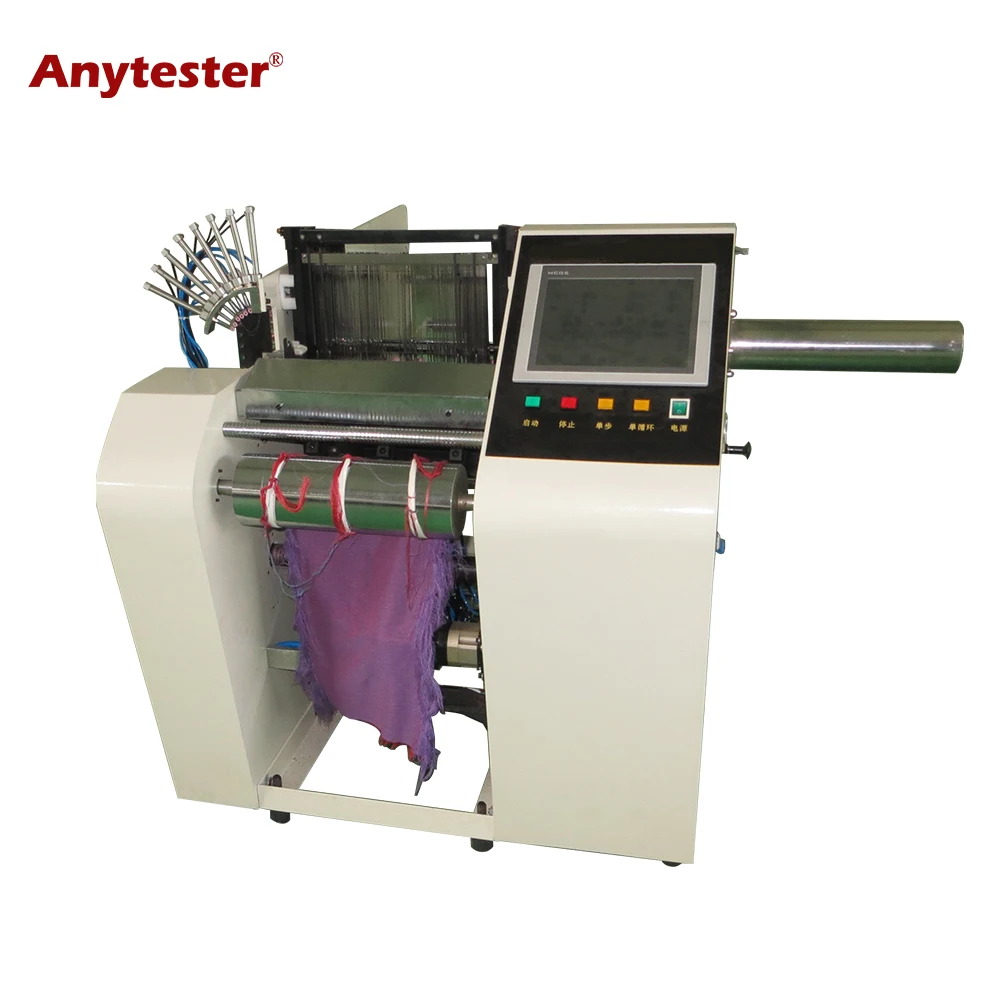

AT248 Automatic Rapier Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.

Detailed Images

Model			AT225
Reed width			12inches (16, 20, and 24inch, optional)
Yarn linear density range			5~500tex
Weft density			30~45weft/min, selectable
No. of heald frame			4~20
Color selection			8 color, automatic pneumatic control
Let-off			Active electronic control
Take-up			Motor control
Shedding			Dobby shedding, pneumatic control
Beating-up			Motor control
Air pressure			0.45~0.8Mpa
Air consumption			Max. 200L/min
Power			A220V 50Hz, single-phase

PLC control touch screen with 2G memory capacity to store designed patterns;

Designable and editable patterns and USB interface to share designed patters;

Mechanical let-off, beating-up and take-up and pneumatic shedding and selection of weft yarns;

Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;

Rapier weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;

Heald frames up to 20pcs, easy to mount and dismount;

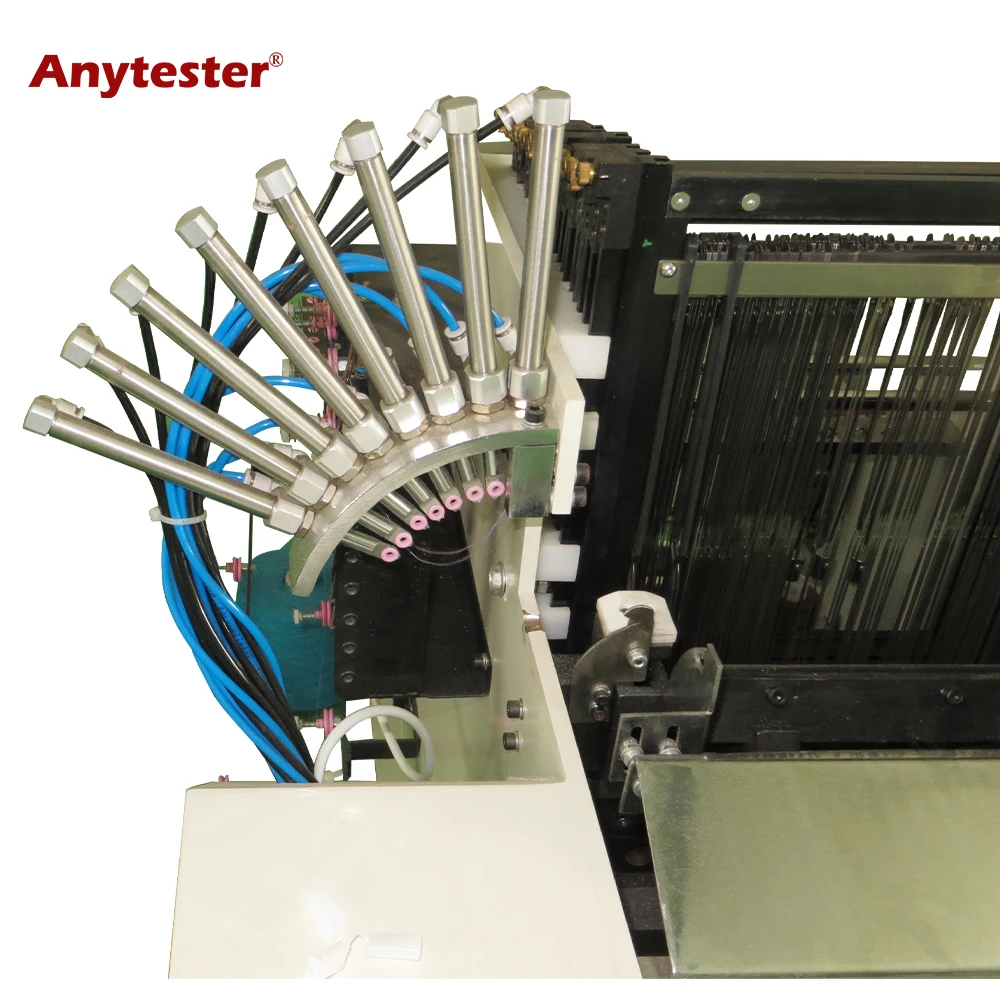

Automatic pneumatic selection of weft yarns up to 8 colors;

Professional software for designing or editing patterns;

Packing & Delivery

Packaging
Size(cm)	140(L) * 180(W) * 180 (D)
Weight	200Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.
