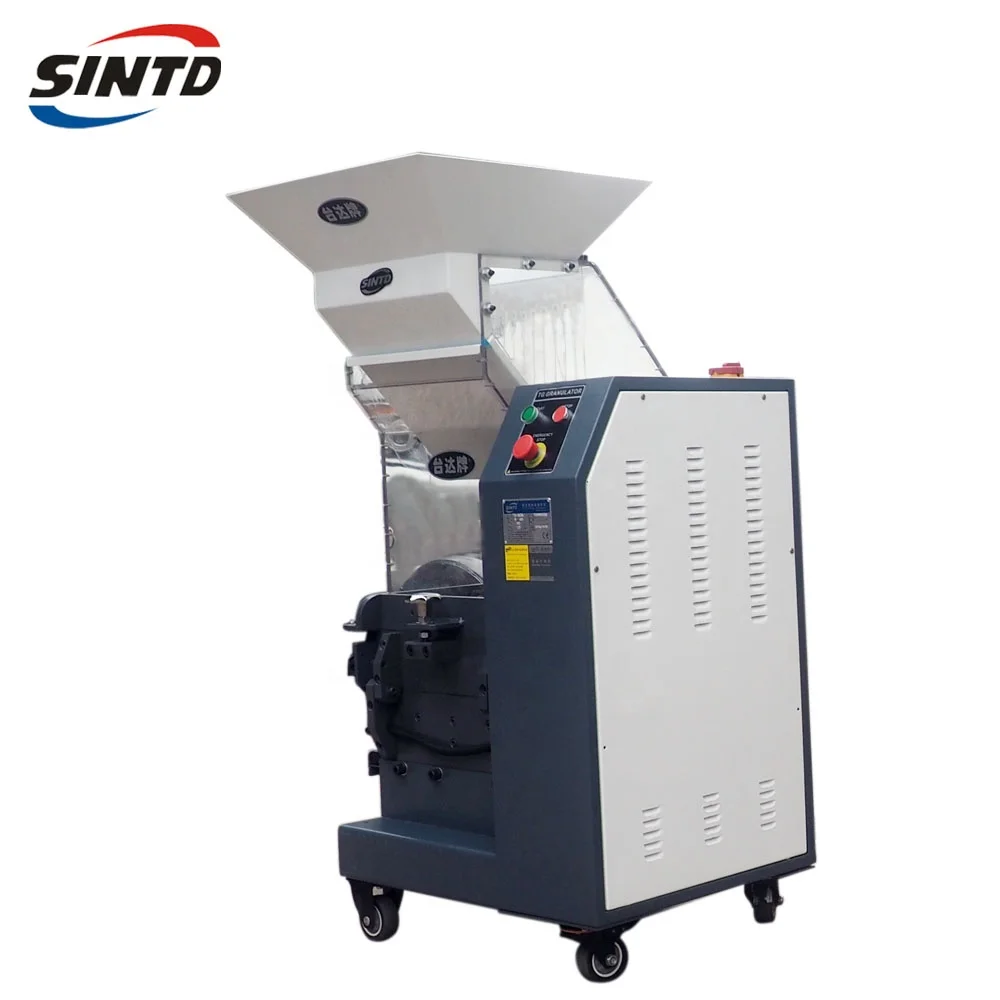

Industrial Plastic Crusher Used Plastic Recycling Granulator Machine

Industrial Screenless Granulator

                                     TG-2618/27/36 series granulators operate in super low speed to cut materials into well proportioned granules. There are least dusts produced in the cutting process. Multiple security devices ensure high safety grade; This series of screenless granulators are suitable for long thick materials or degraded materials with strong ductility , which are recycled from a small amount of scrap materials ' granulating.

Main Features：

1) Japan-made gear motor features steady performance, long service life and high torque.

2) Teeth cutters and cutting blades are integrally fitted in one cutting chamber.

3) "Euro" style appearance, compact in size and easy to access for cleaning and maintenance.

4) Transparent PC feeding hopper.

5) Screenless design, well-proportioned size of regrinds and least amount of dusts. Regrinds could be used with virgin materials.

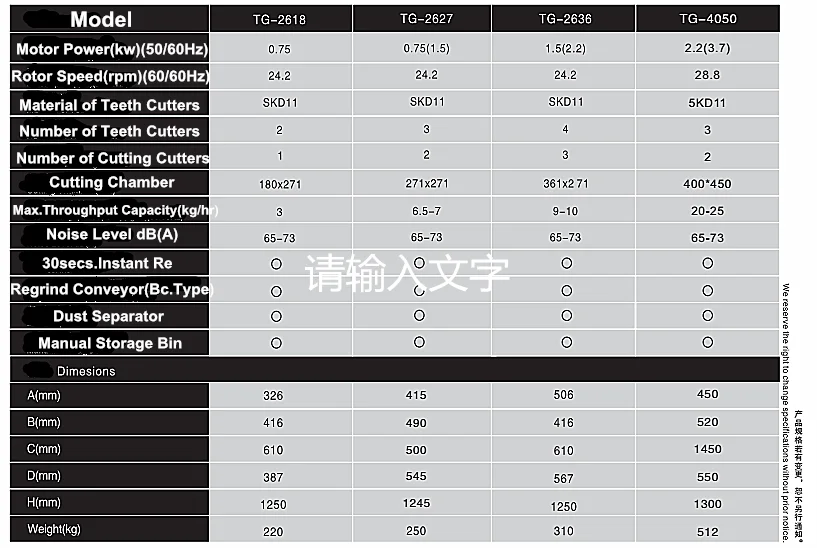

Specification:

Note:

1) "O"Stands for options

2) For stainless steel made feed port and manual storage bin, plus "R" at model behind.

3) Max.Capacity of the machine is subject to the size and composition of the materials.

4) Noise level will vary with different materials.

5) SKD11 is material code number of Japanese JIS standard.

6) Teeth cutter blades with 5mm width as standard, 6mm as optional

7) In order to avoid plastic blades, all of the materials should be carried out at room temperature crushed.

8) Power supply: 3p, 400V, 50Hz.

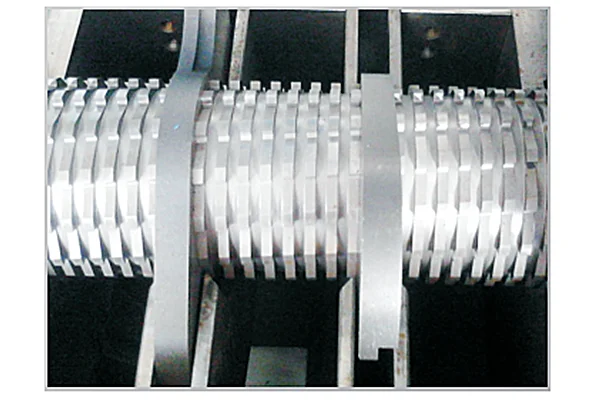

Staggered Blades
