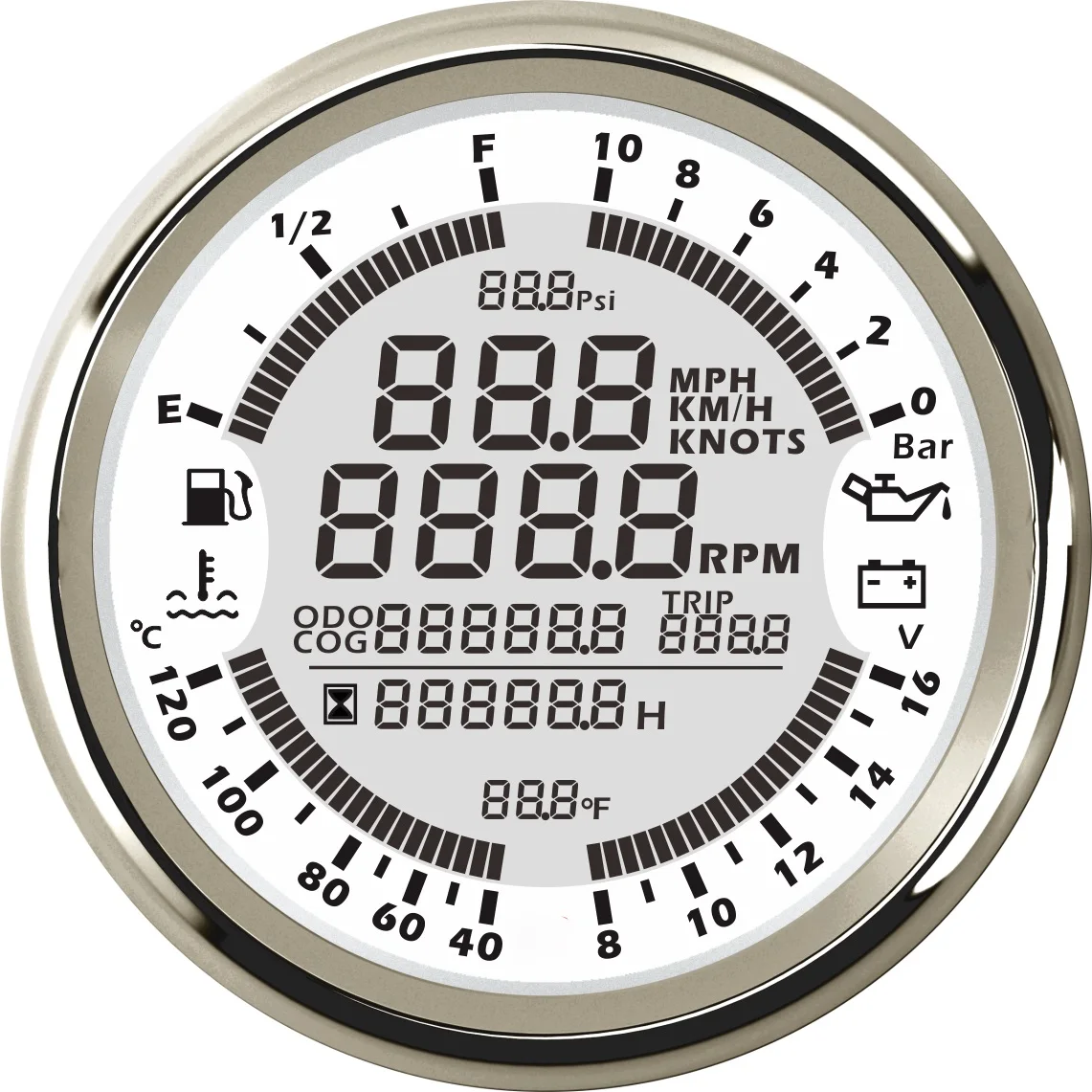

ELING Electrical 85mm 6 in 1 Multifunctional Gauge Signal GPS Pulse 12V Universal 0-10Bar
- Category: Motorcycle Meter >>>
- Supplier: Shanghai,Eling,Electronic,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

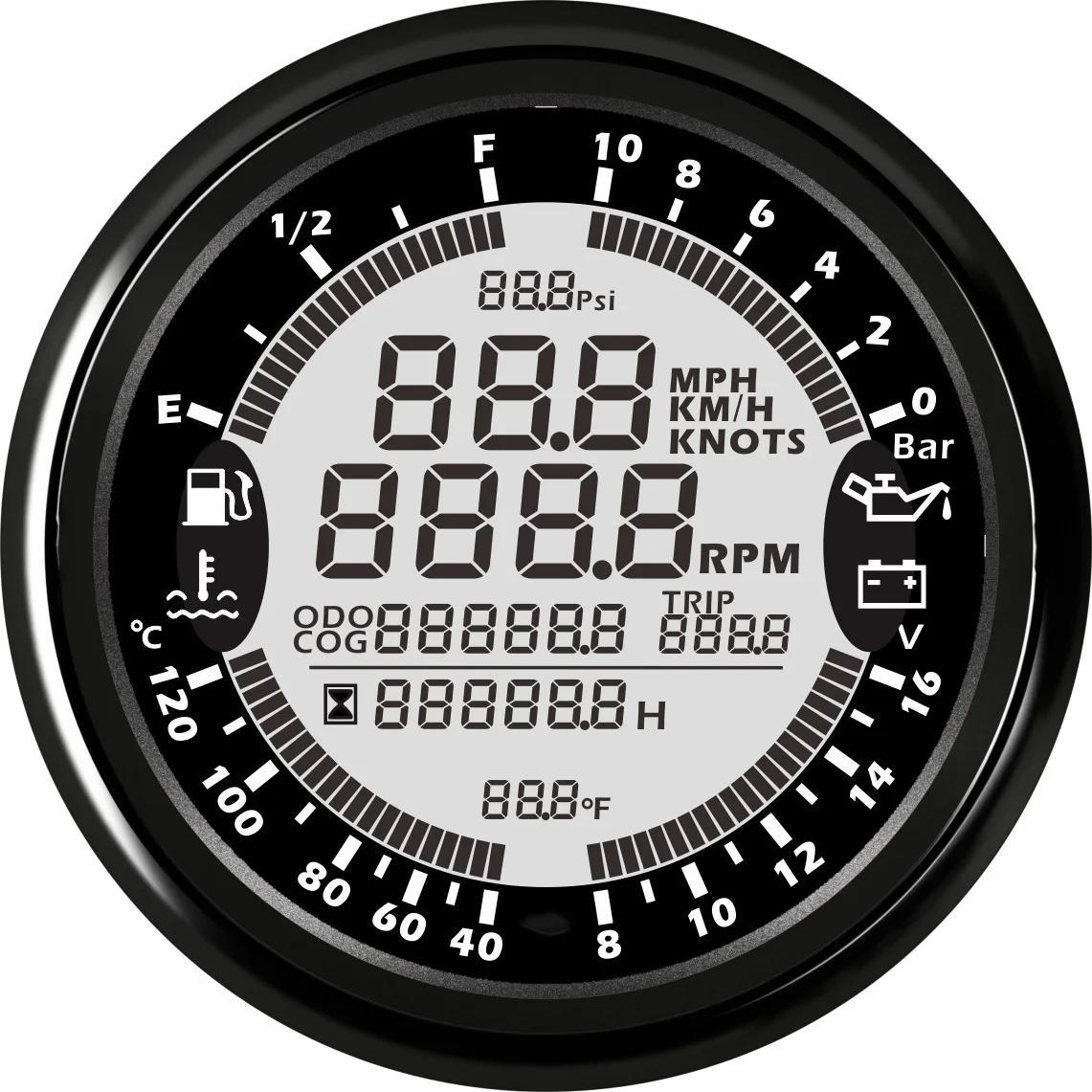

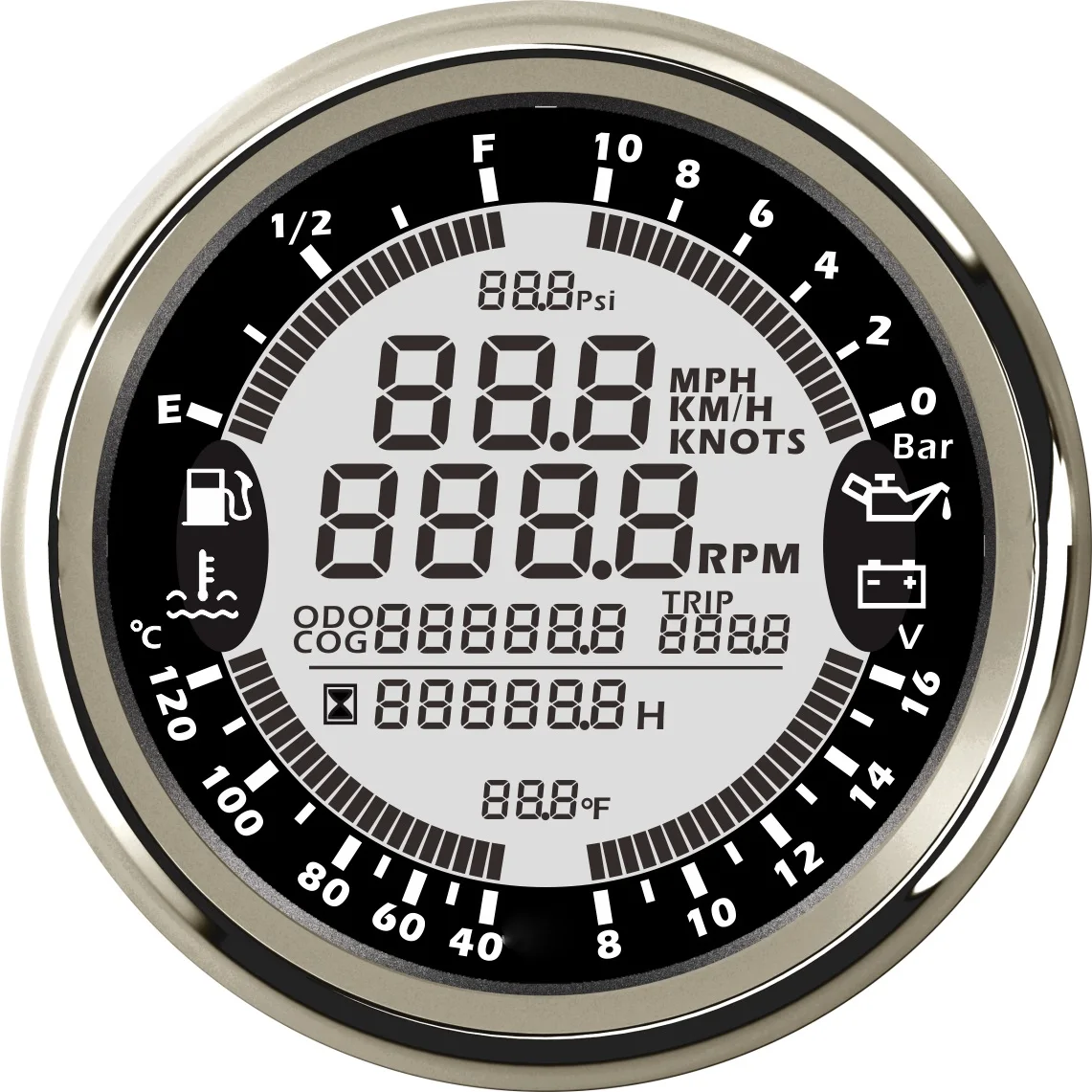

WS BS BN
Size | 85mm | Voltage | 8-16V |
Color | WS BS BN | Application | Universal |
Backlight | Red, Orange, Green, Yellow, Blue, Purple, White | Certification | CE |
Brand | Eling | Warranty | 1 year |
Price | USD 97-115 | Port | Shanghai |
MOQ | 1 Piece | Protection Range | IP67 |
Key Features:
-Suitable for all vehicles, boats and off-road vehicles
-The gauge has the advantages of high precision, quick location confirmation and short start up time.
-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
-IP67 waterproof and dustproof grade
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher
precision, etc
-With curved glass (with anti-fogging function)
-The gauge has the advantages of high precision, quick location confirmation and short start up time.
-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
-IP67 waterproof and dustproof grade
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher
precision, etc
-With curved glass (with anti-fogging function)
-Tachometer RPM range:0-9999RPM
-Speedometer indication range:
-Speedometer indication range:
0-999(km/h MPH,knots available)
-Water Temp gauge indication range:
-Water Temp gauge indication range:
40-120℃ (104-248)
-Pressure gauge indication range:
-Pressure gauge indication range:
0-10Bar
-Total mileage indication range:
-Total mileage indication range:
0-99999.9(km miles knots available)
-Hour meter indication range:0-99999.9
-Tripmeter indication range:
-Hour meter indication range:0-99999.9
-Tripmeter indication range:
0-999.9(km/h MPH,knots available)
-Working voltage:8-16VDC
-Operating current:<150mA
-Grade of protection:IP67
-Working voltage:8-16VDC
-Operating current:<150mA
-Grade of protection:IP67

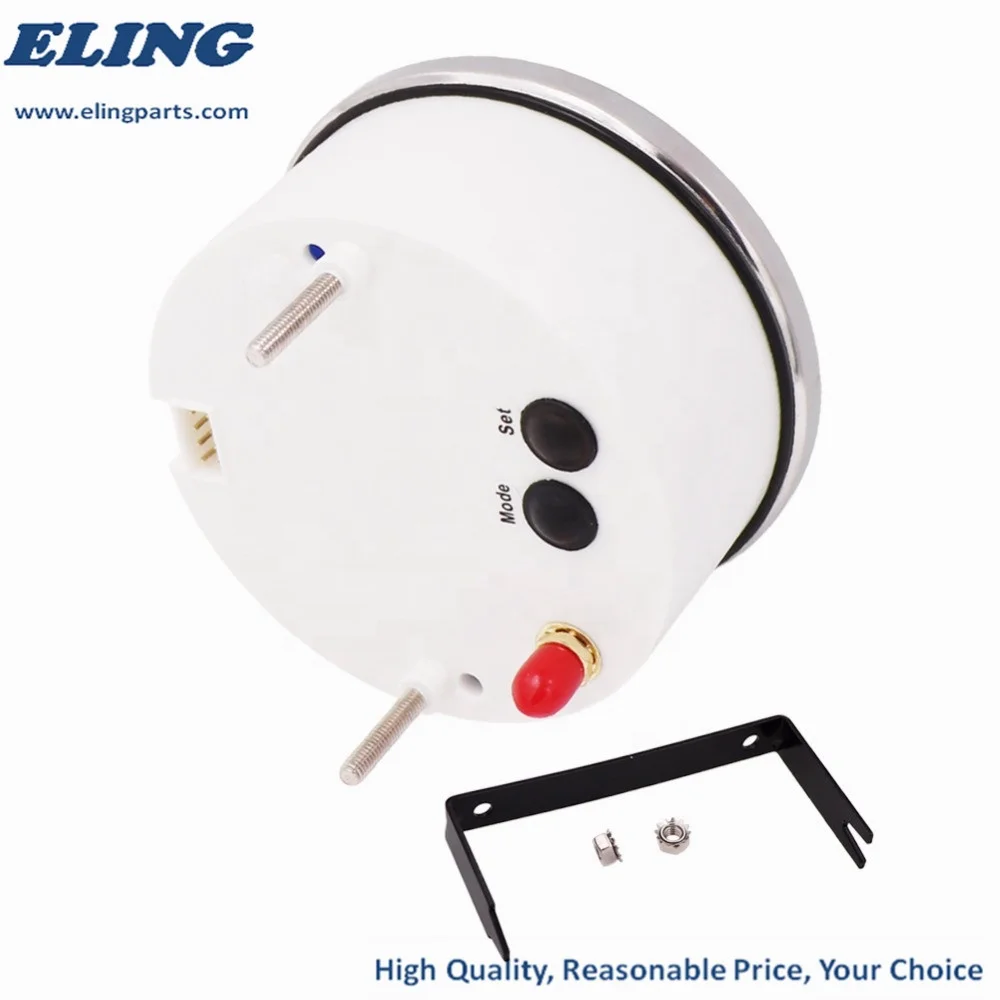

Package Includes:
1x Multi-functional Gauge
1x Multi-plug socket
1x Installation Instruction
Technical Data
-Fixing dimension: 85mm
-Indicating Range:
-Indicating Range:
GPS Speedometer Tachometer Hour Meter Hour Water Temp Fuel Level Oil Pressure Voltmeter
-Working Voltage: 8-16V
-Backlight: Red, Orange, Green, Yellow, Blue, Purple, White( you can press the button to change)
-Operation mode: LCD display, stepper motor
-Working Voltage: 8-16V
-Backlight: Red, Orange, Green, Yellow, Blue, Purple, White( you can press the button to change)
-Operation mode: LCD display, stepper motor
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
Package: Using standard export neutral packaging.
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT, EMS etc.
2. By Air: Delivery from the Shanghai airport to customers' destination city airport
3. By Sea: Delivery from the Shanghai sea port
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q1. Can I have a sample order?
A: Yes, it's ok for testing.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q7: Is there instruction installation?
A: Yes, each gauge comes with instruction installation in the package.
If you have more questions, just contact us soon
