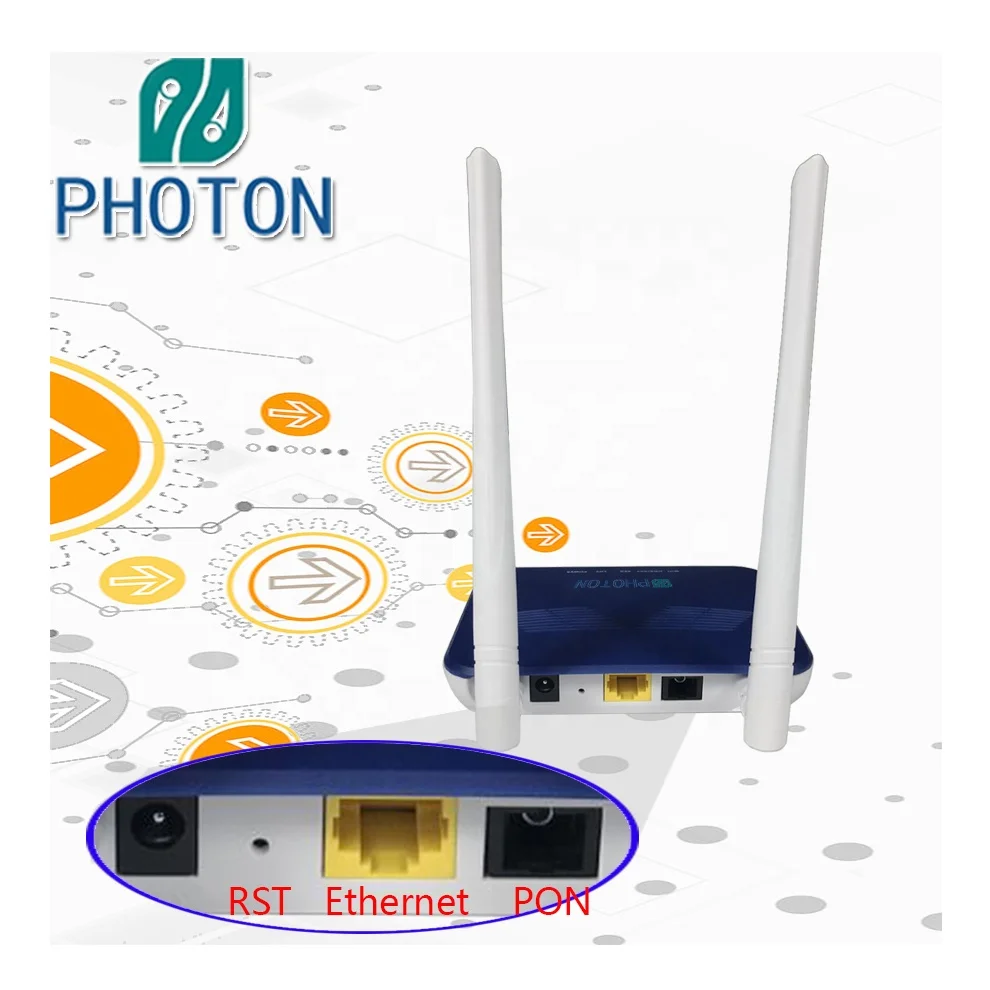

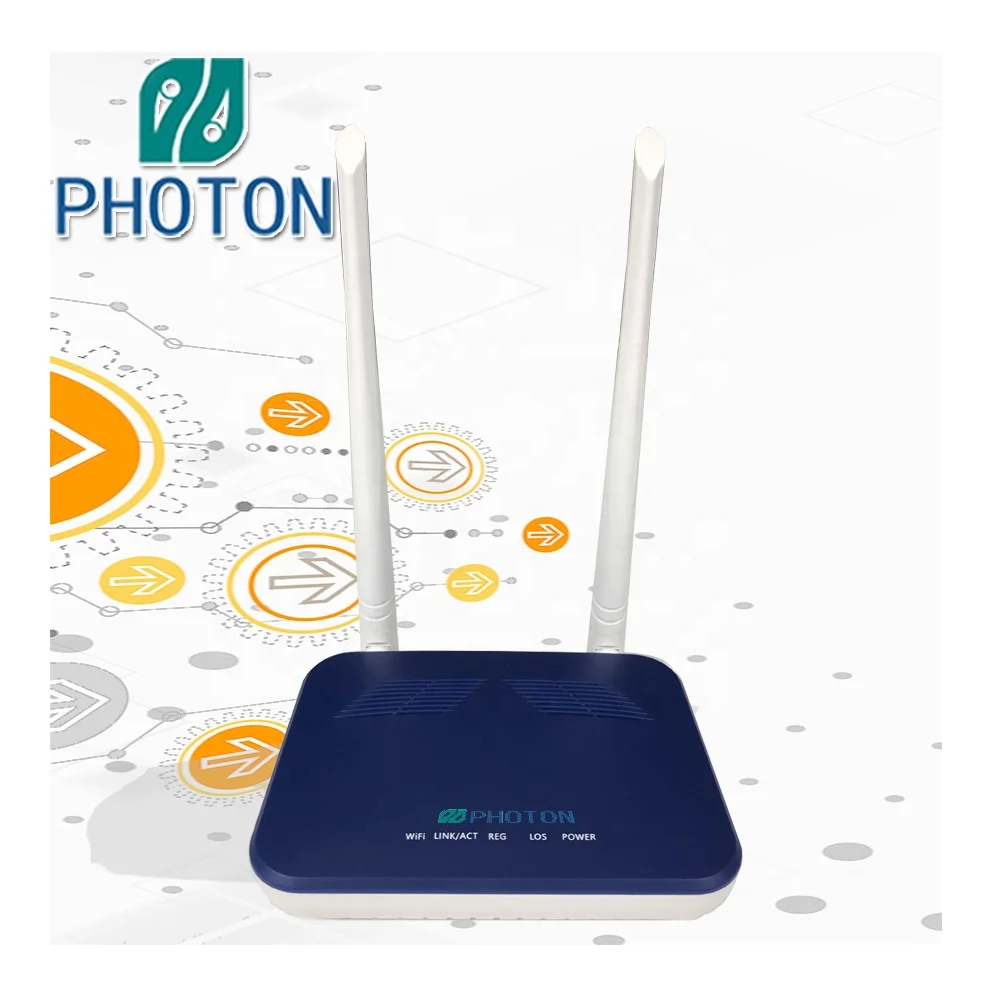

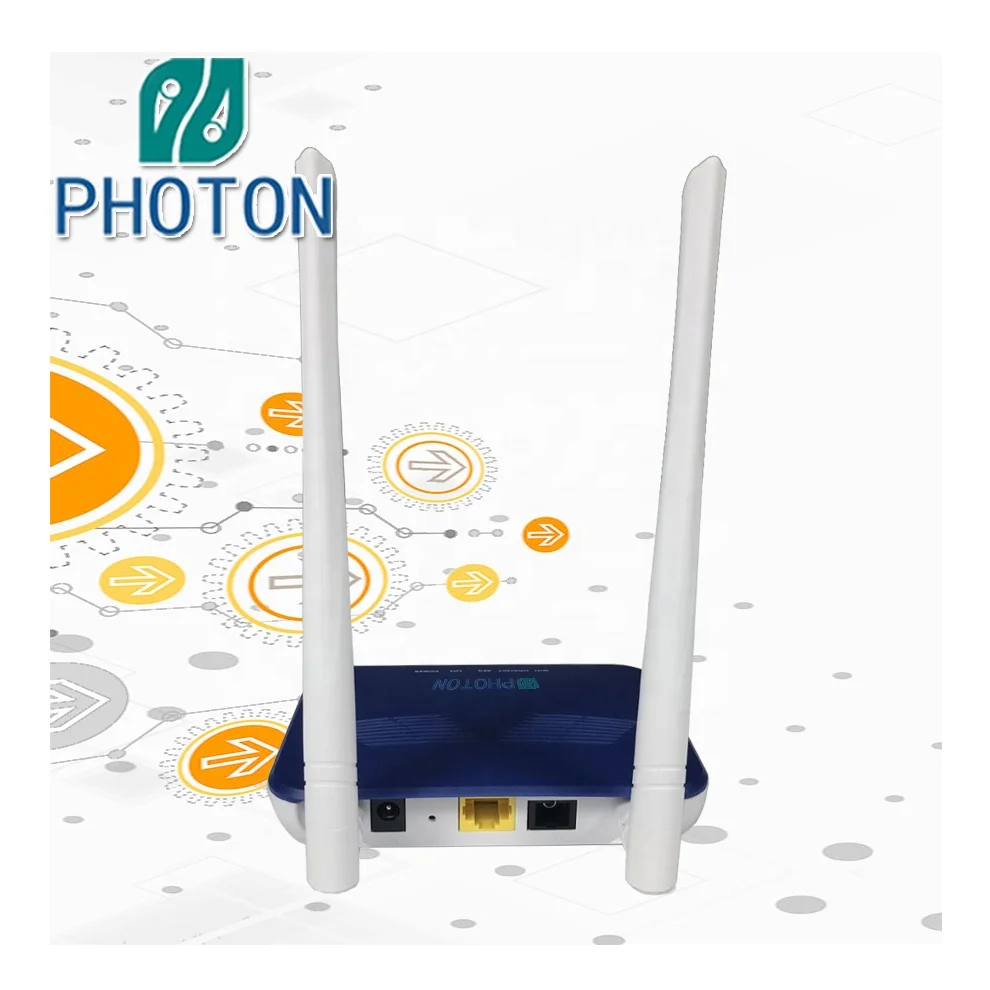

FTTH ONU 1G+WIFI 1 port GPON ONT With Wifi PTF2251W
1. Product Description ( FTTH ONU 1G+WIFI 1 port GPON ONT With Wifi PTF2251W)
FTTH ONU 1G+WIFI 1 port GPON ONT is 1GE+WIFI XPON(GPON and EPON dual mode) HGU ONU. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.
It can also be applied to a wide temperature environment, and also has a powerful firewall function.
Features:( FTTH ONU 1G+WIFI 1 port GPON ONT With Wifi PTF2251W)
Ø HGU ONU, bridging and routing modes can be set
Ø Dual mode ONU compatible with popular EPON and GPON OLT
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø WiFi support 802.11n speed up to 300Mbps
Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Support NAT, Firewall function
Ø Support remote software upgrade

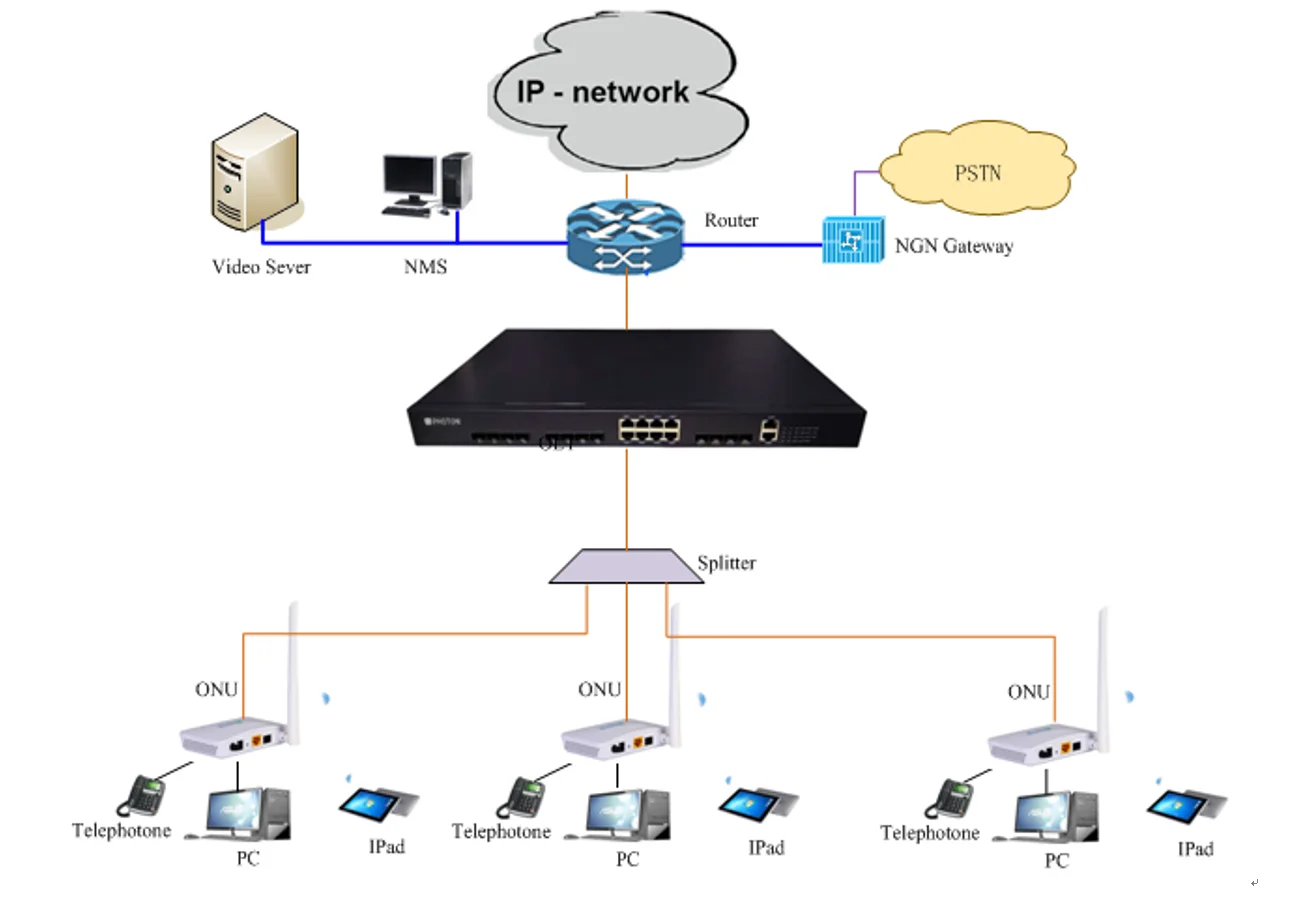

2. Application Chart ( FTTH ONU 1G+WIFI 1 port GPON ONT With Wifi PTF2251W)
3. Technical parameters ( FTTH ONU 1G+WIFI 1 port GPON ONT With Wifi PTF2251W)
Items
Unit
Specifications
PON standard.
EPON IEEE802.3ah, GPON ITU-T G.984.x
Optical interface
SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)
