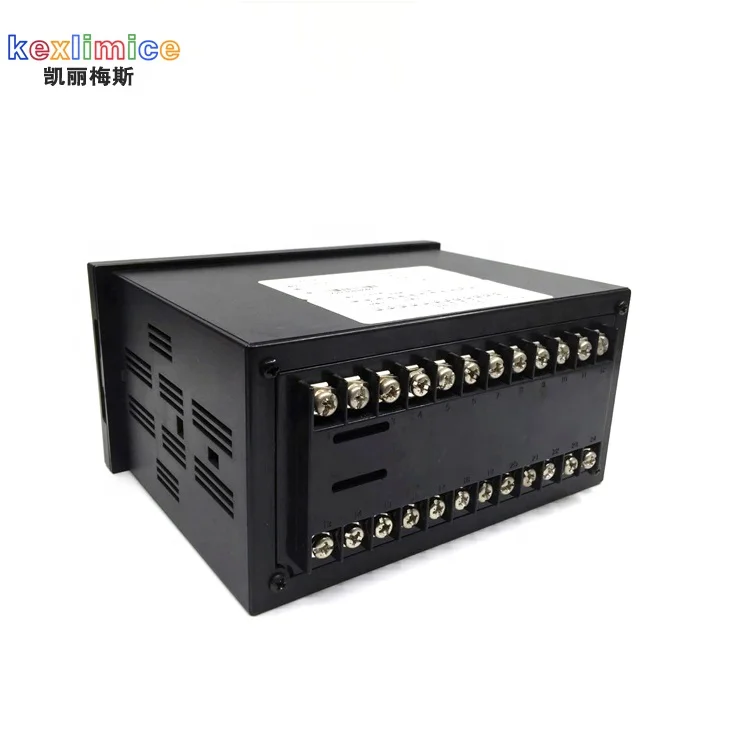

ESMXSAW Intelligent displacement control display / indicator
Mating resistors and potentiometers.
0.2 level accuracy, measuring and controlling speed 5 to 200 times per second can be set. Display range -1999 ~ 9999.
Panel button and digital input zero function.
10-point polyline correction function.
Optional 1 to 4 alarm output. Including the upper limit of the measured value, the lower limit of the measured value, the upper limit of the deviation, the lower limit of the deviation, the upper limit of the absolute value of the deviation, the lower limit of the absolute value of the absolute value of the deviation, and the four basic alarm modes, the standby upper and lower limits, and the standby deviation upper and lower limits.
(Standby alarm mode: When the instrument is powered on, it will not alarm even if it is in the alarm area. When the measured value enters the non-alarm area, the standby condition is established, and then the alarm is normal).
Display stability and anti-interference ability are improved compared with XSA
E size installation method: universal installation for panel mounting and rail mounting
0.2 level measurement accuracy; double display;
160×80×125 opening size: 152×76
96×48×82 opening size: 92×45
48×48×127 opening size: 45.5×45.5
Dual 4-digit LED (main display window + second display window)
Potentiometer (0.5 ~ 100kΩ))
1 point to enter (when AH, CH select K, communication, transmission can only choose one; E size does not support K option)
(250V AC/3A, resistive load)
1~4 point relay output, both normally open + normally closed double contact
1~2 point relay output, both normally open + normally closed double contact
3-point relay output, single normally open contact
1 point relay output, single normally open contact. Select this function, communication and transmission can only choose one
2-point relay output, all single normally open contacts. Select this function, you cannot select communication and transmission
(Optical isolation, resolution: 1/3000; load capacity: 600Ω)
Current output (4-20) mA, (0-10) mA, (0-20) mA
Voltage output (1-5)V, (0-5)V
Voltage output (0-10)V
Communication (optional) (optical isolation, communication rate: 2400, 4800, 9600, 19200, 38400, 57600) (Address: 0-99)
RS232 interface TCASCII or Modbus-RTU can be selected via software settings
RS485 interface TCASCII or Modbus-RTU can be selected through software settings
100~240V AC 50/60 Hz
10~24V AC 50/60 Hz;10~24V DC
