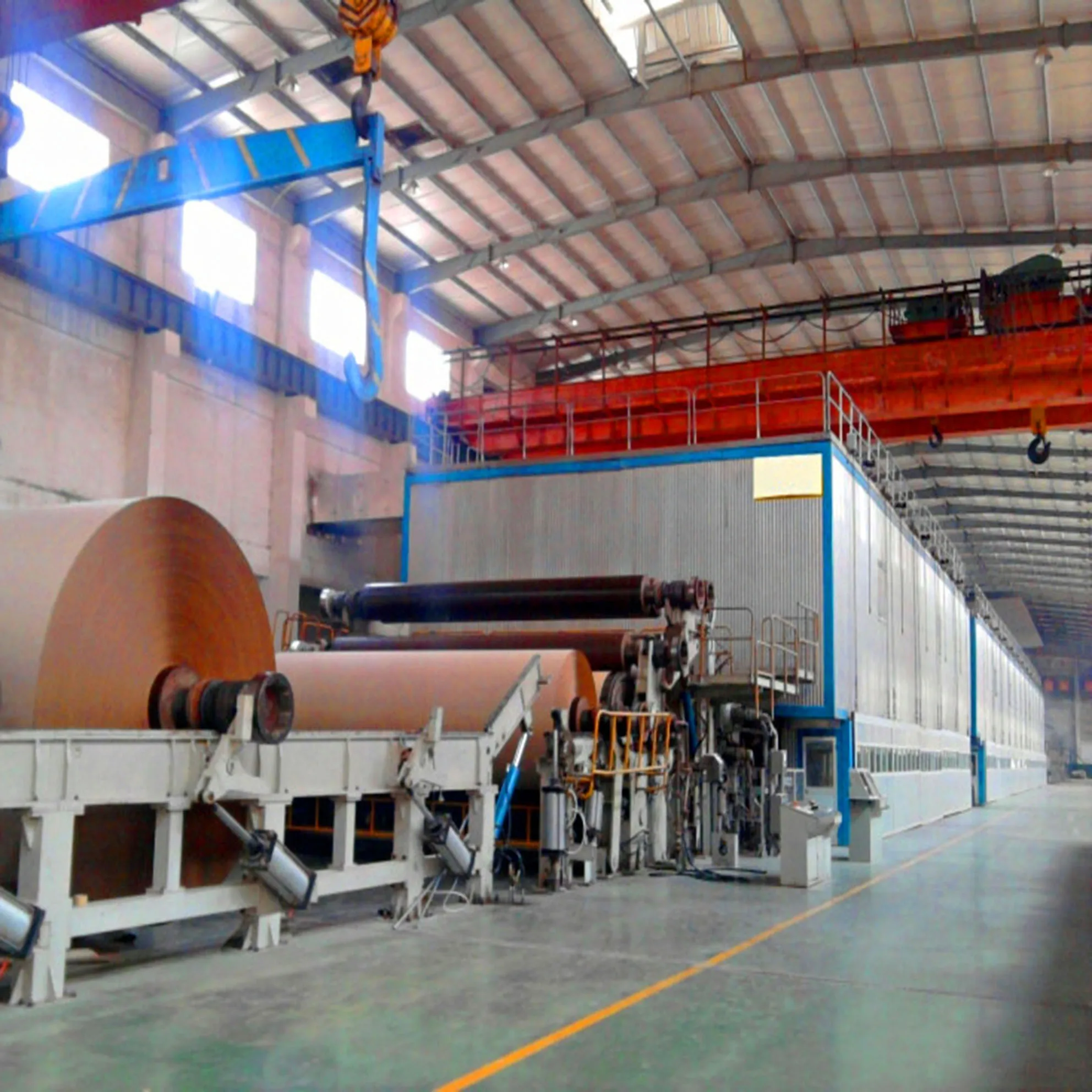

   2880mm Multi-cylinder and Multi-Can Paper Making Line

                   For capacity 50 tons/day

I. Technical parameter

1.Raw materials: waste paper

2.Output paper: carton paper,liner paper

3.Net paper width:2880mm

4.Output paper weight:120-150 g/m2

5.Capacity: 50 T/D

6.Working speed: 110-120m/min

7.Designing speed:160m/min

8.Rail gauge: 3800mm

9.Drive way: Alternating current frequency converter speed control, sectional drive.

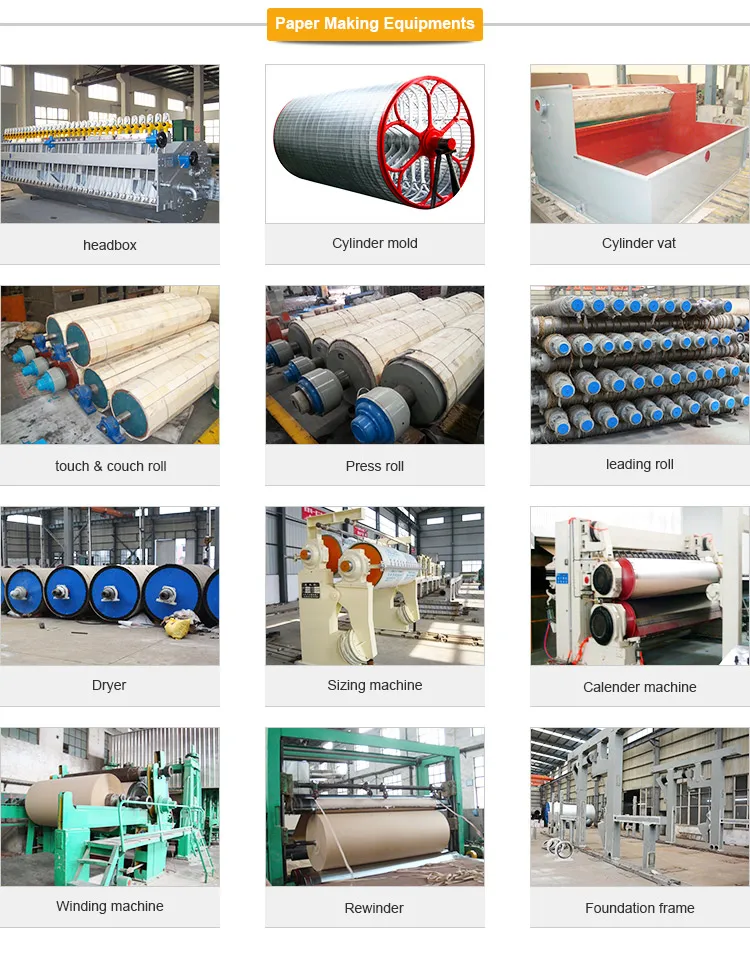

II. The main structure and Equipments

1.Cylinder part:

Φ1500mmx 3350mm stainless-steel plate cylinder, 4pcs;Φ450mm×3350mm couch roll,5 pcs,including one reverse roll; rubber hardness HS-38℃±2,pneumatic loaded device,multitube for pulp,stainless

2.Squeeze part:

Φ4000mm×3450mm squeeze roll,2 pcs, rubber hardness HS-90℃±2, pneumatic loaded device

3.Pre-press part:

Φ6500mm×3350mm top roll,one pcs of natural marble stone roll; Φ6000mm×3350mm bottom roll, one pcs of rubber roll; rubber hardness HS-95℃±2, pneumatic loaded device

4.Press part :

Φ8500mm×3350mm, 2 pcs of natural marble stone rolls ; Φ8000mm×3350mm rubber roll,2pcs; rubber hardness HS-97℃±2, pneumatic loaded device

5.Dryer part:

Φ1500mm×3350mm alloy dryer can 12 pcs, 12 sets of  blades

6.Calendaring part:

Φ7500mm×3350mm calendaring roll,2 pcs, hardness 72℃±2, solid

7.Reeling part:

one set of 2880 horizontal pneumatic reeler, one set of winding sweat cylinder(Φ1100mm×3100mm)

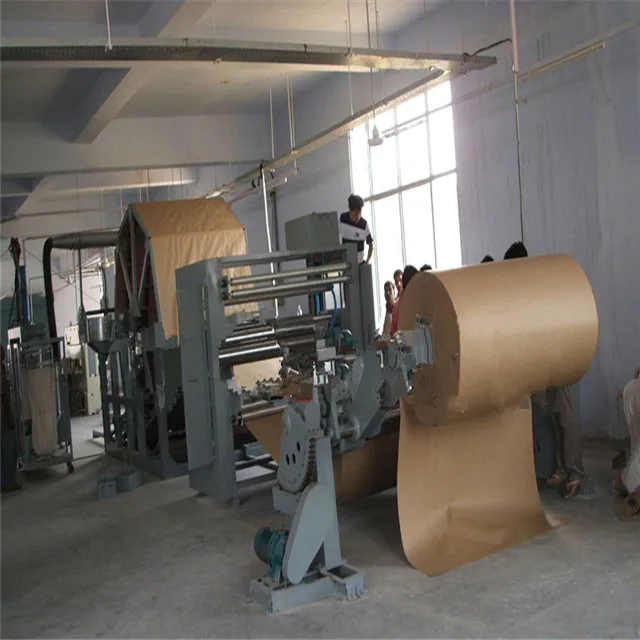

8.Rewinding part:

one set of 2880 frame-type rewinding machine

Zhengzhou Dingchen Machinery Co., Ltd is a professional paper machine manufacturer integrated with scientific research, design, manufacturing, installation and commission. Focused on R&D and production, the company has over 30 years’ experience in paper machinery and pulping equipment production. The company has a professional technical team and advanced production equipment, with over 150 employees and covering an area of 45, 000 square meters.

The company’s leading products include various types of high speed and capacity test liner paper, kraft paper, carton box paper machine, cultural paper machine and tissue paper machine, pulping equipment and accessories, which are widely used in the production of packaging paper for various items, printing paper, writing paper, high grade household paper, napkin paper and facial tissue paper etc.

Based on high quality products and service, the company has been recognized by overseas customers and markets, its products has been exported to Pakistan, Uzbekistan, Turkmenistan, Bangladesh, Cambodia, Bhutan, Israel, Georgia, Armenia, Afghanistan, Egypt, Nigeria, Kenya, Burkina Faso, Sierra Leone, Cameroon, Angola, Algeria, El Salvador, Brazil, Paraguay, Colombia, Guatemala, Fiji, Ukraine and Russia etc.
