Free Sample Covered Wire Copper Plated Clad Aluminum Bare CCA Signal Transmission Conductor,electrical Conductor Factory Supply
- Category: >>>
- Supplier: Jiangsu Greenshine Supcon Tech Co. Ltd.
Share on (60822209836):
Product Overview
Description
Product Description

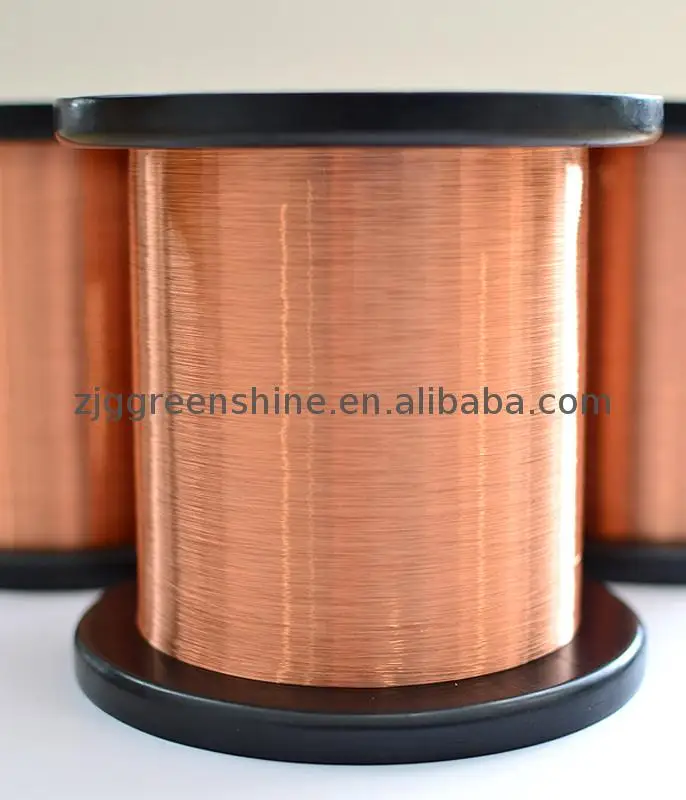

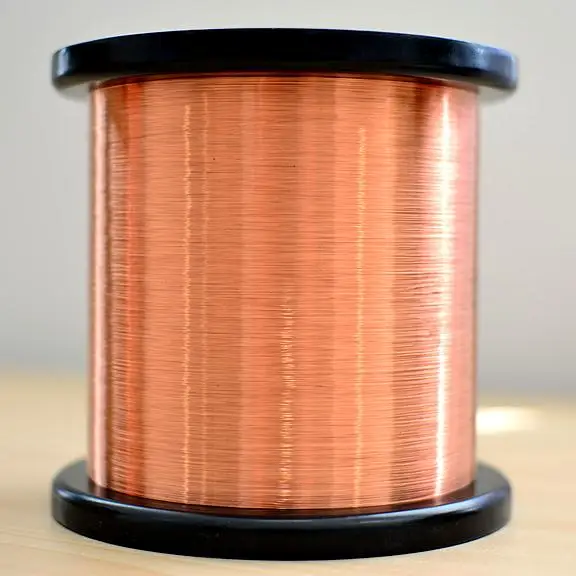

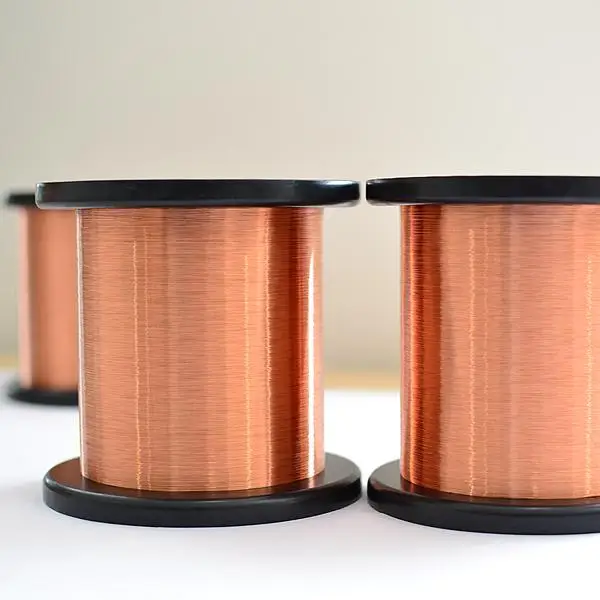

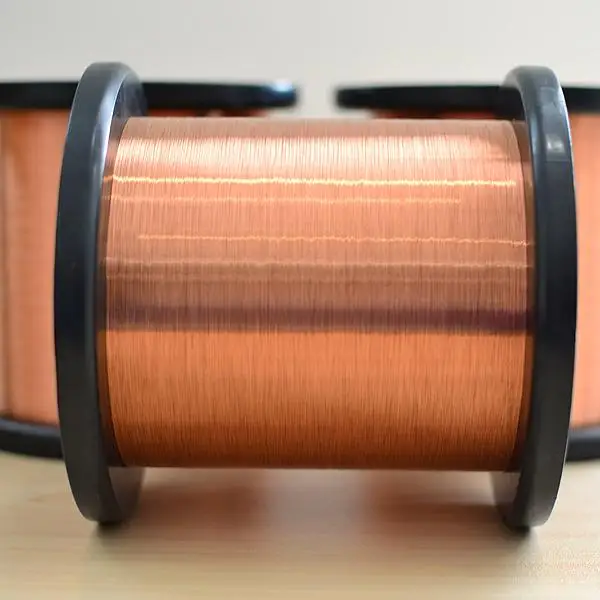

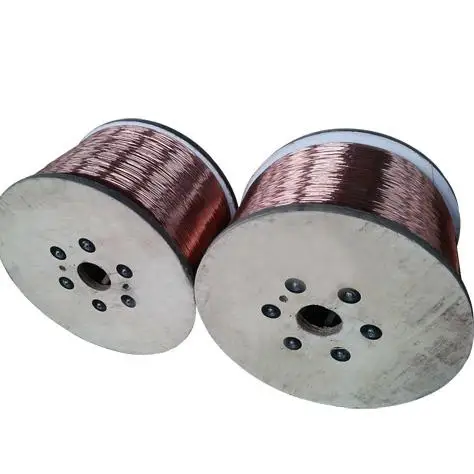

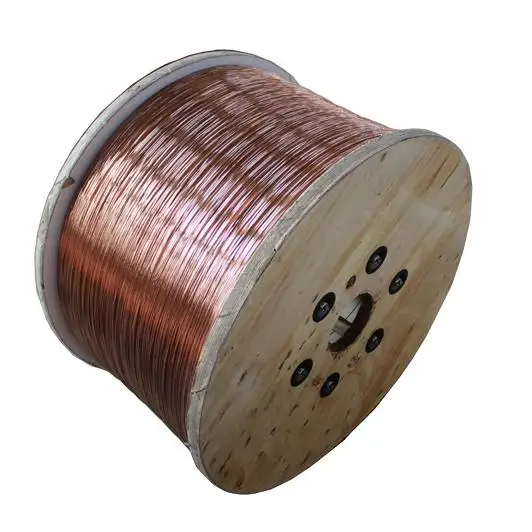

Free sample covered wire copper plated clad aluminum
Product details
| Size | 0.12mm~8.00mm |
| copper content in volume | 2%,10% and 15% |
| State | Annealed and Hard Drawn |
| Conductivity | more than 64% |
| Month Capacity | 400tons |
| Certificate | ISO OHSAS SGS REACH |
| Trade type | factory supply |
| Product Keywords | covered wire,copper plated,copper clad aluminum |
Copper Clad Aluminum is an electrical conductor which has an outer sleeve of copper metallurgically
bonded to a solid aluminum core. The combination of these two metals make
it uniquely suited to many electrical applications
Standard:
SJ/T 11223-2000
ASTM B 566-93
Feature:
Compared to copper conductors:
Higher Flexibility due to lower elastic modulus
63% material weight reduction due to lower specific gravity of CCA over regular copper
Compared to aluminum conductors:
Better corrosion resistance than aluminum due to copper layer
Lower resistance due to high electric conductivity of copper
Better Solderability
Higher strength than aluminum
Application:
In high frequency signal transmission field, it is applied to:
l Standard Material of Conductor in CATV Coaxial Cable;
l 50 Ohm Radio Frequency Aerial;
l Leaky Cable;
l Soft Coaxial Radio Frequency Cable;
l Data Cable
In power transmission field, it can be applied to:
l Stranded wire;
l Power Cable;
l Control Cable;
l automotive cable;
l Building distribution wire;
l Busbar;
l Radio Frequency shielding;
In special electromagnetic wire, it can be applied to:
l Coils in motor and fans, mahjong machine, Loudspeakers
l Voice coils (e.g. in Headphone, Headset, ...)
l Windings
Manufacture Scope:
0.12MM~5.50MM
Physical property of CCA wire
| Specification | Copper in volume (%) | Copper in mass (%) | Length comparison | Density (g/cm3) | Max.DC resistivity Ω.mm2/m (20°C) | Conductivity (%IACS) Min |
| CCA-10%Copper volume | 8~12 | 27 | 2.65:1 | 3.32 | 0.02743 | 63 |
| CCA-15%Copper volume | 13-17 | 37 | 2.45:1 | 3.63 | 0.02676 | 65 |
| Copper wire | 100 | 100 | 1:01 | 8.89 | 17241 | 100 |
Product Category

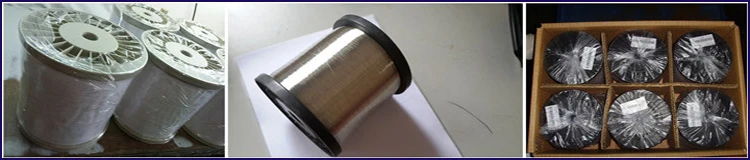

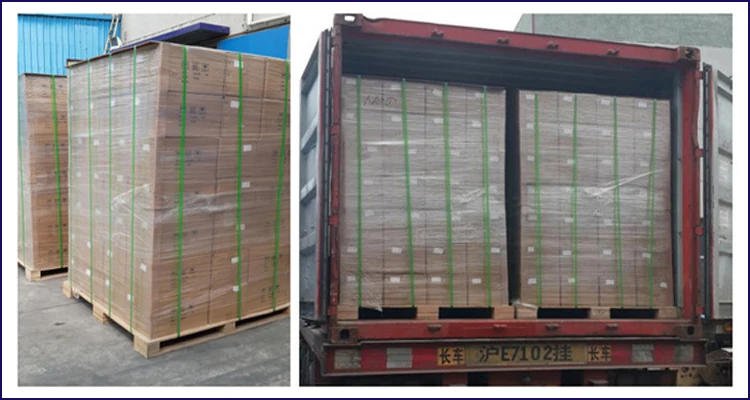

Packaging and Shipping
Company Introduction
Jiangsu Greenshine Wire & Cable Co.,Ltd is located in national civilized city-Zhangjiagang, near Yangtze River and G204, being in one hour economic circle of Yangtze River Delta together with Shanghai, Suzhou, Wuxi, Changzhou. Transportation is convenient.
Main products includes Copper clad aluminum wire(CCA),Copper Clad Aluminum alloy wire(CCAA),Stranded wire, Copper Clad Steel wire(CCS), Tinned wire(TCCA,TCCAM,TCCAA), Enameled wire(ECCA,EAL) .Copper clad aluminum wire is produced by international standard "Cladding-Welding-drawing" technology. Advanced technology and inspection equipments make sure quality matched with different standards such as IEC,GB,ASTM,JIS
Greenshine is always taking credit ,quality,innovation as existent root, survival foundation, development source. Based on "Credit,High Quality,Innovation" as quality policy, greenshine has setted complete quality control system and been awarded ISO ISO9001:2008 certificate and SGS certificate. Meanwhile, the company pays equal attention to quality and environment and increases investment in environmental protection and has been granted ISO14001:2004 certificate.
Greenshine would like to establish long-term and stable cooperation relationship with domestic and international customers to create a prosperous future together! At the same time, we believe the cooperation between us will achieve win-win in the promising future!
