smd pick and place machine NeoDen7 high speed with camera

Features
1.Integrated flying vision system
2.Panasonic Servo driven, position feedback from 2 micron linear scales coupled with a precision placement head
3.6 Simultaneous pick-up head
4.Placement rates up to 14,000 cph
5.The GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes
6.Accurately place, manager, and track components with Smart Feeders
7.Up to 64 (all in 8mm)tape feeders
8.Accurately places a wide range of components including 0402, LED, BGA,0.4mm pitch QFP,SMT Connectors and many others
9.Support cut tape, loose, tube, or tray feeders

Specification

Number of Heads	6
Alignment	Digital Flying Vision
Drive Motor	Panasonic Servo Motor A6
Max Placement Rate	14000CPH
Max Tape Feeder Capacity	64
Other feeder	Vibration Feeder,Tray Feeder
Placement Area	630*300(1200 optional)
Resolution X/Y Axis	±0.01mm
Air Source	0.6MPa
Component Range	Smallest Size		0402
	Largest Size		40*40mm(Lead Pitch 0.4mm)
	Max Height		10mm

Detailed Image

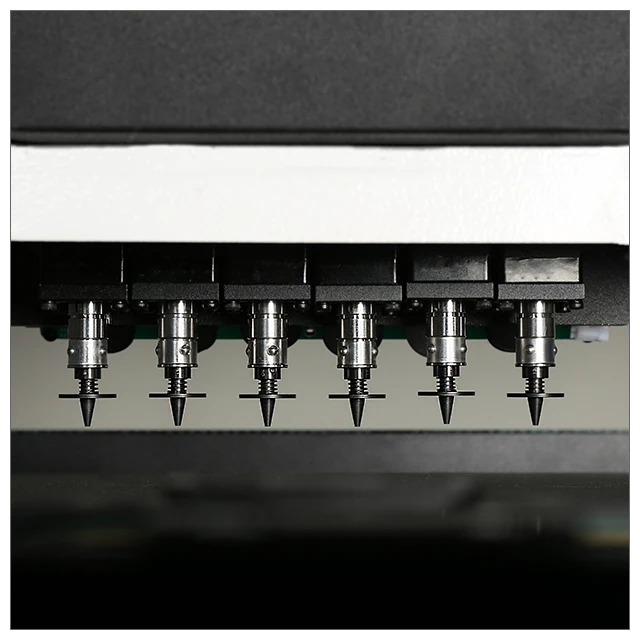

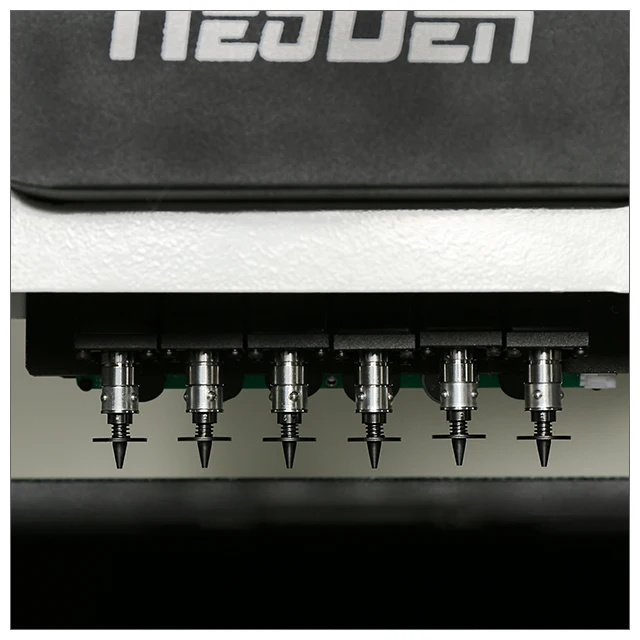

6 Simultaneous pick-up head

Using new, highly efficient linear servomotors, lightening and stiffening the head unit

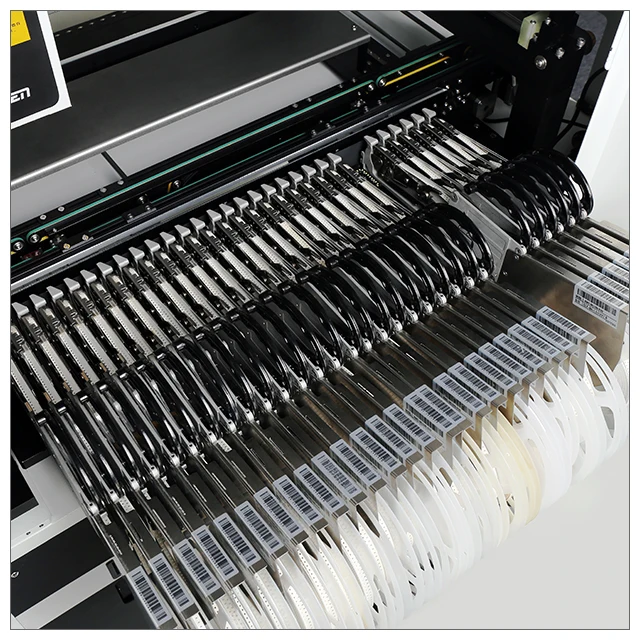

Accurately place, manager, and track components with Smart Feeders

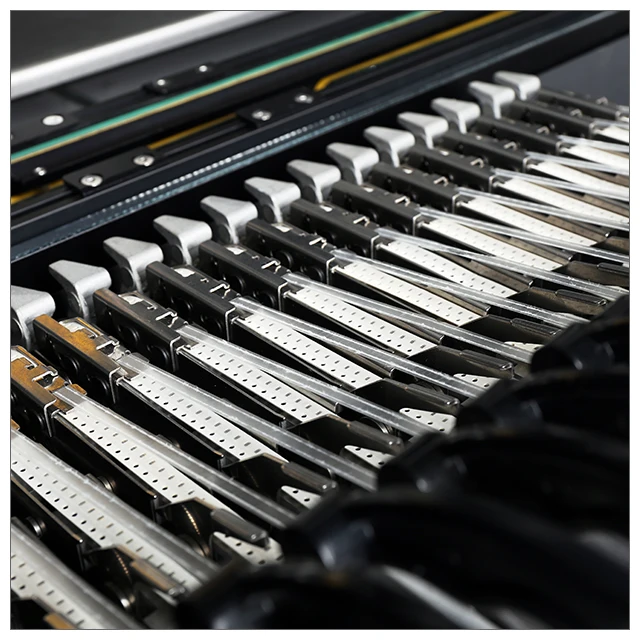

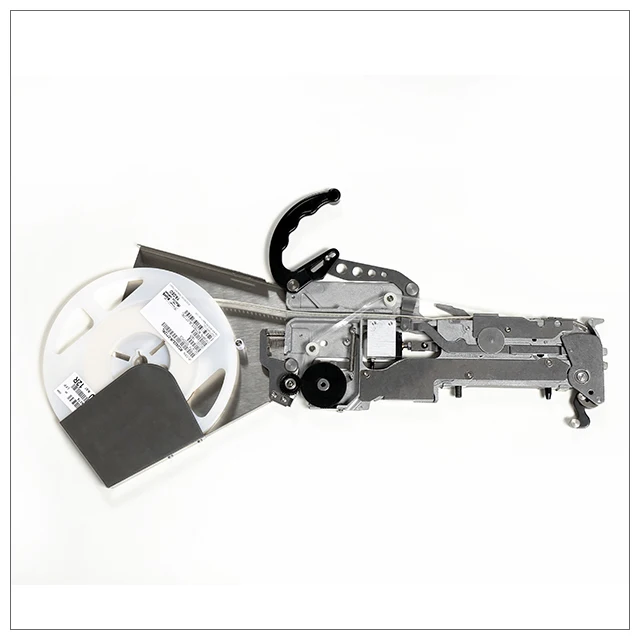

High precision pneumatic feeder
