5000 litres Atmospheric Drinking Water Generator
- Category: >>>
- Supplier: Bestway (Hangzhou) Drinking Water Equipment Co. Ltd.
Share on (60822230339):
Product Overview
Description
5000 litres Atmospheric Drinking Water Generator
Advantages:
1. Innovation design.
2. Lower power consumption, low cost.
3. Supports the solar power, wind and diesel power.
4. Lower noise than other machine.
2. Lower power consumption, low cost.
3. Supports the solar power, wind and diesel power.
4. Lower noise than other machine.
5. Fast turnaround time.
6. Professional testing lab,make sure the quality under control.
Product Description
Atmospheric Water Generator
An atmospheric water generator (AWG) is a device that extracts water from humid ambient air. Water vapor in the air is condensed by cooling the air below its dew point. Unlike a dehumidifier, an AWG is designed to render the water potable. AWGs are useful where pure drinking water is difficult or impossible to obtain, because there is almost always a small amount of water in the air that can be extracted.

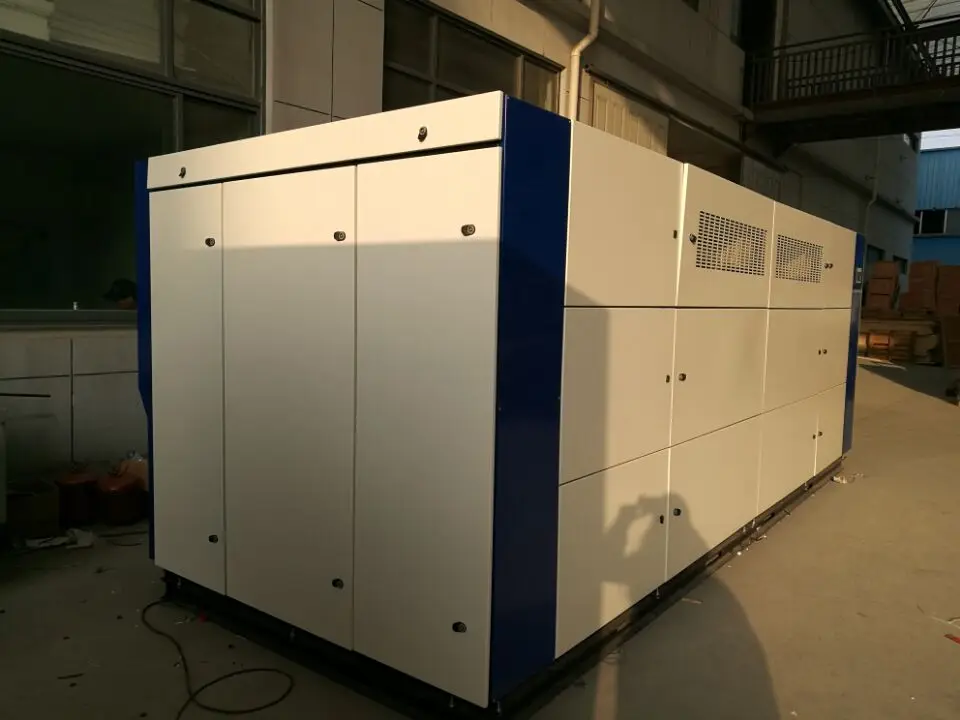

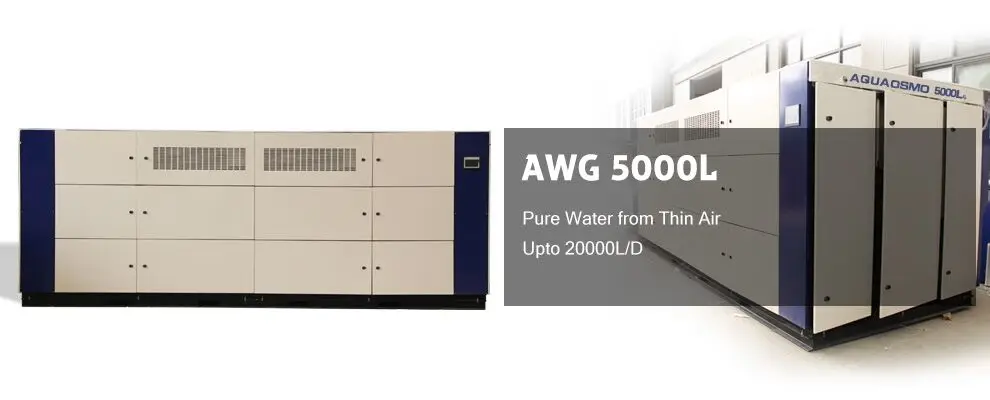

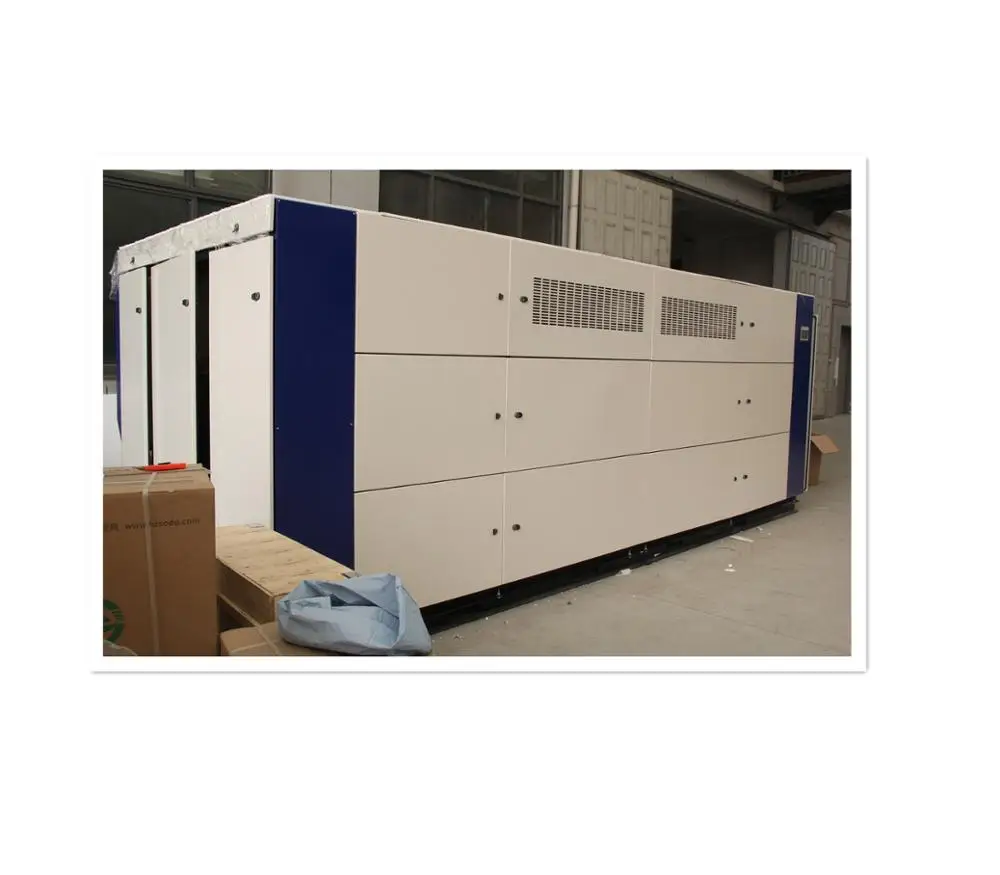

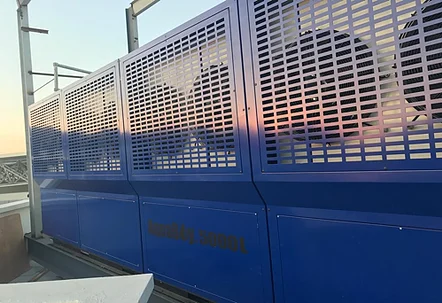

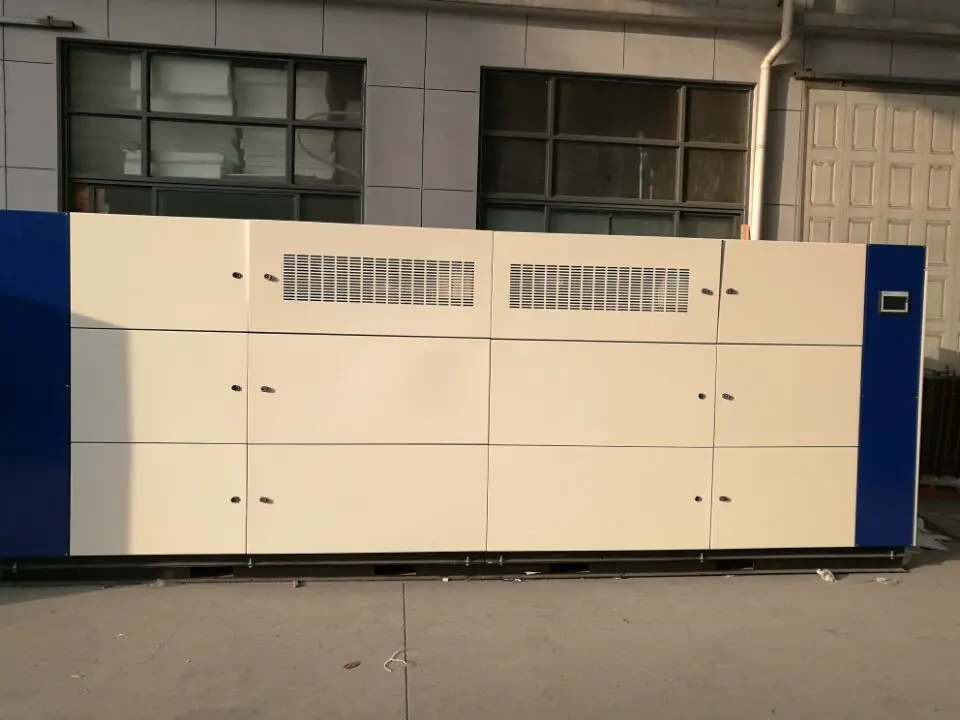

Product show:
Technical Data:
| Mode No. | BWT-A5000-38 | |
| Power Supply | 3/N/PE AC 380V 50Hz / AC 220V 60Hz / AC 440V 60Hz three-phase voltage | |
| Input Power | 64kw | |
| Water Production (Liters/24Hr)@ 30°C & RH-80% | 5000 liters @ 30°C & RH-80% | |
| Compressor | Compressor Type | Enclosed vortex compressor |
| Compressor Qty | 4 | |
| Phase Protection | - Phase-sequence Protection - Delay Protection - Hi & Low Pressure Protection - Overheat & Overload Protection | |
| Refrigerant | Gas Type | R407C |
| Control Type | External balance type Thermal expansion valve | |
| Gas charge amount | 4*9kg | |
| Air volume | Circulating air volume | 31000 m3/h |
| Heat exhaust air volume | 39000 m3/h | |
| Fan | Recycle Fan (High efficient centrifugal fan) | 8 pcs |
| Heat Removal Fan (Efficient axial flow fan) | 8pcs | |
| Air Filter (G3 Non-woven filter) | 450*2200*360mm x2set 450*2200*600mm x2set | |
| Filtration System | PPF+CTO+UDF+UF+UV+Mineralization | |
| Machine Dimension (L*W*H) (mm) | 2200*5650*2130 | |
| Machine Weight (kgs) | 3900kgs | |
| Working condition | Temperature | Standard working temperature:15°C - 45°C needs to be customized |
| Humidity | 30% - 100% | |
| Control system | PLC | |
Packaging & Shipping
Company Information
BESTWAY (HANGZHOU) DRINKING WATER EQUIPMENT CO., LTD is a joint-venture company, which has helped many clients design and produce numerous award-winning water treatment systems. It is a professional engaged in research and development, engineering, sales, customer service in one of the high-tech environmental protection enterprises. (More)
FAQ
1.What is the warranty services do you provide?
One year warranty for whole machine, three years for compressor,filters and UV lamp according to the actual life.
2. Minimum order quantity?
We could accept one piece as our minimum order quantity.
3. Can I put my own logo on it?
Yes, we could print your logo on the machine.
4. Do you accept OEM services?
Yes,we provide OEM services
5. How about your payment term?
We accept T/T, western union, Paypal, L/C, etc.
6. What is your turnaround time?
Normally, production time for industry unit will need about 35 days.
