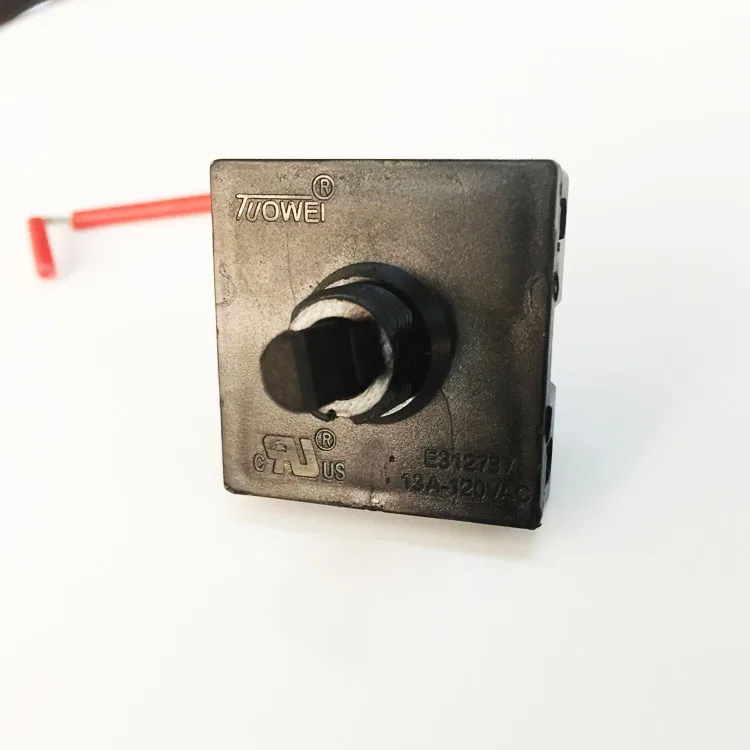

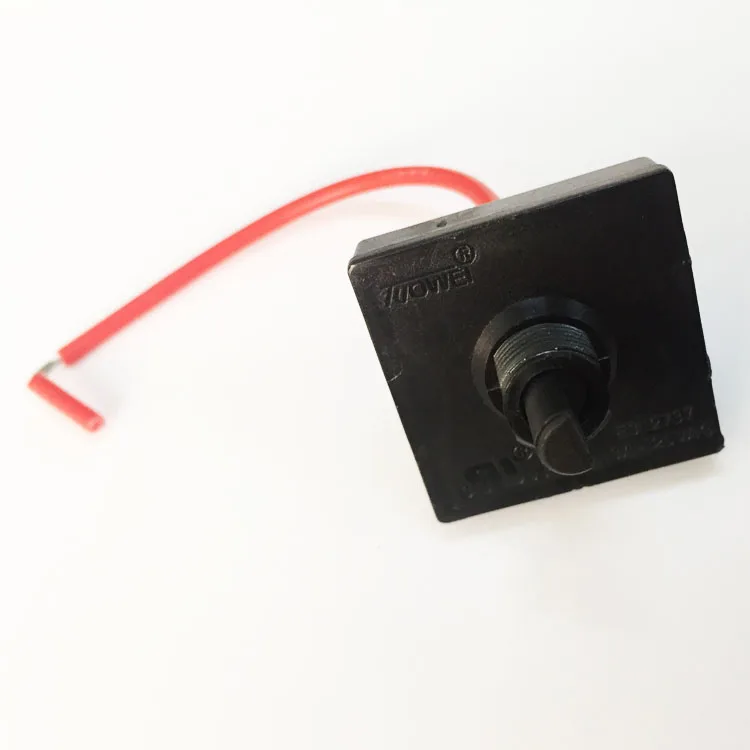

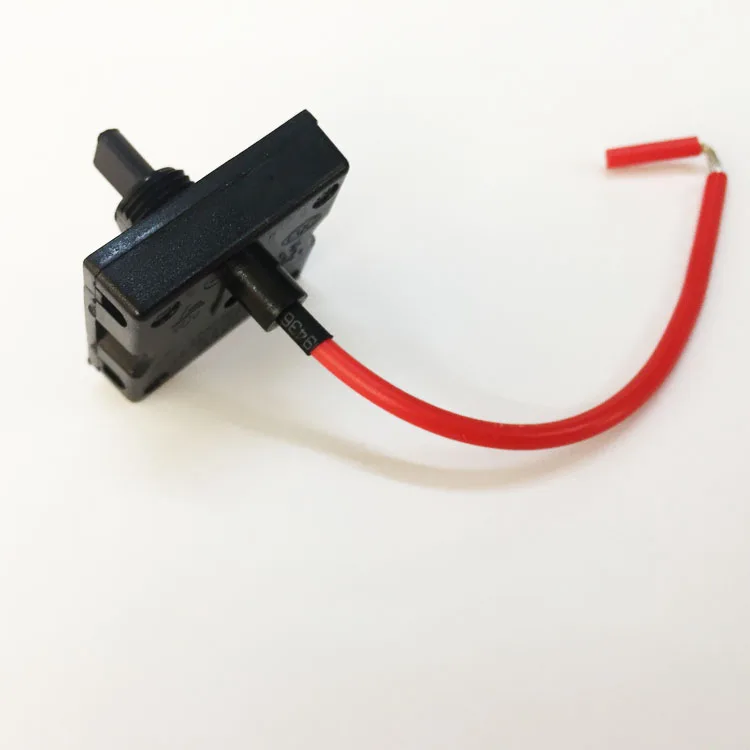

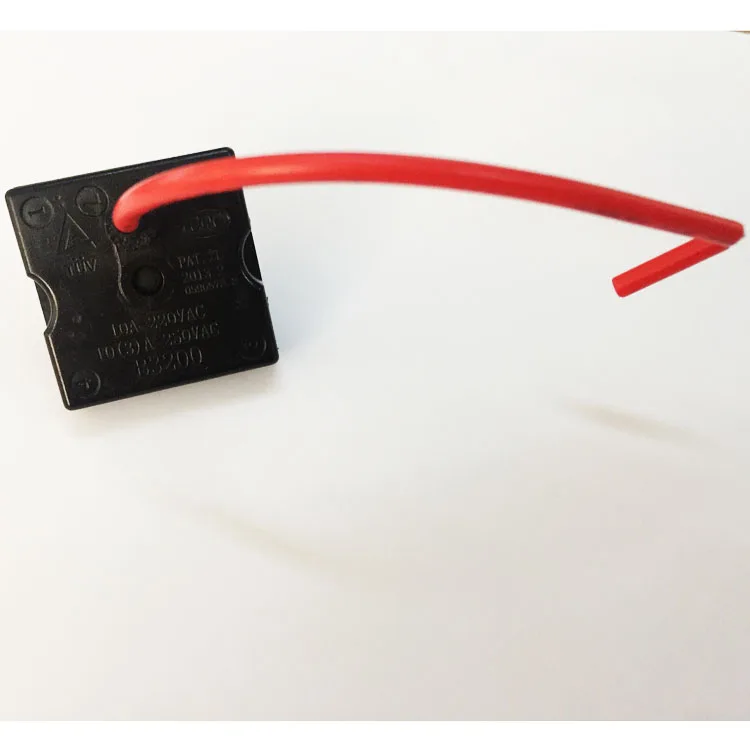

Towei B3200 219 miniature rotary switch supplier 13A 120V 10(3)A 250V T105 4 position 3 speed dip rotary switch for fan
- Category: Rotary Switches >>>
- Supplier: Shenzhen Towei Electronics Co. Ltd.
Share on (60822233401):
Product Overview
Description
Product Description
Towei B3200-219 miniature rotary switch supplier 13A-120V 10(3)A-250V T105 4 position 3 speed dip rotary switch for fan
B3200 series have many different function circuits as below:
| NO. | Position 1 | Position 2 | Position 3 | Position 4 | Position 5 |
1 | L-1 | L-2 | L-3 | ||
| 2 | OFF | L-1 | L-2 | L-3 | |
| 3 | OFF | L-1 | L-2 | L-3 | OFF |
| 4 | OFF | L-2 | L-1-2 | L-1-2-3 | |
| 6 | OFF | L-2 | L-1-2 | L-2-3 | |
| 7 | OFF | L-1 | L-1-2 | ||
| 11 | L-1(pulse) | OFF | L-3 | L-1 | |
| 13 | OFF | L-1 | L-2 | ||
| 19 | OFF | L-1-4 | L-2-4 | L-3-4 | |
| 21 | OFF | L-4 | L-1 | L-2 | L-3 |
| 29 | OFF | L-2 | L-1-2 | L-2-3 | L-1-2-3 |
| 33 | OFF | L-1-3 | L-1-2 | L-2-3 | |
| 45 | L-1(pulse) | OFF | L-3 | ||
| 47 | OFF | L-1-3 | L-1-2 | ||
| 54 | L-1-2 | OFF | L-1-3 | ||
| 70 | OFF | L-3 | L-1 | ||
| 78 | L-1-2(pulse) | OFF | L-3 | L-1-2
|
