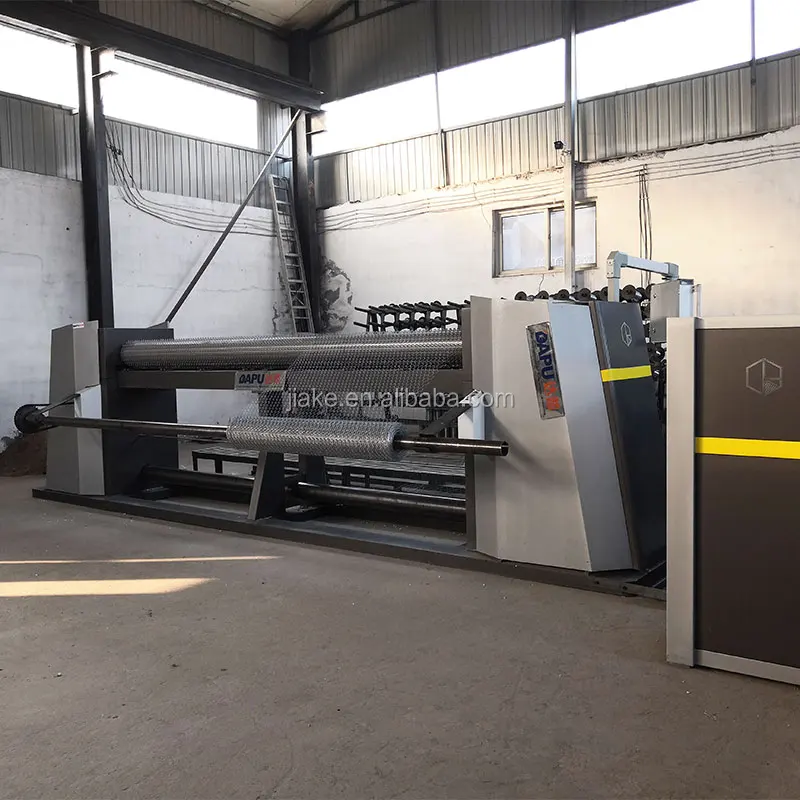

Fully automatic hexagonal wire mesh making machine
Product Description

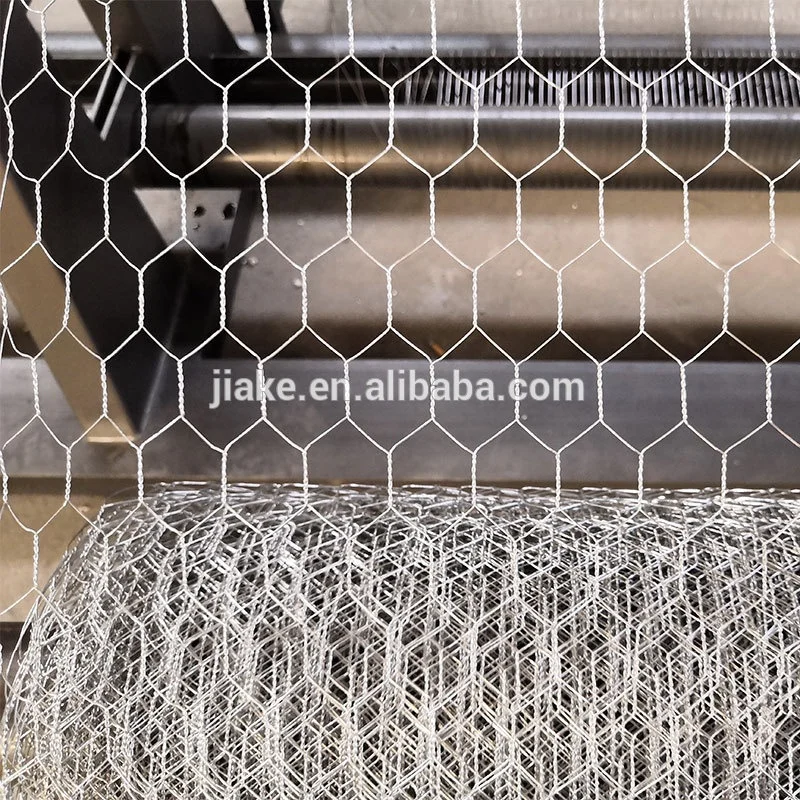

Hexagonal wire mesh netting machine also called chicken cage wire mesh machine,is automatically feeding wire weaving mesh,taking up rolls and higher speed than similar machinery.Hexagonal wire mesh is mainly used for chicken feeding,graze protection,industrial filtering,decoration usage,etc.
Straight and reverse hexagonal wire metting machine
| Speed(mm) | Width(mm) | Mesh size | Wire diameter | Number of twists | Weight(T) | Motor(kw) |
| 60-160 | 2600-3300 | 20-22mm | 0.52-0.7mm | 6 | 3.5-4.5 | 2.2 |
| 25-27mm | 0.50-1.00mm | |||||
| 30-32mm | 0.50-1.20mm | |||||
| 40-45mm | 0.60-1.40mm | |||||
| 50-55mm | 0.60-1.50mm | |||||
| 75-80mm | 1.00-1.50mm |
Normal twisted hexagonal wire mesh machine
| Speed(mm) | Width(mm) | Mesh size | Wire diameter | Number of twists | Weight(T) | Motor |
| 60-180 | 1200-3200 | 12mm | 0.38-0.5mm | 3 | 2-2.5 | 2.2kw |
| 15mm | 0.40-0.70mm | |||||
| 18mm | 0.38-0.70mm | |||||
| 20-22mm | 0.38-0.8mm | |||||
| 25-27mm | 0.50-1.00mm | |||||
| 30-32mm | 0.50-1.00mm | |||||
| 40-44mm | 0.40-1.30mm | |||||
| 50mm | 0.50-1.50mm | |||||
| 75mm | 0.50-1.65mm | |||||
| 100mm | 0.5-1.80mm |

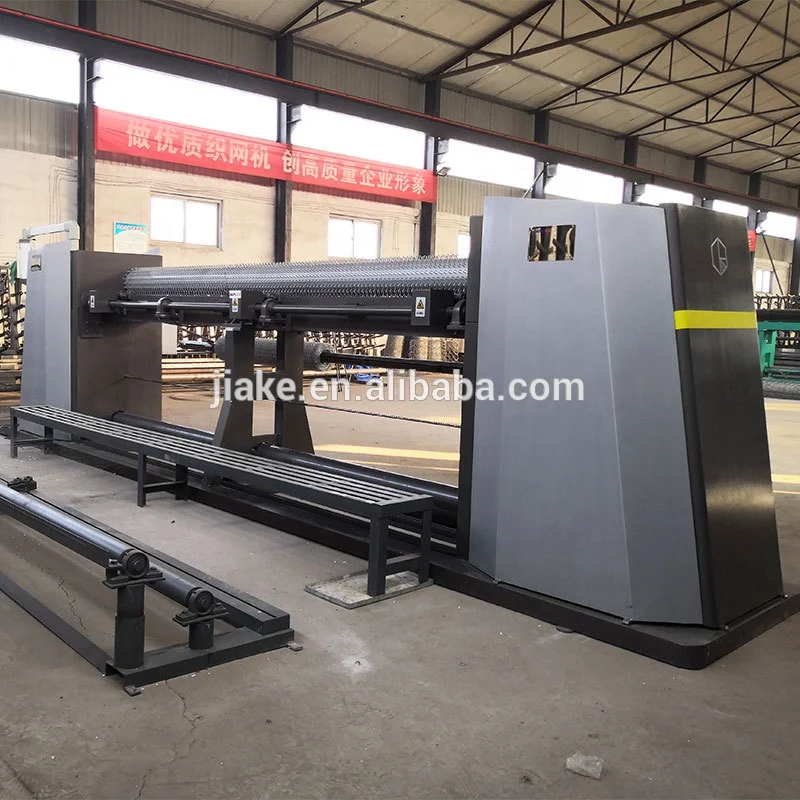

Product Display

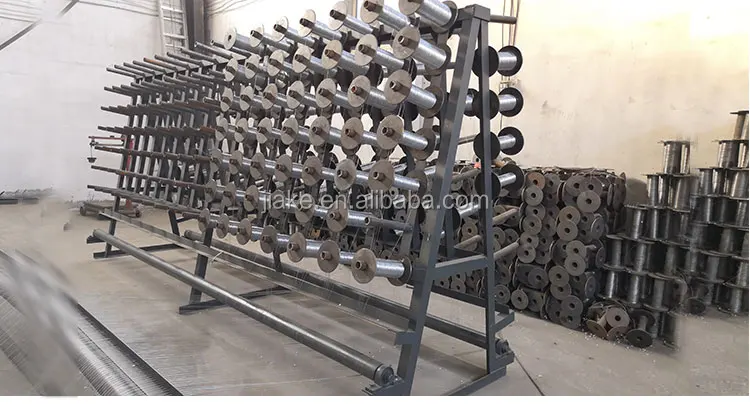

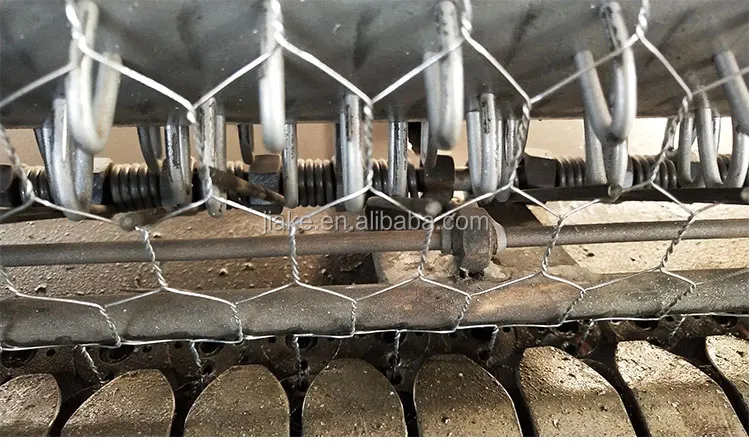

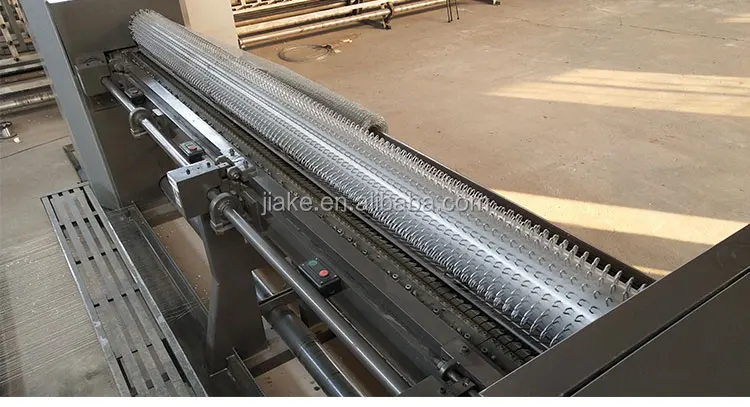

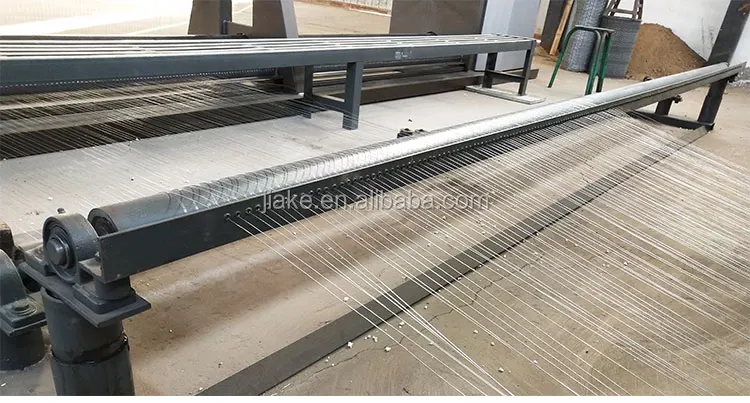

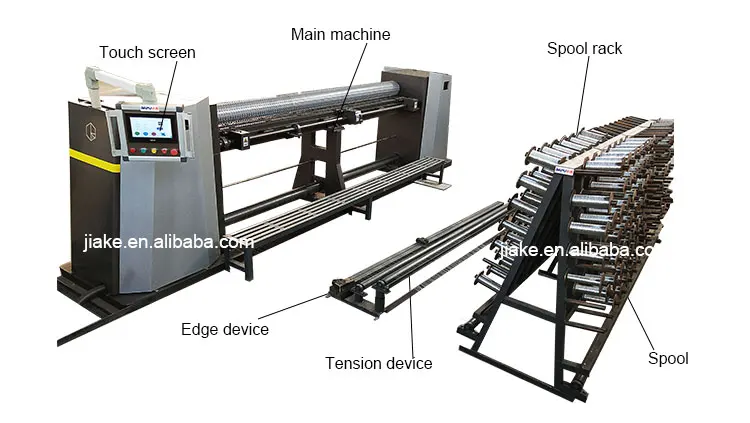

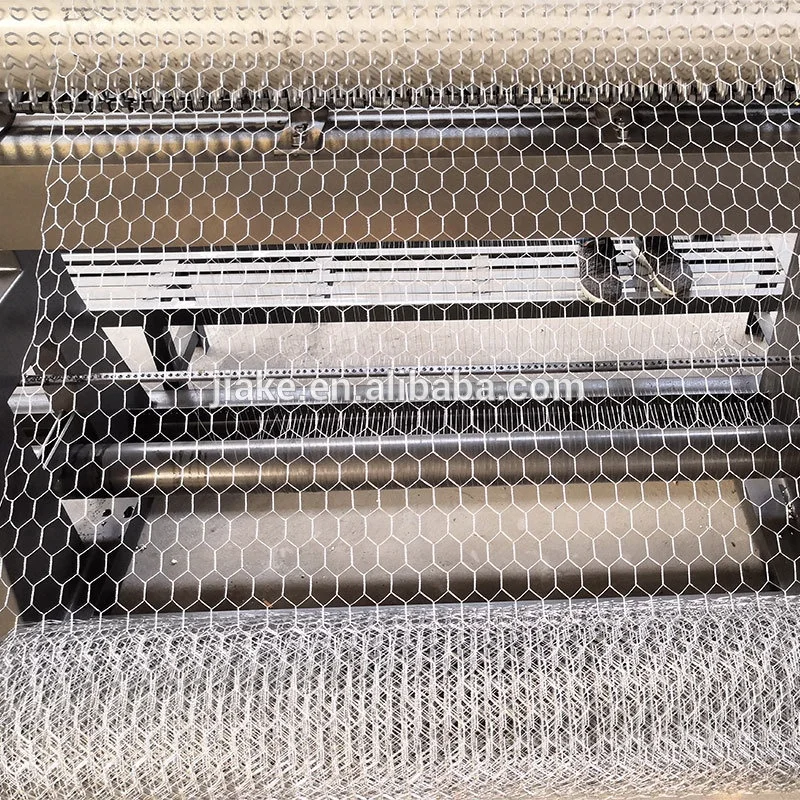

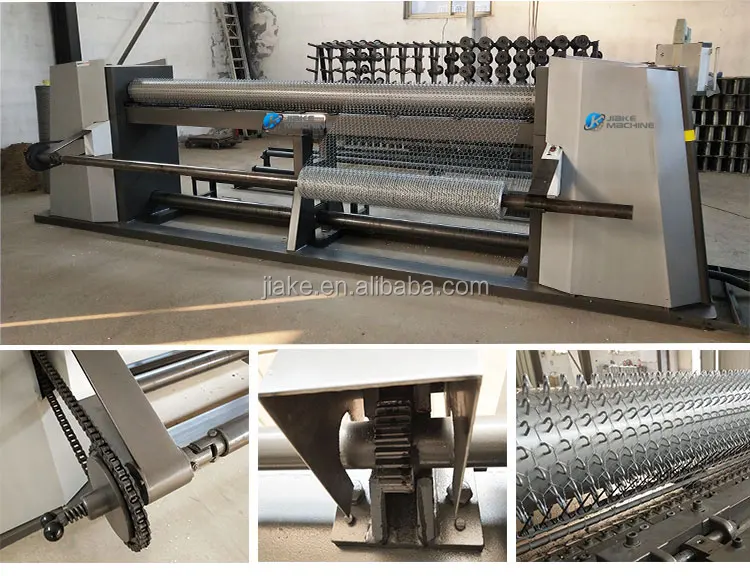

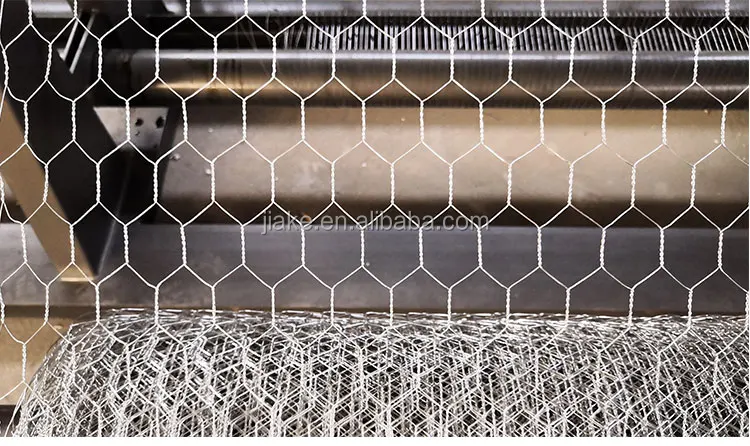

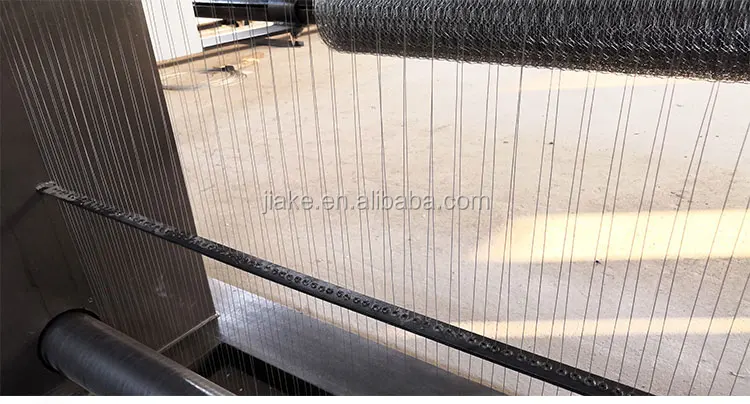

Product details
Advantages

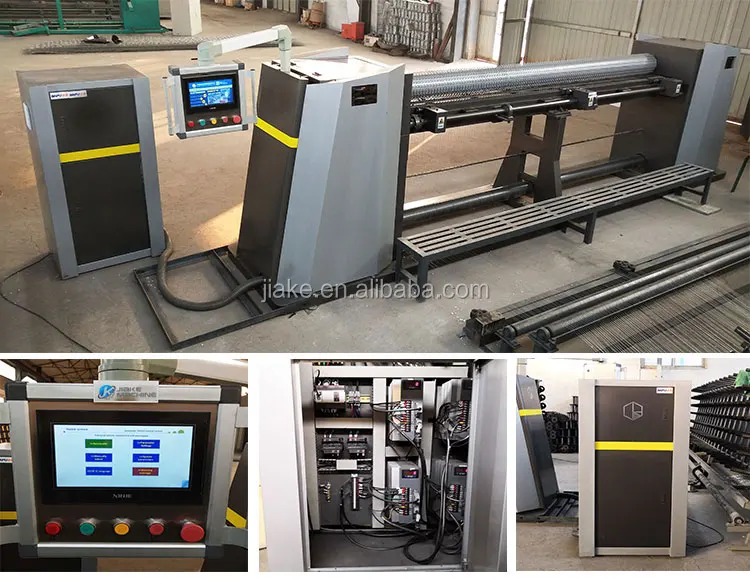

1. Japan PLC+ Touch screen,easy operation
2. Servo transmission,running fast,shock-resistance,smooth running
3. Inching/single-step control button
4. Automatically wind up mesh into rolls
5.Tidy mesh with/without reinforcement wire between any holes
6. Automatically central lubrication system to reduce machine damages
7. It can weave 2-4 scopes of net with the same machine
Packaging & Shipping
Certifications

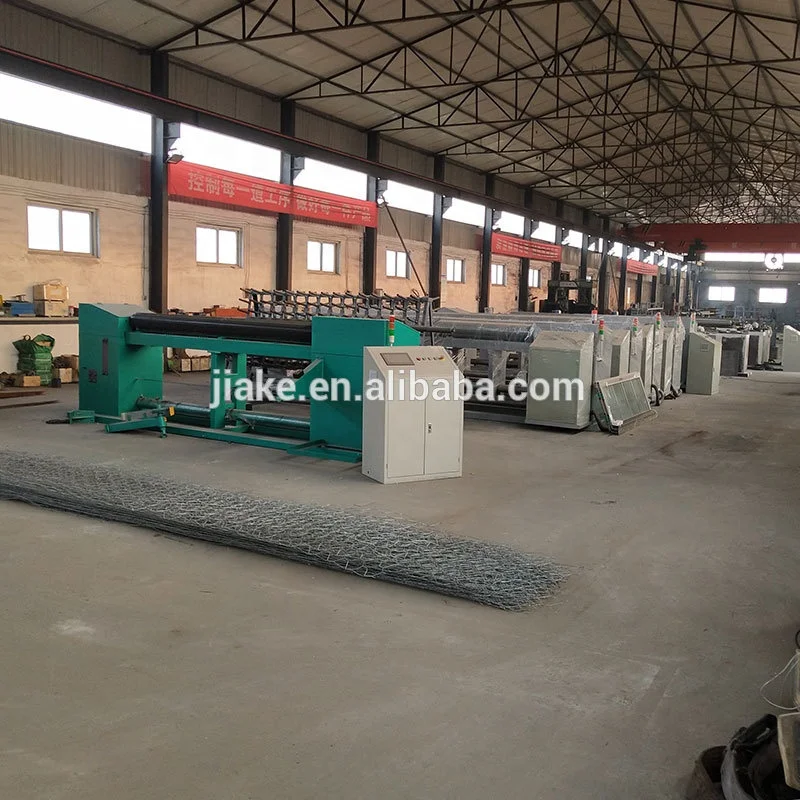

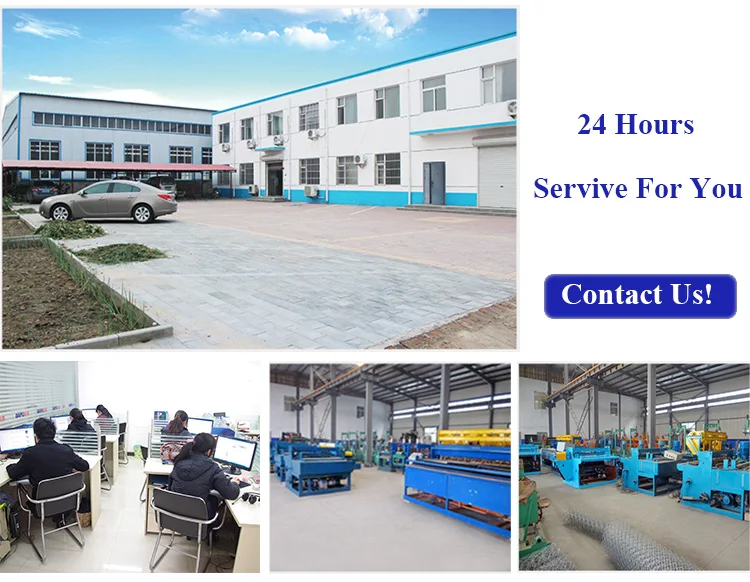

Company Information
——————FAQ——————
Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
