Nylon conveyor belt rolls
- Category: >>>
- Supplier: Zhejiang Three-V Imp. & Exp. Co. Ltd.
Share on (60822279764):
Product Overview
Description

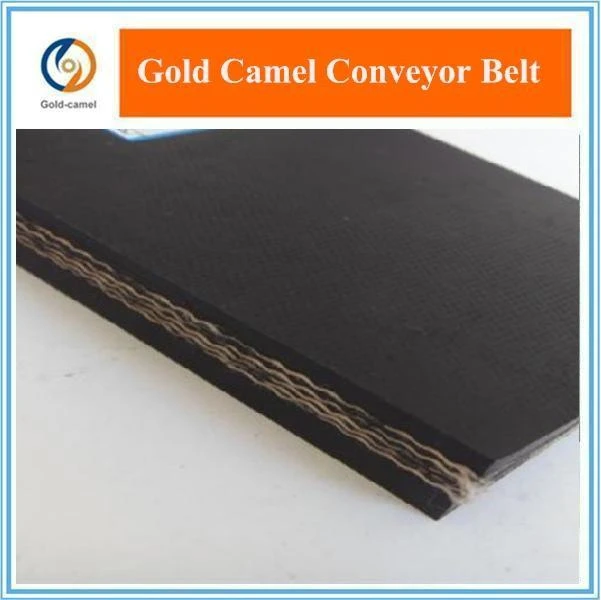

Nylon conveyor belt rolls
Product Description
1.The belt has the characteristics of low elongation in warp and good troughability in weft, good water resistance, good wet strength, suitable for medium, long-distance and heavy-load transportation of materials
2.Suitable for Medium, Long distance and Heavy-load transportation of materials like Aggregate,Cement,Coal, Foundry Coal,Grains,Hard Rock,Wood products,Sand etc
Specification Availability:
| Belt type | Fabric type | Single fabric strength (N/mm) | Rubber cover thickness (mm) | Ply | Belt width (mm) | |
| Top | Bottom | |||||
Cotton canvas (CC) | CC-56 | 56 | 1.5~6.0 | 0.0~6.0 | 2~10 | 300~2500 |
NN:Nylon(warp) +Nylon(weft)
EP:Polyester(warp) +Polyamide(weft) | NN/EP-80 | 80 | ||||
| NN/EP-100 | 100 | |||||
| NN/EP-125 | 125 | |||||
| NN/EP-150 | 150 | |||||
| NN/EP-200 | 200 | |||||
| NN/EP-250 | 250 | |||||
| NN/EP-300 | 300 | |||||
| NN/EP-400 | 400 | |||||
Rubber Cover Grade & Standard No:
| Standard No | Cover rubber | |||
| Tensile strength - MPa | Elongation at break - % | Abrasion - mm3 | ||
| DIN22102 | Z | 15 | 350 | 250 |
| W | 18 | 400 | 90 | |
| Y | 20 | 400 | 150 | |
| X | 25 | 450 | 120 | |
| AS1332 | N17 | 17 | 400 | 200 |
| N24 | 24 | 450 | 125 | |
| RMA | I | 17 | 400 | |
| II | 14 | 400 | ||
| SANS1173 | A | 18 | 400 | 70 |
| C | 20 | 400 | 150 | |
| M | 25 | 450 | 120 | |
| N | 17 | 400 | 150 | |
Classfication by use:
| Type | Rubber cover | Tensile strength at break N/mm | Elongation at break % | Abrasion mm3 |
Abrasion resistant | AR-M | 24 | 450 | 120 |
| AR-Y | 20 | 400 | 150 | |
| AR-W | 18 | 400 | 90 | |
| AR-N18 | 18 | 450 | 200 | |
| AR-N17 | 17 | 400 | 200 | |
| AR-A | 17 | 400 | 70 | |
| AR-Z | 15 | 400 | 250 | |
| AR-II | 14 | 350 | 280 | |
| AR-L | 10 | 350 | 300 | |
| Oil resistant | FOR | 12 | 300 | 300 |
| MOR | 15 | 450 | 250 | |
| LOR | 17 | 450 | 200 | |
| Heat resistant | HR-T1-100oC | 17 | 400 | 250 |
| HR-T2-125oC | 15 | 350 | 250 | |
| HR-T3-150oC | 13 | 350 | 250 | |
| HR-T4-180oC | 11 | 350 | 280 | |
| HR-T4-250oC | 10 | 350 | 300 | |
| HR-T4-400oC | 10 | 350 | 250 | |
| FR/AR/AS | ARAS | 18 | 450 | 200 |
| FRAS | 14 | 400 | 250 | |
| FR | 12 | 350 | 300 | |
| Cold resistant | T1- minus 25oC | 17 | 350 | 300 |
| T2- minus 50oC | 14 | 300 | 300 | |
| Chemical resistant | Anti acid & alkali | 14 | 400 | 250 |
Related Products
View more products, please click on images below:
Company Information
Having specialized in mechanical conveyor systems products for more than 15 years, Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009.
Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains&Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.
FAQ
In order to quote you ASAP, please provide following information:
1, canvas type: CC,NN or EP, and number of plies of fabric canvas
2, single fabric strength (N/mm)
3, according to tables, choose Standard No. or belt type (classfication by use)
4, belt width (mm or inch),length (meter or inch)
5, belt thickness, including top and bottom rubber, total thickness
