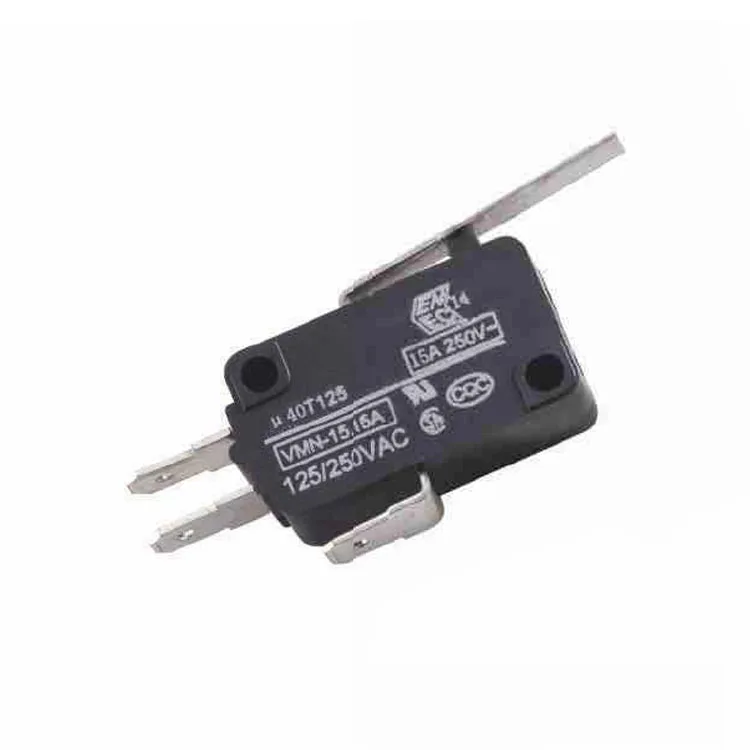

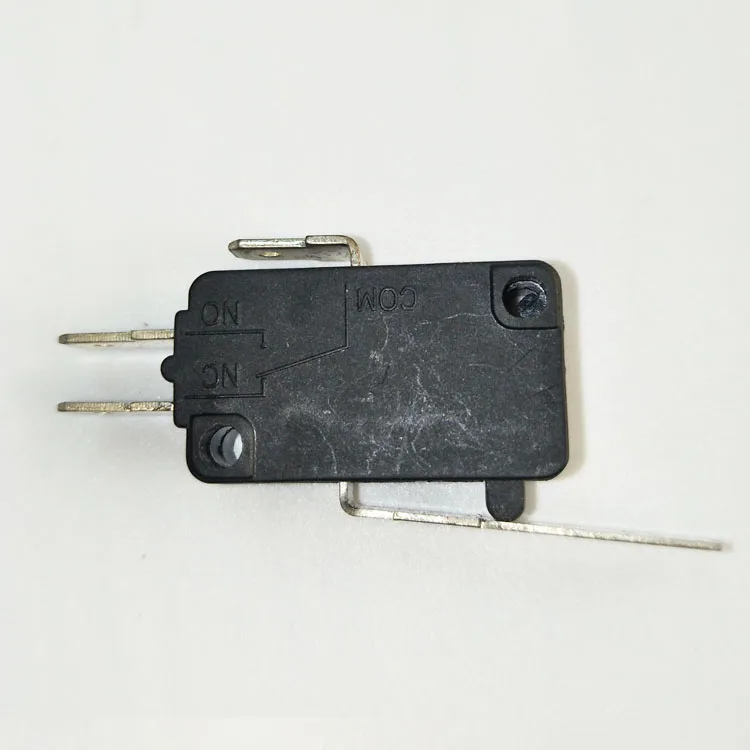

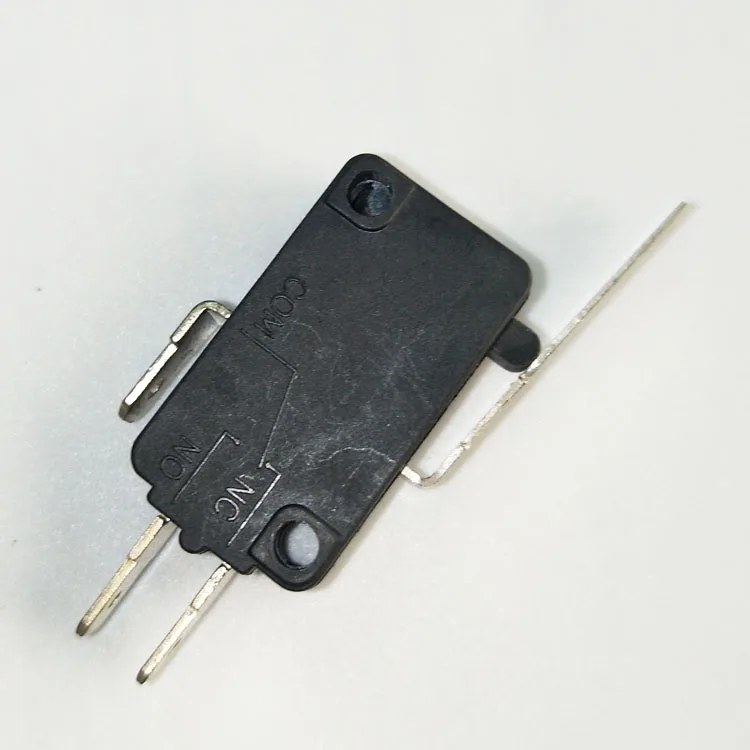

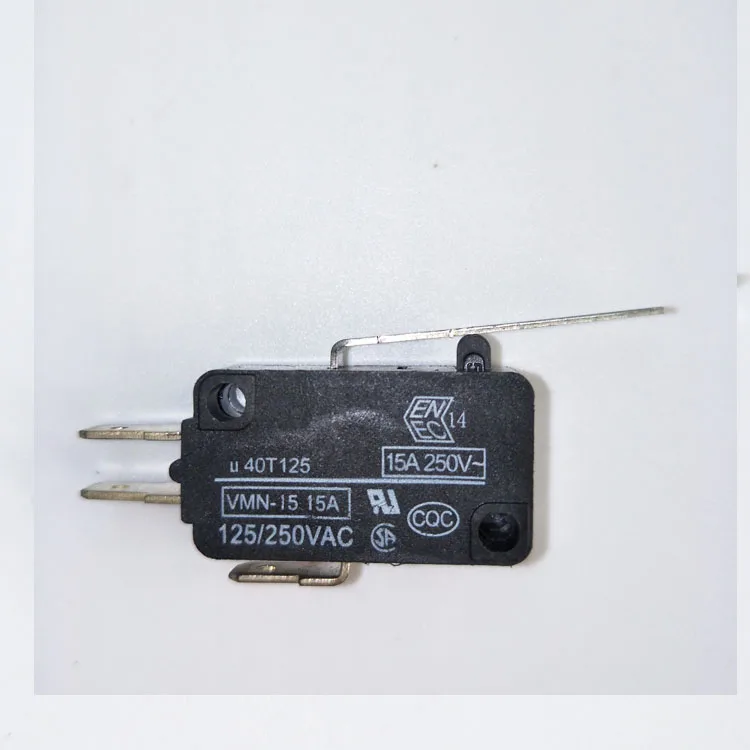

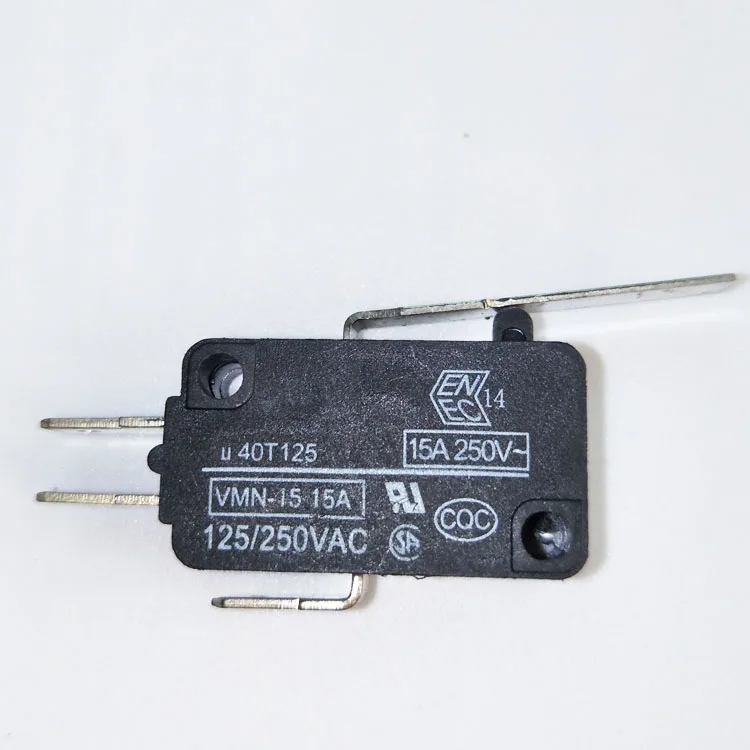

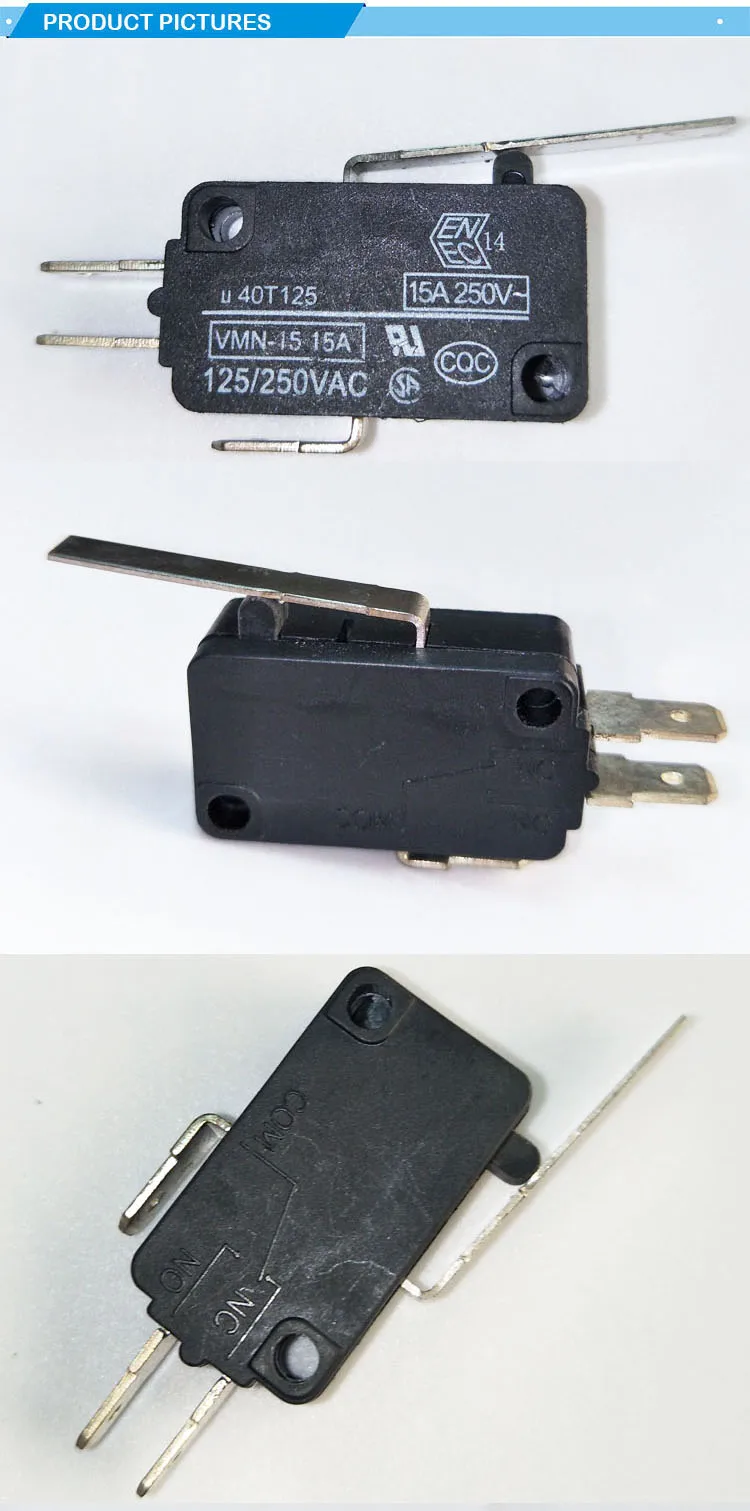

ON ON 15A 250VAC tiny zippy switch Item No.: VMN 03 Tuowei heater micro switches with lever
- Category: >>>
- Supplier: Shenzhen Towei Electronics Co. Ltd.
Share on (60822308163):
Product Overview
Description
Product Description
ON-ON 15A 250VAC tiny zippy switch Tuowei heater micro switch with lever
Item No.:VMN-03
Technical Parameter | |
Electrical Rating | 15A ~125V.A.C./250V.A.C. |
Function | ON-NC |
HZ | 60/50 |
| Load | Res/ Mot |
| Temp(C) | 125°C |
| Pol/Thr | 1/ M |
| PP/Circuit | A/-- |
| Endur | 10K CYCLES |
| Operation force | 200G+_50GF |
| Withstand voltage | 1500 V.A.C |
| SPCOA | 24-18AWG UL1015 |
Material: | |
| Housing:PA66 Grade: SABIC | |
| Terminals: Brass Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Contract: Copper | |
| Base: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: SABIC | |
| Apply to: | |
Electric Heater, humidifier, Heater, kitchen ventilator and other home appliances.
| |
