4K 60Hz 3 Port HDMI Switch with Optical Toslink SPDIF & RCA L/R Audio Out, 3x1 HDMI Audio Extractor Splitter with Remote

Product Overview

Description

4K 60Hz 3 Port HDMI Switch with Optical Toslink SPDIF & RCA L/R Audio Out, 3x1 HDMI Audio Extractor Splitter with Remote

hdmi switcher box Key Feature

• Three HDMI input signals switched to a single HDMI sink devices
• Any input HD Source can do audio extract by the SPDIF or L/R audio output port.
• Support HDR
• Support 4K*2K @60Hz resolution
• Video Format Support: 4Kx2K/60Hz 8Bit YcbCr4:4:4;
• Supports ARC ,TV audio will return and out by the Optical Port;
• HDMI to achieve the synchronization of audio signal separation. Support 2.0/ 5.1/ PASS three kinds of audio mode options
• Support SPDIF digital audio format: Dolby digital (AC3), DTS and LPCM2.0
• LED indication: when source or sink is working, LED related will go bright.
• Led Status Light allows the user to know the working status easily.
• No loss of quality
• Need DC5V/2A power supply

Extracting Audio

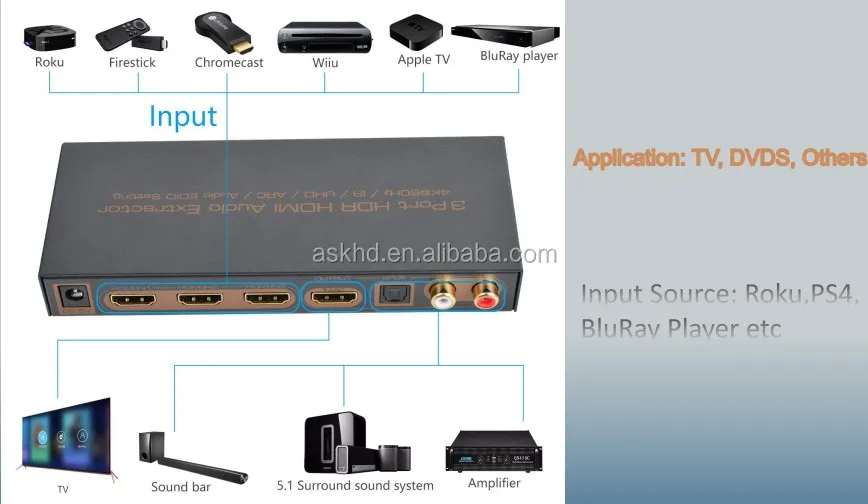

You can "Extract" the audio from the active source, and break it out to an external sound system, such as speakers,or a surround sound system.

hdmi switcher box Specification

Power
Voltage	DC 5V
Amps	1000mA
Power Consumption	5 Watts (max)
Resolution
Data Rate	18Gbps
Max transmission bandwidth	600MHz
HDMI Resolution	4K@60Hz /4K@30Hz/3D/1080P/1080i/720p/576p/576i/480P/480i
Support video color format	24bit/deep color 30bit,36bit
Cable Connections
Connectors (Input)	3x HDMI Type A 19 Pin Female
Connectors (Output)	1x HDMI Type A 19 Pin Female
Environment
Operation Temperature	-0 to +40℃
Humidity	5 to 85%RH (No Condensation)
Storage Temperature	-20 to +60℃
Storage Humidity range	5 to 95%RH (No Condensation)
Case	Metal
Package Contents
1,Main unit               1pcs 2,5V Power Adaptor    1pcs 3,one pc of Manual     1pcs

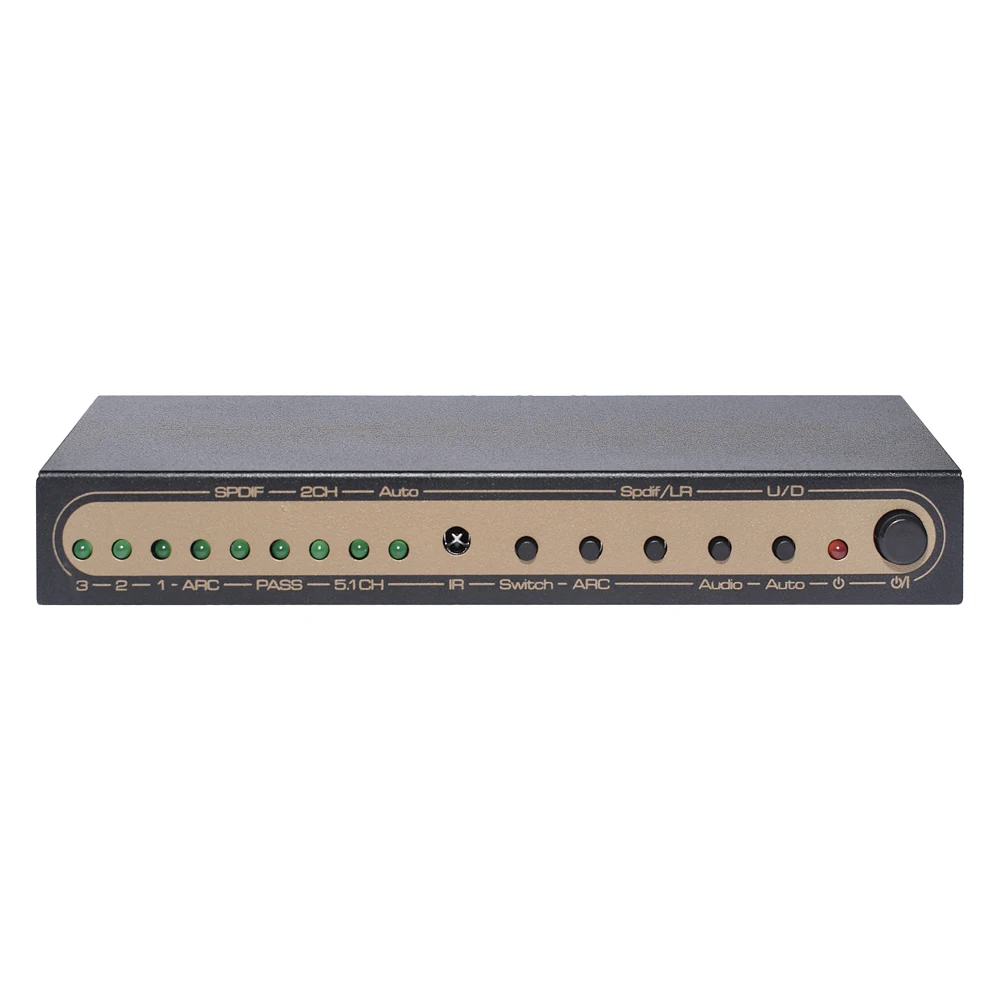

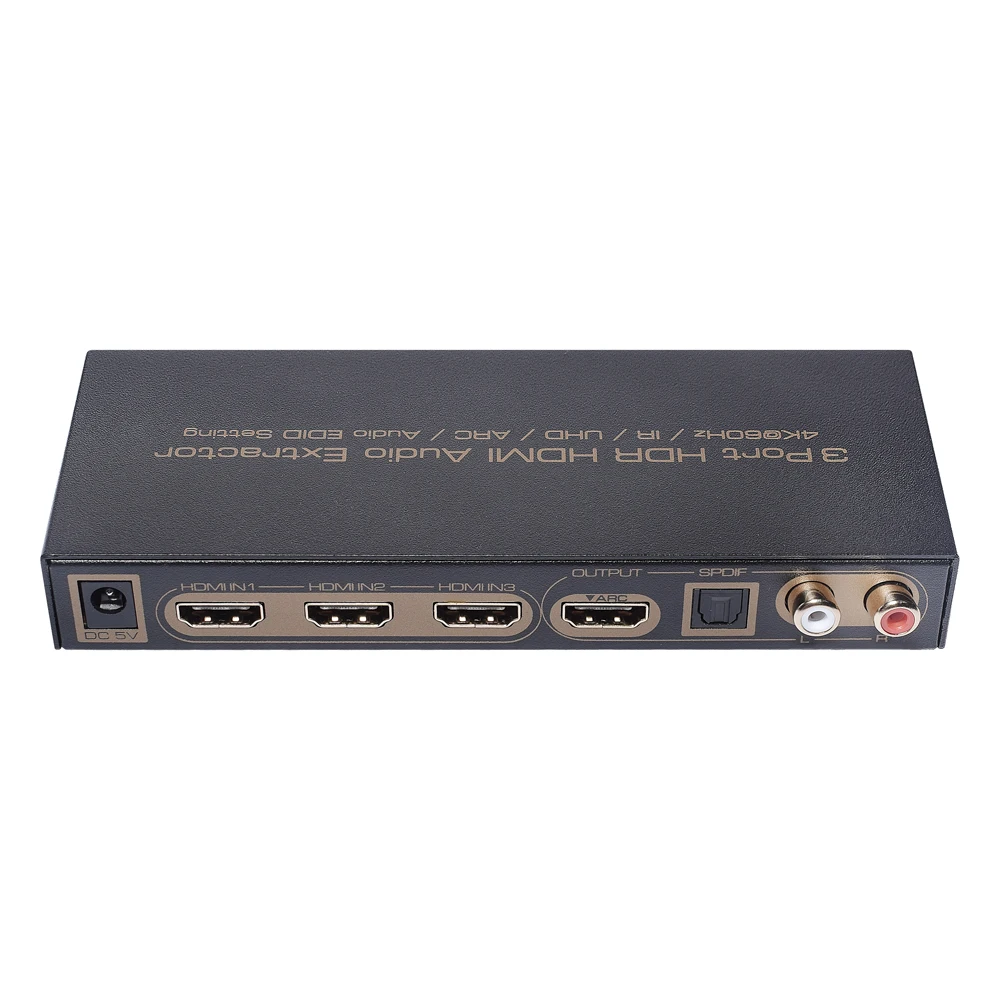

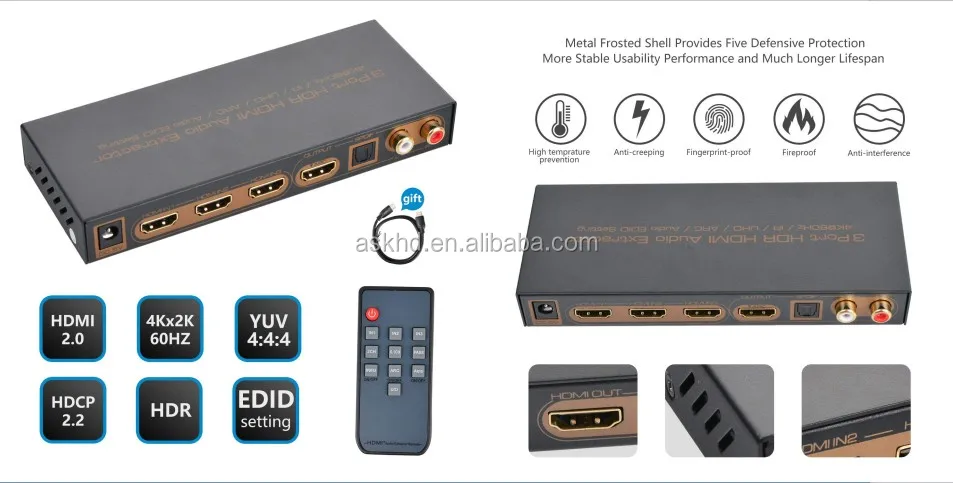

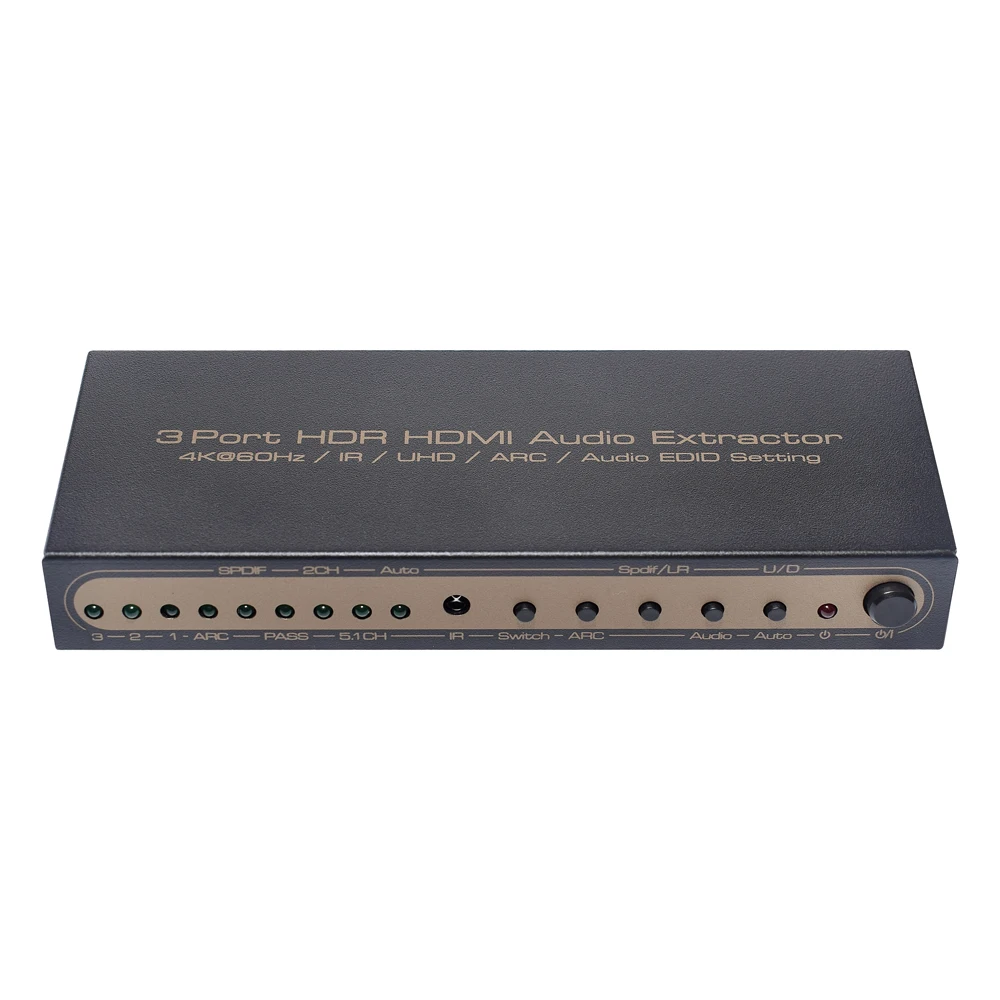

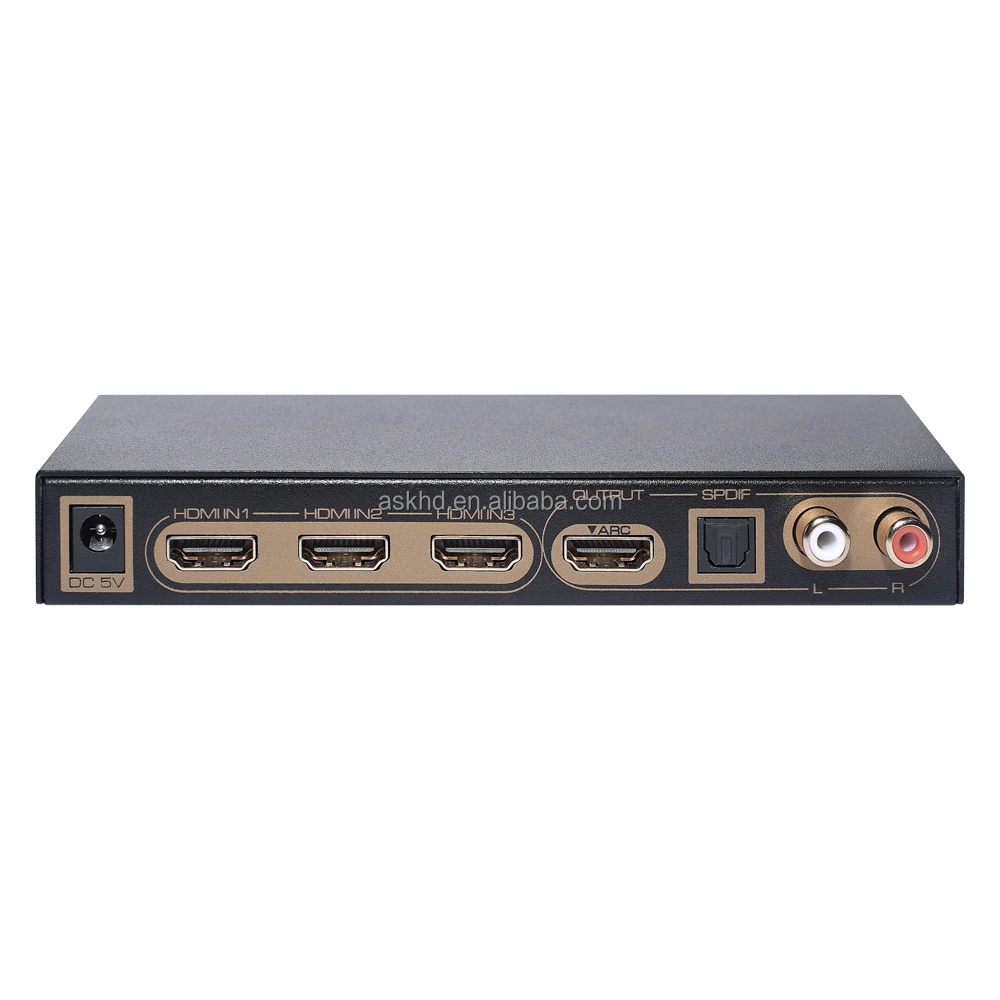

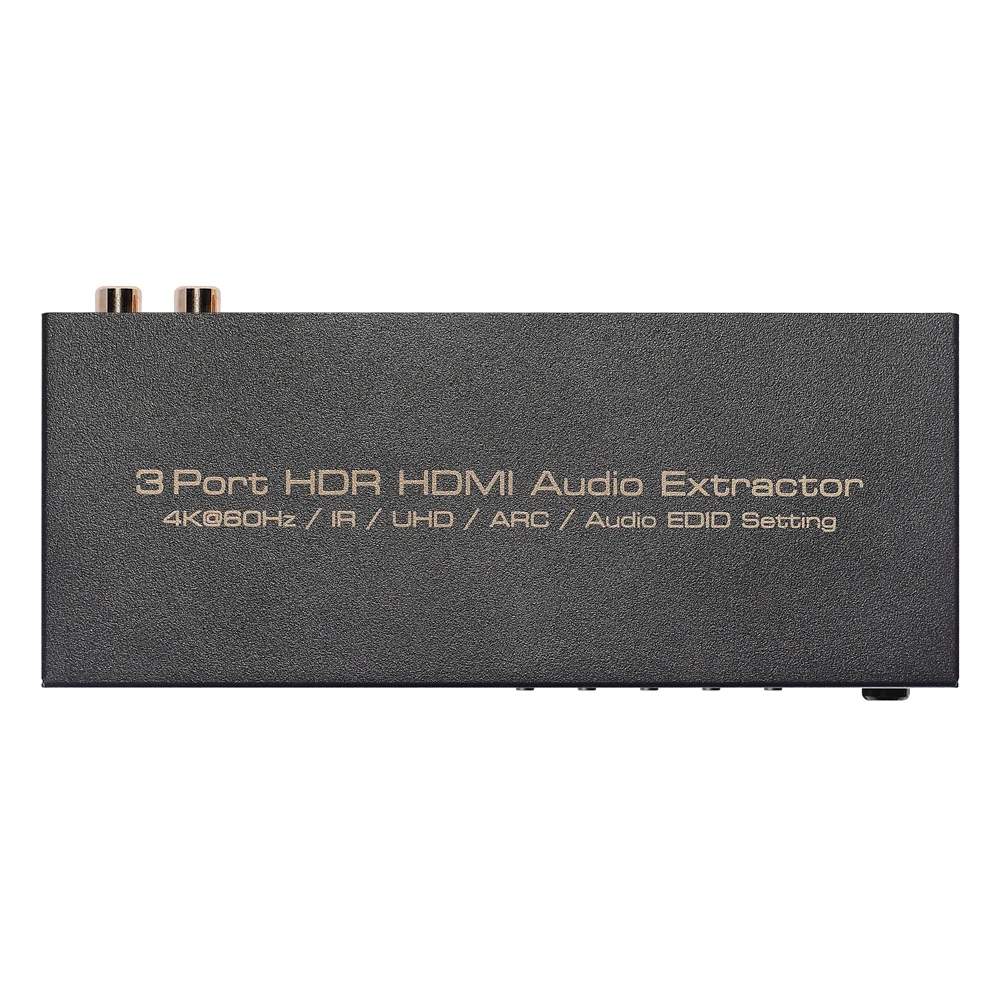

hdmi switcher box Product Picture show







Standard Package

Blister Box+ Instruction book + white box .Mostly,we could provide our Ai. diecut for customer to add their own design.Or We could also do customized package as customer's requirements.
