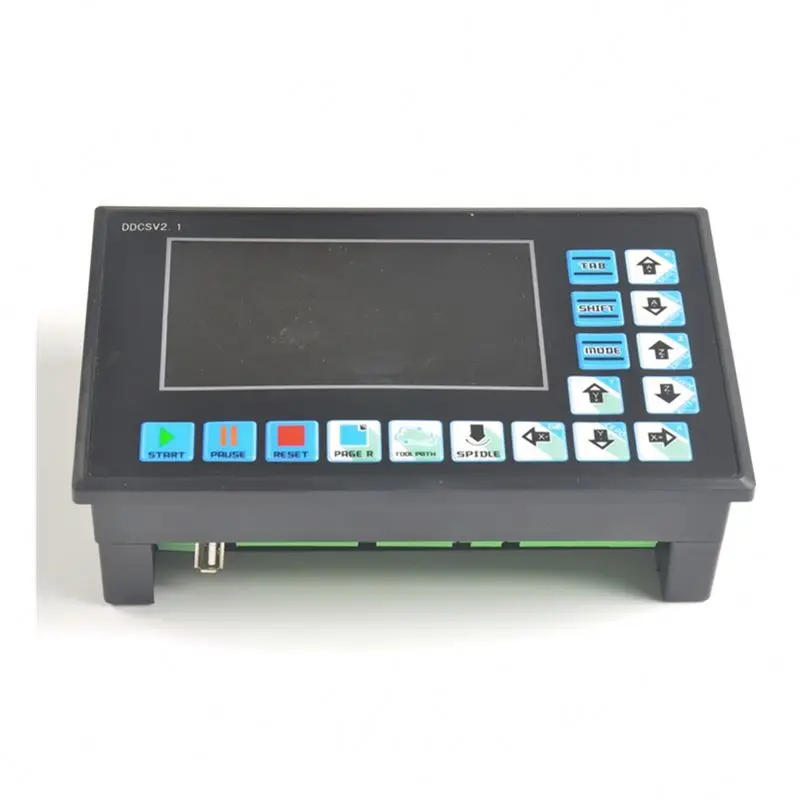

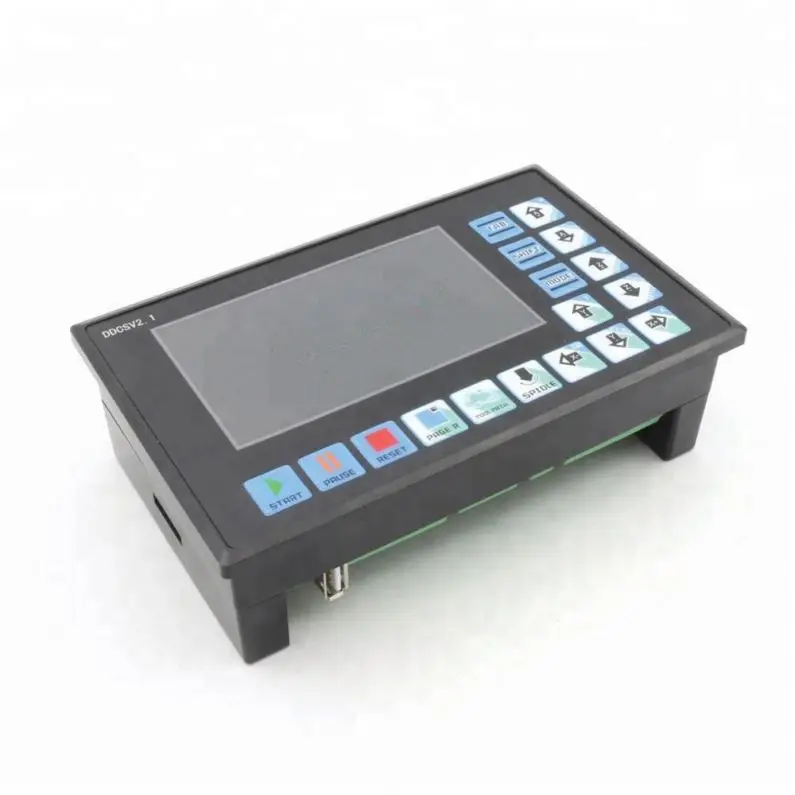

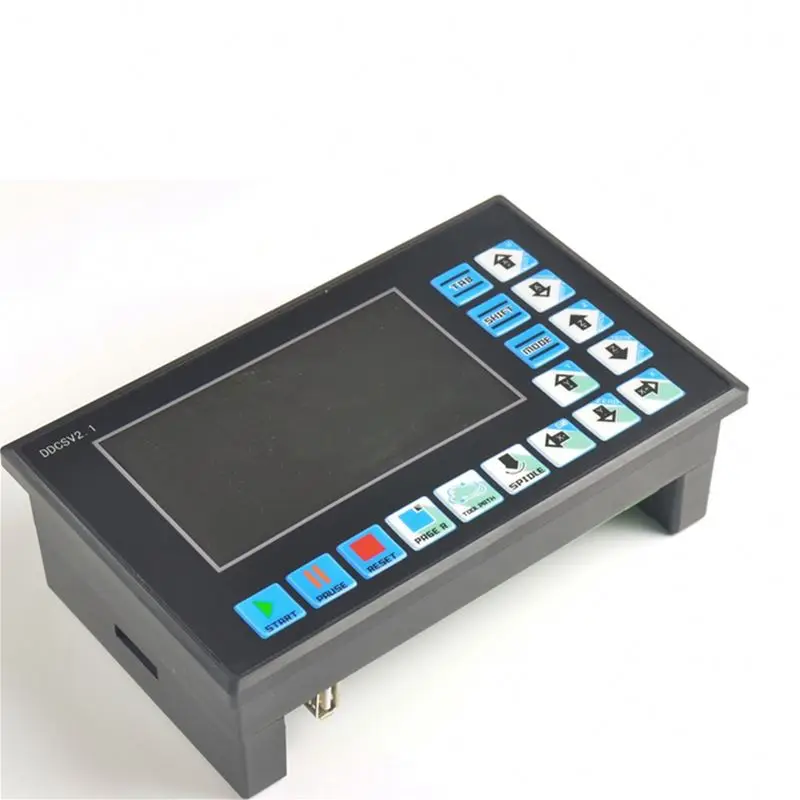

DDCSV2.1 CNC 500KHZ 4 Axis Motion Controller Stepper Motor Driver

 DDCSV2.1 CNC 4 Axis Motion Controller 500KHz Stepper Motor Driver

1.1 product description

Feisite NC attention NC industry for 7 years, specializing in a variety of high quality, high reliability of CNC system research, development and production. Can produce commonly used direct current brushless drive, stepper motor drive, single axis to 6 axis linkage CNC system.

DDCSV2.1 is the 4 axis 4 linkage motion controller which is developed through 4 years of research and development; each position control cycle 4 ms, high control precision. The highest single output pulse is 500KHz, and the pulse width is adjustable. Support common stepper motor and servo motor.

DDCSV2.1 numerical control system uses ARM+FPGA design framework, ARM to complete the man-machine interface and code analysis, FPGA complete the underlying algorithm and control pulse generation part. Reasonable design, reliable control, convenient operation.

DDCSV2.1 panel layout is reasonable, the 17 key to complete common offline operation, support for the general purpose of FANUC G compatible.

This manual introduces the operation method of the DDCSV1, the machine tool and the operation procedure of the machine tool. Through a large number of illustrations and examples of the use of the DDCSV1 can learn to use the faster the CNC system.

1.2 product performance parameters

• 16 opto isolated ordinary digital input interface;

• 3 opto isolated ordinary digital output interface;

• 1 0-10V main shaft speed analog output interface (which can be modified into PWM output);

• Support 3 channel stepper motor control, single channel maximum 500KHz control pulse output;

• ARM9 master control chip;

• FPGA core algorithm chip;

• 4.3 inch TFT screen, resolution 480*272;

• 17 operation keys (one spare key, no definition);

• The main control equipment for 5V power input, current capacity of not less than 1A, with a 220V 5V4A power adapter;

• Support U disk read G instruction, G instruction file size no requirements;

• Equipped with hand and pulse interface, support the company's digital hand, while supporting the common hand in the market.

• The support panel key point and single axis manual operation;

• Support for fast running position operation;

• Support for multi coordinate system (coordinate system can not be saved, 0);

• Support save breakpoint function (run by the pause button to automatically save);
•
• Please note:
• 1, the offline system, run the U disc G code, without computer, without other control equipment
  2, control 4 stepper motor operation

  3, with 15 input interface, including the limit stop and other functions, to support the breakpoint continued carving

  4, with 4 programmable output interface, including water cooling, spray cooling and other controlled peripheral.

  5, the spindle speed adjustment VSO mode (0-10V) dual mode.

  6, independent design system software.

  7, USB interface, support common U disk system.

  8, DCDC electrical isolation

  10, the highest 500K stepper motor control pulse output, suitable for most of the machine tool system needs.

  11: support for standard hand pulse, control the feeling is like a hand twisting motor position

  12: support standard G code system, compatible with FANUC

  13: embedded case design, easy to install on any cabinet panel.

  14: integrated power supply stability system, can fight the general spindle motor electromagnetic interference.

  15: high speed output interface chip, provide enough current and pulse frequency signal output.

  16:LPC industrial grade master control chip, improve system stability.

1.3 product appearance and dimensions

DDCSV2.1 using embedded shell structure, can make a square hole in the cabinet, and the device is embedded with a square hole, from the inside with 2 locking locking mechanism can be the device fixed on the cabinet, convenient installation. Product appearance size diagram, Figure 1-1 and figure 1-2.

Product panel size is 163mm*102mm*5mm;

The main body of the size of 156mm*93mm*45mm;

The size of the cabinet is 156mm*93mm.
