Product Overview

Description

Microwave mmw a horn antenna horn China manufacturer supplier





Product Introduction:

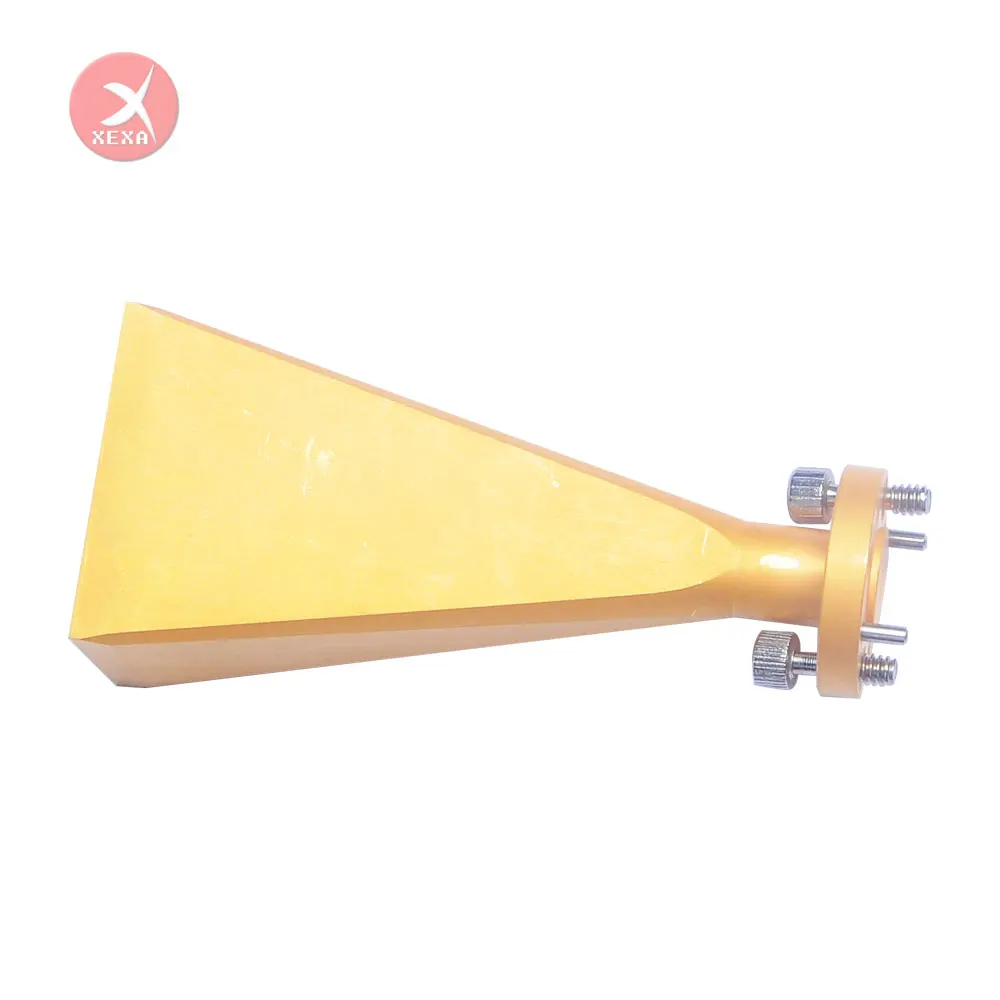

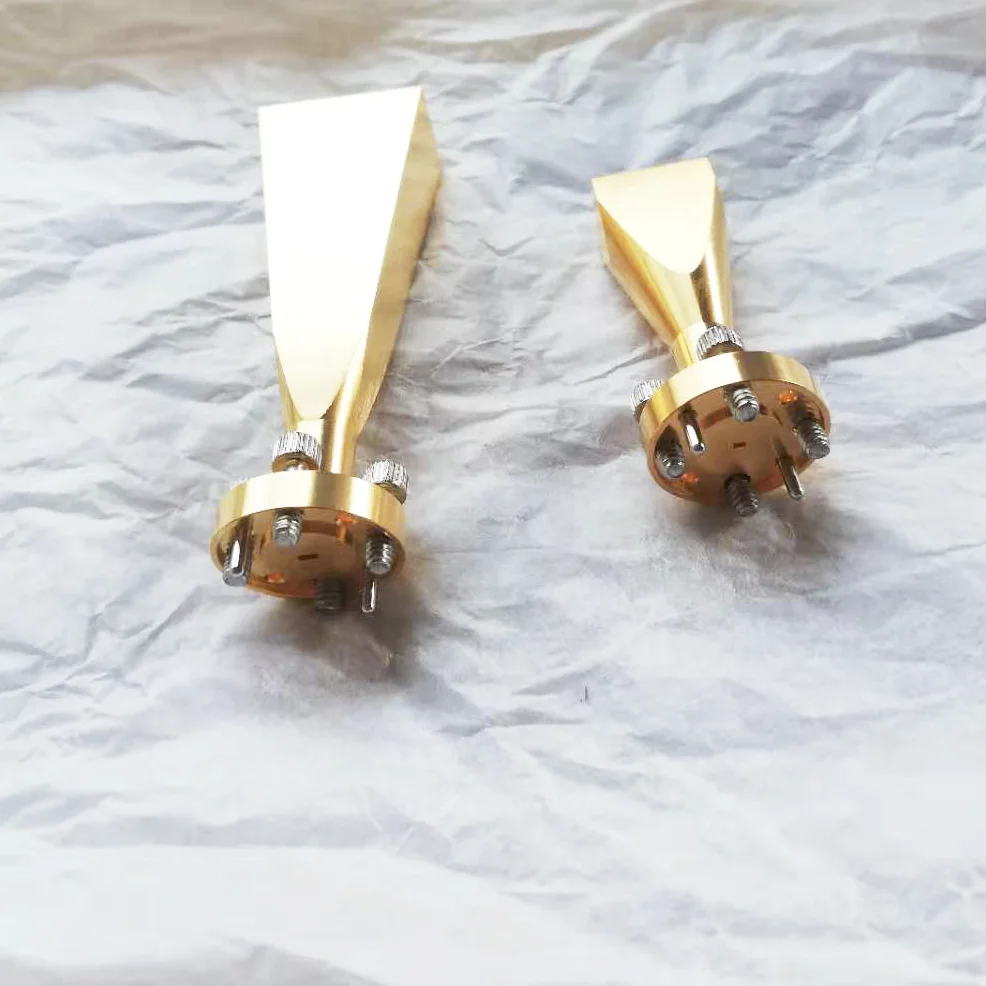

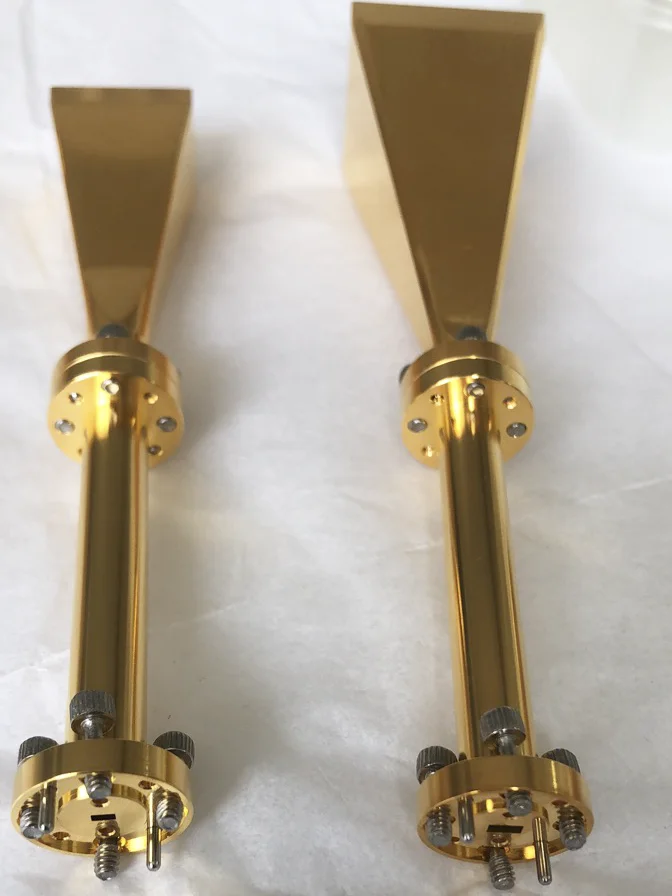

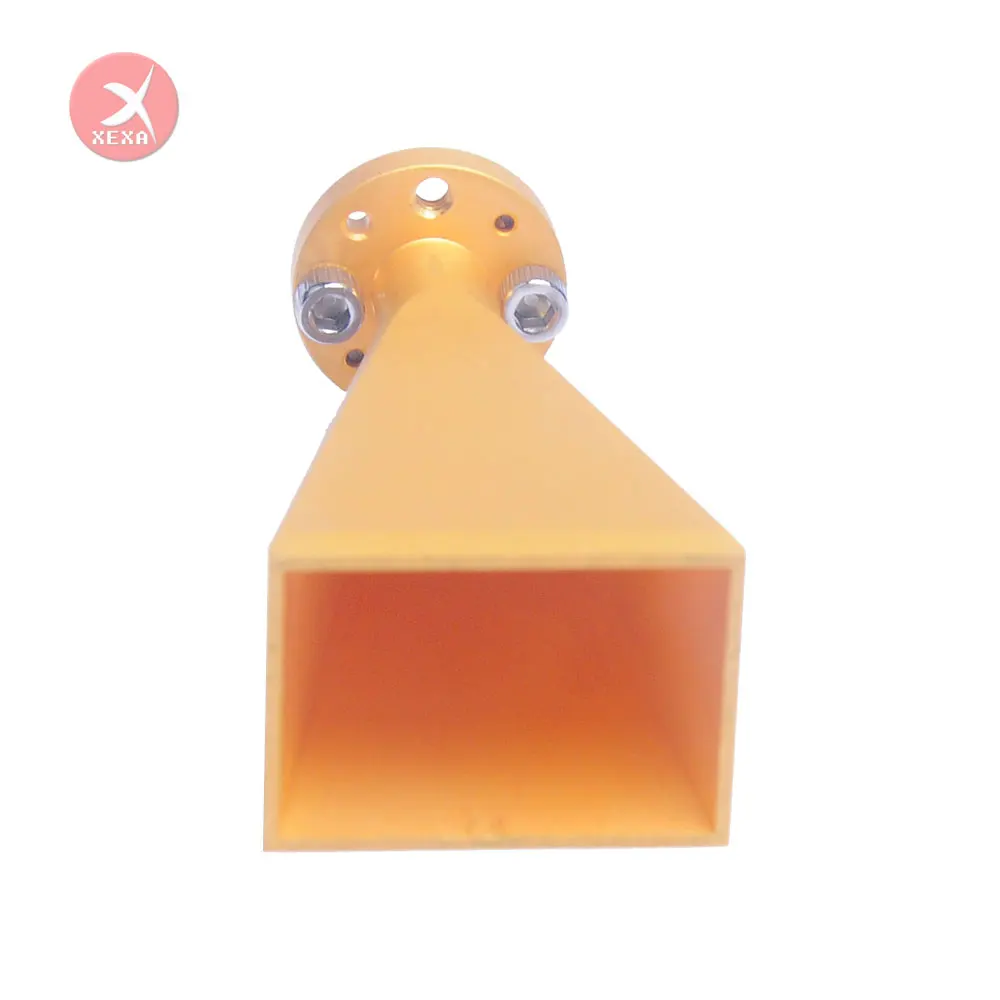

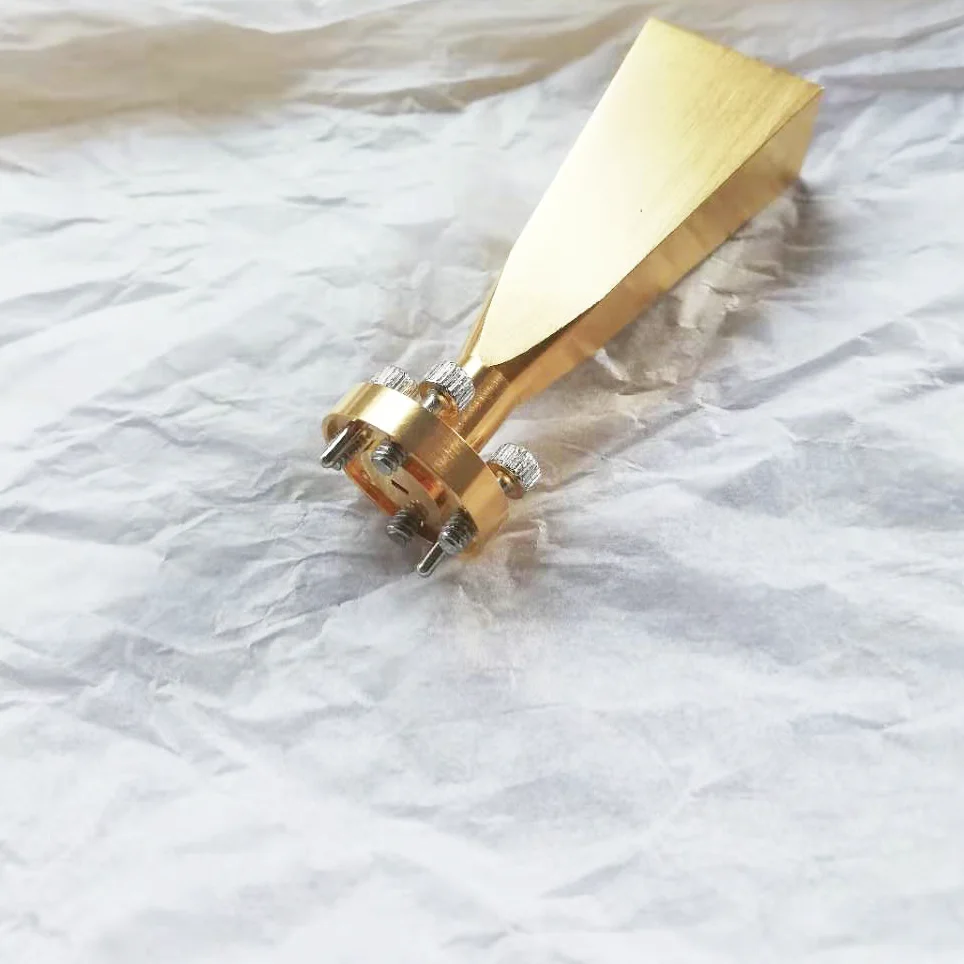

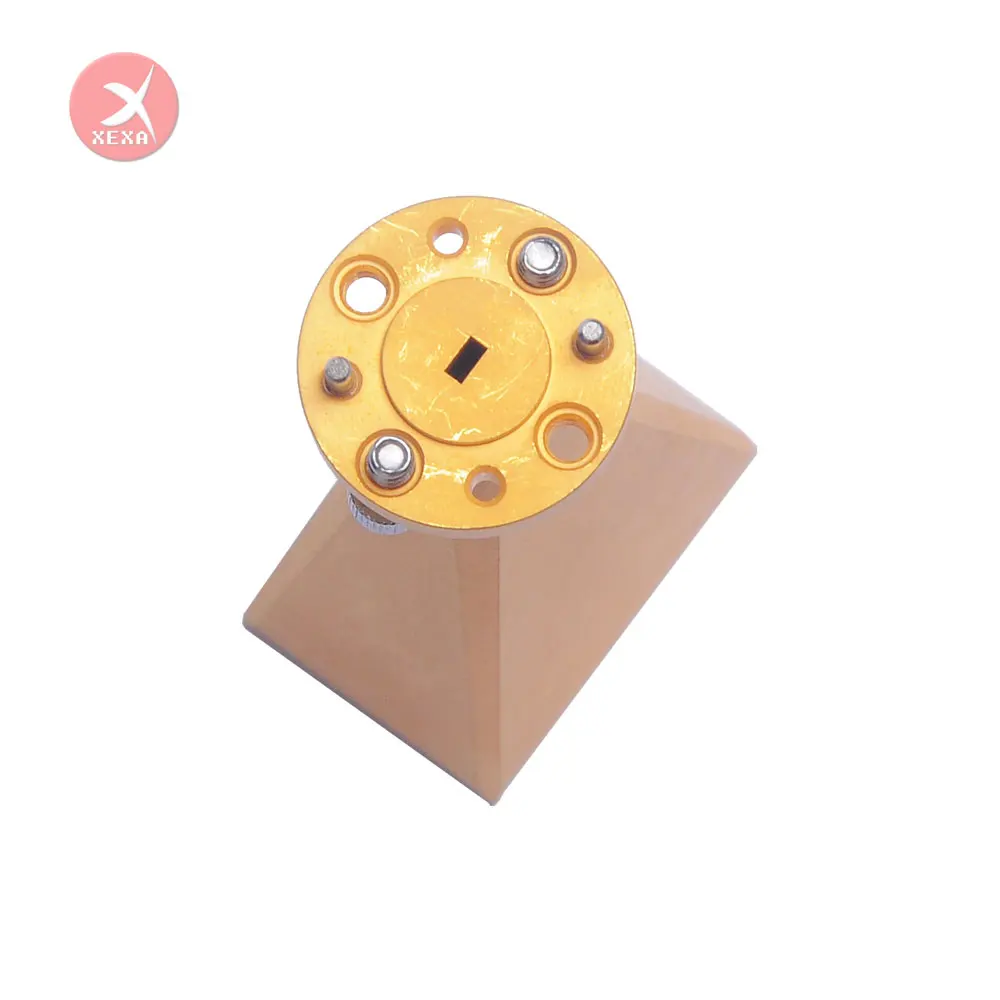

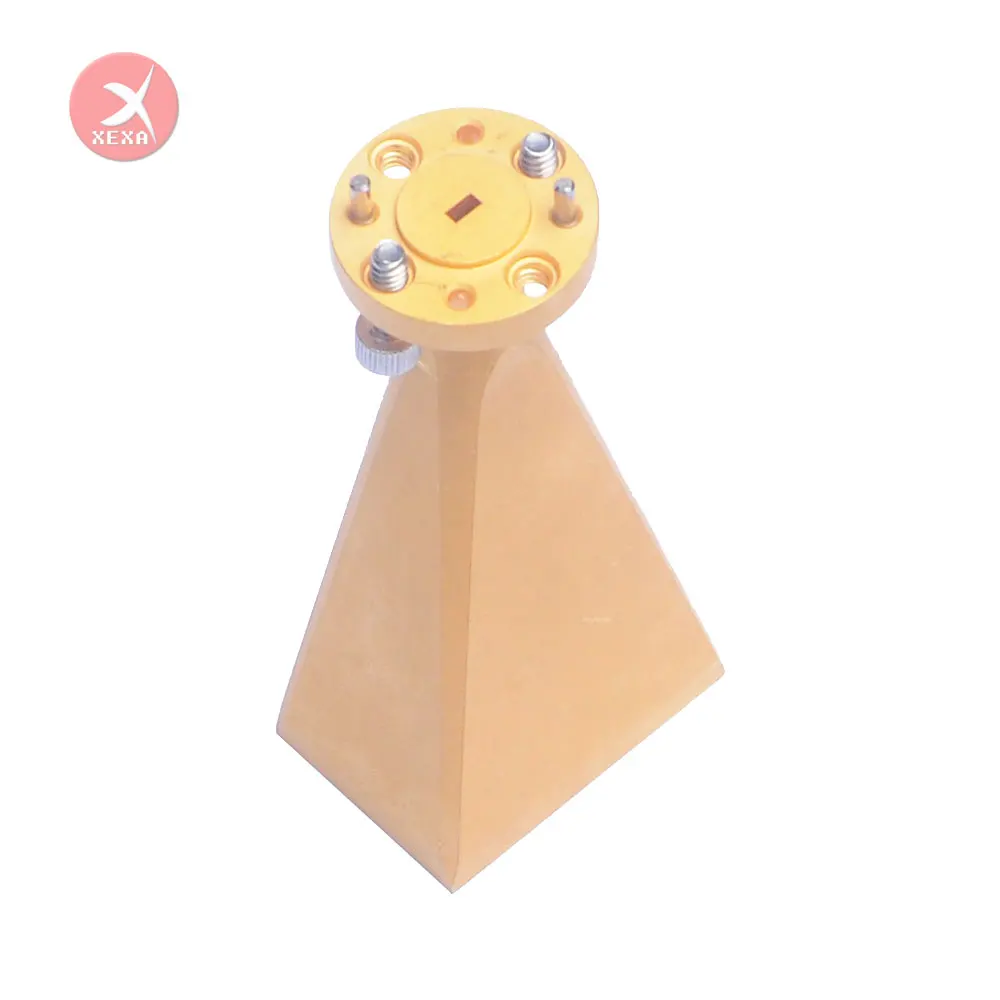

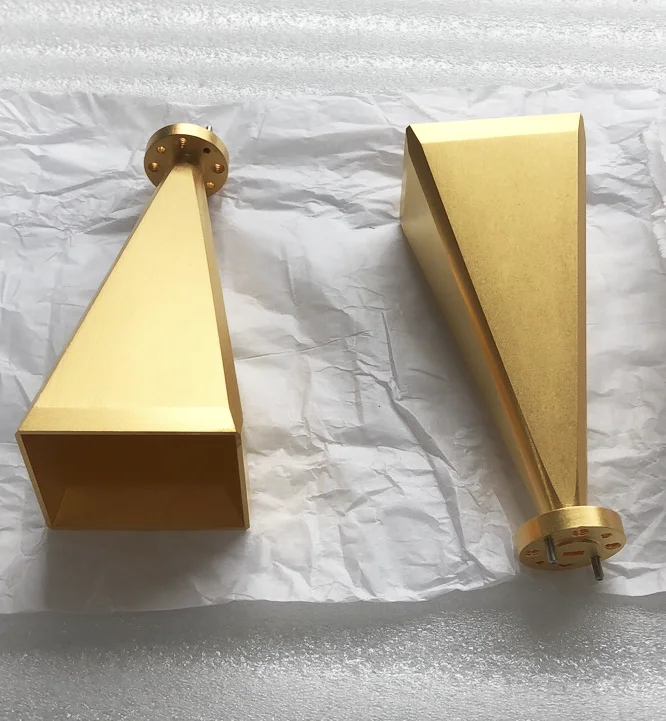

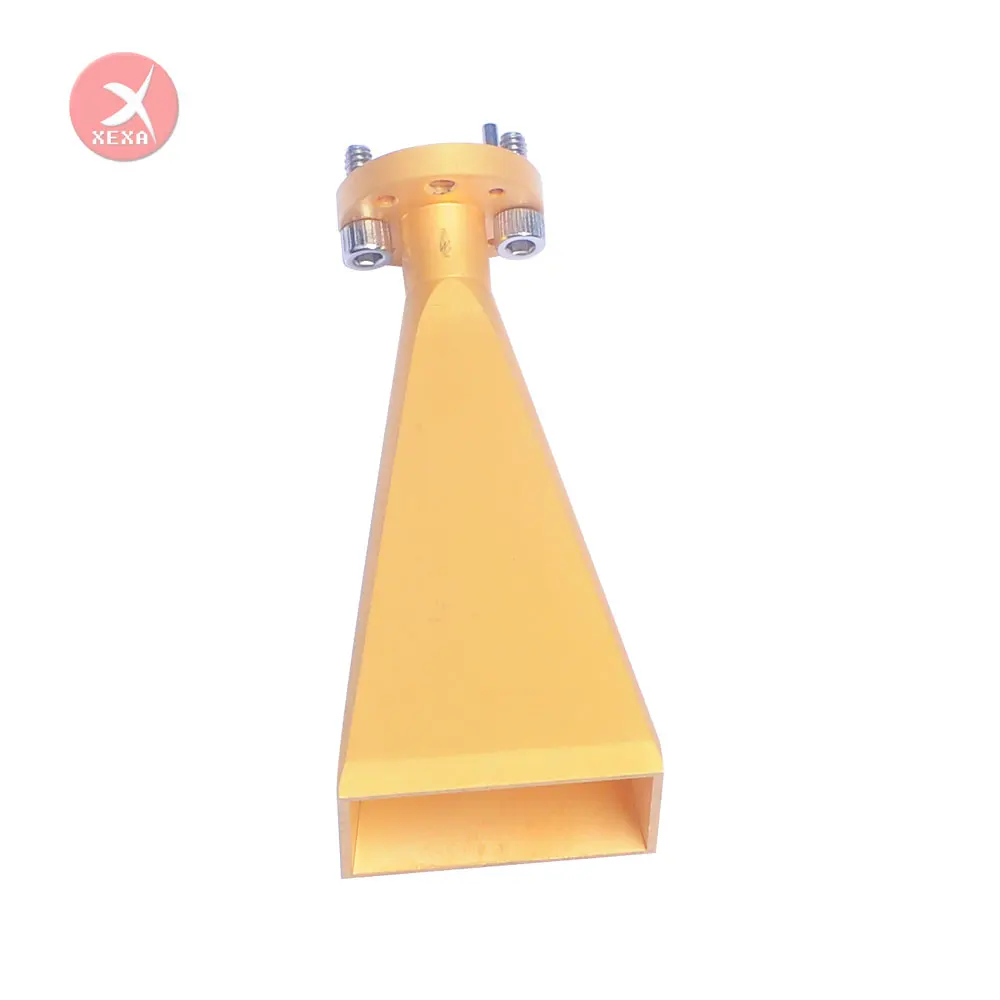

XEXA-SGHA standard gain horn antenna is designed according to the best pyramid horn design principle. The frequency covers from 1GHz to 900GHZ (standard antenna up to 3THz can be customized), and each antenna covers the corresponding full waveguide bandwidth. The nominal Gain are: 10, 15, 20 and 25dB.

XEXA-SGHA series standard gain horn antenna is made of aluminum by argon arc welding or aluminum brazing at low frequency; In the high frequency band, it is made of copper by silver brazing; The higher frequency band is precision EDM. Firm and reliable structure, stable performance, accurate calibration and high linear polarization purity. Gain,flange,surface treatment and material can be manufactured per customer request.

Features:

XEXA-SGHA  series of standard gain horn antennas are characterized by reliable structure, stable performance, accurate calibration and high linear polarization.It has the characteristics of high gain, small reflection and frequency bandwidth, and simple processing and low cost.



Special Application Custom Horn Antennas
A variety of system applications, such as aerospace and defense. Plasma diagnostics, depth or range measurement and receiver/transmitter arrays, require specially designed and produced horns or antennas.
Some parameter like that:
Horn type: conical, pyramidal, scalar, sectoral, or custom
Beam shape: beam width in E- and H-plane, beam symmetry, and any special features
Aperture: any size and length constraints
VSWR,Gain
Sidelobe levels and cross-polarization isolation
Material, Surface treatment

Model&Specifications
