HF3FF remote control relay
- Category: >>>
- Supplier: Xiamen Universal Electronic Co. Ltd.
Share on (60822492483):
Product Overview
Description
HF3FF remote control relay
remote control relay

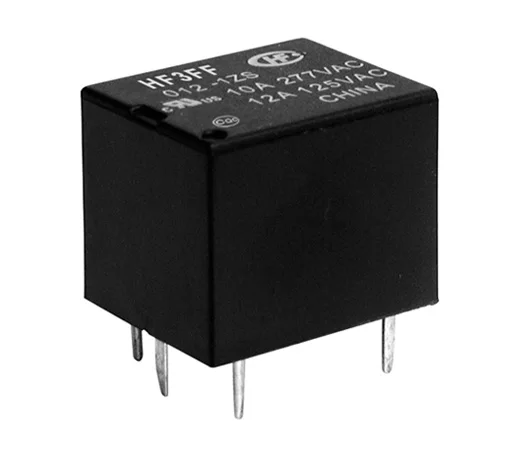

Picture of HF3FF remote control relay
HIGH POWER LATCHING RELAY remote control relay
Features of remote control relay
remote control relay
| SUBMINIATURE HIGH POWER RELAY * remote control relay |
| Relay Type:HF3FF * remote control relay |
| · 15A switching capability · 1 Form A and 1 Form C configurations · Subminiature, standard PCB layout · Plastic sealed and flux proofed types available · Environmental friendly product (RoHS compliant) · Outline Dimensions: (19.0 x 15.2 x 15.5) mm |
remote control relay
| | |
| Contact Arrangement: | 1A,1C |
| Contact Resistance: | AgSnO2 , AgCdO |
| Contact Rating: | 10A 277VAC 10A 28VDC |
| Max. switching Voltage: | 277VAC / 30VDC |
| Max. Switching Power: | 2770VA / 210W |
| Mechanical Endurance: | 1×107OPS |
| Electrical Endurance: | 1 x 105OPS (NO,7A 250VAC) 5 x 104OPS (NO,10A 250VAC) |
| | |
| Insulation Resistance: | 100MΩ |
| Dielectric Strength: | 1500VAC |
| Operate Time (max): | 10ms |
| Release Time (max): | 5ms |
| Ambient Temperature: | -40℃ ~ 70℃ |
| Terminal Type: | THT |
| | |
| Nominal Voltage: | (5~48)VDC |
| Coil Power: | 0.36W (48VDC: 0.51W) |
| | ||
| |
Packing:
Packing Details : Standard Packing, * remote control relay
Delivery Details : 3-30 days after order of * remote control relay
Our Certifications
 |  |  |
FAQ
Q: Are you trading company or manufacturer? remote control relay
A: We are factory& trading company.
Q: How long is your delivery time? remote control relay
A: Generally it is about 15-25 days to produce.
Q: Do you provide samples? remote control relay
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment? remote control relay
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 50% T/T in advance ,balance before shippment.
remote control relay
