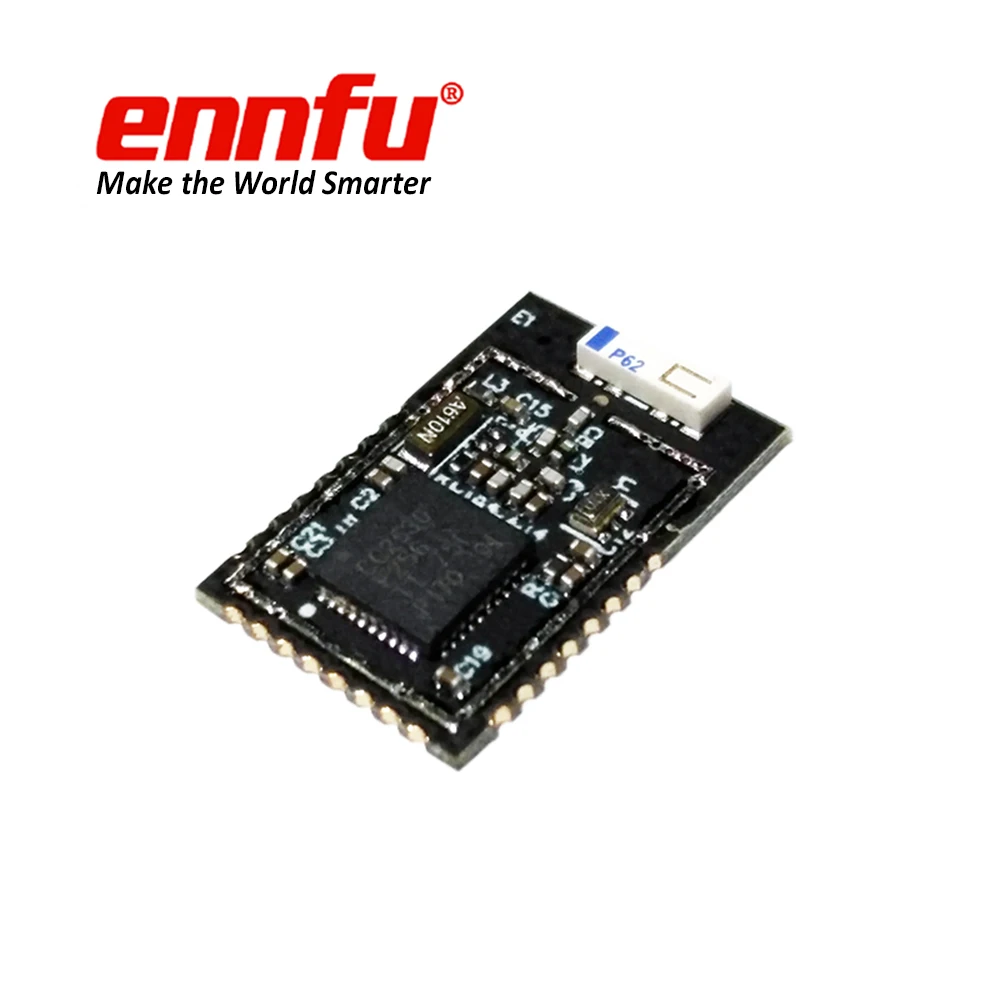

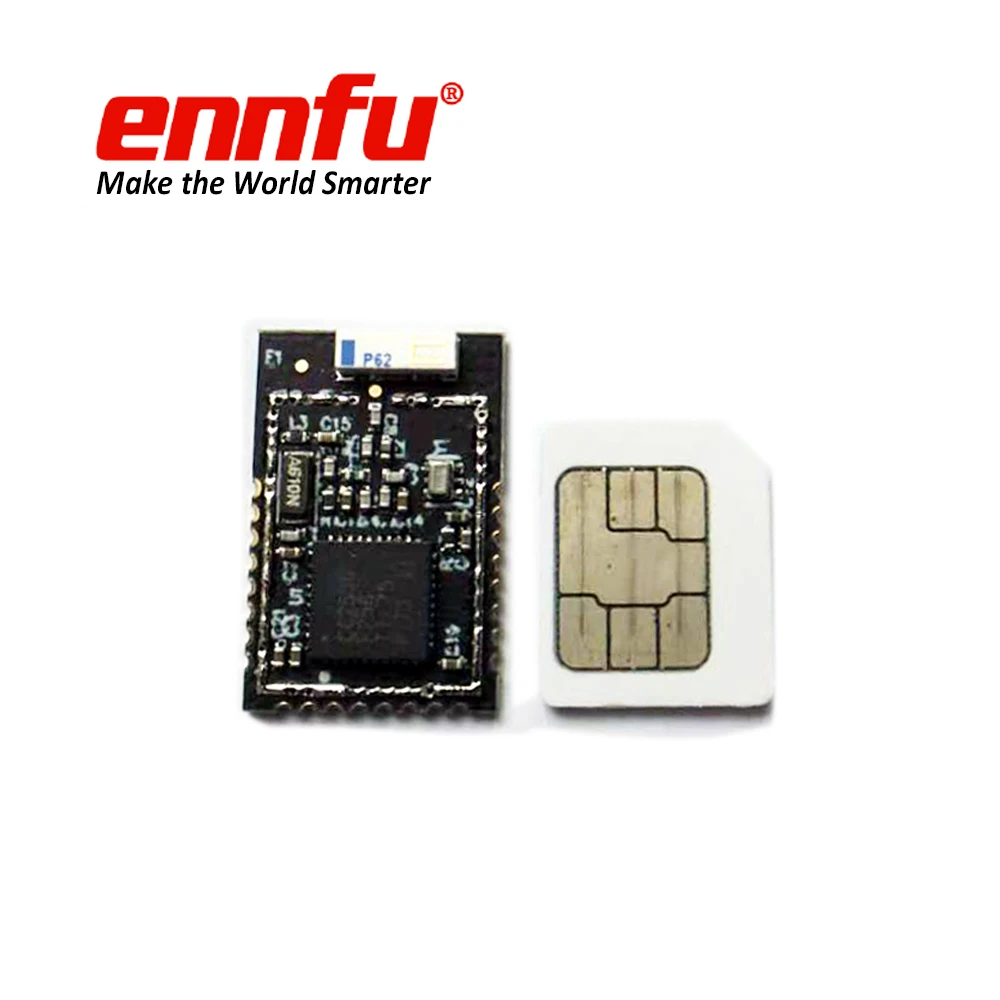

T30P127A2.4G Zigbee Lighting Module With Built-in Antenna
Smallest Size 20.15mm*12.95mm With Strong Through Wall Performance
Tiny volume integrated 2.4GHz zigbee wireless module with built-in Antenan,which was based on TI CC2530 Zigbee RF chip technology, adopted standard IEEE 802.15.4 protocol.
TECHNICAL PARAMETERS:
No.
Parameter Name
Parameter Value
Summary
1
RF IC
CC2530
TI
2
Module Size
12.95mm*20.15mm*2.07mm
Including Built-in Antenna
3
Module Weight
1.1mg
4
Working Frequency
2405~2480MHz
2.4GHz, IEEE 802.15.4 Protocol
5
Craft
Immersion gold
SMT,ROHS
6
Interface Mode
3*8*1.27mm Pitch
SMD
7
Supply Power
2.0~3.6V DC
Caution:Causing permanent damage to the module when the voltage is higher than 3.6V.
8
Communication Level
+0.7V~+5V
9
Test Communication Distance
≈150m
10
Air Ratio
250Kbps
11
Send Power
4dBm
12
Shut Current
1.2uA
13
Send Current
28mA@4dBm
14
Receive Current
27mA
About 2.5mW
15
Communication Interface
I/O
MCU sleep,wireless shut,Voltage:3.3V
16
Send Length
1~103Bytes
Power supply must exceed 100mA
17
Receive Length
1~103Bytes
Average current
18
RSSI Support
Support
All I/O pins of MCU, please see IC manual for detail.
19
Antenna Interface
Built-in Antenna
Single data packet
20
Working Temperature
-40℃~+85℃
Single data packet
21
Relative Humidity
10%~90%
Please see IC manual.
22
Storage Temperature
-40~+125℃
Antenna external
23
Receive Sensitivities
97dBm@250Kbps
Industrial grade

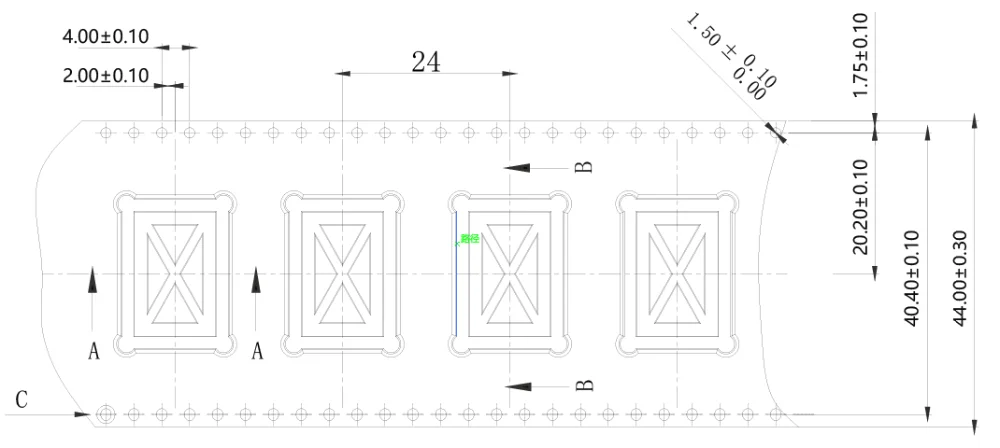

ZIGBEE PCB MODULE LAYOUT:
MIN
MAX
Units
A
12.95
12.95
mm
B
20.15
20.15
mm
C
2.07
2.07
mm
D
0.8
0.8
mm
E
1.27
1.27
mm
F
3.1
3.1
mm
G
2.3.
2.3
mm
PIN DEFINITION:
PIN Number
PIN Name
PIN Direction
PIN Applications
1
GND
1~103Bytes
Grounding,joint with the reference point of power.
2
VCC
Support
Supply power:2.0~3.6V.
3
P2.2
I/O
Single -Chip IO
4
P2.1
I/O
Single -Chip IO
5
P2.0
I/O
Single -Chip IO
6
P1.7
I/O
Single -Chip IO
7
P1.6
I/O
Single -Chip IO
8
NC
Dangling
9
NC
Dangling
10
P1.5
I/O
Single -Chip IO
11
P1.4
I/O
Single -Chip IO
12
P1.3
I/O
Single -Chip IO
13
P1.2
I/O
Single -Chip IO
14
P1.1
I/O
Single -Chip IO
15
P1.0
I/O
Single -Chip IO
16
P0.7
I/O
Single -Chip IO
17
P0.6
I/O
Single -Chip IO
18
P0.5
I/O
Single -Chip IO
19
P0.4
I/O
Single -Chip IO
20
P0.3
I/O
Single -Chip IO
21
P0.2
I/O
Single -Chip IO
22
P0.1
I/O
Single -Chip IO
23
P0.0
I/O
Single -Chip IO
24
RSET
Input
Reset interface
