Hdmi input to LCD MIPI screen cintroller driver converter bridge board used for monitor VR 3D printer 3840*2160 4K@30Hz
- Category: >>>
- Supplier: Shenzhen Jingxin Quartz Technology Co. Ltd.
Share on (60822522012):
Product Overview
Description
Ultra high definition projector dedicated MIPI screen controller board
Product Description
Specifications of the HDMI To Mipi Board:
Model: | JX-Mipi |
Size : | 77.0x74.0x7.0mm |
Amplifer: | 2*3W |
Screen Voltage: | 1.8V |
Key function: | power/menu/source/up/down/left/right |
HDMI: | Input |
USB: | power supply |
Working voltage: | 5V+/-10% |
Standby voltage: | 4.75~5.6V |
Standby current: | 10-40mA |
Storage temerature: | -40~85°C |
Working humidity: | 40-95% |
Storage Humidity: | 40-95% |
Brand: | JX/ODM |
General description
The product is positioned at LCD monitor - the high-end product . Hdmi transform to MIPI,using high higher - performance Toshiba IC
TA3588xx,resolution up to(3840 x 2160 pot),refresh rate to 30/sec(fps).
Support normally MIPIpanel/4K/2K
Application area:High resolution LCD monitor for medical, Industrial control products,VR glass,projecting camera.
,3D printer, projecting camera,and so on.
Support resolution 3840*2160@30fps,4096*2160@24fps,2160*1440@60fps.
Input signal: Hdmi(2.0 ).colock rate:Max freq.297MHz
Support MIPI panel, MIPI® DSI 4channel(arrive 1Gbps/channel)
Supply voltage 5Vdc(USB connector.
Different screen needs defferent converter ! (There isn't standard connector in mipi screen). We can do special converter for you order.
Appearance

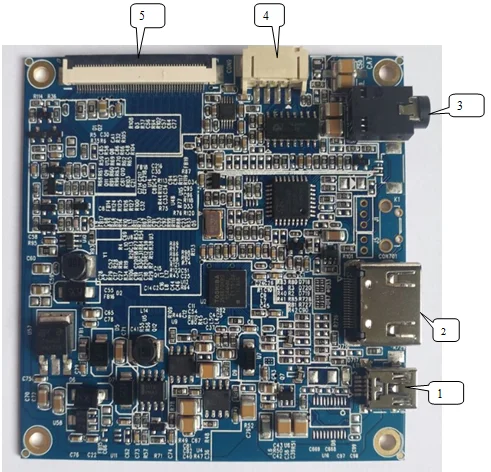

Main connector definition description
Pin No. | describe |
|
|
1 | USB power supply connector |
|
|
2 | HDMI connector |
|
|
3 | earphone connector |
|
|
4 | Audio output connector |
|
|
5 | MIPI output |
|
|
Struture
Applications
The product is positioned at LCD mipi panel monitor the high-end product. HDMI transform to mipi signal to drive mipi LCD panel.
Ampplication area:
High resolution LCD monitor for medical,industry contral,VRglass,3Dprinter, projecting camera,recreational machines,and so on.
Support resolation up to 2160* 3840@30fps,1440*2160@70fps.
Input signal HDMI1.4,colock rate:Max freq. to 297Mhz
Notice: mipi panel that pin define always different eachother, you need make a converter board by us. and give your panel modle type spec.The cost is need 500.00 dollar.
