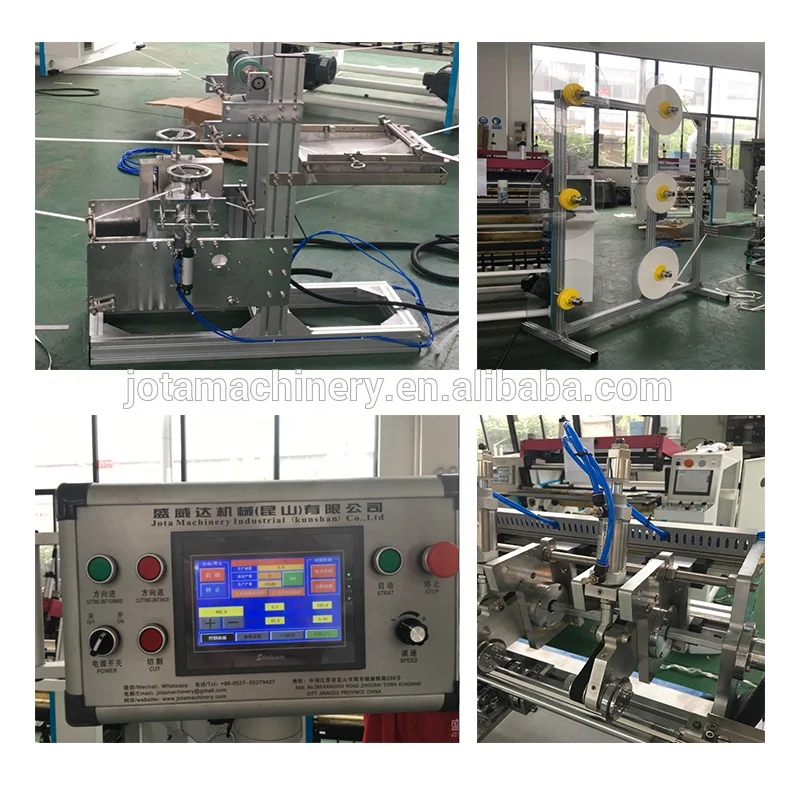

Paper Straw Core Making Machine
Main Technical Parameters:
| Number of roller | 1-3 layer |
| Tube diameter | 5-10mm |
| Tube wall-thickness | 0.3-1 mm |
| Cutting Length | 100-800mm |
| Winding head | 2 |
| Power | 7.7KW (Main motor 3KW;Servo motor 1KW; frequency inerter 3.7KW) |
| Cutter | 5 sets |
| Operator | 1-2 person |
| Winding speed | 0-45 m/min |
| Speed control | Frequency |
| Working Air Pressure | 0.6Mpa |
| Power Supply | 380V/3Phase/50Hz |
| Measurement | 5600*1600*1750mm |
| Working Space | 11000mm * 6000mm*2000mm |
| Weight | 1500kgs |
Specifications:

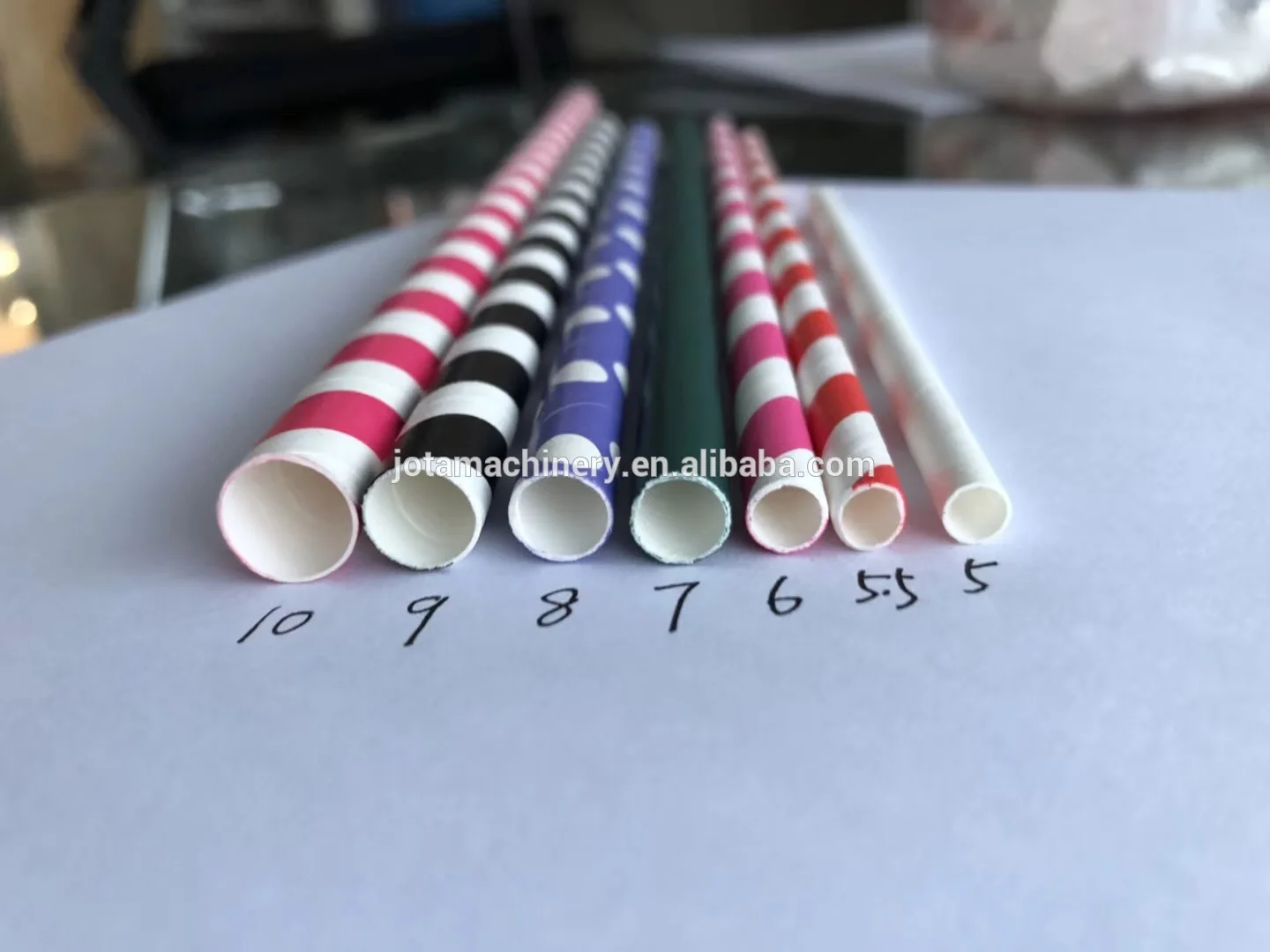

| Suitable for small diameter (5-10 mm) paper tube production, such as paper straw, pen tube. |
| 1. Machine adopts PLC control, all data can be display in the touch screen. |
| 2. Numerical control servo cutter device, high precision cutting. |
| 3. Automatically cut, automatically fall pipe, automatically change speed and revert. |
| 4. Round knife cutting, incision more smooth, performance more stable. |
| 5. With online multi-cut blades, no need secondary cutting, save labor and time. |
| 6. Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use. |
| 7. Machine adopts Flange for fix the mandrel. |
| 8. Machine supply of lubricant automatically. |
Driving system:
| Main motor | 3 KW |
| Servo motor | 1 KW (Yaskawa) |
| Frequency inverter | 3.7KW |
Control panel:
| Motor | Dedong from Shanghai |
| Touch Screen | Schneider |
| Frequency inverter | 4KW Schneider |
| Operating component | Schneider |
| Signal component | Hugong from Shanghai |
| Pneumatic component | Airtec |
| Electrical component | Schneider |
| Bearing | From Haerbin |
| Servo Motor | 1kw Schneider |
| Moving screw | ABBA from Taiwan |
| Move slider | ABBA from Taiwan |
Transmission system:
| Main Motor | 3KW |
| Main engine speed | 1400r/min |
| Hub speed | 48r/min |
| Hub output strength | 1000N.m |
Equip device:
| Paper shelf type | Integral reel stand |
| Auto fall tube shelf | Have |
| Glue shelf | Have |
| Belts | 2 |
| Core mould | 1 |
| Tool box | 1 |
| Spare Knife | 10 PCS. |
Packaging & Shipping

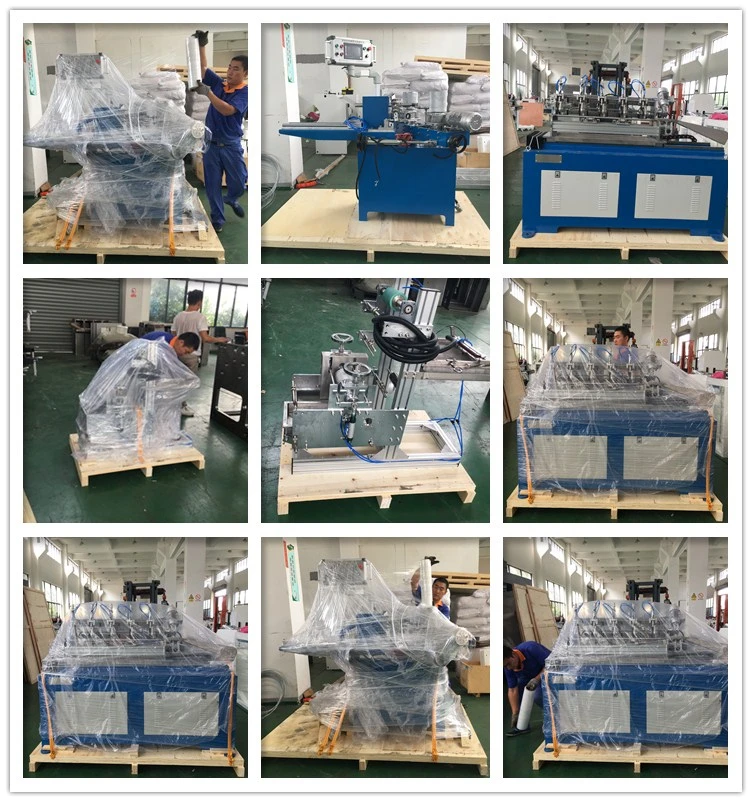

Packing Details: Paper Straw Core Making Machine is with flexible wrapping and wooden case.With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Manu, Inverter Manu and Electrical Schematic Diagram.
Delivery time : Within 30 days after received 30% deposit receipt by T/T. Paper Straw Core Making Machine.
Recommended Products

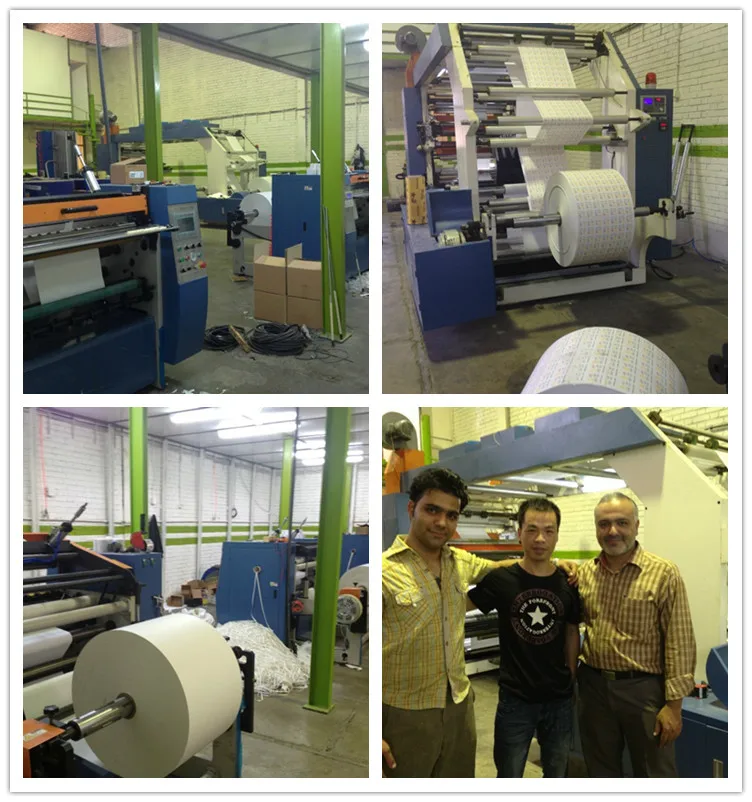

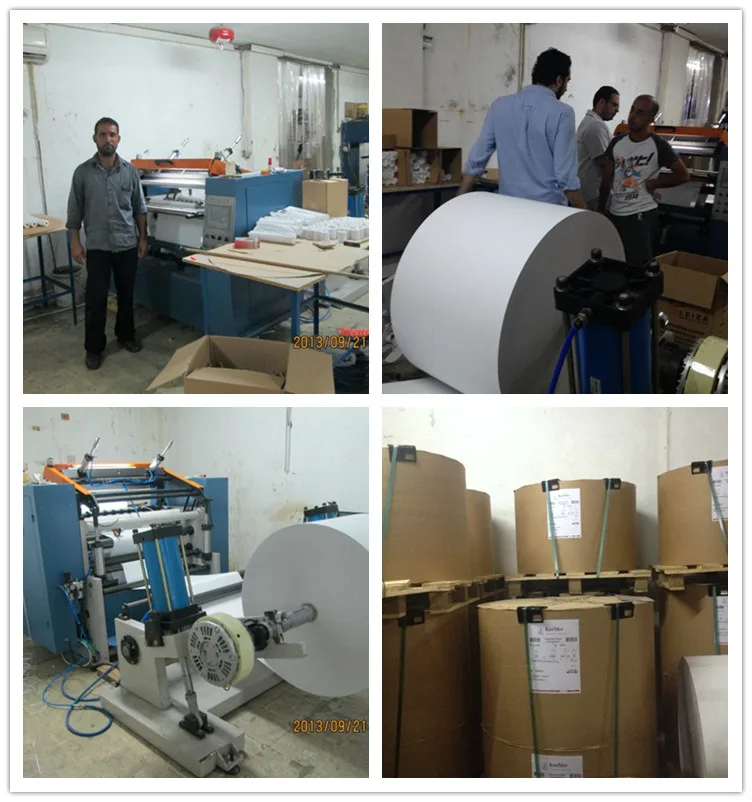

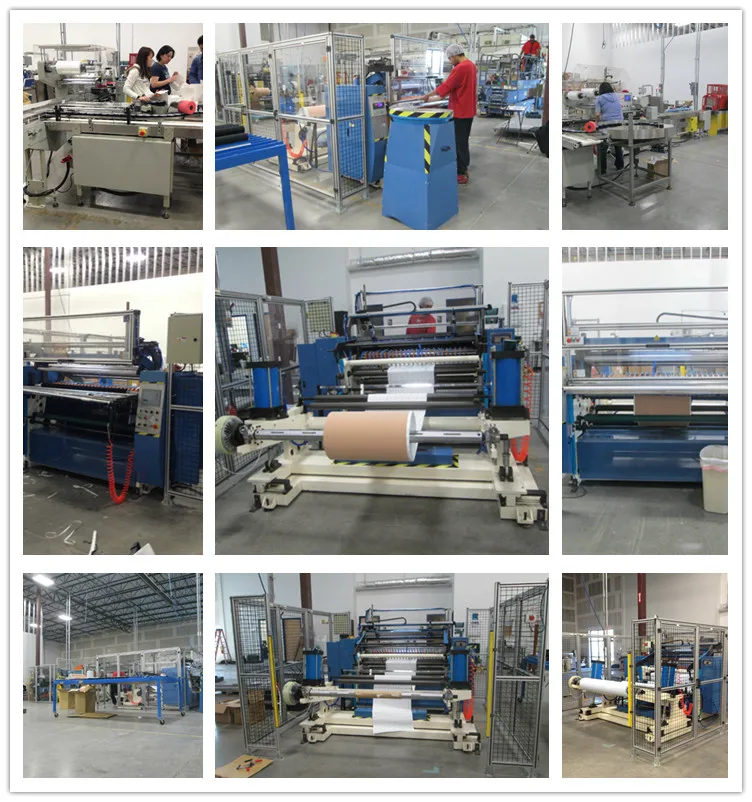

Our Customer
