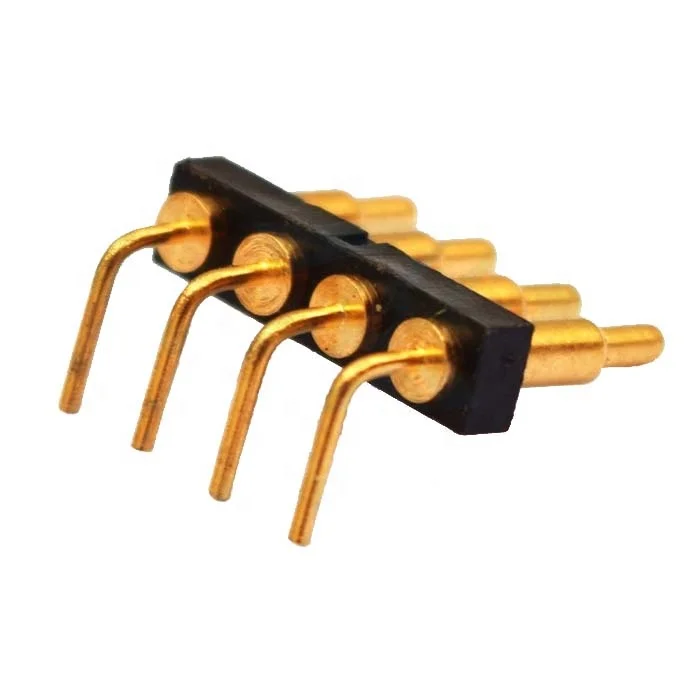

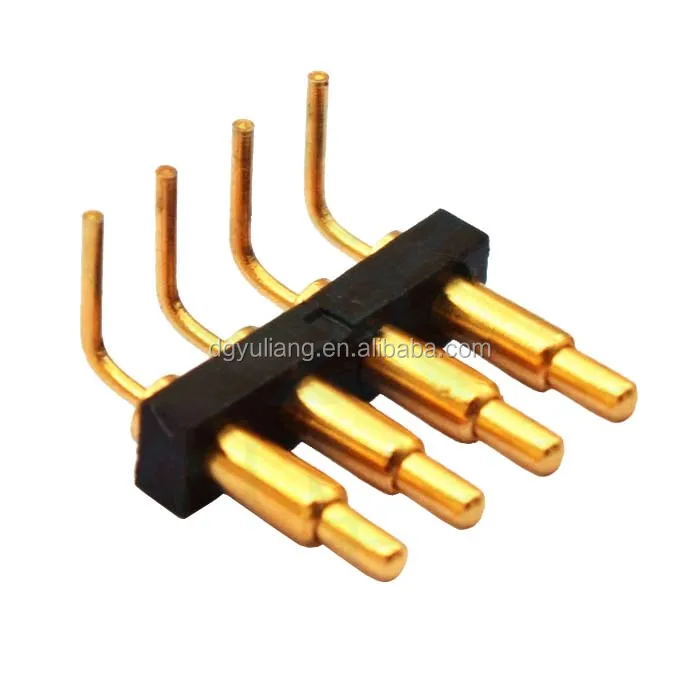

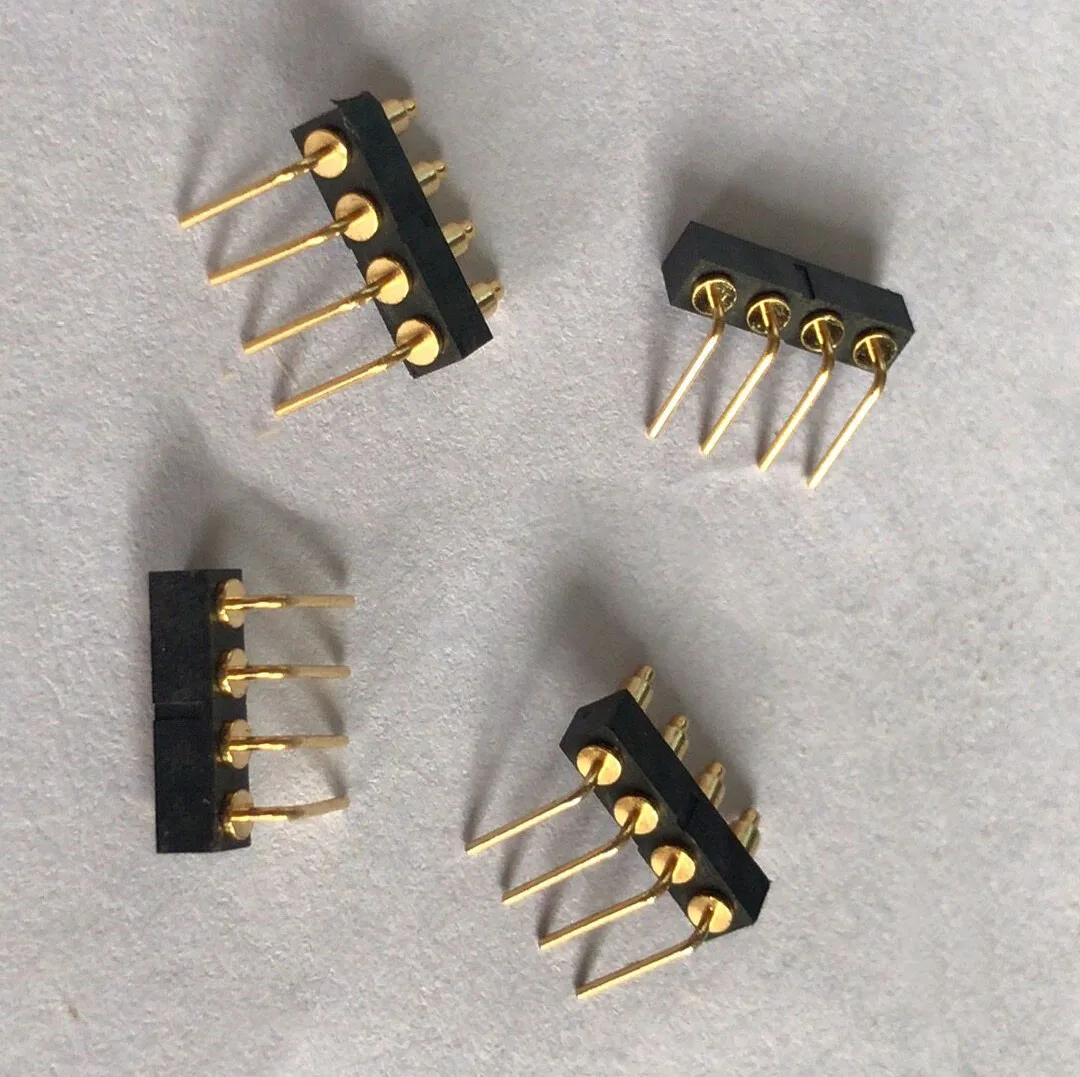

Right angle 1X4pin 2.54mm spring loaded pogo pin connector series

Product Overview

Description

1X4pin 2.54mm spring loaded pogo pin connector series

Specifications:

01. Model: PG254-104-004

02. Positions: 1X3 pins; 100PIN AVAILABLE

03. Plastics height: 1.7mm OPTIONAL

04. Plastics width: 3.0 mm OPTIONAL

05. Pitch: 2.54mm

06. Current rating: 3A

07. Insulation resistance: 1000MΩ min

08. Dielectric withstanding voltage: AC 1000V

09. Contact resistance: 30mΩ max

10. Operating temperature: -30 to +80°C

11. Insulation material: PBT UL94V-0

12. Contact material: Brass

13. Plating: Gold TIN

14. Max. Processing Temp: 260℃

15. Insertion force: 80~200g

16. Withdrawal force: 70~200g
17. Mechanical life/Durability:

18. Packing: tube, tray, plastic bag, tape & reel optional

19.Carton size: customized

20.Carton quantity: customized

21. Carton weight: customized

22. Free sample available

23. 100% tested before shipment

24. Payment terms: T/T, Western Union, L/C, Moneygram, PayPal, Cash
25. Shipping ways: Fedex,DHL,UPS,TNT,AIR,SEA

26. Delivery lead-time: within 5-30 days, depends on order quantity
27. We are professional manufacturer majoring in board to board connectors, wire to         000board connector, pin header, female header, box header, ejector header, wafer, FFC, 000FPC, D-SUB, USB,RJ45,SD Card ,SIM Card ,IC socket ,terminal block ,Jumper cap, 000cables etc.

28. OEM/ODM/Customized products are welcome
29. If any questions, feel free to contact us.

30. For drawings ,please send an inquiry or Contact: James to james(2)cylconn.com
