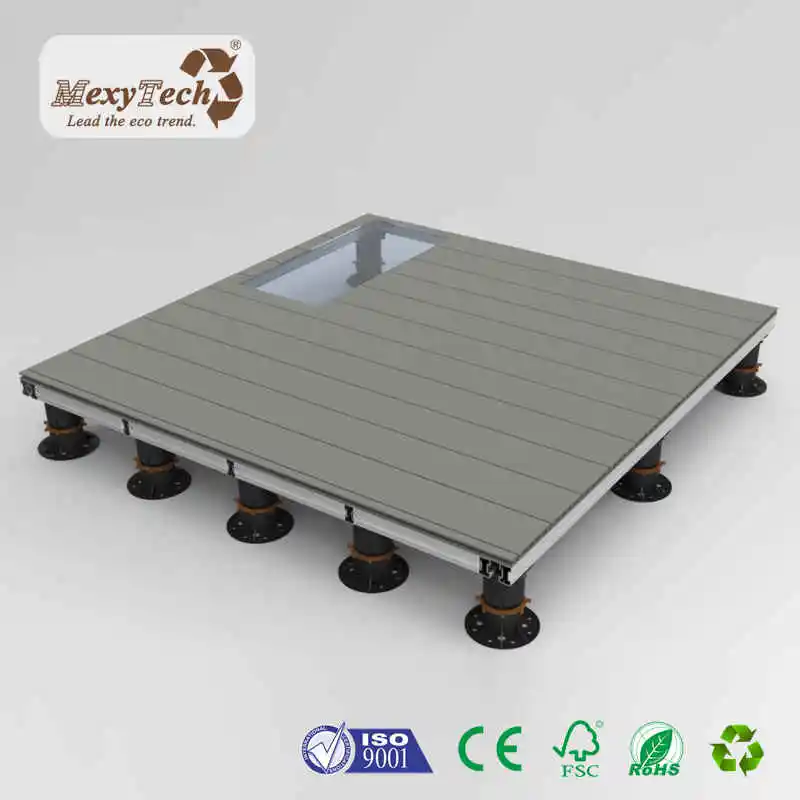

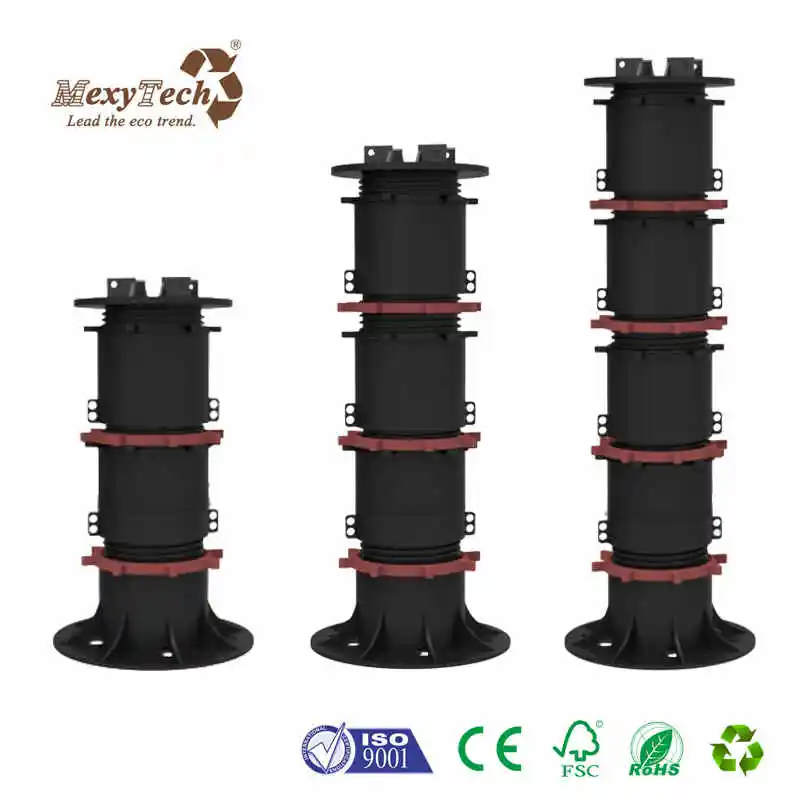

New deck pedestal system with aluminum joist plastic pedstal for wpc decking

Product Overview

Description





Brand	MexyBase
Type	Pedestal, supporter, basement
Name	Height adjustable pedestal
Material	90% PP and 10% additive (UV resistance , waterproof , antioxidant etc )
Color	black & yellow
Loading abitilty	Max 2.5 tons per pedestal.
Compensate slope	0%-5% slope
Use	for decking or tile.
Packing	cartons and pallets package
Height range	12.5-1280 mm
Stock	5000 sets
Annul supply capacity	1,000,000 sets
delivery time	around 3 weeks per container
Address	Foshan city, Guangdong province, China.







Product show

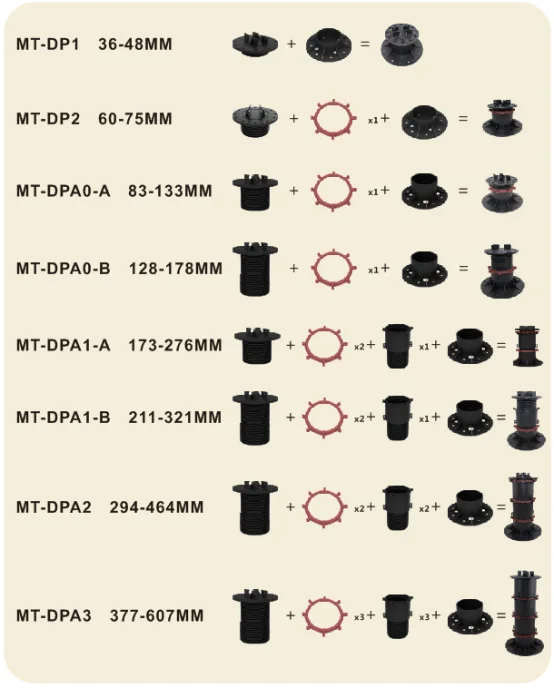

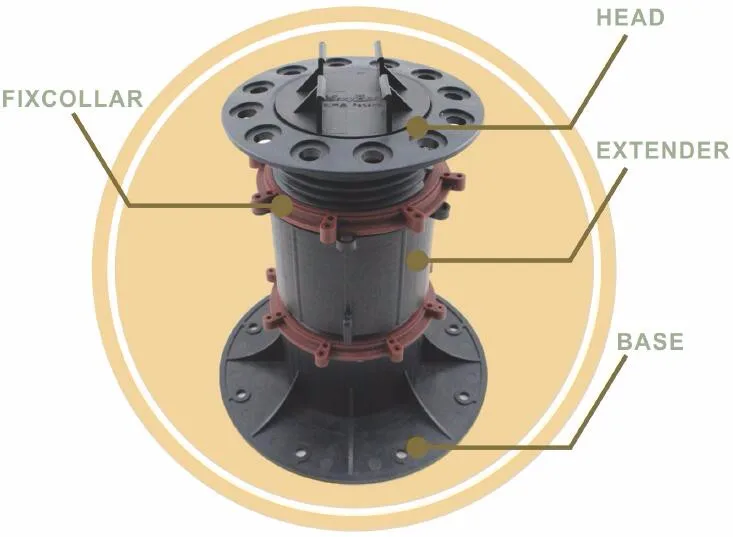

Illustration

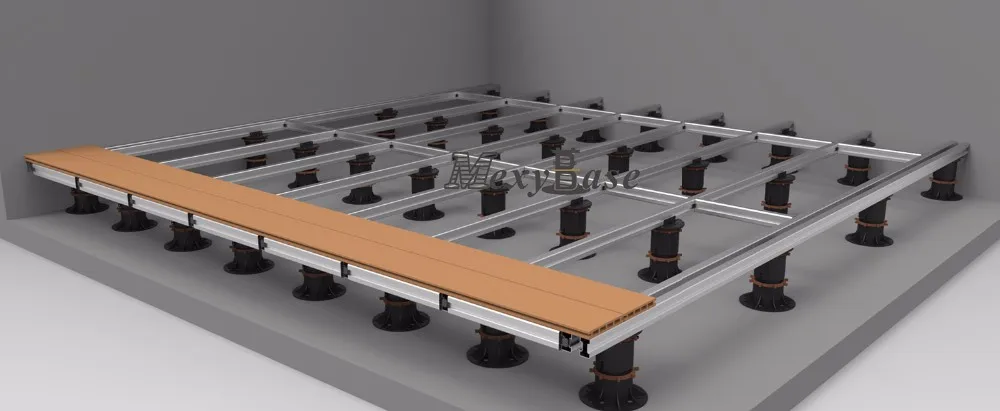

The pedestal system could be built withou any tools and screws













Loading  test







Code	Height(mm)	Working loading(KG)			Max loading(KG)
		Entire	Half	Quarter	Entire	Half	Quarter
MT-DPA0	92-149	2235	1840	935	4537	3463	1988
MT-DPA1	188-299	1850	1500	825	3728	3105	1800
MT-DPA2	274-453	1740	1475	790	3660	2963	1687
MT-DPA3	360-607	1675	1405	785	3609	2816	1583
MT-DPA4	446-763	1600	1380	760	3532	2777	1580
MT-DPA5	532-919	1520	1225	750	3463	2705	1566
MT-DPA6	618-1075	1465	1110	725	3308	2643	1534
MT-DPA7	704-1231	1390	1055	700	3300	2598	1533
MT-DPA8	790-1387	1310	985	680	3107	2537	1503









MexyTech Co., Ltd have been in wpc business for more than 8 years.

Through 8-years development and research, We have been one company combine R&D, design, production, recycle, marketing in one.

Nowadays, MexyTech have 60 production lines and R&D testing lab and our products are popular to many countries.



We created Mexybase to meet customer's requirments and it's no doubt that MexyBase is one of the branch of MexyTech.

Since we have 9 years experence in wpc business experience, we did some improvements on the traditional pedestal which make the pedestal more suitable to construction work.



If you are interest in our brand , you can have a look in our homepage www.mexytech.com.

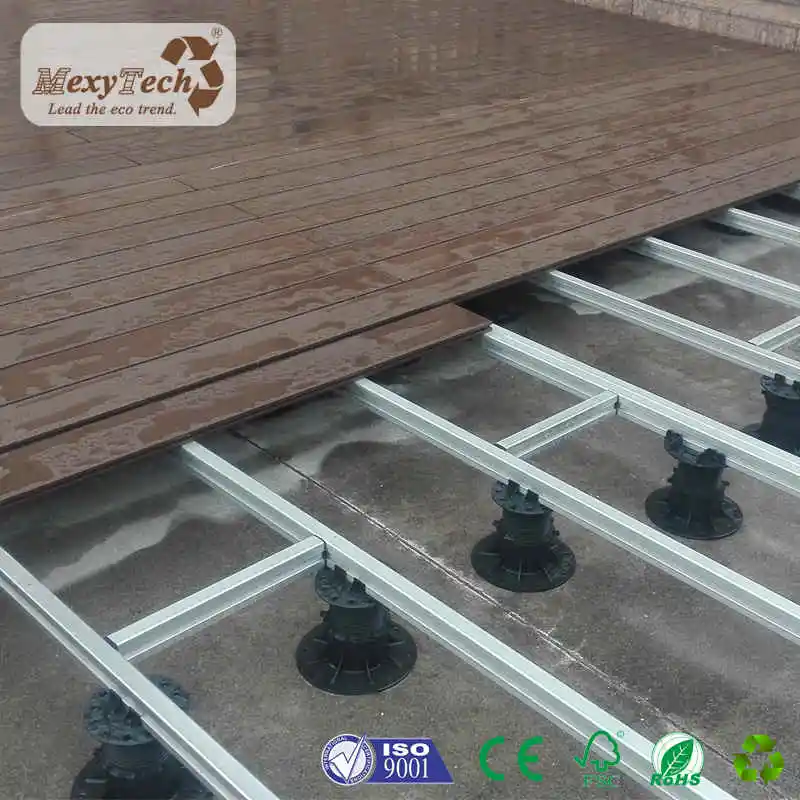

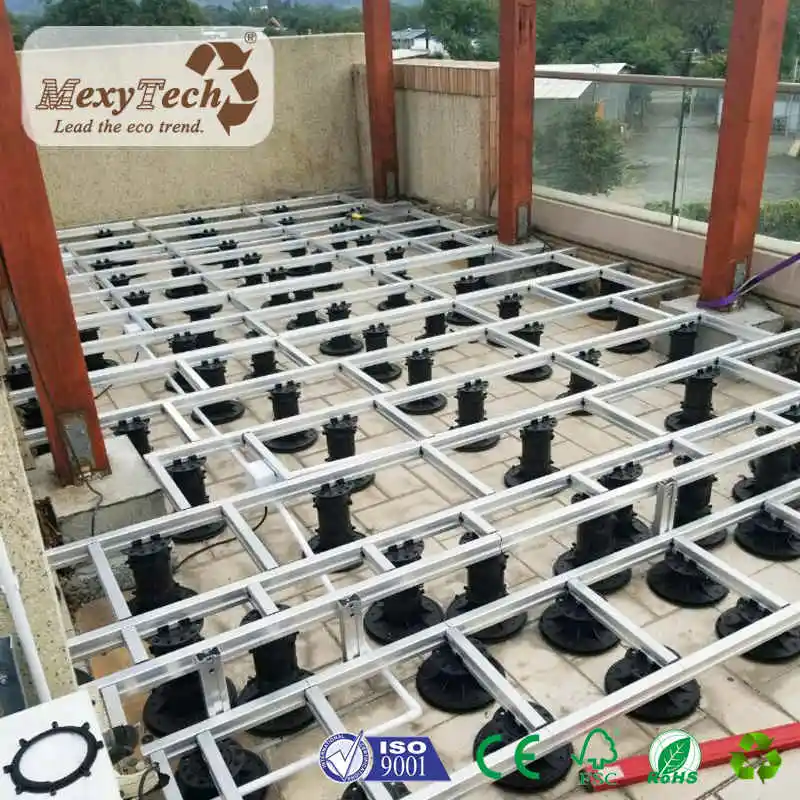

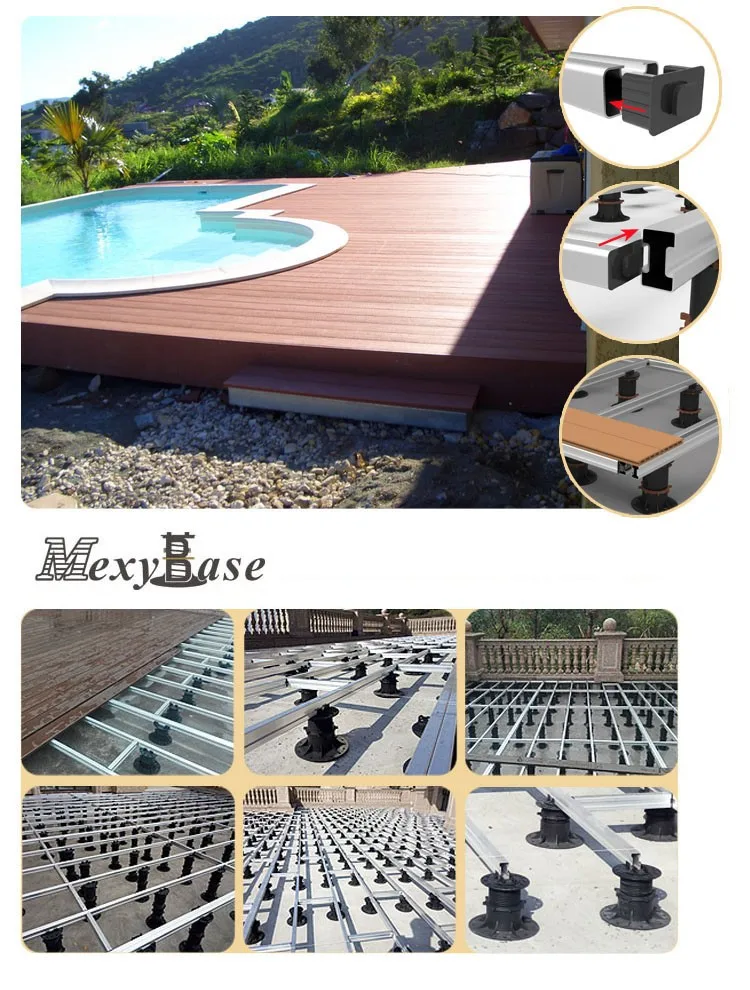

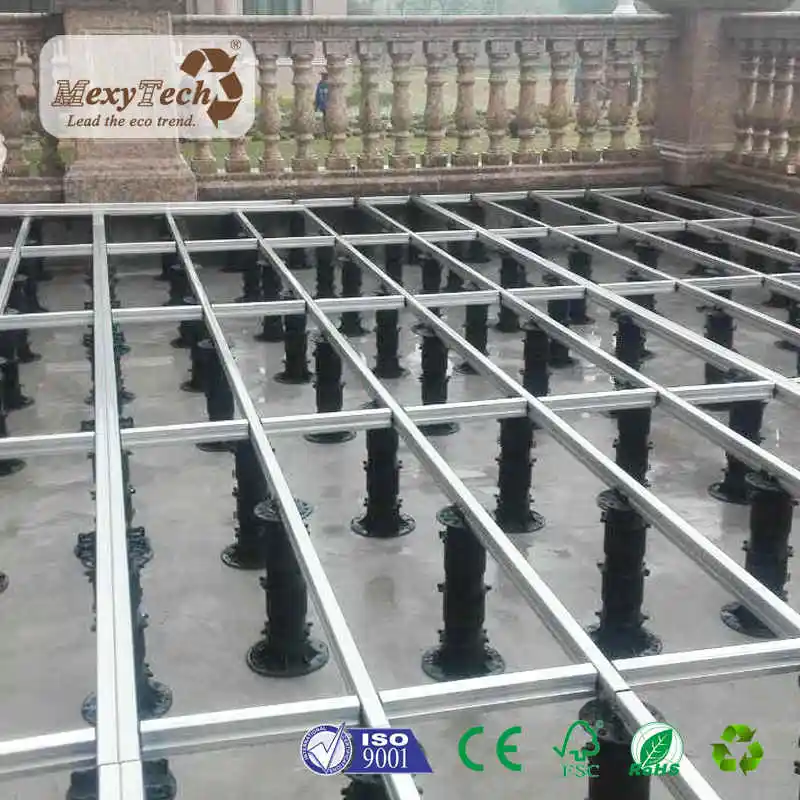

Following is the drawing of our factory in Guangzhou and our recent projects.











For tiles:

Tile Size	PCS/SQM
600 x 600 mm	3  PCS
500 x 500 mm	4 .2  PCS
400 x 400 mm	6.5  PCS



For decking boards:



Each SQM needs 4-5 pcs of pedestal for standard installation.



2.Are we factory?

We have 5000 sqm factory located in Nansha distract, Guangzhou city, Guangdong province.

In addition,We expanded our factory to 7000 sqm to accommodate the new pedestal producing line last years.

If you can come , that will be welcome.



3.How long is the lead-time for one 20' container

Generally, it will take us 2 weeks to produce.



4.Is sample free?

Free sample can be sent and buyer afford the express charge first. Of couser, it is no doubt the charge will be returned in the first order
