Product Overview

Description

Product Description

WHAT IS A DECOILER/UNCOILER

The decoiler/uncoiler is coil handling equipment used to load and unwind the sheet metal coil. Integrated with steel coil straightener, nc servo roll feeder, shearing machine and press machine, the decoiler/uncoiler can be widely applied to industry of steel vehicles parts, metal stamping products, household appliances, steel structure and decoration.
The decoiler can be integrated into cut to length line, press feed line, slitting line and various metal production line according to your application. It is specialized equipment, playing an important role in production lines. The coil is centered by manual or hydraulic expansion of decoiler mandrel, and then the rotated spindle feeds the metal strip into sheet metal straightener. The production lines always start with a decoiler/uncoiler, so its performance has great impact on the whole line.

SPECIFICATION

Model
MT-200
MT-300
MT-400
MT-500
MT-600
MT-700
MT-800
Max. material width (mm)
200
300
400
500
600
700
800
Material thickness (mm)
0.2~6.0
*Loading capacity (kg)
500
1000
2000
2000
3000
3000
3000
*Coil I.D. (mm)
Φ450~530mm
*Coil O.D. (mm)
Φ1200mm
Mandrel expansion
Manual/Hydraulic
Input power
3phase AC 220V/380V/400V/415V
*Color
Yellow and white

It is available to customize coil I.D., coil O.D., loading capacity and color.

MAIN FEATURES

1. Suitable for most of sheet metal coil materials, including HR, CR, Aluminum, Stainless steel
2. Apply to progressive press of various hardware, electronics, and auto parts.
3. Simple but rugged construction allows a longer lifetime, easy in installation and maintation.
4. Coil is centered by manual or hydraulic expansion of the jaws.
5. Hydraulic decoiler machine suit for heavy coil, increasing productivity.
6. The decoiler mandrel is reinforced to improve load capacity up to 3000kg.
7. Non-motorized models are provided with brake to prevent coils overrun.
8. Motorized decoilers use loop control to start and stop the drive motor and smoothly deliver material to automatic feeding equipment.
9. Equipped with Japanese electromagnetic contactor and electronic components, MT models have fewer breakdowns.
10. Optional decoiler press arm prevents coil from loosening.

Option
1. Pneumatic press arm
2. Hydraulic expansion of decoiler mandrel
3. AC motor
4. AC motor with Inverter

HOW TO CHOOSE A DECOILER

There are several of factors that you should take into consideration.

1. The range of width of your strip

2. The range of thickness of your strip

3. Max. weight of your coil
4. The inner diameter of your coil
5. The outer diameter of your coil
6. Motorized or Non-Motorized decoiler
7. Requirement of speed
Give us the parameters, we are ready to provide unique technology solution for you!
Certifications

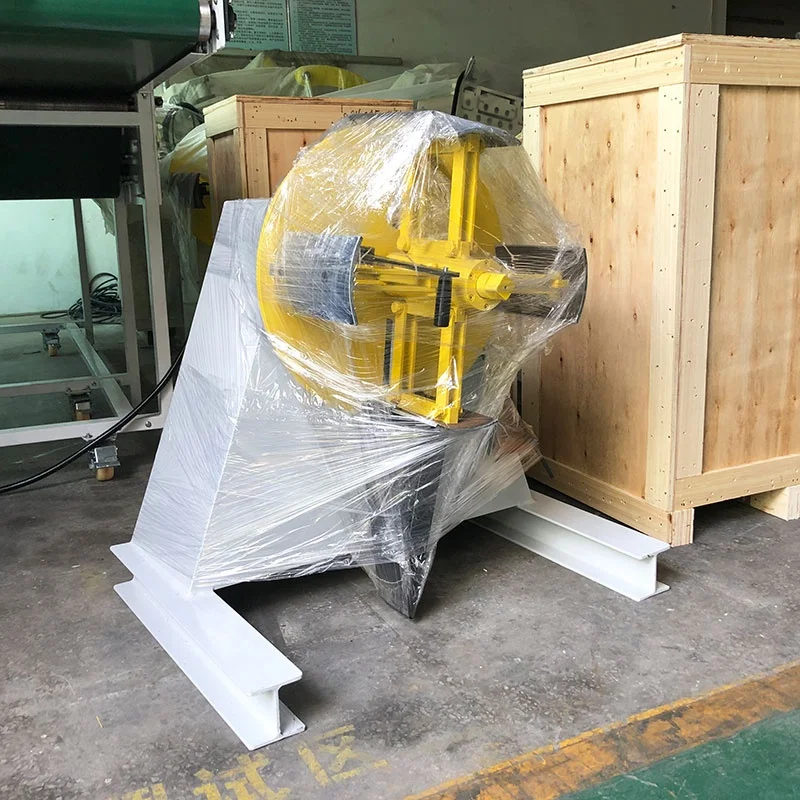

Packing & Delivery
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Provide customized machine.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Company

Professional and Innovation

HAIWEI is the first-class factory in China's machinery manufacturing industry, which has been consistently providing industry-leading products for 10 years. 10 years experience in manufacture and world-wide commercial cooperation allows us to provide you with first-class service.

The wide range of automatic equipment that we supply including 3 in 1 decoiler straightener feeder, 2 in 1 decoiler straightener, decoiler, coil straightener, press feeder, coil blanking line as well as all kinds of press transfer including 2D transfer, 3D transfer, single bar transfer and long beam transfer between multi-press etc.

More than 70 percent products are used in auto parts manufacturing industry. We are honored to have earned preferred-vendor status with many of the leading auto parts suppliers for Volkswagen, Toyota, Hyundai, Geely, Yutong Bus and more.


HAIWEI is active in international markets with the permit for import and export. We have run lots of successful projects with automotive parts manufacturers in The Czech Republic, Italy, Portugal, Ireland, Spain, Canada, Mexico, South Africa, as well as Asian markets, such as South Korea, Malaysia, Indonesia, and India.

It is our principle to supply superior products and excellent services. Top-quality international teams provide professional, swift and convenient services. HAIWEI aims to supply superior products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. No matter what you inquire, we are ready to offer the best solution for you!
