The nesting CNC machine is numerical control equipment explicitly molded for the manufacturing of panel furniture. Its main function is to cut wooden boards.
While processing, the cutting machine includes cutting, punching, grooving, and other processes. Generally, through the blueprint of intelligent software, nesting CNC machine automatically heightens the typesetting design, generate the effect map, and perform operations such as spontaneous modifications, and involuntarily generate diverse paths. Therefore, it saves and ameliorates sheet utilization. Fortunately, the CNC nesting machine is commonly used in the furniture industry such as a cabinet, wardrobe, solid wood, paint-free, solid wood composite, and suite doors. Imagine what one CNC nesting machine has done for various homes, and office doors. If you want to bring panel furniture to life, the nesting CNC machine is your best buddy.

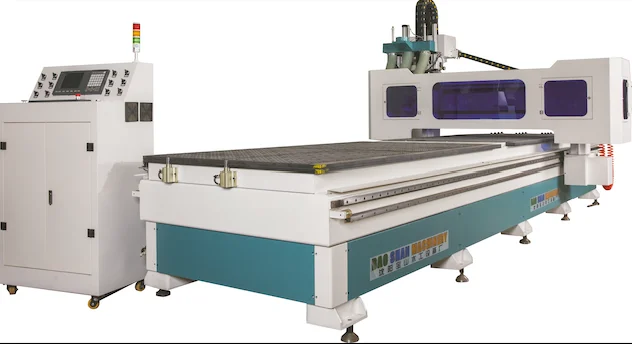

1. MJ600 is a CNC Router with four axis used to cut medium density fiberboard(MDF),flake board,
cabinetwork board, soiled Wood board and etc. The materials can be ABS, PVC, wood veneer,
wood strip or melamine.
2. cut groove on the back of the boards.
3. drills holes on the boards.
Parameters
Max. stroke
2500*1300mm
Max. speed
50m/min
Max. feeding height
<200mm
Transmission model
X.Y rack Z ball screw
Main spindle power
6kw+6kw+6kw+6kw
Main spindle revolutions
0-18000r/min
Working table
Double working tables
Air pressure
0.6-0.8Mpa
Working power
3-HP 380V
Total power
35KW
Overall dimension L*W*H
6100*2700*2600mm
Weight of machine
3000kgs
Features
1) Heavy and firm structure. The whole machine weight is over 3000kgs.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Taiwan imported engine and spare parts with low cost.
4) Adopting servo motor which is more powerful and better efficiency.

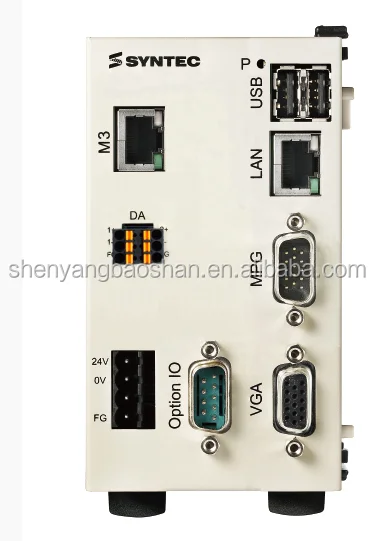

5) CNC control system with high accuracy.
Parts

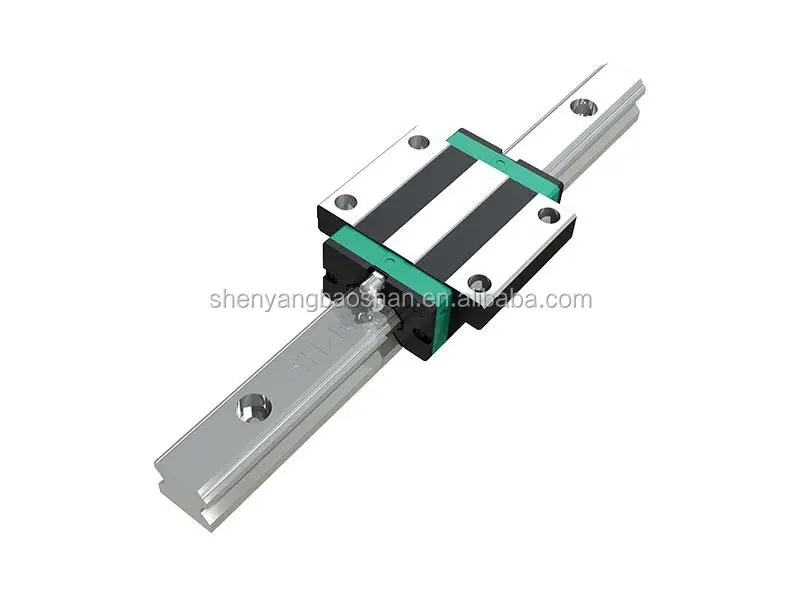

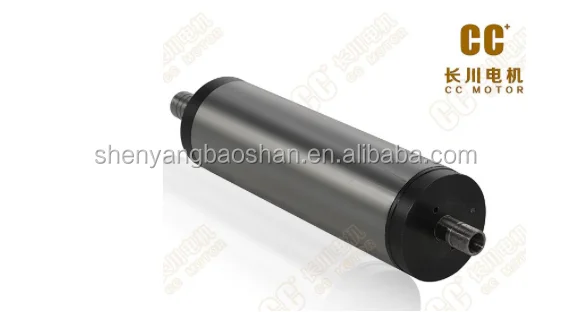

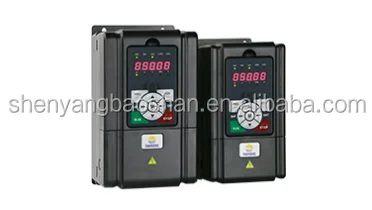

Name: guide rail Name: Inverter Name: air cooling axis
