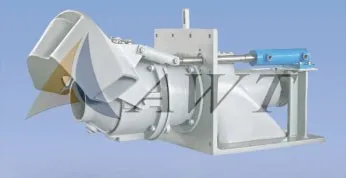

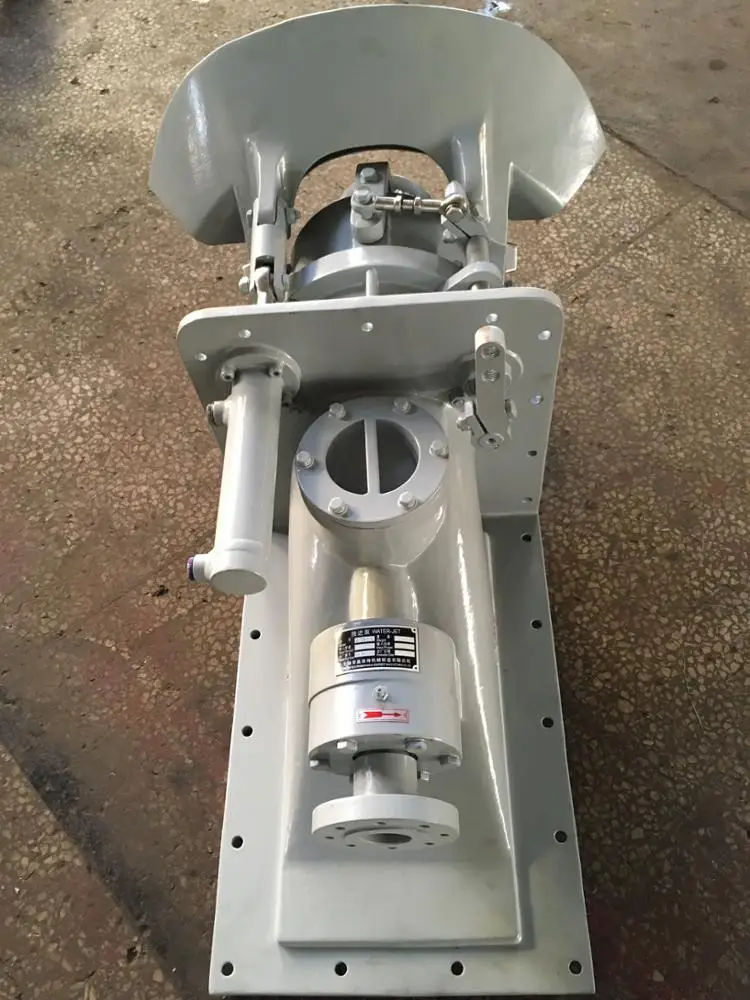

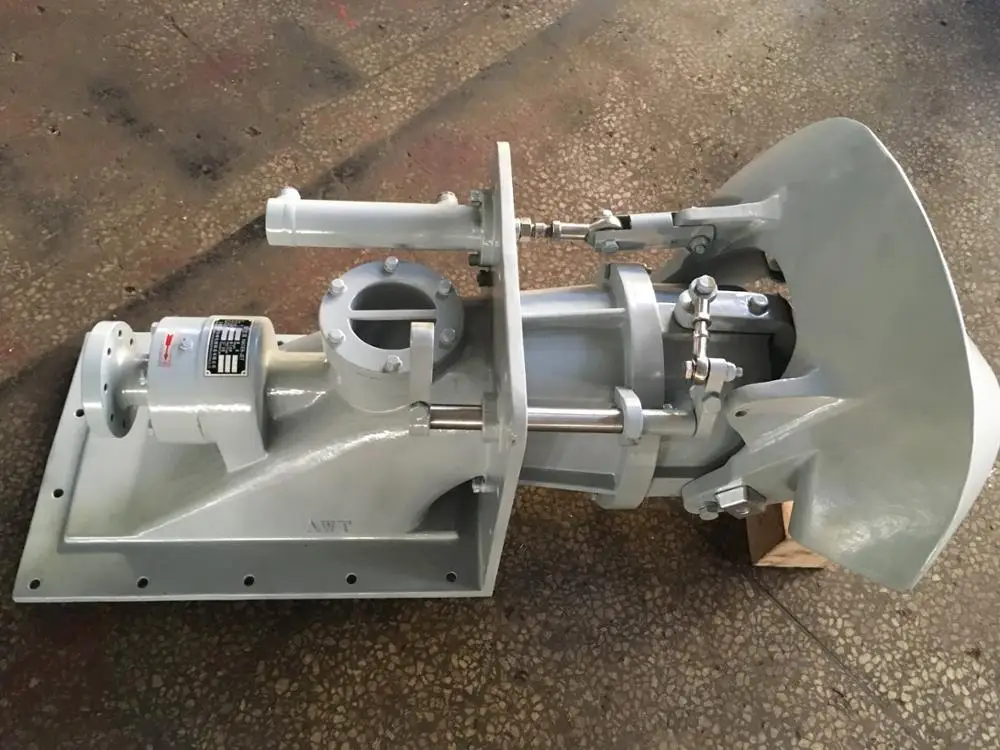

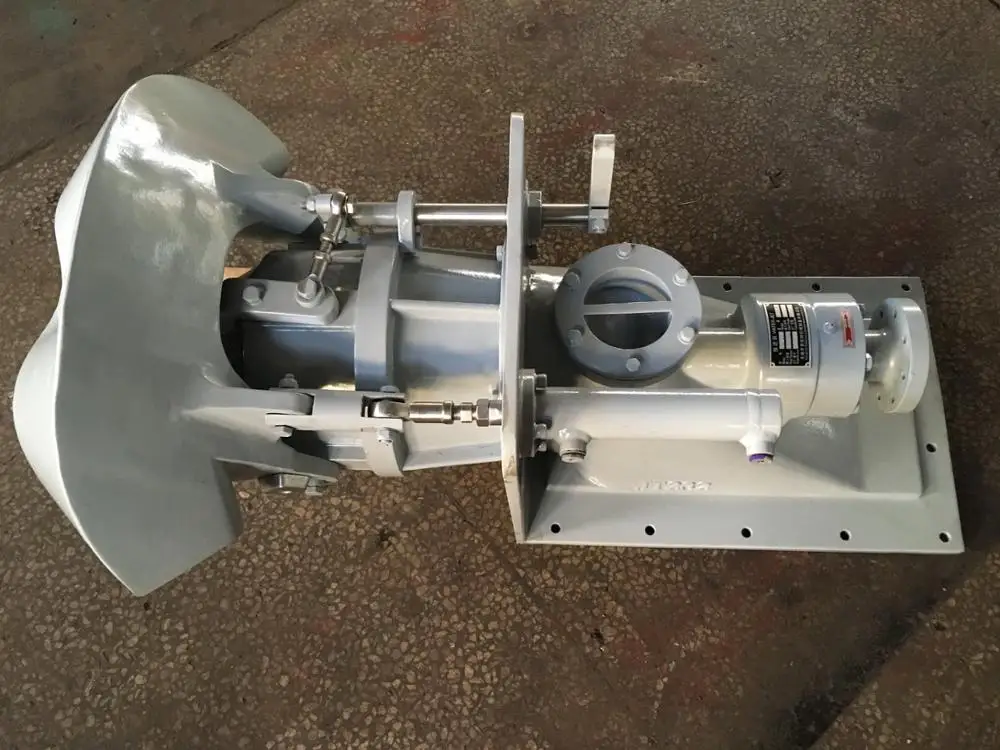

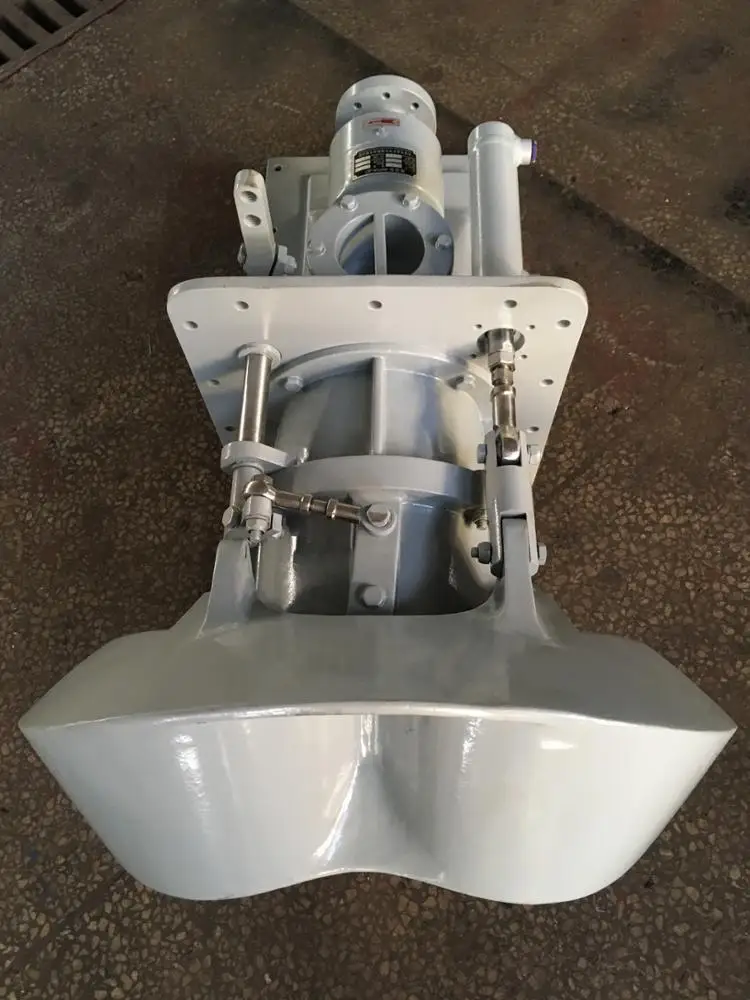

JT232 Water jet Propulsion Pump for Boat

Steering System

Steering is achieved by changing the direction of the stream of water as it leaves the jet unit. Pointing the jet stream one way forces the stern of the boat in the opposite direction which puts the vessel into a turn.

Reverse System

Reverse is achieved by lowering an reverse deflector into the jet stream after it leaves the nozzle. This reverses the direction of the force generated by the jet stream, forward and down, to keep the boat stationary or propel it in the astern direction.

For boat water-jet installation, see below water-jet dimension.
Contact us for clearer pictures.
Consult us for more installation information if needed.

Intake Section

The intake section has been designed to ensure optimum efficiency across a wide range of boat speeds and pass thrust to boat through installation plate. A intake grill is installed under intake section to prevent big debris from impacting or damaging impeller and guide vane.

Steering parts

The standard steering deflector is a balanced design which can be operated by the normal helm pump hydraulic steering system or an electro-hydraulic steering control system.

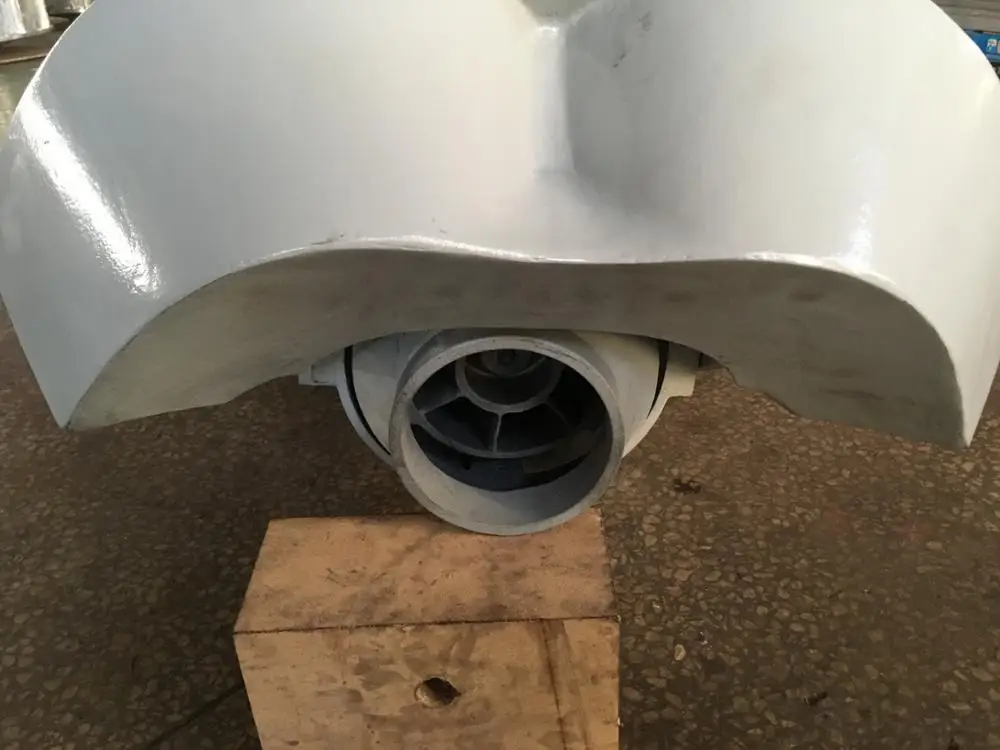

Reverse Parts

The reverse deflector is of the twin duct type which, in conjunction with the steering deflector, gives excellent low speed maneuverability. The reverse deflector is operated by cylinder which gives precise control with minimal effort.

Pre-Sales Service:
1. 7x24hours inquiry and consulting support.
2. Water-jet recommend depending on boat and engine.

3. Contact us for clearer application questionnaire doc.
4. View our Factory.
After-Sales Service:
1.Online training how to install and use the water-jet.
2.Engineers available to service overseas with reasonable cost.
