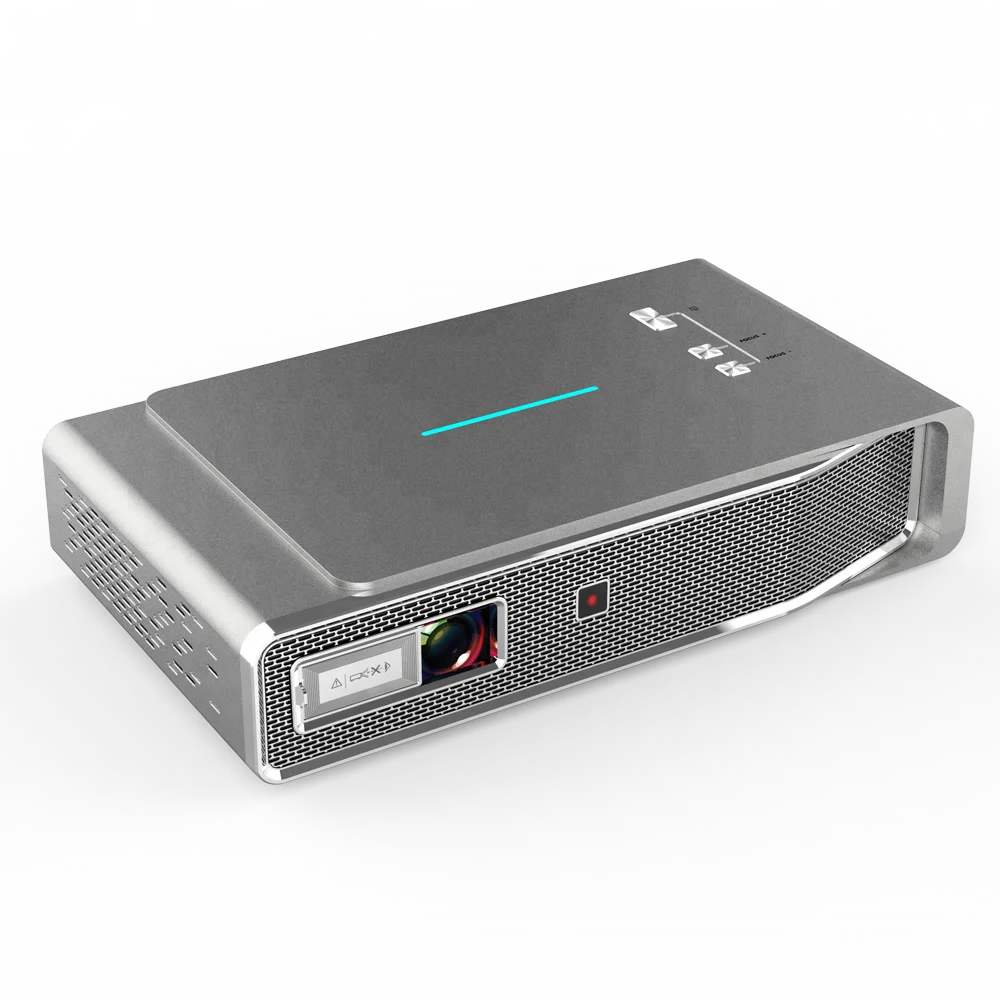

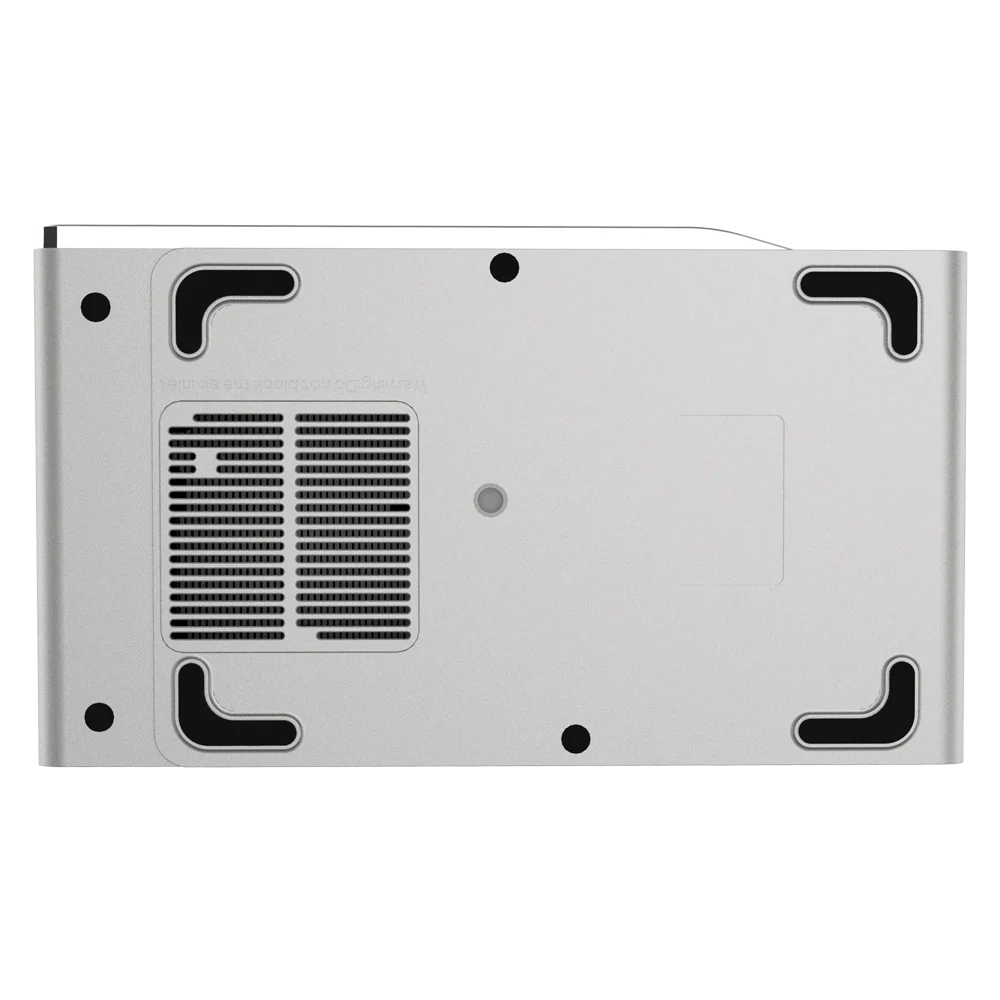

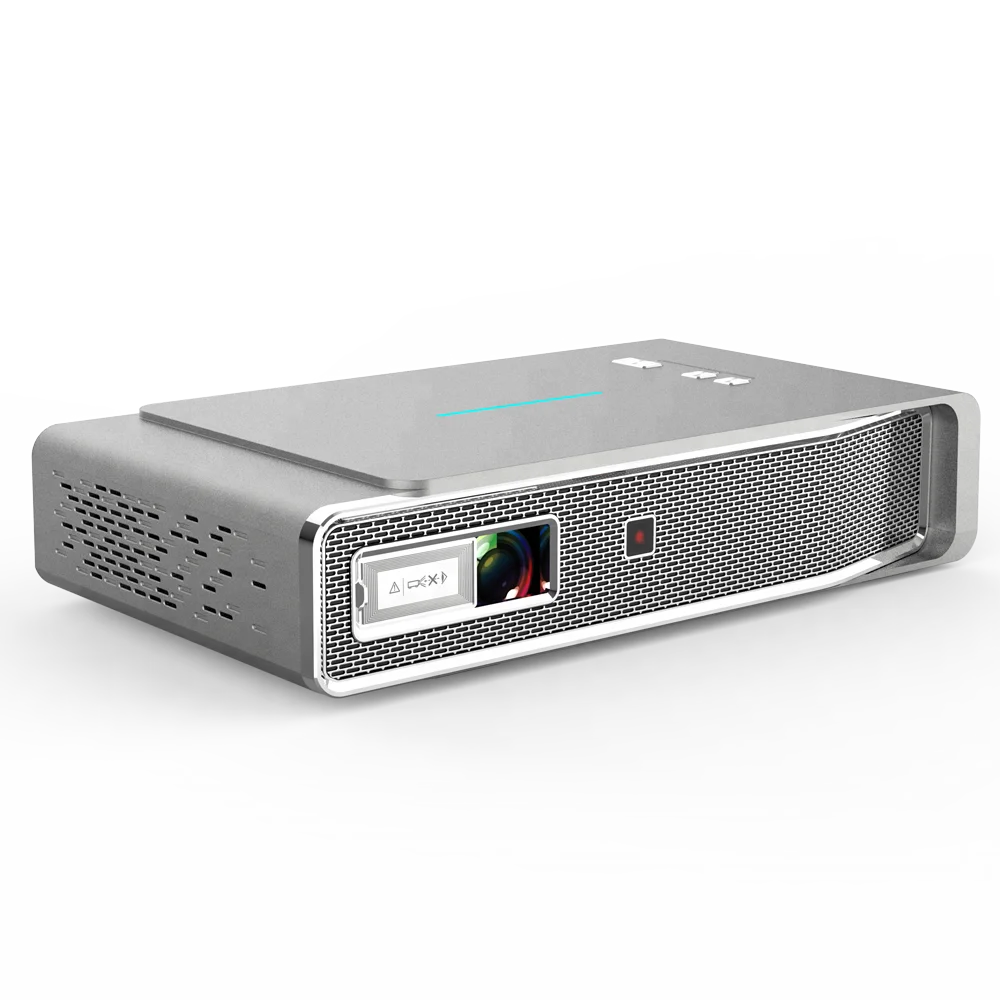

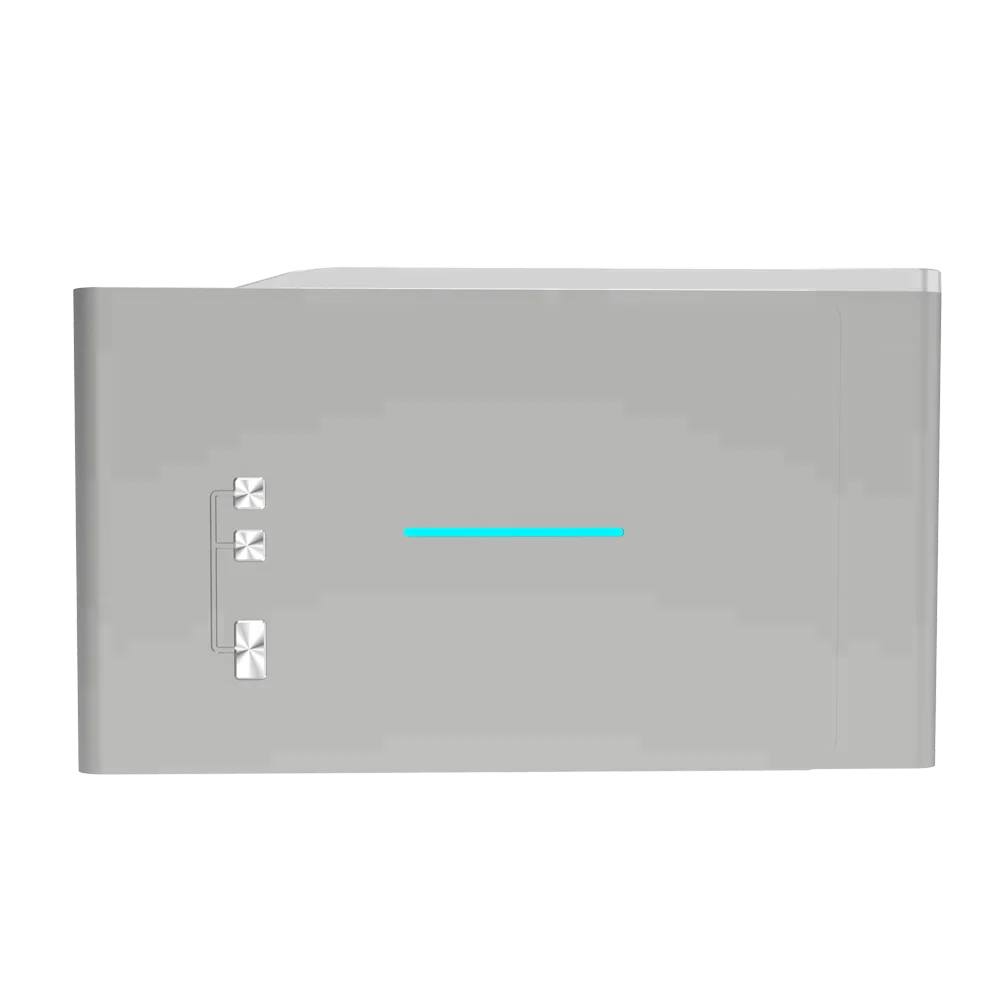

Mini Cinema pico short throw 3D DLP LED HD interactive outdoor daylight video laser 4K projector home theatre

Product Overview

Description

Mini Cinema pico short throw 3D DLP LED HD interactive outdoor daylight video laser 4K projector home theatre



Brief introduction

• Widely used for watching movie,work presentation,play gaming,Studying,Camping,business,Meeting, Wireless with the screen function


• Mini projector,compact design, lightweight ,great for indoors and mobile entertainment.


• LED Dolby video HDMI 3D projector. Enjoy HD image projection up to 300 inches . Easily turns virtually any surface into a HD theater through a simple Wi-Fi connection. Built in speakers support Dolby and easy set-up


• Unlike traditional HDMI projector, this projector is a true wireless projector. Get rid of the HDMI cable, can be taken to anywhere you want. Easy mirroring share operation.Adopt the DLP 3D Technology which use advanced Multi-Color processing, producing exceptional contrast ratios

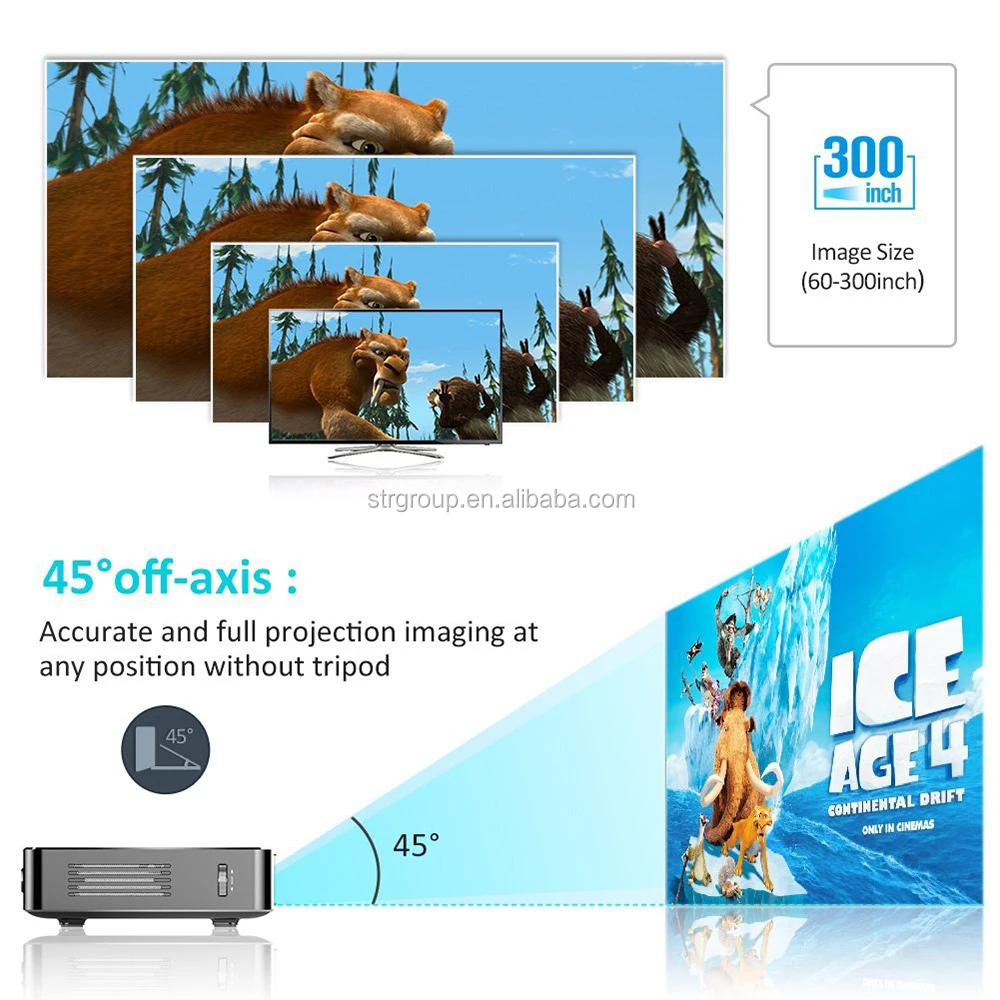

• Unique Off-axis Ray Machine, Front Projection,Rear Projection,Hanging cast functions.



Parameter



3D HD Projector----Model:STR-MPV5
Item	Product Characteristic	Product parameters
OPTICS	Display Type	TI DLP
	Display Chip	TI 0.45 inch DMD*RGBLED (With Off-axis Ray Machine)>100%
	Brightness	600 Ansi lumen (International standard)
	Lamp	OSRAM LED Lamps
	Uniformity	>90%
	FOFO Contrast Ratio	2000:1
	Standard Resolution	1280*800P
	3D	Support 3D function(DLP-LINK)
PROJECTION	Throw Ratio	1.2:1
	Throw Range	30-300 inches recommended
	Throw Distance	1-6Meter(s)
	Aspect Ratio	4:3/16:9/16:10
	Keystone Correction	Automatic up and down keystone correction ±40°, support, manual side projection function
	Projection Methods	Front Projection,Rear Projection,Hanging cast
	Texture of material	Plastic ABS+ electroplating + metal

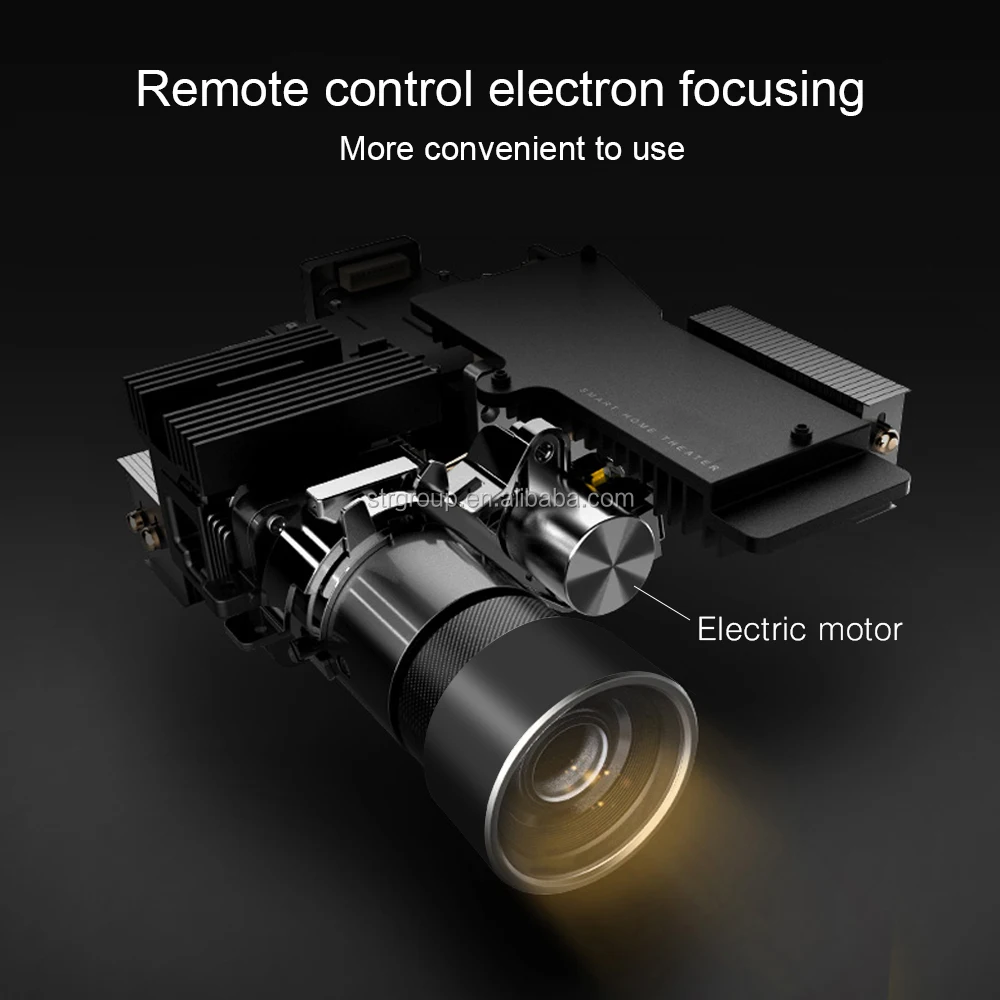

	Focus mode	Electric motor focusing
	Built-in loudspeaker	8 Ω 5w*2 (Super Bass surround sound)
	Sound effects	Support Dolby sound effect

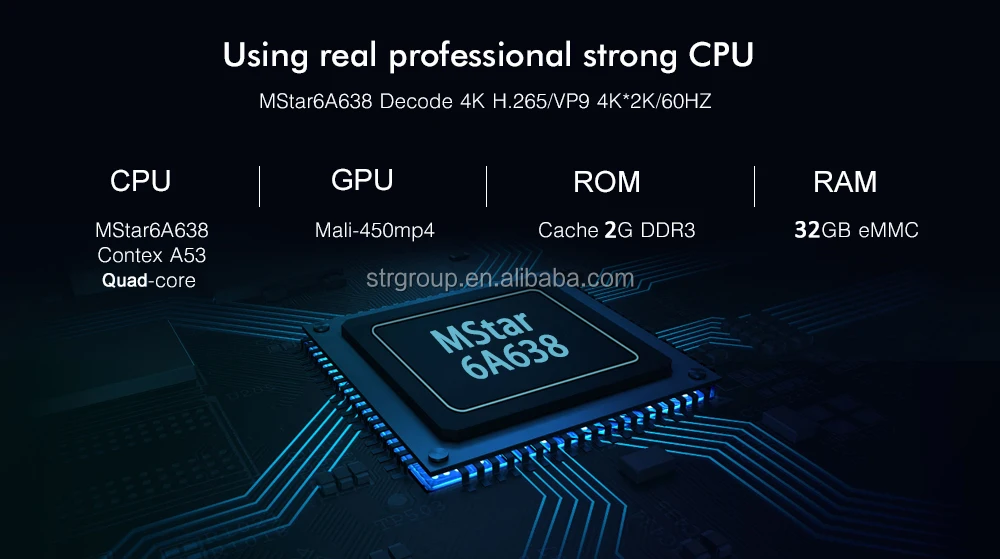

SYSTEM PARAMETERS	CPU	MTK Decode 4K H265/AVS2 4K*2K/30Hz
	Clock Speed	64-bit CPU: Contex A53 4-Core GPU: Mali-G31
	Cache	2G DDR3
	RAM	32GB eMMC
	Operating System	Android 9.0 Customize
	Bluetooth	BT 5.0 (Support external bluetooth Speaker, mouse and gamepad)
	WIFI	2.4G / 5.0G dual-band WIFI
	Remote Control	Infrared remote control and external USB 2.4g wireless remote control,Bluetooth remote control mouse
	Wireless screen share	Support WiFi LAN on the same screen + outdoor no network,hotspot on the same screen
	Input support	U disk, mobile hard disk, mouse, keyboard access, computer, set-top box

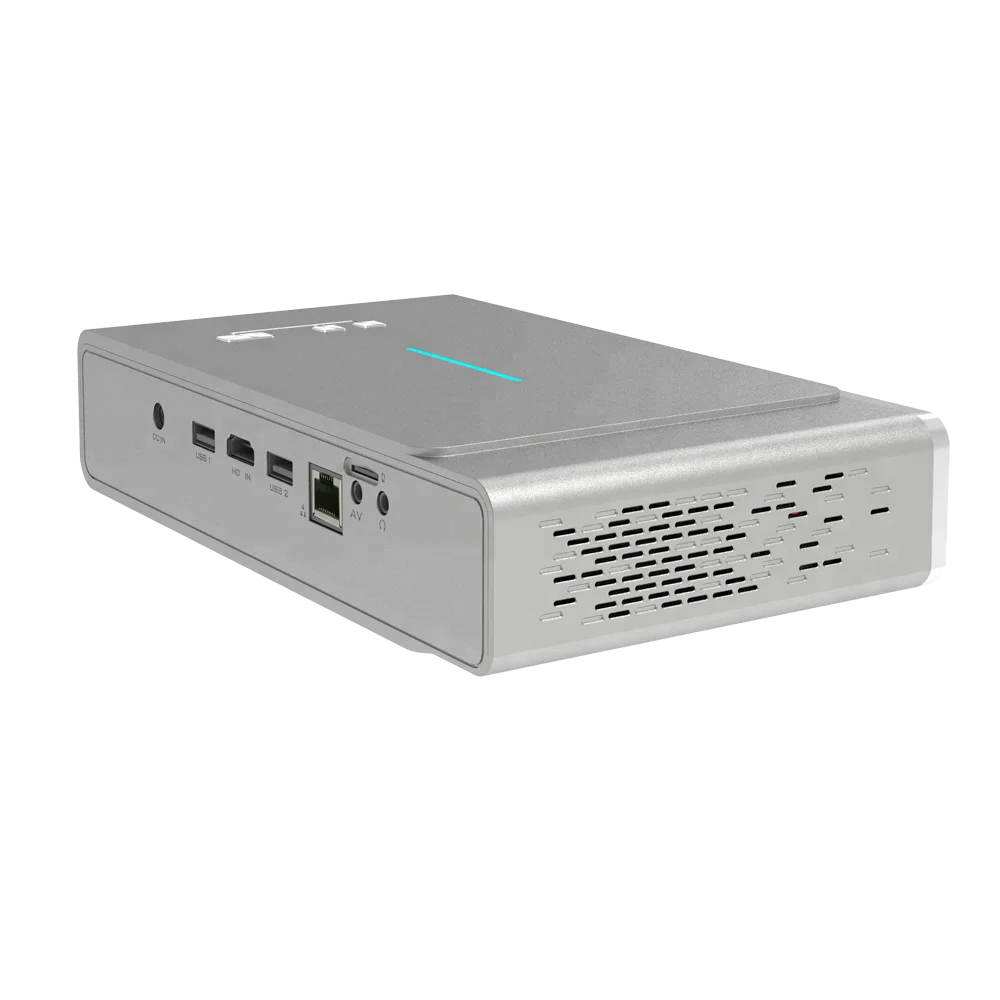

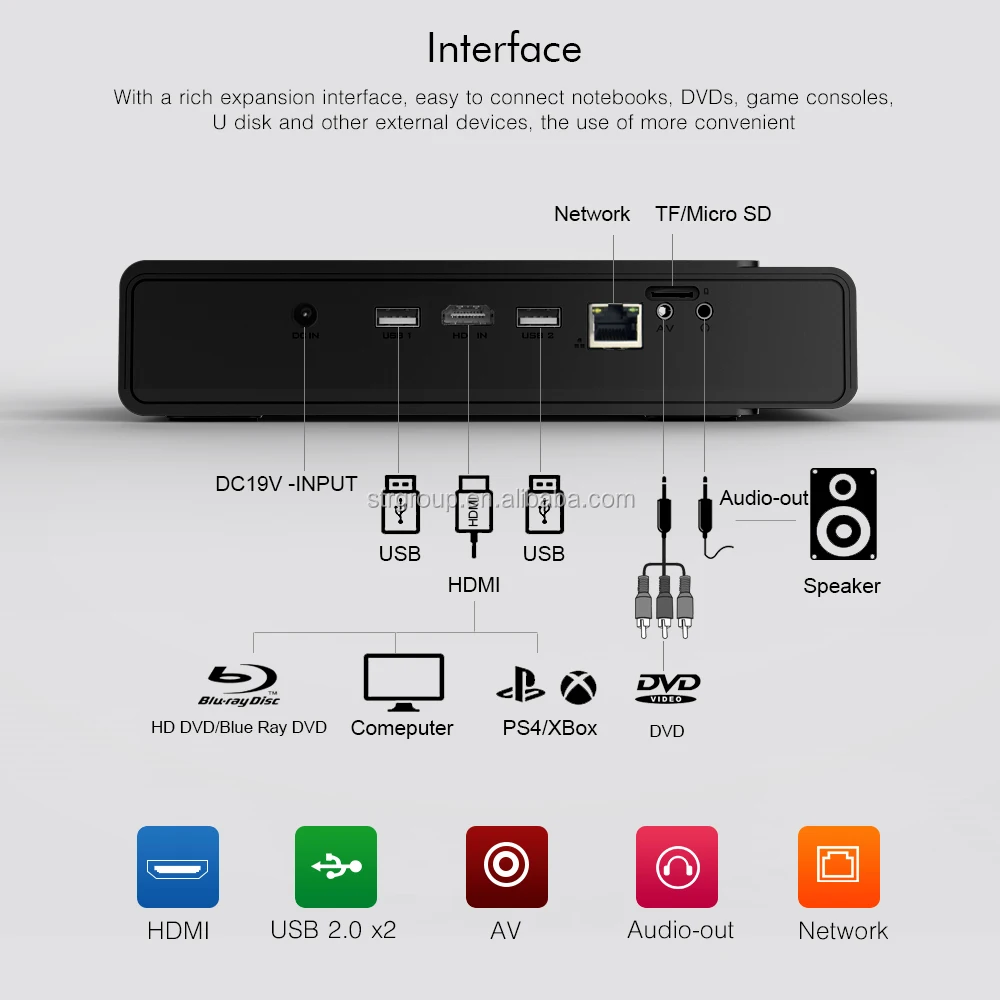

OUTPUT INTERFACE	Extended Memory	Support U disk and SSD solid state drive
	USB	USB HOST 2.0*2
	TF Card	Maximum supported 32G
	HDMI	Supports HDMI 2.0input
	USB	Able to read data frim USB hard drive   support mouse  and keyboard access
	Headphone Output	Audio output, 3.5mm connectors (can connect headphones or speakers)
	AV input	Supports AV signal input
	Ethernet input	Supports Network interface
	DC Input	Power adapter: DC 19V 3.42A
ELECTRICAL SPECIFICATIONS	Total Power Consumption	40W
	Power Performance	AC100-240V,50/60Hz      No built-in battrery
OTHER PARAMETERS	Product Size	220*127*46mm
	Package Size	274*177*103mm
	Net Weight	778g
	Package Weight(1set)	1.79Kg
	Package Weight(10set/box)	19.2Kg
	Carton Size(10set/box)	550*380*350mm
Items in package
STR-MPV5, Remote control, Power adapter, Tripod, Power cord, HDMI, Instruction (Case, 3D glass for choices)







FAQ



Q1:Is ODM/OEM available?

A:Yes,we can provide one-stop service,from designing,tooling,injection,Sample testing,mass assembly and shipment.Good innovative ideas about the products are always welcomed.



Q2:How do you ensure your products’ quality?

A:All the supplies are verified before the cooperation,and all the materials are inspected before they are sent to the warehouse.There are also QCs online to inspect the products randomly during mass production.Our branch company STR Testing(SZ.) also do it as the third party to help us control the products’ quality and ensures all the items comply with the international standard.



Q3:Do you accept small initial orders?

A:Yes,we can accept small orders.



Q4:Is the sample can be provides for testing?

A:Yes,the samples can be provided for function testing purpose.



Q5:Can you arrange the shipment?Or can you send the goods to designated address?

A:Yes,we can.No matter sea shipment or air shipment.We can ship the the goods to the designated address.



Q6:What is the delivery time?

A:Usually we promise our customer to delivery the goods within 25 days after all the details are confirmed and the payment is confirmed.The first order may take a little longer.



Q7:What is the payment term?

A:Usually our payment term is T/T(30% for the deposit,the balance against copy of BL),LC is also available.



If you are interested in this item,just feel free to click the link below to send us the inquiry.
