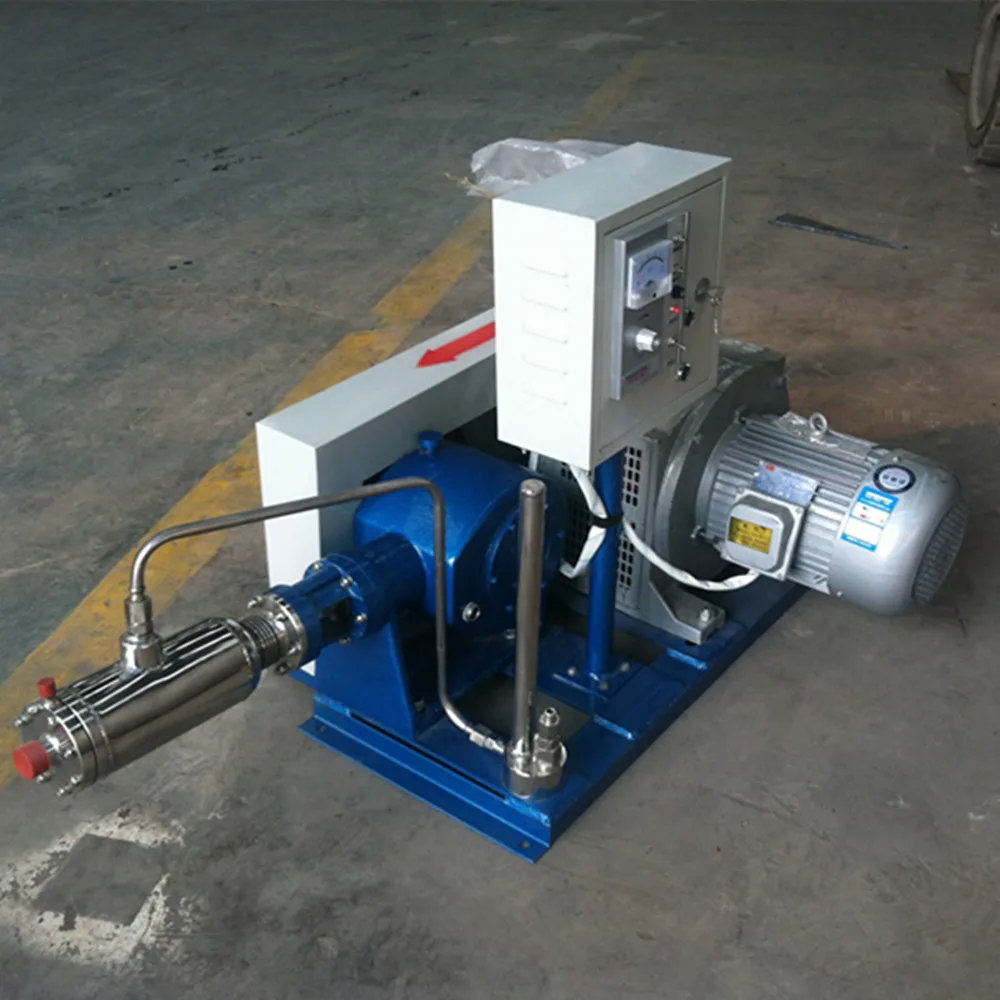

Cryogenic liquid piston pump for liquid argon oxygen nitrogen
- Category: >>>
- Supplier: Xinxiang Chengde Global Trading Co. Ltd.
Share on (60822731928):
Product Overview
Description
Product Description
Product Application
Brief introduction of equipment
Carbon dioxide liquid pump for liquid carbon dioxide bottle filling system, its purpose is the low temperature liquid carbon dioxide in the pressurization system after the direct input of the cylinder. Design and manufacture of elaborate simple optimization to ensure safe and reliable operation long time.
Structure
This pump is composed of motor, electric control cabinet, belt pulley, gear box and pump head, assembled in public.
Pump drive end is the rotary motion of the motor change for reciprocating movement and reducing the speed, and the motor output power delivered to the pump head compression end, motor through the belt wheel, transmission shaft, an eccentric wheel, a connecting rod and a crosshead parts to complete successfully converted and slow down. Transmission shaft, an eccentric wheel and a bearing structure for oil splash type, which makes the transmission system greatly extends the service life.
Working medium:LO2, LN2, LAr, LCO2, LC2H4, NH3, PVDF, CH3, LN2O, Medical Oxygen
Flow: 5~1200L/h
Inlet pressure: 0.02~1.6MPa
Outlet pressure: 1.6~40MPa
BH200-600/100 Cryogenic Liquic CO2 pump | ||||||
Type | Single,Horizontal,piston | Max outer pressure | 10.0Mpa | |||
Flow rate(L/H) | 200~600L/h | Inner pressure | 1.38~2.4Mpa | |||
Design Tem | -40℃ | Pump Speed | 135~265r/min | |||
electromagnetic speed motors | Type | YCT200-4B | ||||
Power | 5.5KW | |||||
Speed | 1250-125r/min | |||||
Performance
That the pump has the advantages of novel structure, excellent material, exquisite processing, stable performance, easy operation, convenient maintenance and long service life;
The transmission mechanism for crosshead structure, long service life;
The pump head pre cooling time is short, less loss of liquid;
The piston ring and the guide ring and the sealing ring is made of polymer composite material has good abrasion resistance and long service life is made;The operation is convenient, the boot time of about 10 minutes or so;
The increase of the pump working pressure of the tank will not cause, but long time continuous working pressure of the tank can be reduced;It is powered by the motor speed control, the speed can be adjusted in a large range, flexible and convenient use;The low energy consumption, low noise operation.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Company information
Xinxiang Chengde Energy Technology Equipment Co.,Ltd
Xinxiang Chengde Global Trading Co.,Ltd. is a subsidiary company of Xinxiang Chengde Energy Technology Equipment Co., Ltd.
Xinxiang Chengde Energy Technology Equipment Co., Ltd. (Chengde Gas Equipment Co., Ltd.) was Founded in 2002, Consists of: Xinxiang Chengde Global Trade Co., Ltd. and Xinxiang Jin Cheng Technology Co., Ltd; company is located in Industrial Park,Fengquan district,Xinxiang city,Henan province..

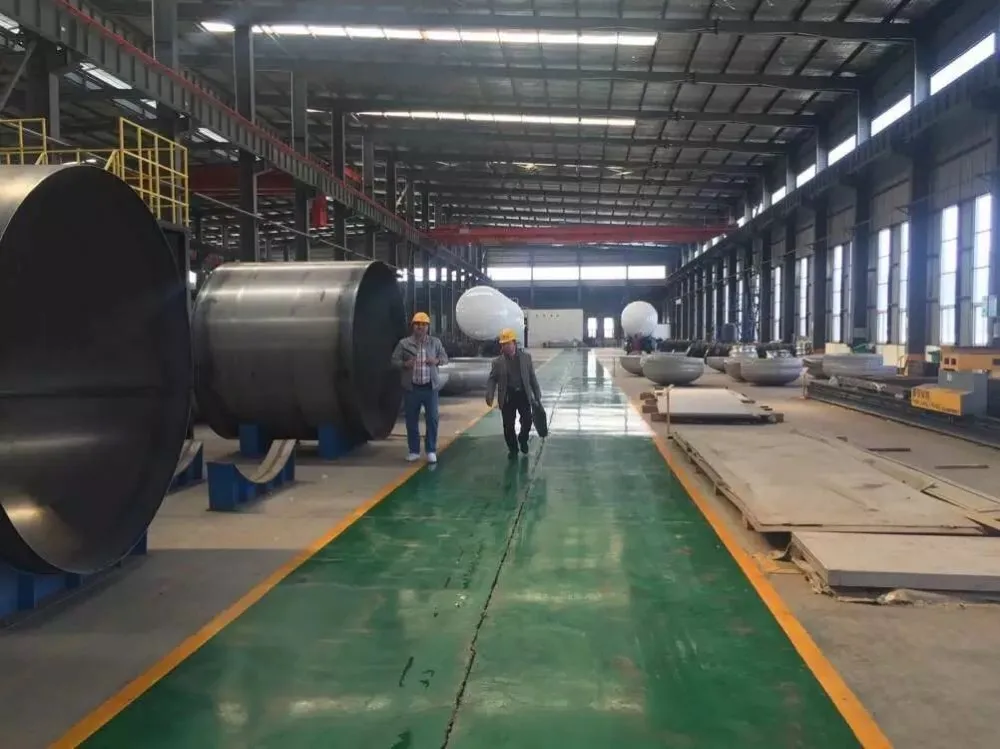

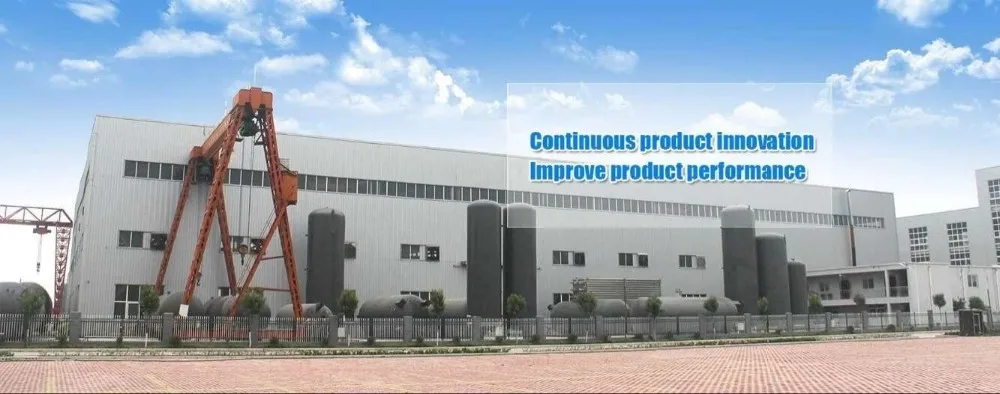

Workshop View

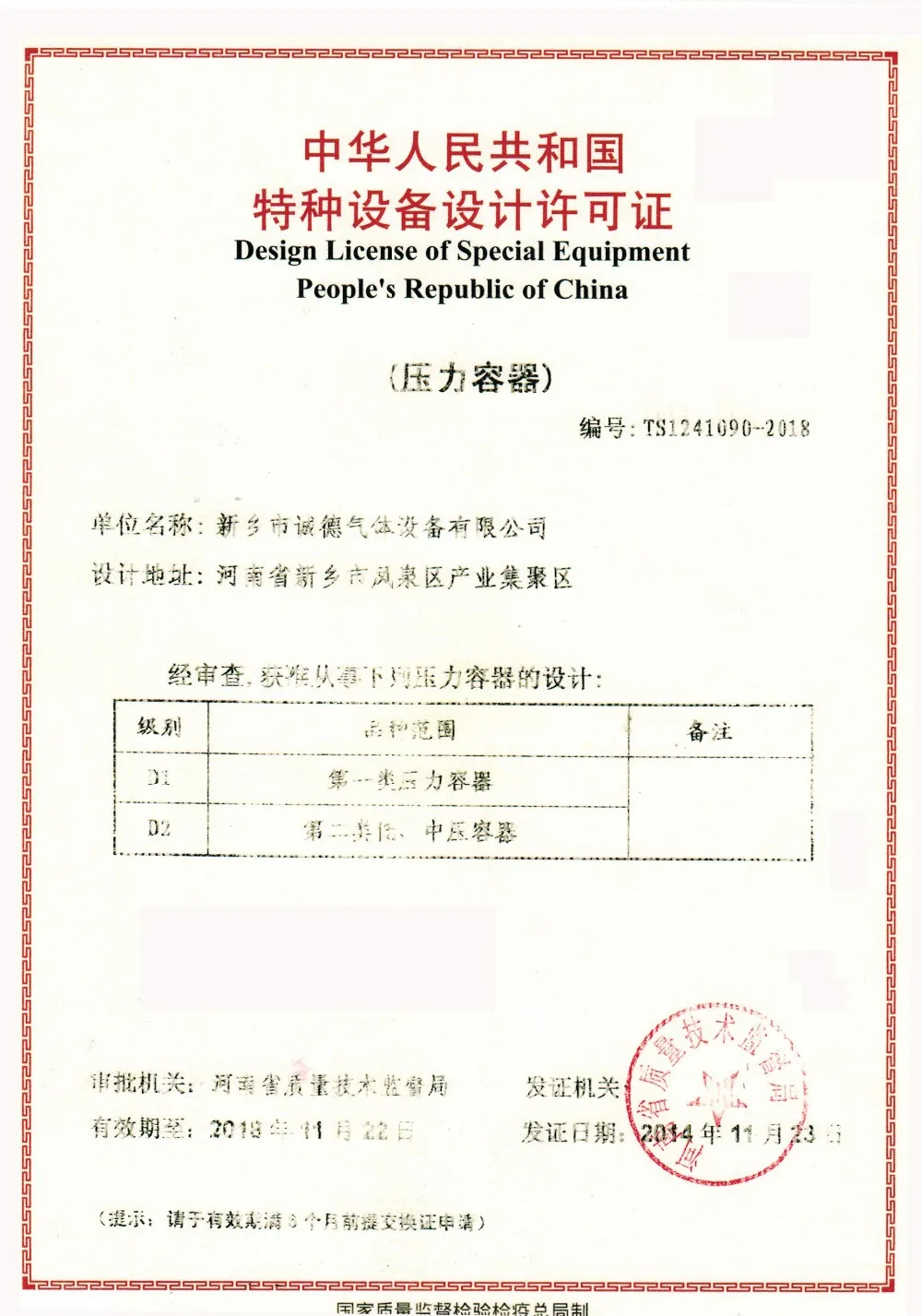

The company has been committed to the pressure vessels, Low-temperature cryogenic equipment and gas equipment in the field of research and development, design, manufacture and installation. Has Administration of Quality Supervision, Inspection and Quarantine issued a "pressure vessel manufacturing license," "pressure vessel design permits", "pressure pipeline design permits", "pressure pipe installation maintenance permit"; Has won the national low temperature testing center certification of product models, brand-name products in Henan Province
Optional configuration:
Frenquency converter
Overpressure interlocking device, safety valve/cryogenic check valve
Tehmperature interlocking device outlet
Temperature interlocking device inside pump
The pump head compression end is composed of cylinder liner, pump body, piston assembly, sealing device, inlet valve and liquid discharge valve. The pump adopts the material with good abrasion resistance to make the piston ring and the guide ring, so the service life of the pump is long. The sealing device is composed of a sealing element with excellent sealing performance, which ensures that the pump can be operated for a long time under normal working pressure.

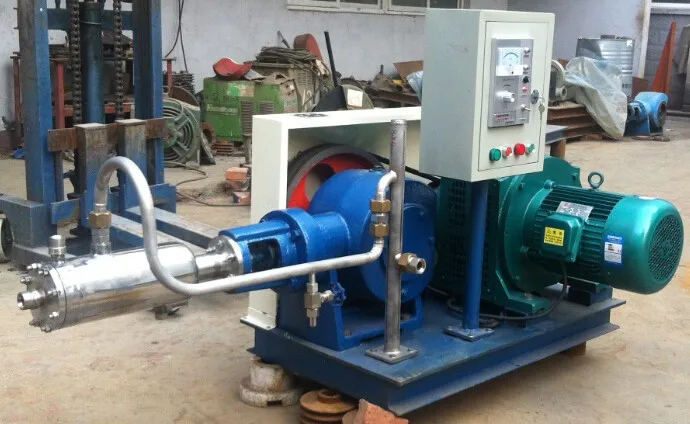

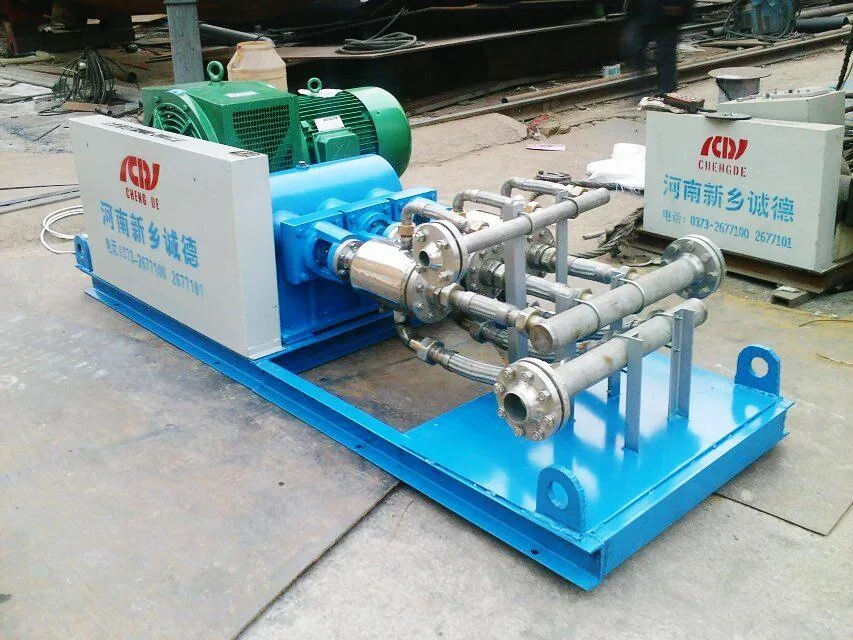

Product Picture

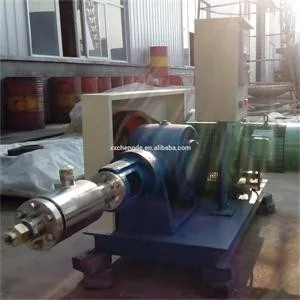

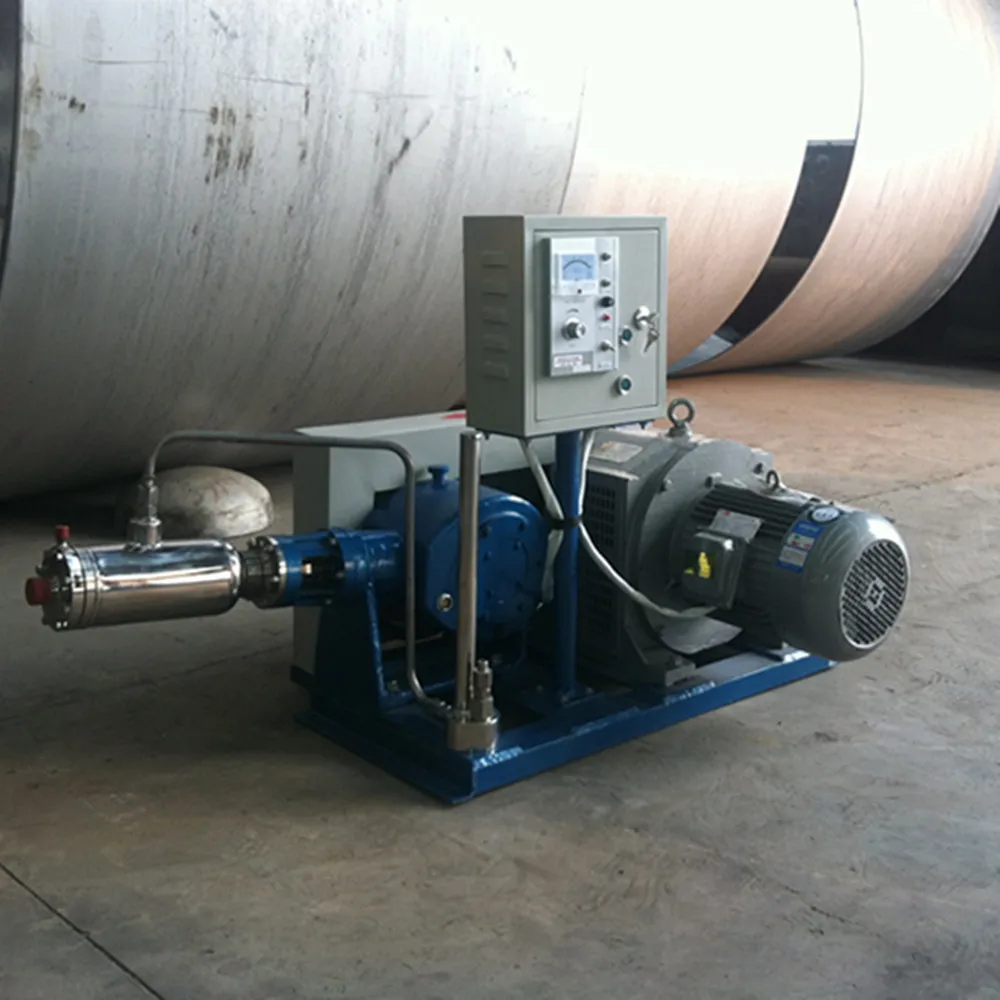

Liquid cryo Pump
Working medium:LO2, LN2, LAr, LCO2, LC2H4, NH3, PVDF, CH3, LN2O, Medical Oxygen
Flow: 5~1200L/h
Inlet pressure: 0.02~1.6MPa
Outlet pressure: 1.6~40MPa

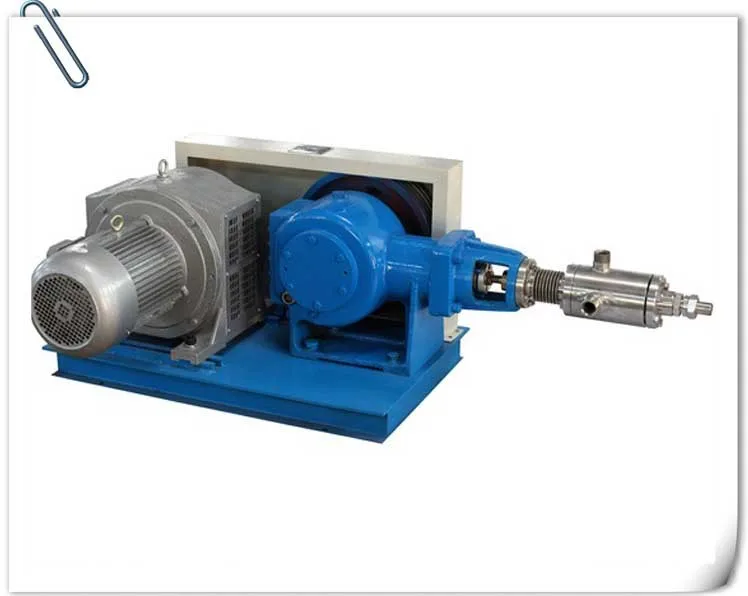

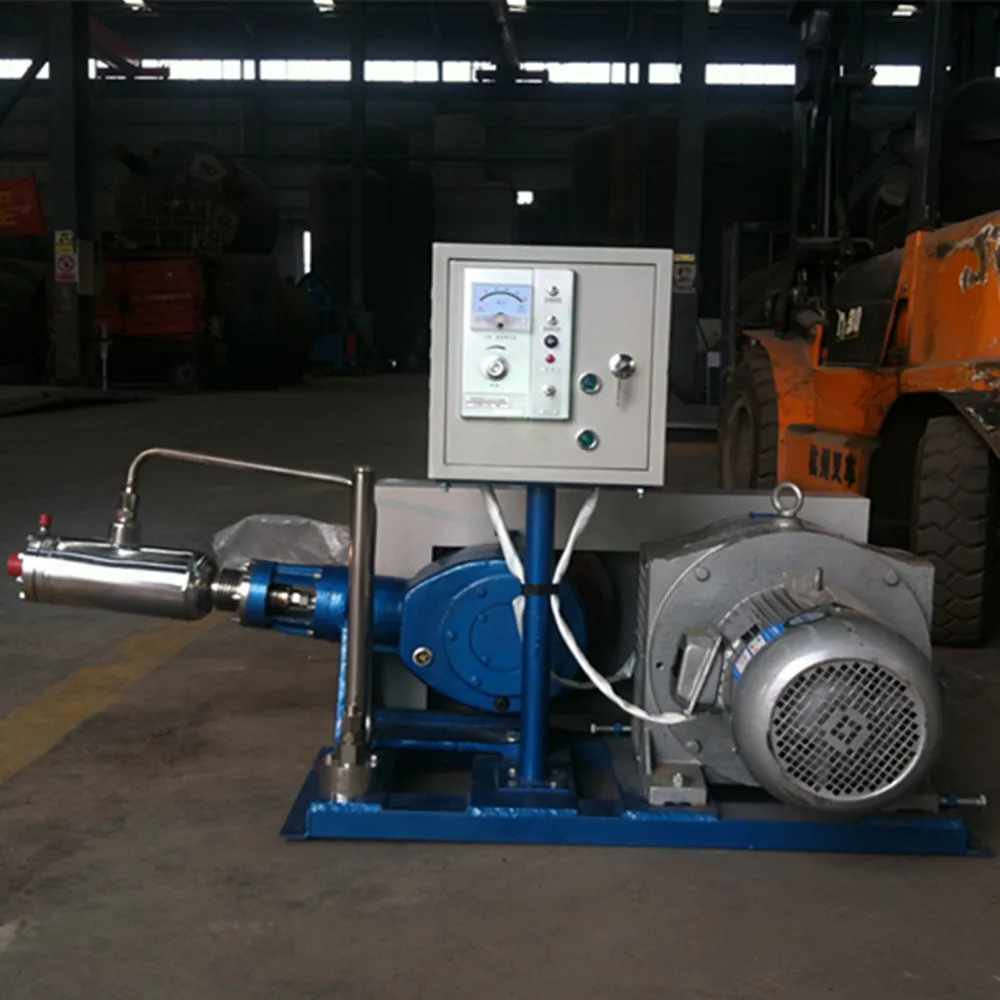

Liquid cryo Pump
Working medium:LO2, LN2, LAr, LCO2, LC2H4, NH3, PVDF, CH3, LN2O, Medical Oxygen
Flow: 5~1200L/h
Inlet pressure: 0.02~1.6MPa
Outlet pressure: 1.6~40MPa

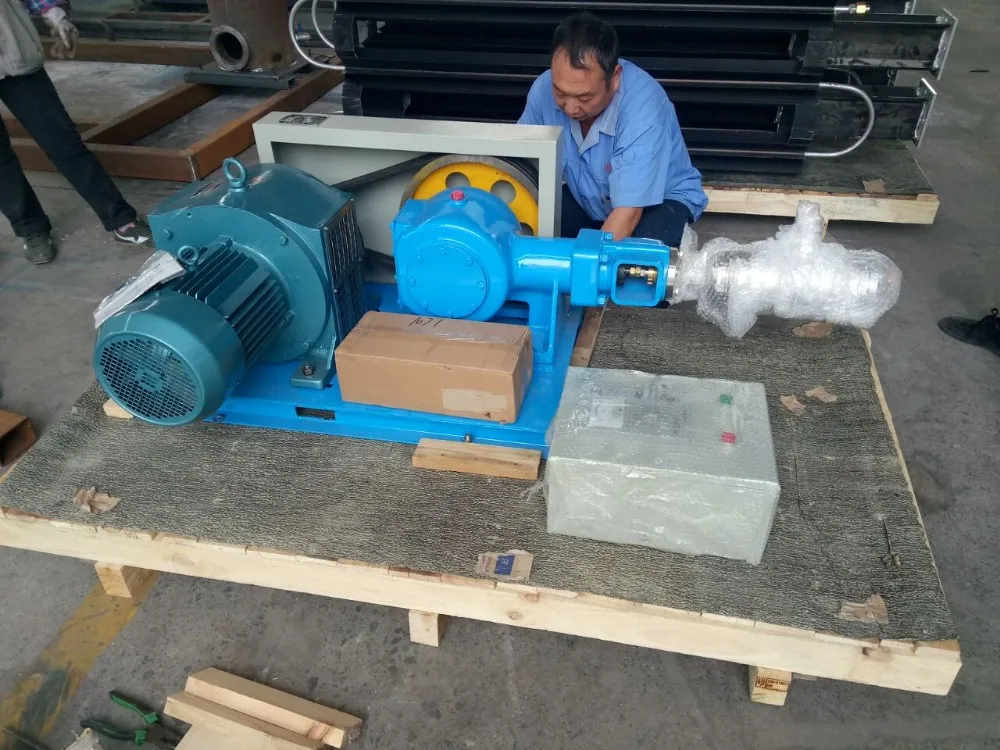

Packing & Delivery
Packaging | ||

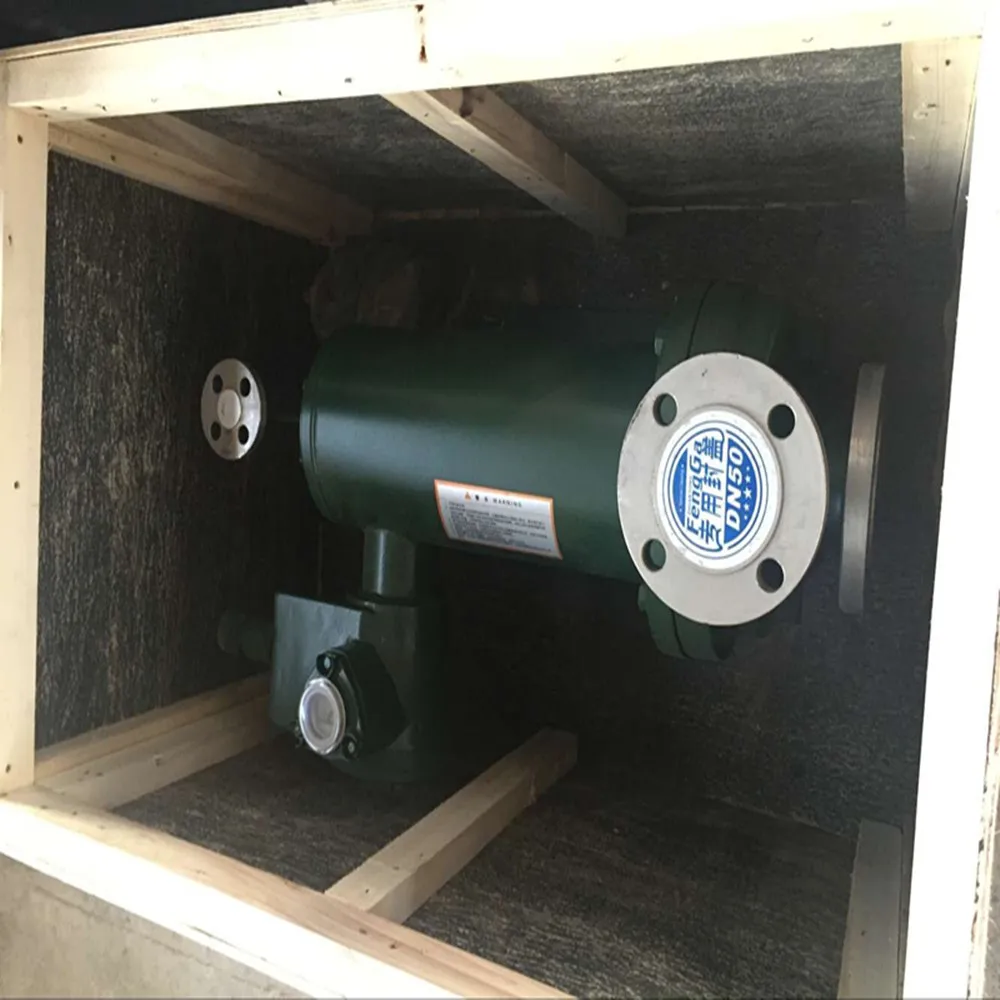

Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Packaging Details | ||

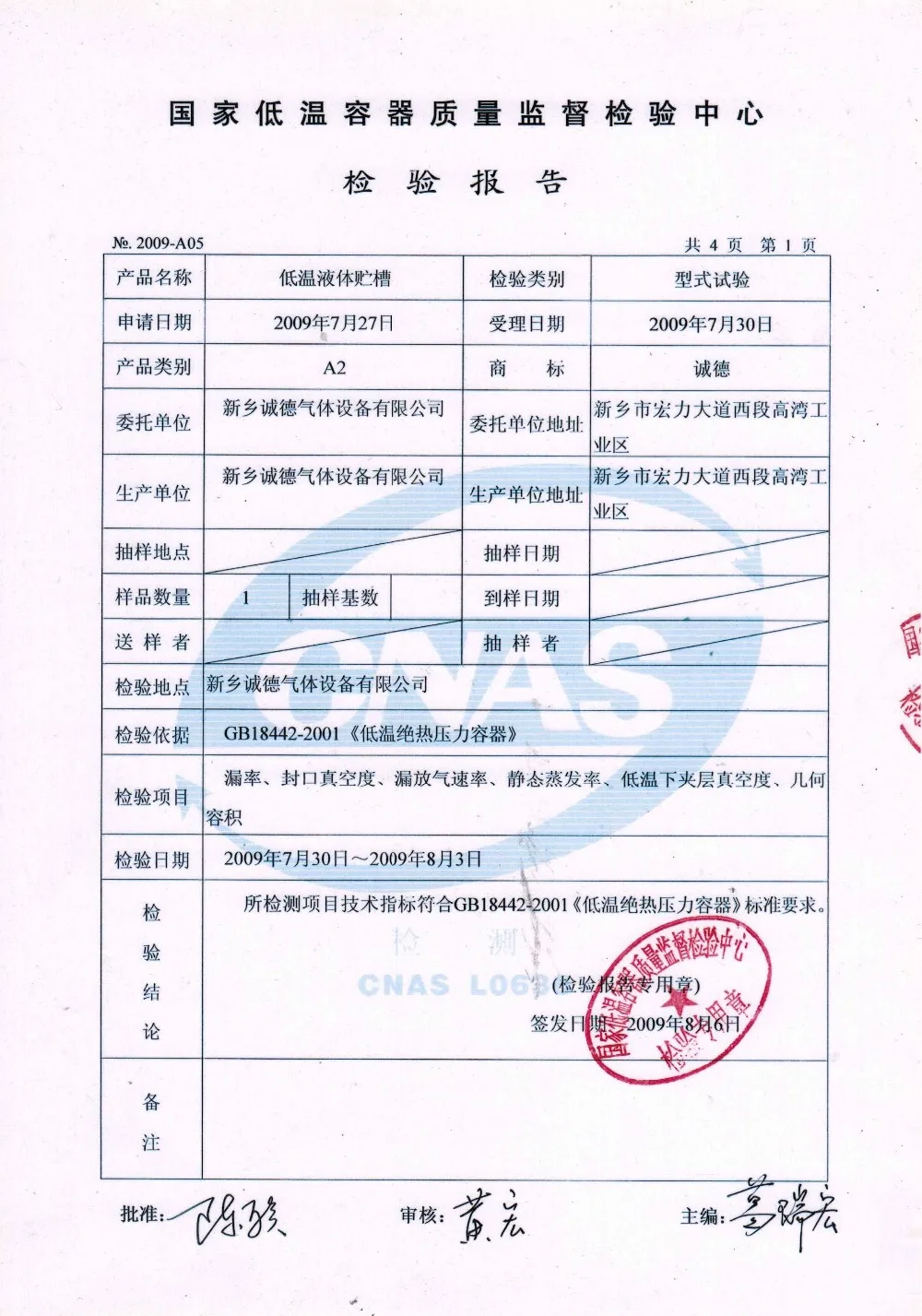

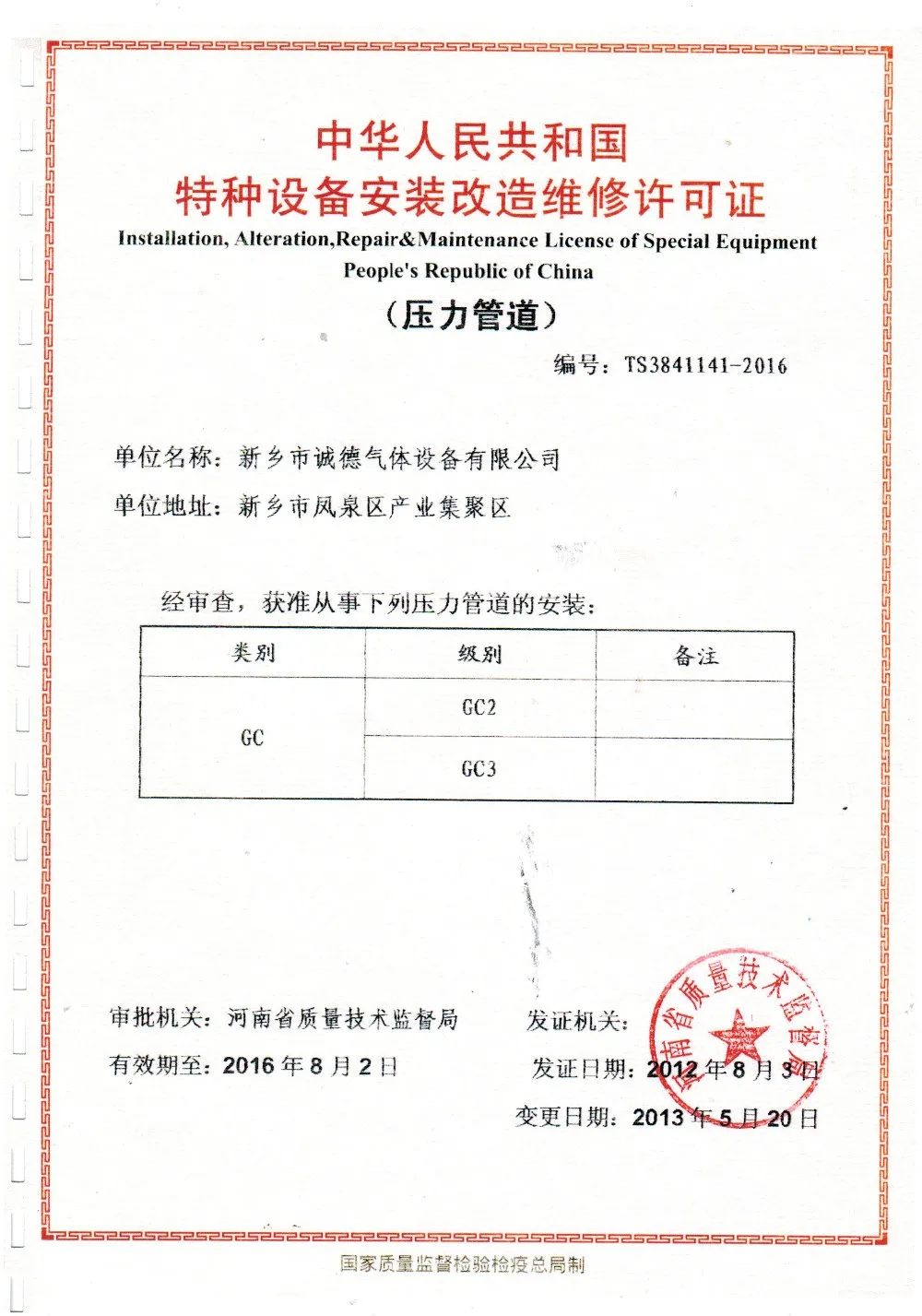

Certifications
