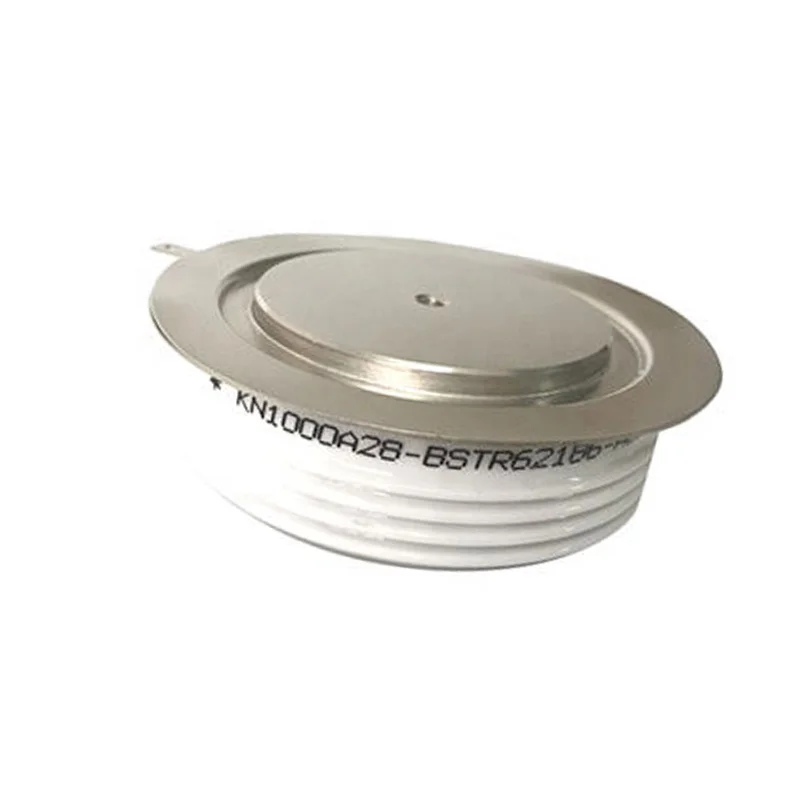

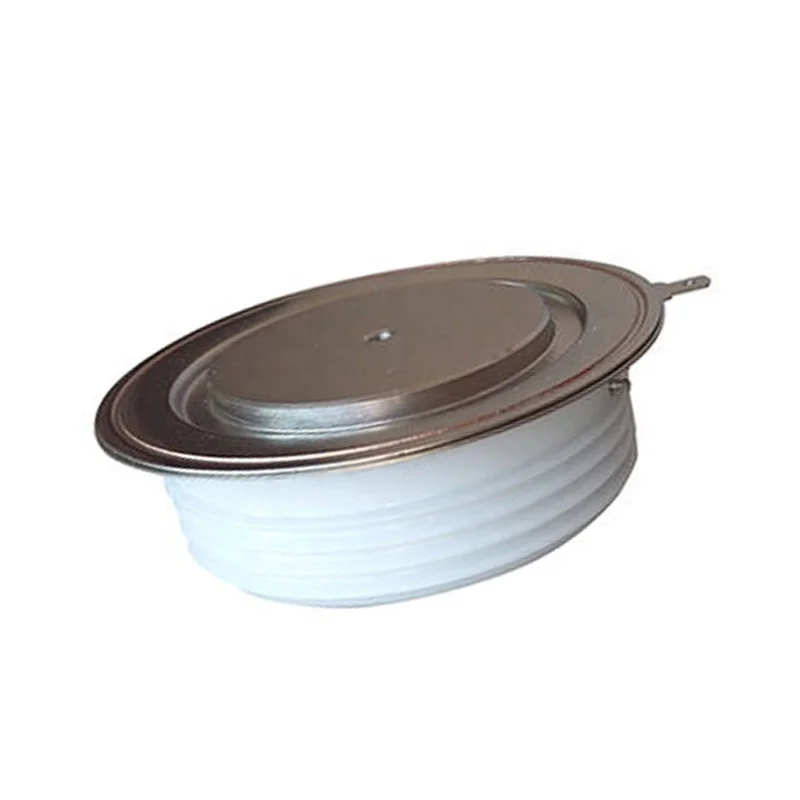

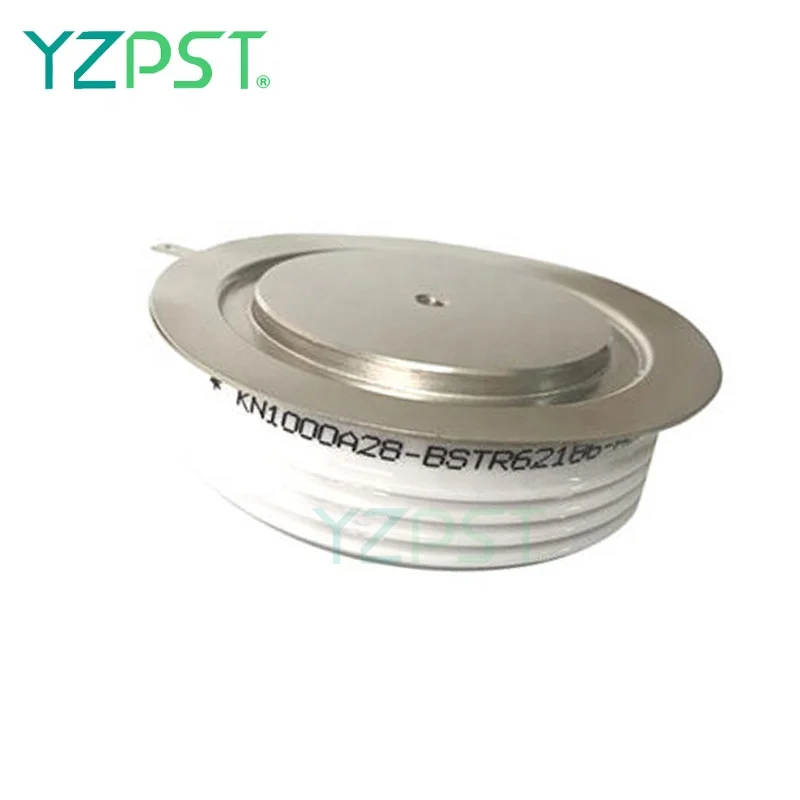

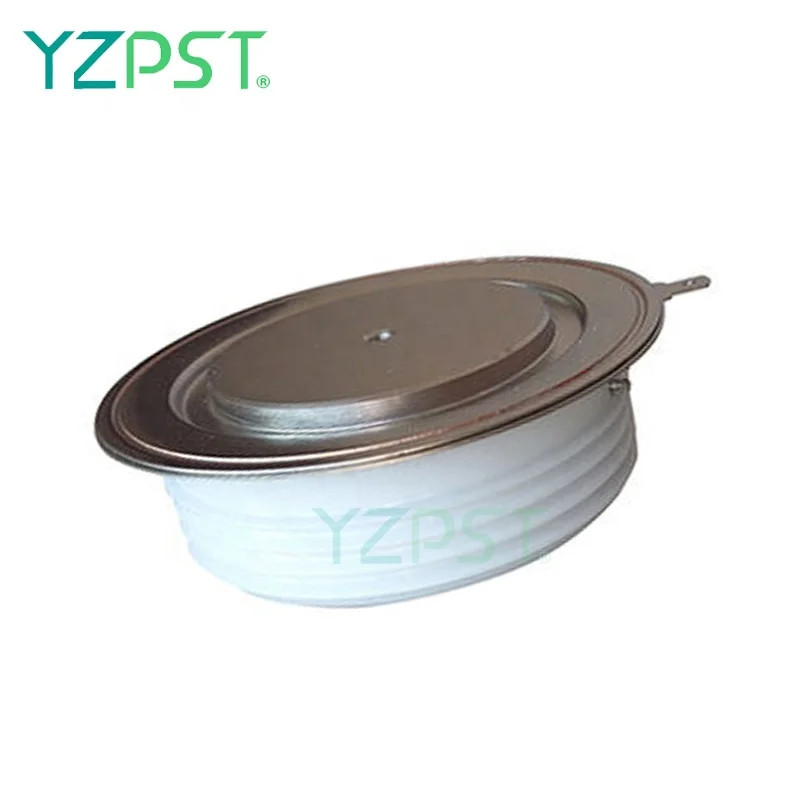

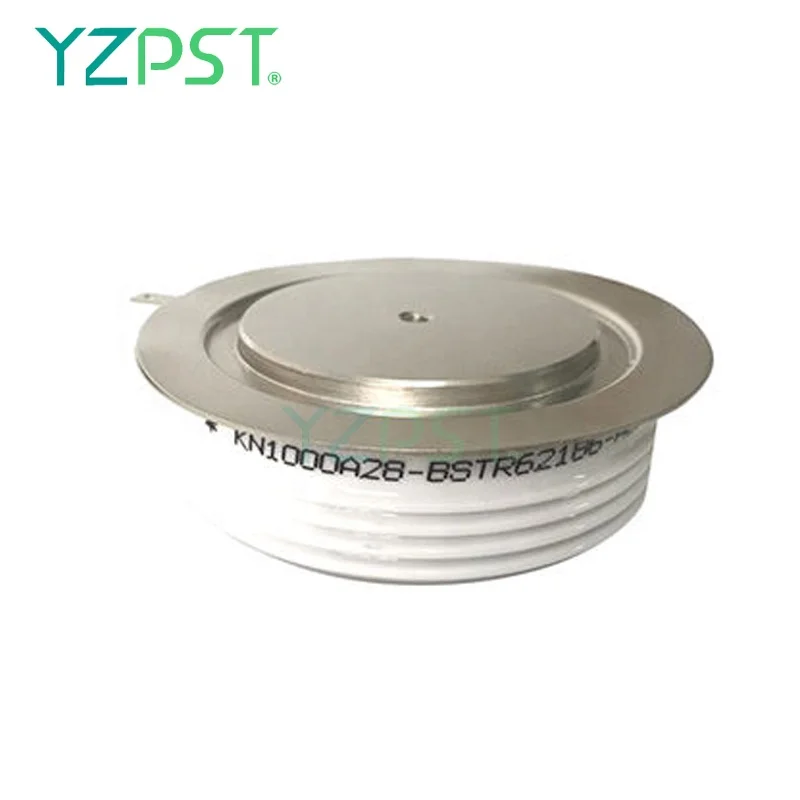

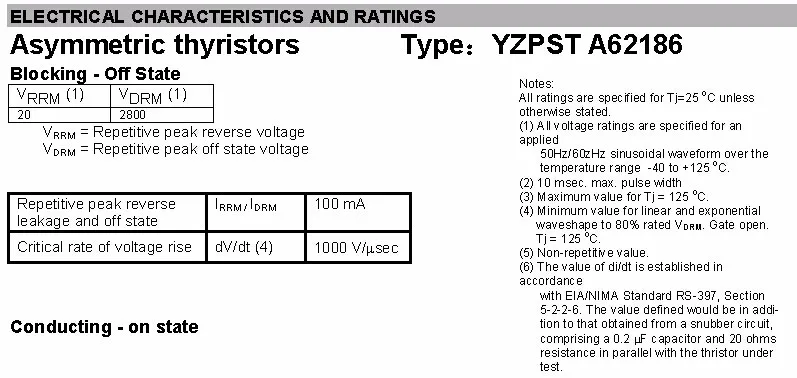

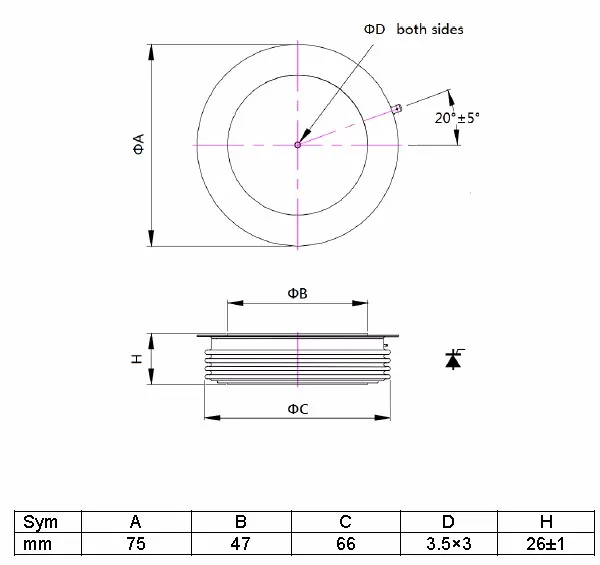

Asymmetric thyristor manufacturer factory A62186

Parameter

Symbol

Min.

Max.

Typ.

Units

Conditions

Average value of on-state current

I_T(AV)M

1000

A

Sinewave,180^o conduction,T_sink=55^oC

RMS value of on-state current

I_TRMS

2200

A

Nominal value

Peak one cPSTCle surge

(non repetitive) current

I_TSM

20

KA

10.0 msec (50Hz), sinusoidal wave-

shape, 180^o conduction, T_j = 125 ^oC

I square t

I²t

2x10⁶

A²s

10.0 msec

Latching current

I_L

-

mA

V_D = 24 V; R_L= 12 ohms

Holding current

I_H

1000

mA

V_{D =} 24 V; I = 2.5 A

Peak on-state voltage

V_TM

2.42

V

I_TM = 2000 A; T_j = 125 ^oC

Critical rate of rise of on-state

current (5, 6)

di/dt

-

A/ms

Switching from V_DRM £ 1000 V,

non-repetitive

Critical rate of rise of on-state

current (6)

di/dt

700

A/ms

Switching from V_DRM £ 1000 V

Parameter

Symbol

Min.

Max.

Typ.

Units

Conditions

Peak gate power dissipation

P_GM

30

W

t_p = 40 us

Average gate power dissipation

P_G(AV)

5

W

Peak gate current

I_GM

-

A

Gate current required to trigger all units

I_GT

-

300

-

mA

mA

mA

V_D = 6 V;R_L = 3 ohms;T_j = -40 ^oC

V_D = 6 V;R_L = 3 ohms;T_j = +25 ^oC

V_D = 6 V;R_L = 3 ohms;T_j = +125^oC

Gate voltage required to trigger all units

V_GT

-

3.0

-

V

V

V

V_D = 6 V;R_L = 3 ohms;T_j = -40 ^oC

V_D = 6 V;R_L = 3 ohms;T_j = 0-125^oC

V_D = Rated V_DRM; R_L = 1000 ohms;

T_j = + 125 ^oC

Peak negative voltage

V_GRM

5

V
