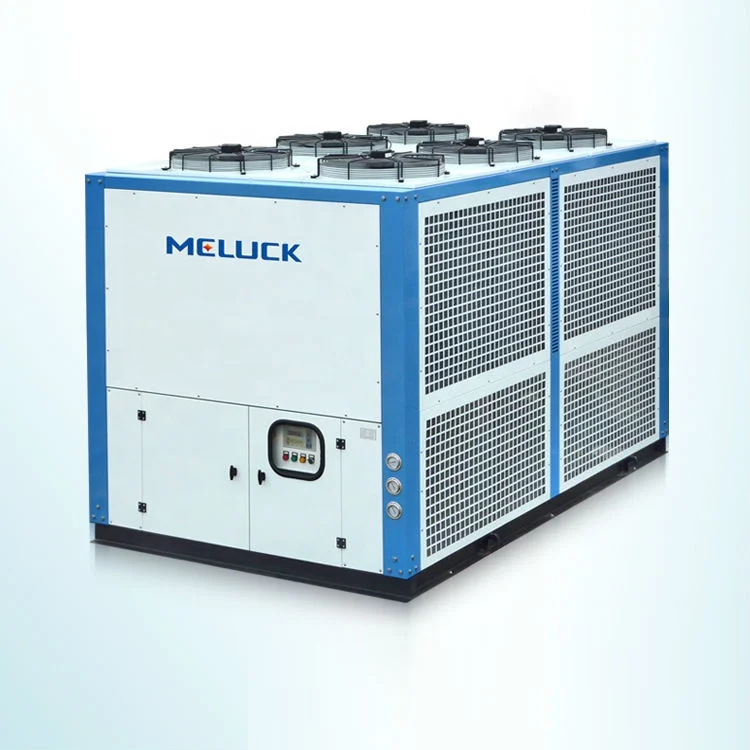

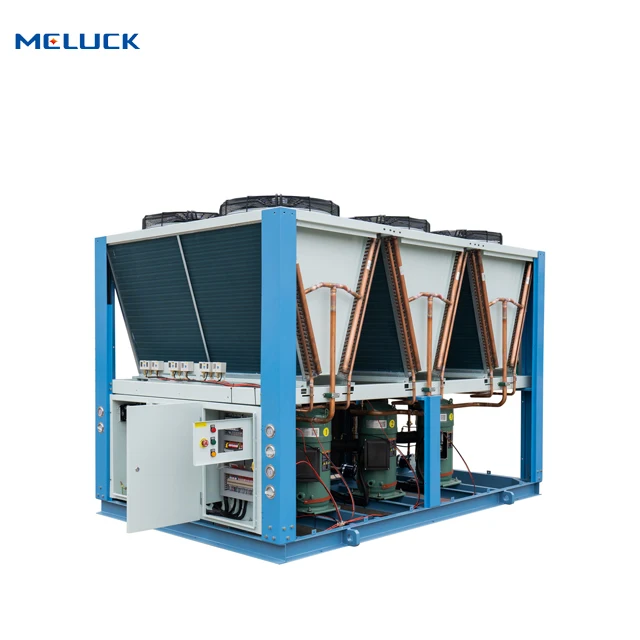

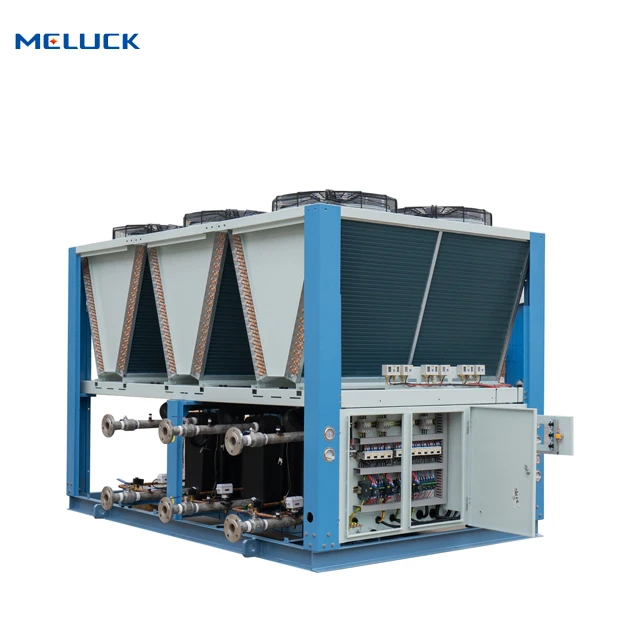

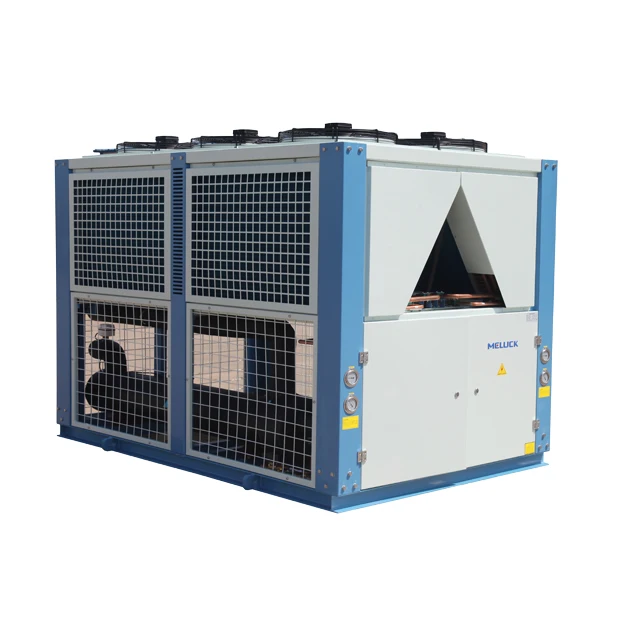

Factory Direct Supplier Air Cooled Industrial Water Cooled Chiller

Product Overview

Description







Refrigerant:R407C,R134a; Chilled Water in: 12℃  Chilled Water Out:7℃
Comp Type		Hermetic Scroll/ Semi-hermetic Reciprocating
Chiller Model		LSQ03ASE	LSQ05ASE	LSQ08ASE	LSQ10ASE	LSQ12ASE	LSQ15ASE	LSQ20ADE	LSQ25ADE	LSQ30ADE	LSQ40ADE
CompPower		3HP	5HP	8HP	10HP	12HP	15HP	20HP	25HP	30HP	40HP
Cooling Capacity(KW)		8.3	13.7	22.1	29.5	34	44.1	59	68	88.2	120
Comp input(KW)		3.1	4.8	7.2	9.5	11.7	14.9	18.9	22.7	29.7	39.9



Refrigerant:R407C,R134a; Chilled Water in: 12℃  Chilled Water Out:7℃

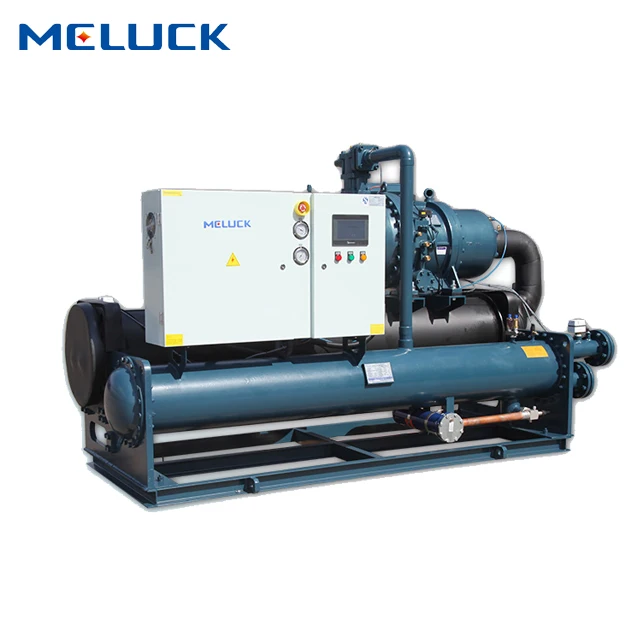

Comp Type		Semi-hermetic Screw
Chiller Model		LSLG30AS	LSLG40AS	LSLG50AS	LSLG60AS	LSLG70AS	LSLG80AS	LSLG90AS	LSLG100AS	LSLG120AS	LSLG130AS
Comp Power		30HP	40HP	50HP	60HP	70HP	80HP	90HP	100HP	120HP	130HP
Cooling Capacity(KW)		82.2	113.7	148.4	199.4	214.7	267.4	297.7	320.8	423.6	442.9
Comp input(KW)		29	38.3	48	63.4	69.14	83.4	91	98.7	130.3	133.3







1.How does a chiller system work?

Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.



2.How to calculate cooling capacity for chillers?

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)



3.Types of chiller system?

Air Cooled Chiller and Water Cooled Chiller.Water cooled chiller needs a separated cooling tower and has a higher efficiency,but less easier than air cooled.



4. What type of the chiller should I use ?

 It depend on the local environment temperature and water source. If lack of water and low ambient temp , we advise you use the air cooled chiller, if not , air cooled chiller is ok. But for installation,air cooled is more convenient than water cooled.



5. How to select the model of the chiller ?

It is better to tell us some parameter, such as : Cooling Capacity, Outlet Temperature, Power Supply,Environment Temperature, Application Field, Anti-rust Or Anti-corrosion, and so on.Meanwhile,we could do customized chiller according to your end user consumption.



6.Cooling capacity unit conversion?

1 kcal/h = 1.163W,1 W = 0.8598 kcal/h;
1 Btu/h = 0.2931W,1 W = 3.412 Btu/h;
1 USRT = 3.517 kW,1 kW = 0.28434 USRT;
1 kcal/h = 3.968 Btu/h,1 Btu/h = 0.252 kcal/h;
1 USRT = 3024 kcal/h,10000 kcal/h = 3.3069 USRT;



7.The chiller can heat?

Yes,by the electrical heating wire.Please kindly inform us the hot water temp or heating capacity.



8. What is production period ?

Generally speaking, it is 15-30 days,some standard model there are some stocks, but it all depend on the model ,quantity.



9.What is your company after-sales service ?

Our warranty period is one year. If there is any problem in this year, we will send you the new parts for replacement. Meanwhile, welcome to consulting the technical knowledge.



10.Chiller maintenance?

Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
