480*800 4 inch oled odm multitouch tft capacitive touchscreen
- Category: Display Modules >>>
- Supplier: Shenzhen Elsun Technology Co. Ltd.
Share on (60822826246):
Product Overview
Description
Product Description
tft capacitive touchscreen key mechanical data :
| Main Parameters: | ||
| Item | kingtech 3.97" 4" 480x800 ips lcd module | |
| Model No |
| |
| Resolution | 480(RGB) * 800 Dots | |
| Outline Dimension | 96.85(L) X57.14(W) X1.93(T) | |
| Active Area(mm) | 86.4(L) x 51.84(W) | |
| Interface | MIPI | |
| Viewing Angle | IPS/ All | |
| LED Numbers | 8 LEDS | |
| LED life | / | |
| Warranty | 12month | |
| Driving IC | ILI9806E | |
| Display Mode | Normally Black/Transmissive | |
| Technology Type | a-Si TFT, Negative | |
| Pixel Pitch (mm) | 0.108 (L) × 0.108 (W) | |
| Pixel Configuration | R.G.B. Stripe | |
| Surface treatment: | Glare | |
| FPC type | 0.3Pitch | |
| Operating Temperature | -20 to +70℃ | |
| Storage Temperature | -30 to +80℃ | |
| Aspect Ration | 6:10 | |
| Response time | 35MS | |
| Color Depth | 16.7M | |
| Brightness | 350 Cd/m2 |

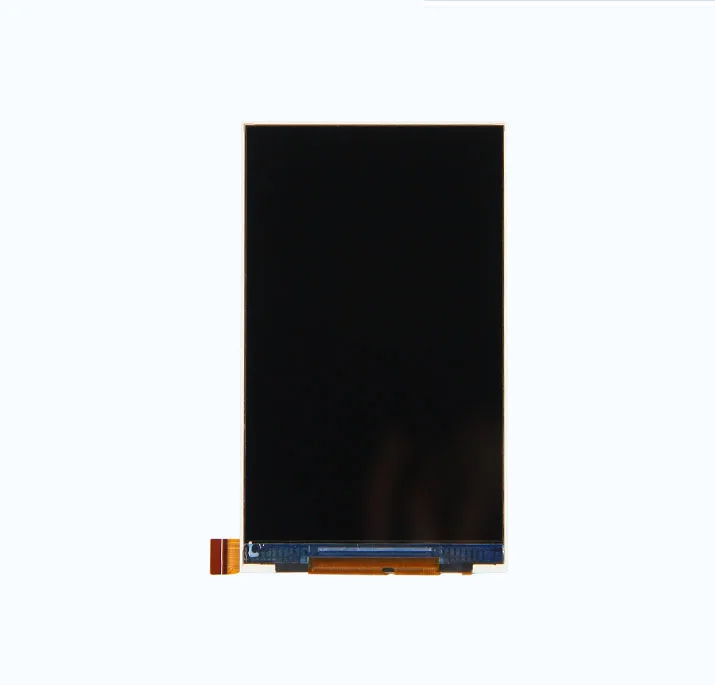

tft capacitive touchscreen front picture:

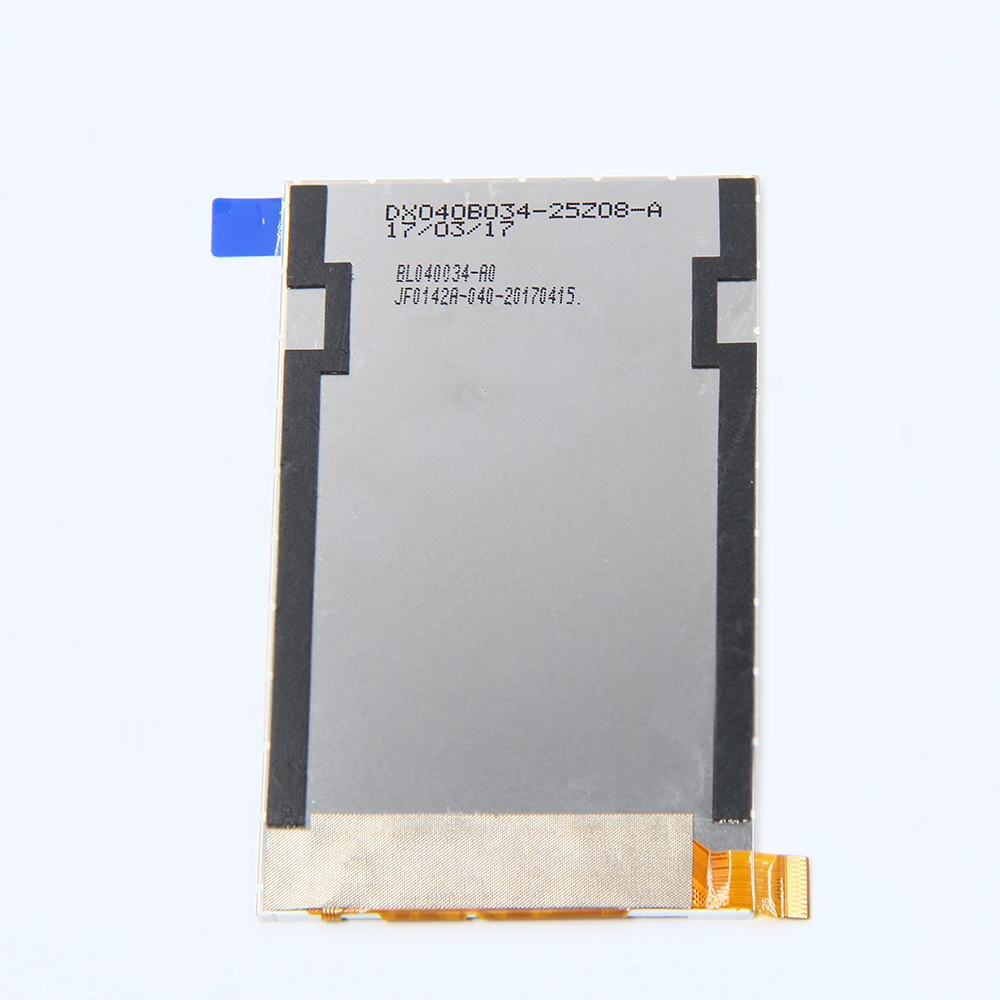

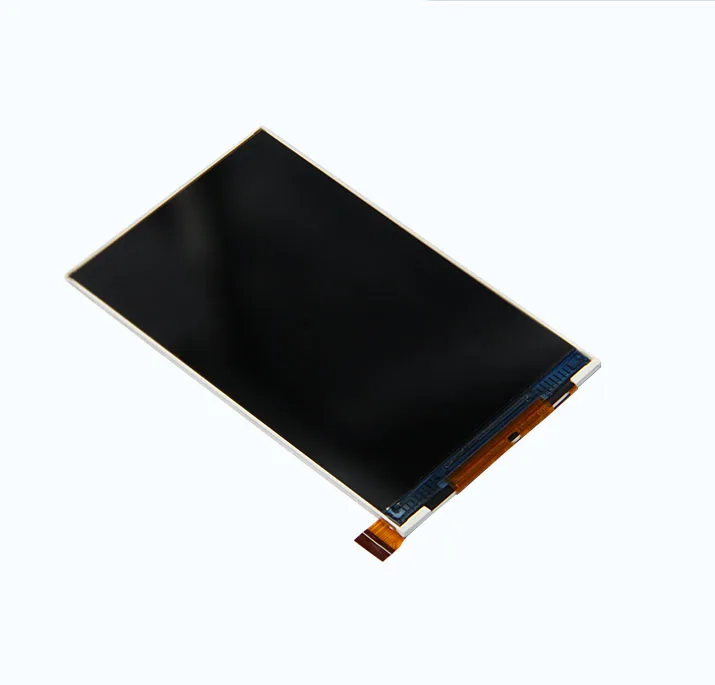

tft capacitive touchscreen profile picture:

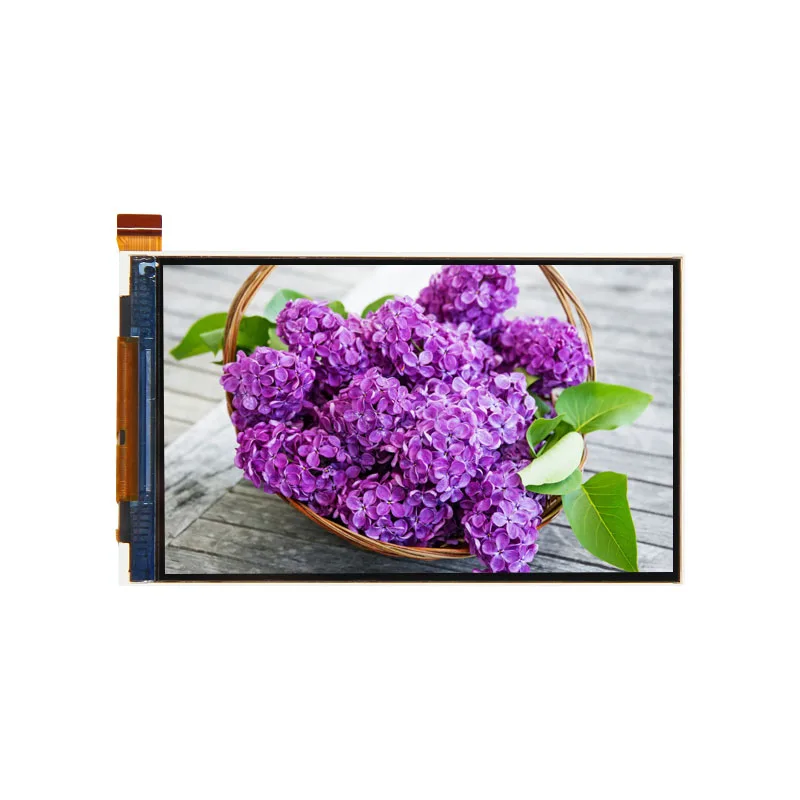

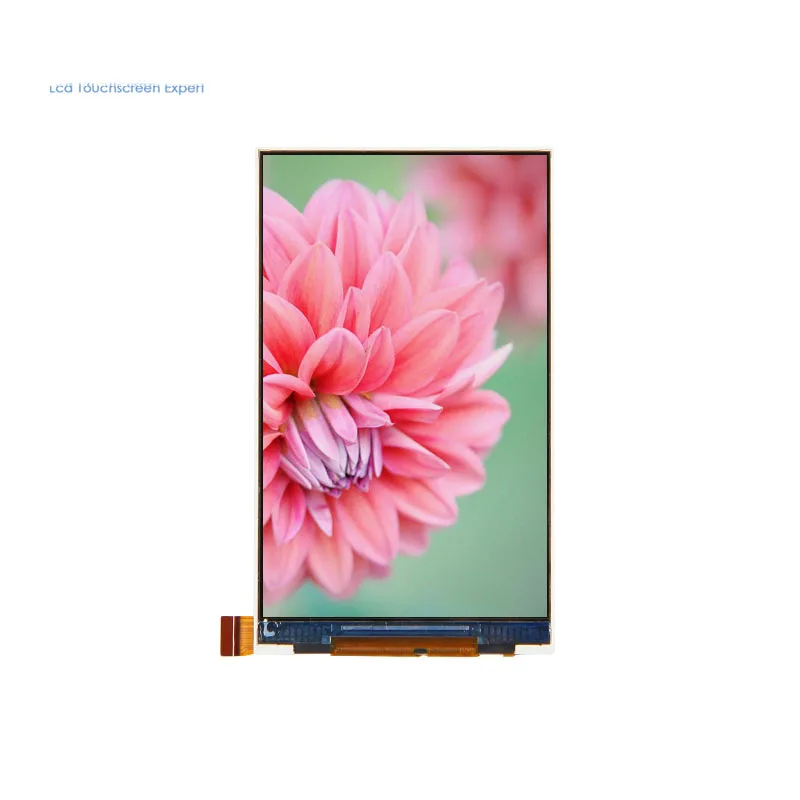

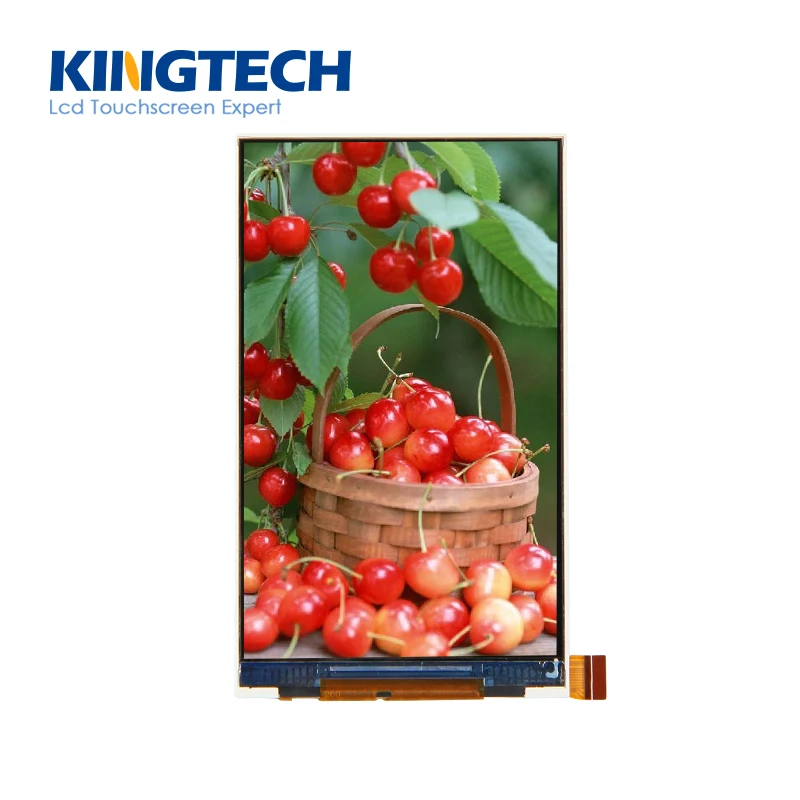

tft capacitive touchscreen application picture:
Other Products
Similar size tft LCD , please click below Model No to review product details
| Size and Feature | Model No | Pixel | Outline Dimension | TP |
| 4.3" IPS display | PV0430I3CZ0 | 480x800 | 105.90(H)*62.46(v)*2.2(T) | RTP |
| 4.3" 350 brightness | DW0436F3CZ | 480X272 | 67.2(H)*105.5(W)*3.0(T) | RTP |
| 4.3 " 800 brightness | DW0436F5CZ | 480x272 | 67.15(H)*105.4(W)*2.95 (T) | RTP |
| 5" Standard brightness | PV05000YX40D | 480×272 | 120.7(W)×75.2(H)×4.2(T) | RTP |
| 5" high brightness | PV050H00YX40C | 800×480 | 120.7(W)×75.8(H)×3.10(T) | RTP/CTP |
| 7" 40PIN lcd | PV07001LY40C | 800x480 | 164.9(W) x 100(H) x 3.4 | RTP |
| 7" similar to AT070TN92 | PV0700JW50C | 800x480 | 164.9(W) × 100(H) × 5.7(D) | RTP |
| 10.1 " lcd | DW101DX40B | 1024X600 | 143(L) ×235(W) ×5(T) | CTP |
Workshop
all viewing angle 390*390 1.2 inch round amoled tft lcd display workshop pictures
Full automatic line to bond LCD panel, IC and FPC together as FOG for mass production. Semi-automatic line for sample making and small order assembly.
We can handle sample and small orders flexibly. We don't have strict MOQ requirement. Thousand class cleaning room to assemble backlight and FOG
We have our own LCD panel cutting and etching factory. With strong R&D capability, both ODM and OEM business are welcome
We have strict on quality control procedure with complete set of inspection equipments to ensure our high quality
Each model, before mass production, we do reliability test to ensure our material choice and workmanship are designed properly.
This can help to avoid reliability issues happening at our customer side
With Customers
all viewing angle 390*390 1.2 inch round amoled tft lcd display
Full automatic line to bond LCD panel, IC and FPC together as FOG for mass production. Semi-automatic line for sample making and small order assembly.
We can handle sample and small orders flexibly. We don't have strict MOQ requirement. Thousand class cleaning room to assemble backlight and FOG
Our Advantage
Kingtech History
| Year | Event |
| 1995--2003 | Founder of Kingtech work in LCD display moudule enterprise |
| 2003 | Start distribution for LCD panel and Driver IC |
| 2006 | Started LCD display module R&D, manufacturer, export |
| 2009 | Establish factory to cut LCD panel to smaller size |
| 2013 | Acquisition a factory to etch LCD panel to be thinner |
| 2014 | Became Alibaba Top10 supplier |
| 2016 | Establish our backlight factory |
| 2016 | Award of Alibaba B2B Good Faith Demonstration Base |
| Mission | To be custom small and middle size LCD module specialist |
