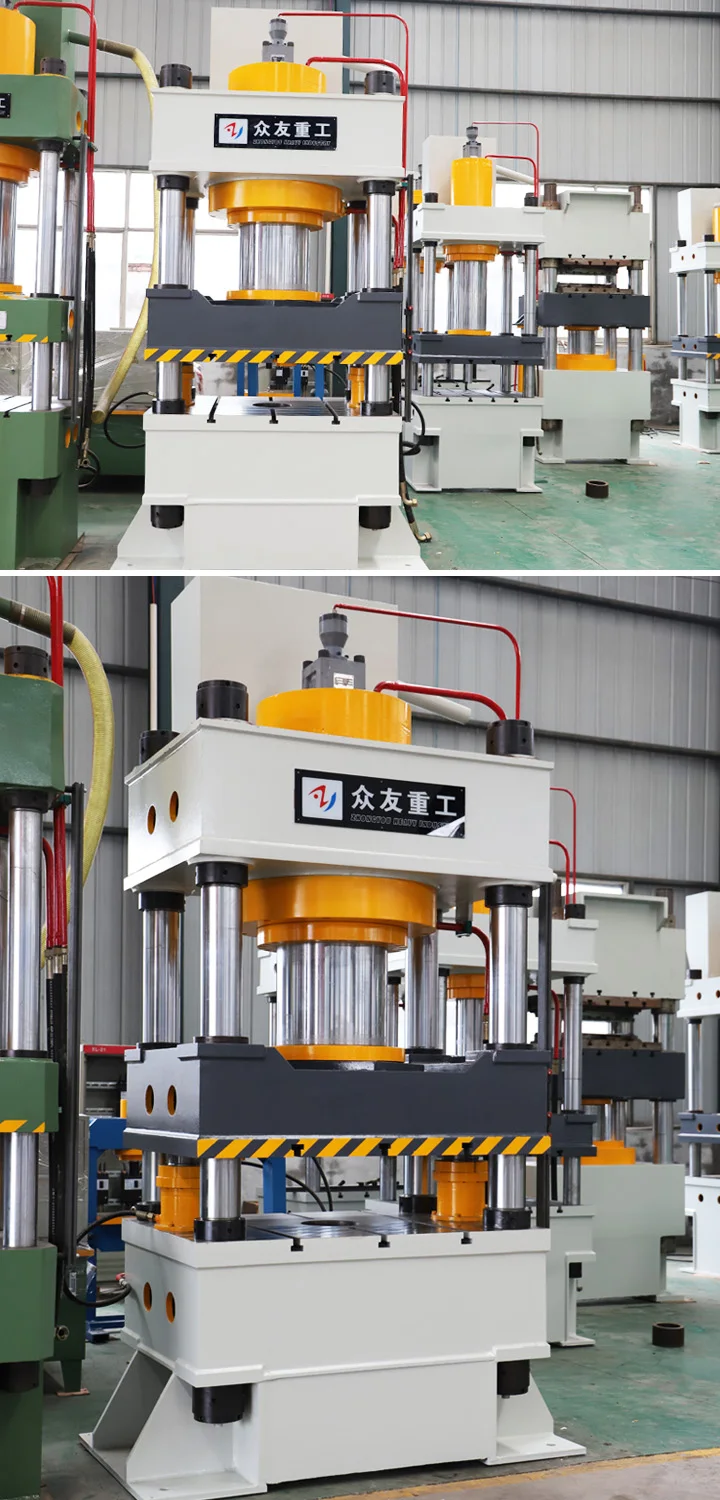

4 Post Presses Hydraulic Press Machine 400 ton

Product Overview

Description

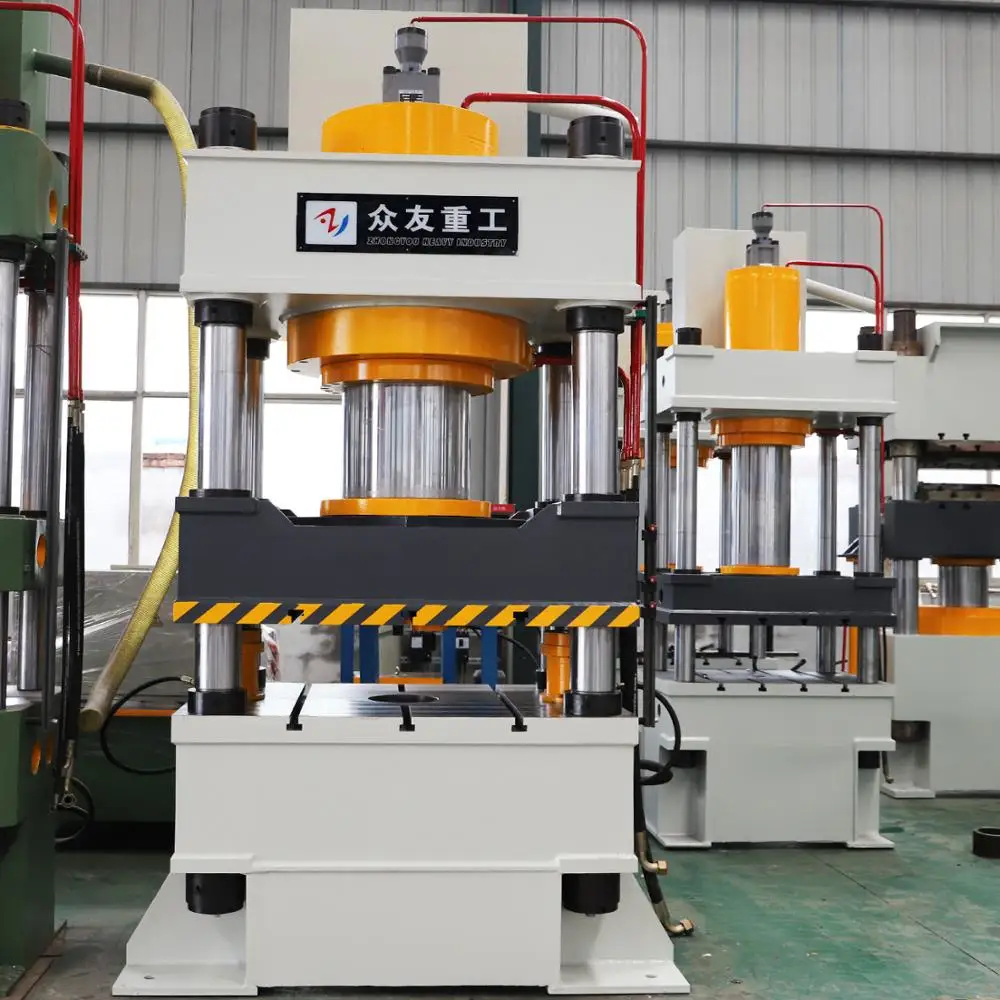

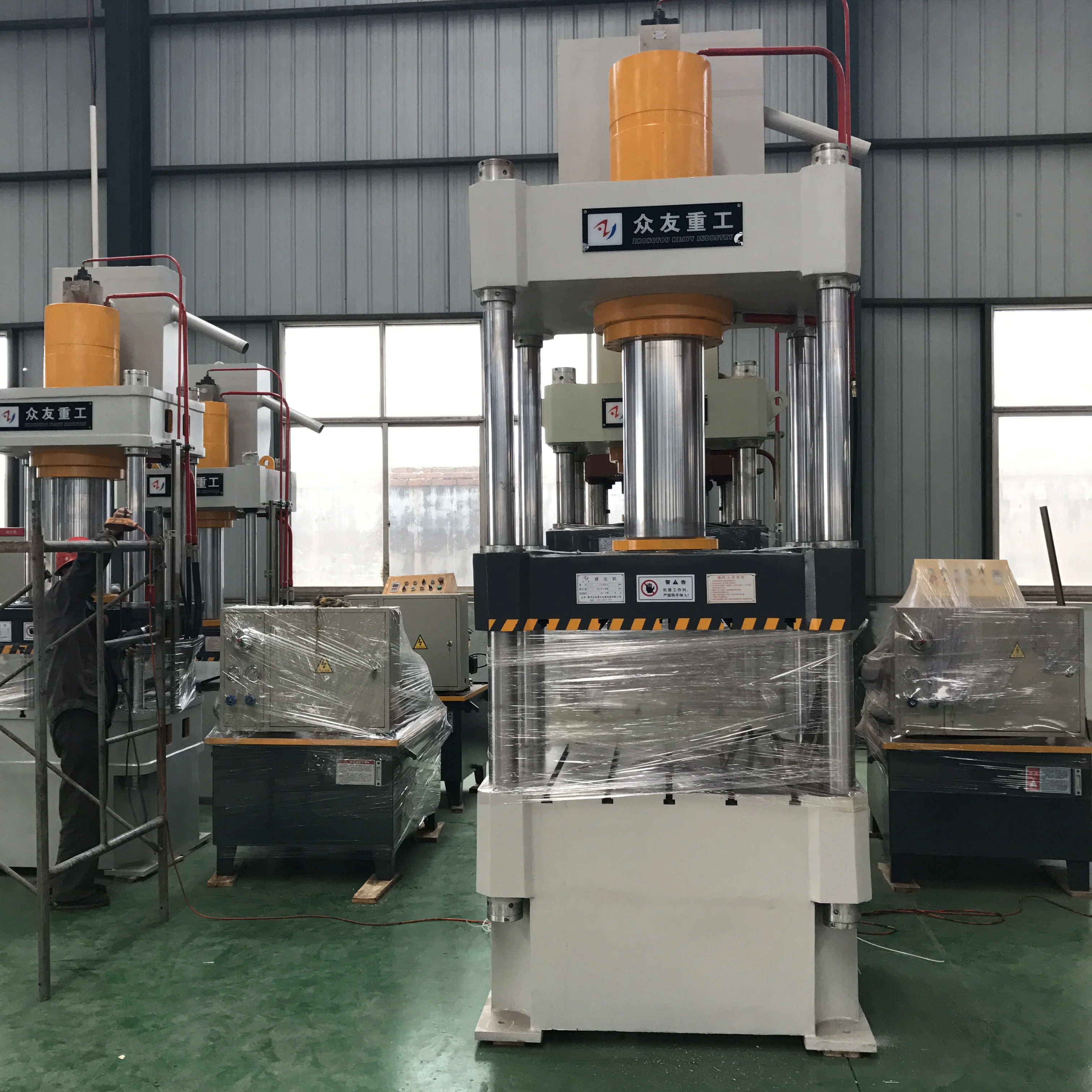

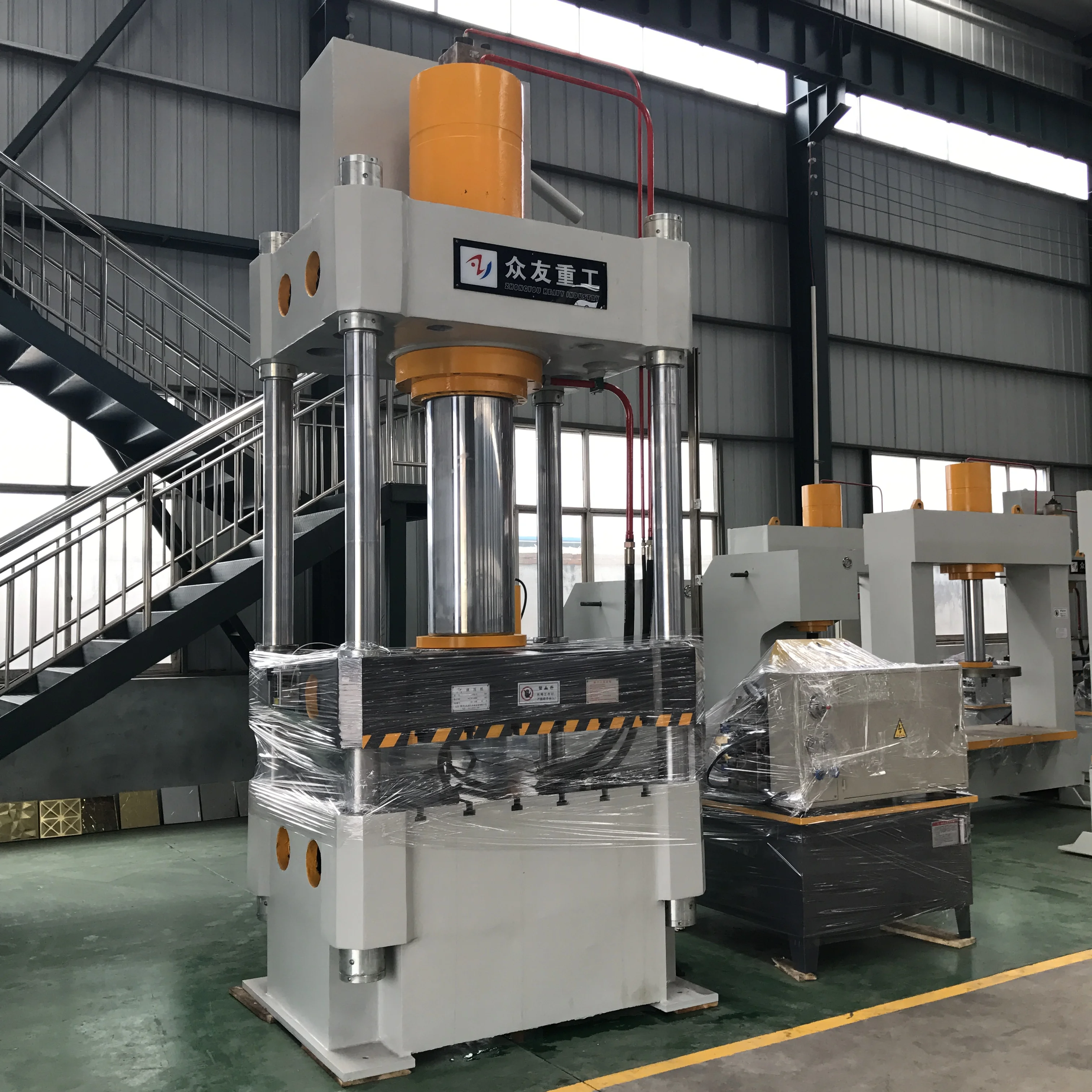

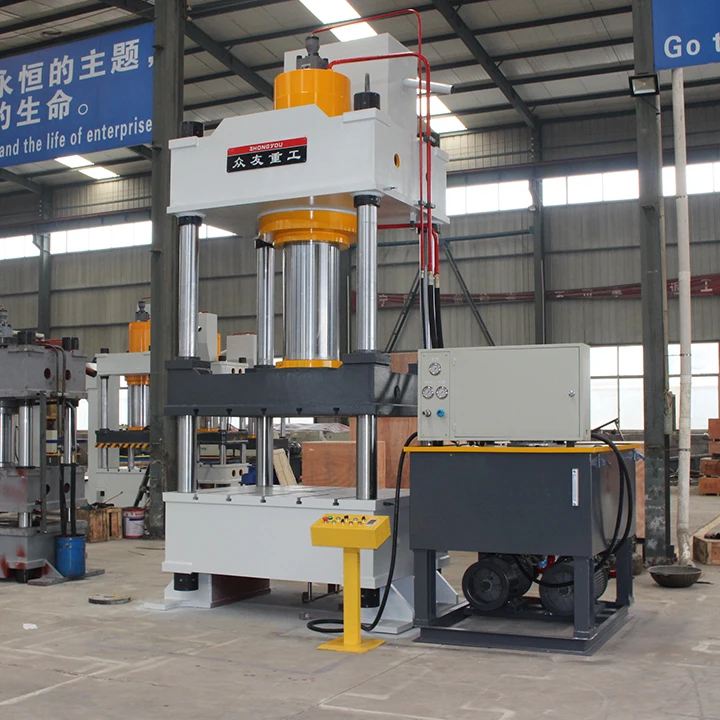

4 Post Presses Hydraulic Press Machine 400 ton

Parameter of Hydraulic press machine

Parameters	Unit	YQ32-100A	YQ32-100B	YQ32-200A	YQ32-200B	YQ32-315A	YQ32-315B
Nominal Force	KN	1000	1000	2000	2000	3150	3150
System Pressure	Mpa	25	25	25	25	25	25
Max. Opening Height	mm	800	900	1200	900	1250	1250
Slider Effective Stroke	mm	500	600	700	600	800	800
Effective Worktable Size (L.R×F.B)	mm	630×550	750×700	1000×1000	800×800	1260×1160	1000×1100
Slider Descending Speed	mm/s	100	100	100	100	120	120
Slider Pressing Speed	mm/s	5-10	5-15	5-10	5-10	8-15	8-15
Slider Return Speed	mm/s	90	90	90	90	90	90

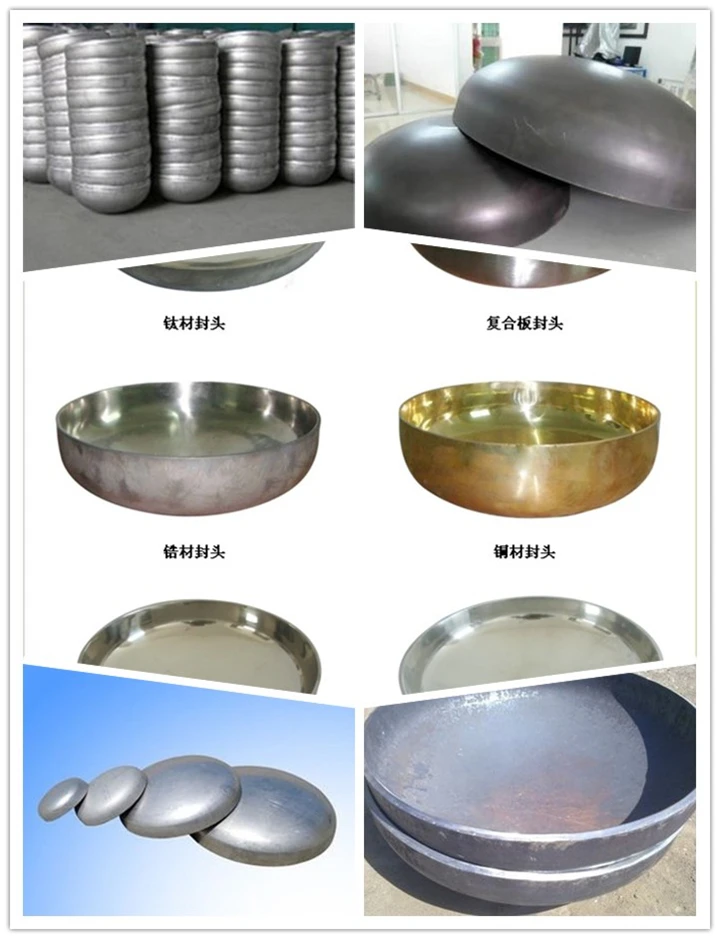

This series of hydraulic presses is a universal pressing device suitable for the pressing process of plastic material. Such as powder molding, plastic molding, cold extrusion metal forming, sheet metal streching and stamping, bending, flanging, correction and other processes.



Features of Pressing machine:

1. Working pressure and slide stroke can be adjusted .

2. The machine with cooling system designed to meet CE Standards and composed of automation and motor with Schneider brand.

3.Oil cylinder adopt welded steel frame rigid to deflection moment.

4. Column and piston rod has been heat treated to extend their life.

5. Three beam four-column structures, after the computer optimized design, economic, and apply.

6. Setting process can be realized easily.
7. Working pressure, stroke according to the technical needs within the limits prescribed  adjustable.

8. Hydraulic control system uses an integrated cartridge valve systems and reliability, long life.















It can be used in the form of fasteners, automotive repair, hardware industry, car parts companies, electronic components, straps, jewelry, lighting, Mobile phone casing, pump industry, electrical equipment and other industries.

About Product	We will ensure the machine has no problem before the delivery.
About Color	Color according to customer requirements. If not required, we will use the default color.
About Parameter	Every kind of equipment produced by our company can be customized according to the needs of customers.
About Services	1. Inquiry and consulting support 2. Sample testing support  3. Recommend the most suitable machine according to customer's purpose 4. Factory visiting welcomed  5. Warranty 1 year 6. Engineers available to service machinery oversea





The company specializes in the production of four-column hydraulic press, single-arm hydraulic press, frame hydraulic press, gantry hydraulic press, hydraulic press stretching machine, stainless steel iron door embossing machine, powder forming briquetting machine, etc.



Main Press Machine		Usage
Four Column Hydraulic Press Machine	Cold Press Machine	Bending, stamping,metal embossing,drawing
	Heat Press Machine	Composite material forming
C Frame Press Machine		Bearing, Punching, Straightening
H / Gantry Frame Press Machine		Press-fit, Straightening
Customized Press Machine		Forklift solid tire press machine
		Melamine press machine
		Salt block press machine
		Door embossing press machine



The machine has passed the domestic ISO quality management system certification, EU, CE , SGS and other certifications, and has a number of product innovation patents and honorary certificates.
