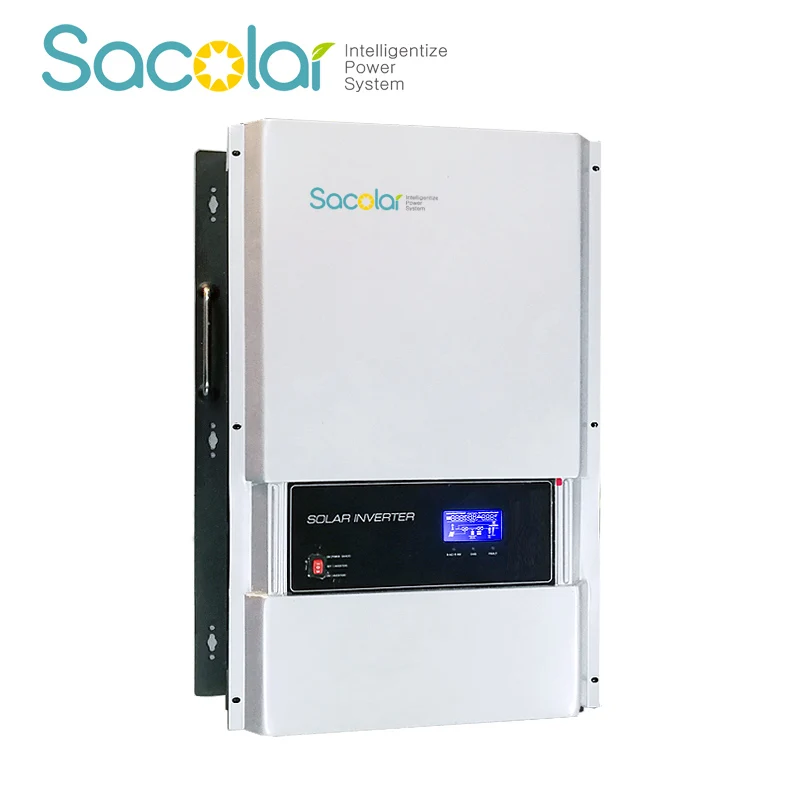

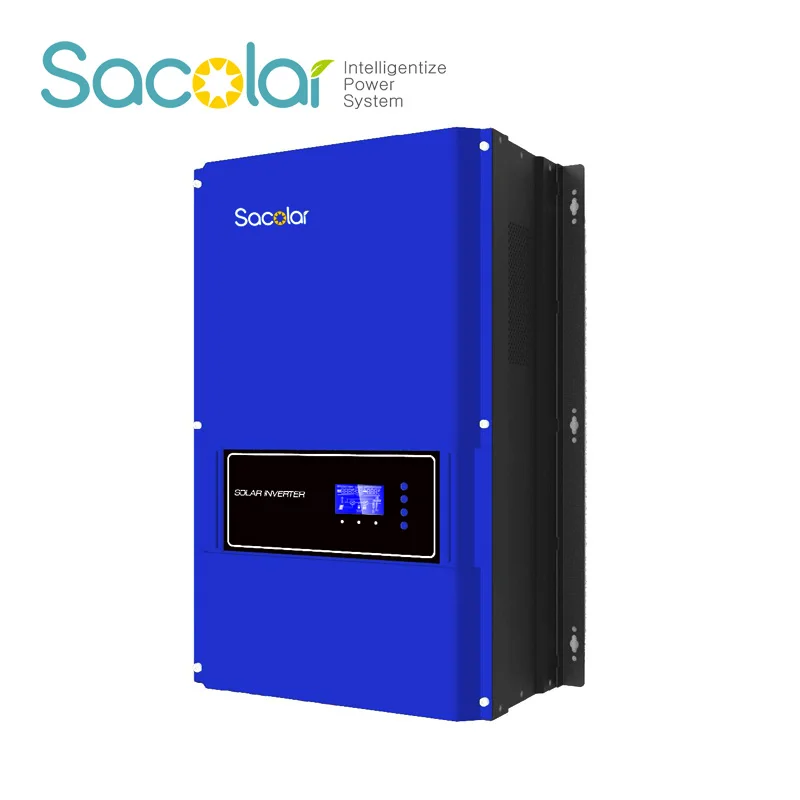

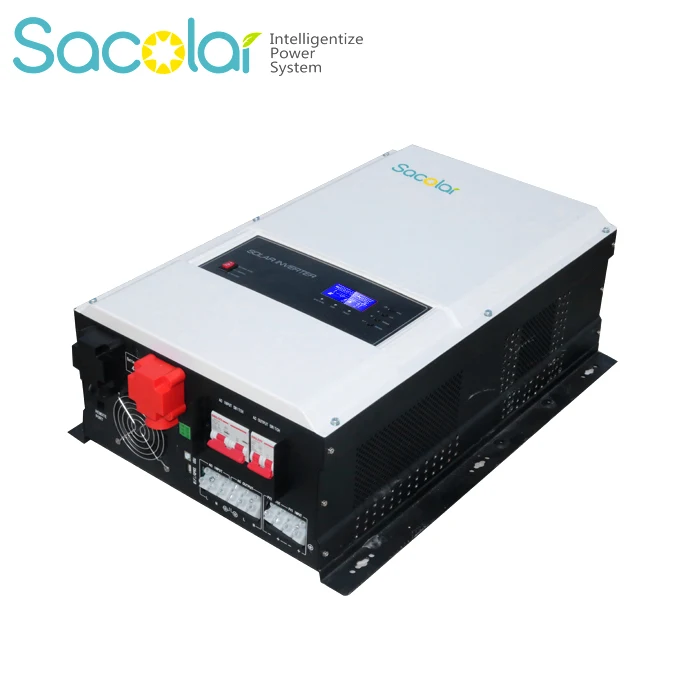

4000W ~ 12000W Low Frequency Solar Inverter Split phase Output wih DSP Control
- Category: >>>
- Supplier: Shenzhen Sacolar New Energy Co. Ltd.
Share on (60822875191):
Product Overview
Description
Product Introduction
Sunrino MLP series off grid solar inverter is integrated with a MPPT solar charge controller, a low frequency pure sine wave inverter and a UPS function module in one machine.
Sunrino series inverter is available for motoring access. Customer can monitor the PV system on web or cellphone anytime anywhere.
Product Features
Rated power 4KW to 12KW, with DSP control
MPPT solar charge controller to maximize the solar output
Pure sine wave AC output
Overload, short circuit and deep discharge protection
Configurable AC/ solar input priority via LCD setting
Compatible to mains voltage or generator power
WIFI/ GPRS remote monitoring (optional)
Product Overview
DiSPLAY INFOMATION
1. LCD Display
2. Status indicator
3. Charging indicator
4. Fault display
5. Function buttons
System Connection
Specification
Model | Sunrino-MLP 6KW | Sunrino-MLP 8KW | Sunrino-MLP 12KW |
Input / Output Voltage | DC 48V / AC 110V/220V | DC 48V / AC 110V/220V | DC 48V / AC 110V/220V |
Max. PV Power | 5000W | 5000W | 5000W (10000W optional) |
Max. PV Charge Current | 80A | 80A | 80A (160A optional) |
AC Charge Current | 60A | 70A | 100A |
Product Processing
With a assembly of the top talents in the industry
One of the most intelligent and automatic inverter production lines in China
Production capacity over 100, 000 pieces a year
