Anchorage and wedges for Post Tension Project

Product Overview

Description

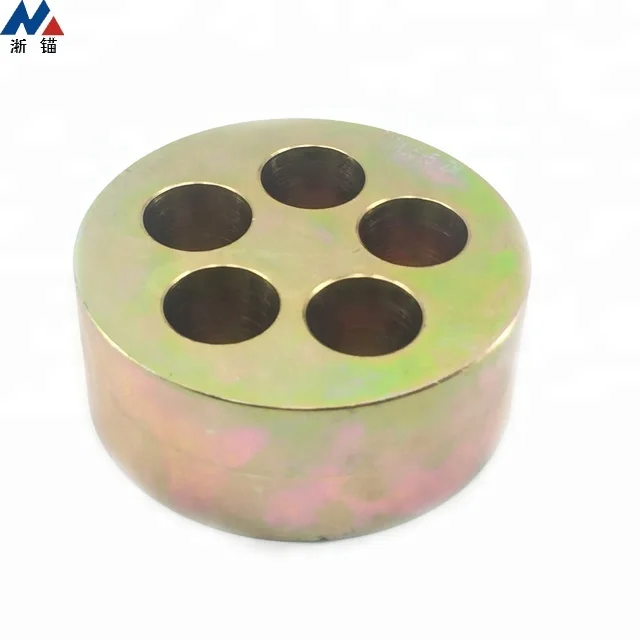

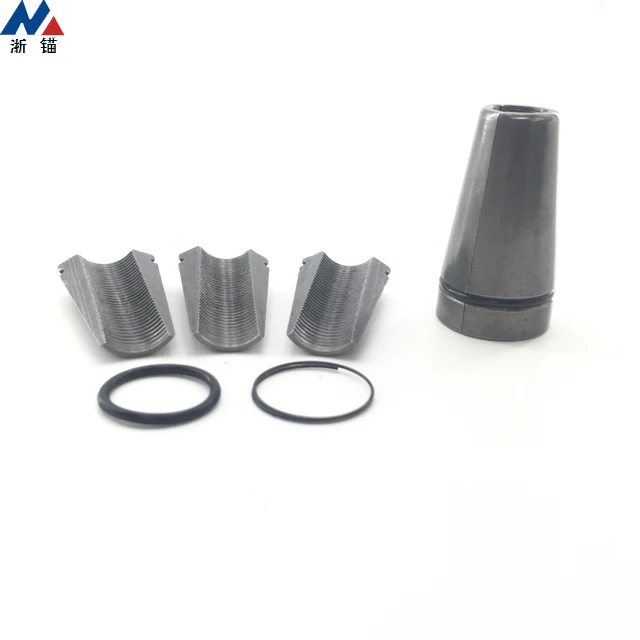

Anchorage and wedges for Post Tension Project

Type	Strand	Trumpet			Anchor head		Reinforcement				Type of jack(KN)
		C	D	I	A	B	F	G	H	N
QVM.M15-1	1	/	/	/	48	48	/	/	/	/	YCW100B
QVM.M15-2	2	130	116	63	86	50	115	10	50	5	YCW100B
QVM.M15-3	3	130	116	63	88	50	115	10	50	5	YCW100B
QVM.M15-4	4	147	123	63	102	50	115	10	50	5	YCW100B/YCW150B
QVM.M15-5	5	162	130	77	112	50	127	12	50	5	YCW150B
QVM.M15-6	6	175	152	80	126	52	142	12	50	5	YCW150B/YCB200B
QVM.M15-7	7	175	152	80	126	53	142	12	50	5	YCW250B
QVM.M15-8	8	185	160	90	136	55	175	14	50	5	YCW250B
QVM.M15-9	9	200	163	90	146	55	175	14	50	5	YCW250B
QVM.M15-10	10	200	163	95	156	58	175	14	50	5	YCW250B
QVM.M15-11	11	240	188	100	166	58	205	14	50	6	YCW350B
QVM.M15-12	12	240	188	100	166	60	205	14	50	6	YCW350B
QVM.M15-13	13	240	188	100	170	63	205	14	50	6	YCW350B
QVM.M15-14	14	250	215	110	176	65	205	14	50	6	YCW350B
QVM.M15-15	15	250	215	110	186	68	205	14	60	6	YCW350B/YCW400B
QVM.M15-16	16	270	255	110	196	70	235	16	60	6	YCW350B/YCW400B
