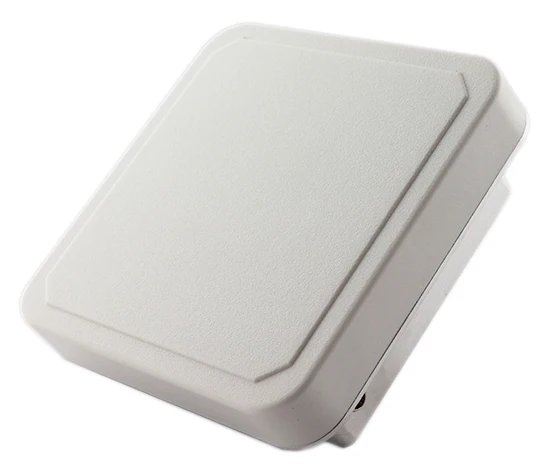

IP66 rugged Impinj R2000 chip ISO18000 6C UHF RFID Reader CJ2505A Mini Integrated Reader
- Category: >>>
- Supplier: Shenzhen Chuangxinjia Smart Technology Co. Ltd.
Share on (60822926863):
Product Overview
Description
Product Description

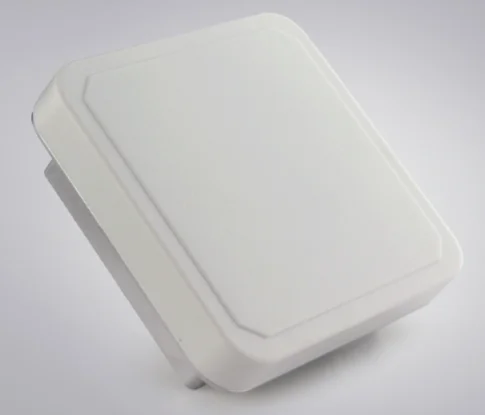

IP66 rugged Impinj R2000 chip ISO18000-6C UHF RFID Reader CJ2505A Mini Integrated Reader
*Impinj R2000 chip, read range up to 8 meters.
*Interface include: RJ45, RS232, RS485, Wiegand, I/O.
*With OS can cache 10,000pcs tag information.
*IP66, applying to rugged environment.
*Interface include: RJ45, RS232, RS485, Wiegand, I/O.
*With OS can cache 10,000pcs tag information.
*IP66, applying to rugged environment.
Features:
★Strong structure
★High IP Grade
★Long stable operation

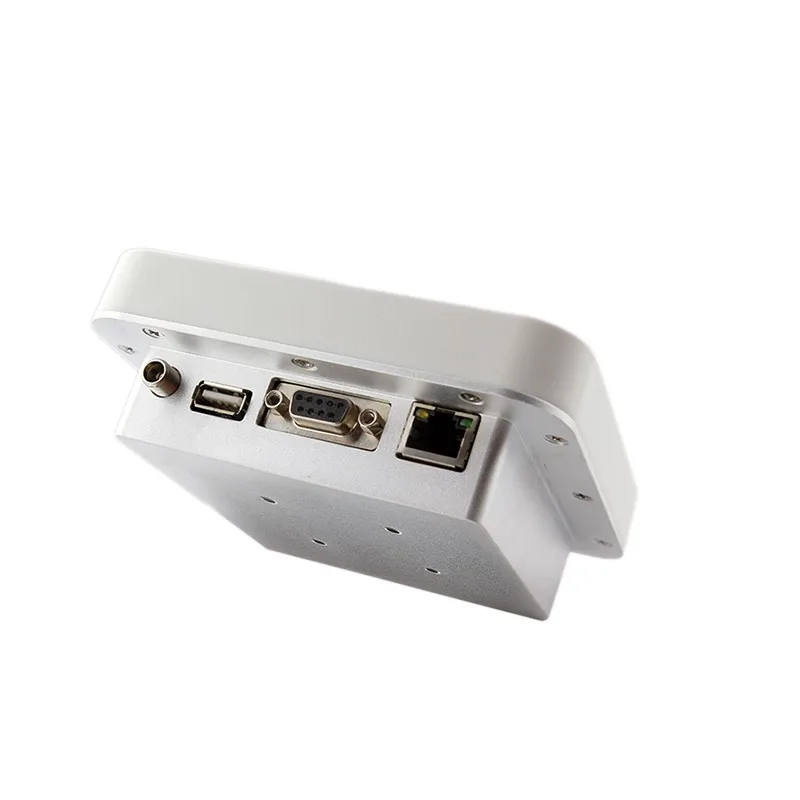

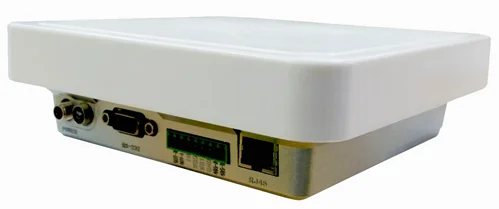

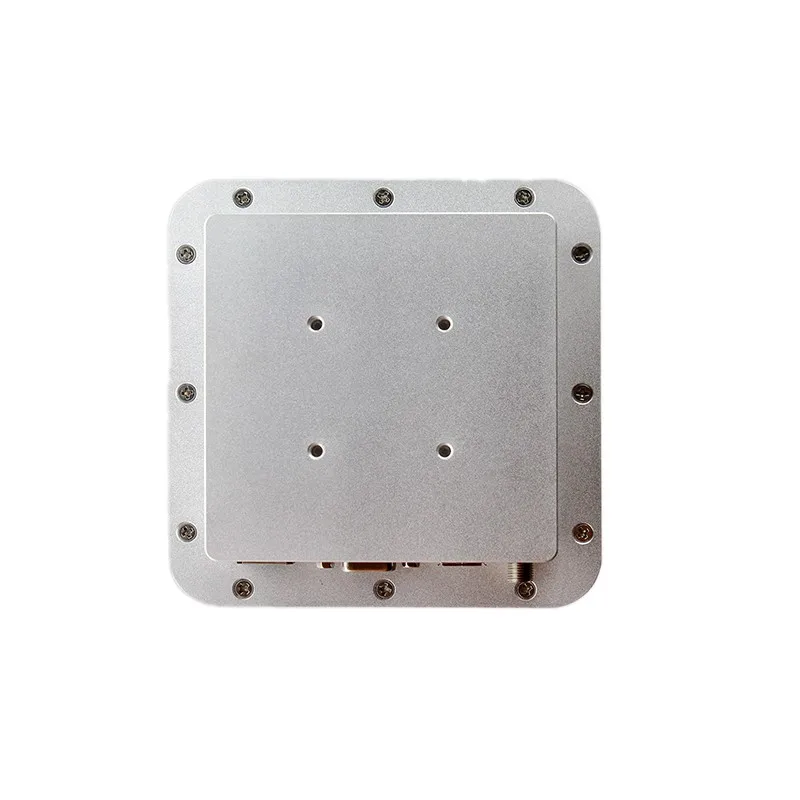

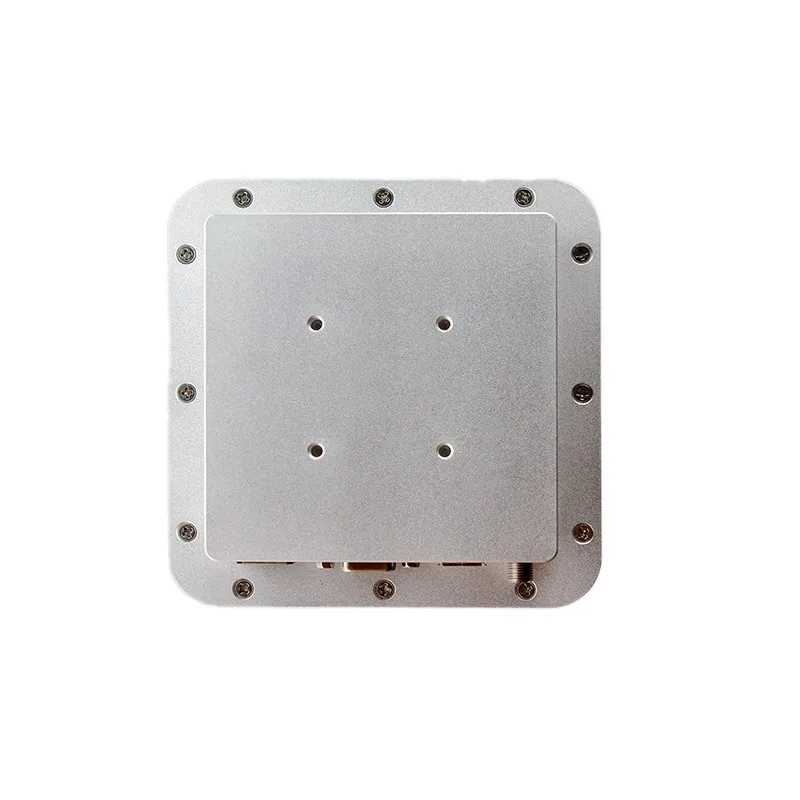

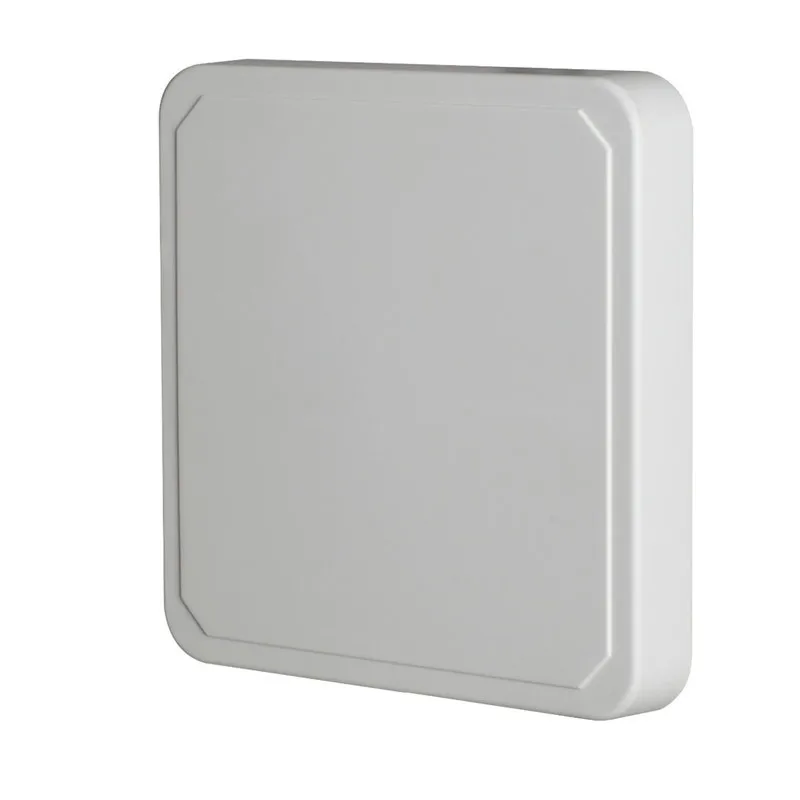

Detailed Images
Specifications\t
System\t
Operation System:\tLinux 2.6
CPU:\tARM9, 400MHz
Memory Capacity:\tDDR SDRAM :128M; ROM:256M
Extended Memory:\tN/A
Physical\t
Size:\t 164mm×164mm×49.6mm
Weight:\t1.3Kgs
Housing Material:\tAluminum + PC
Power supply:\tDC 9V~36V(Power consumption≥24W)
Protection level:\tIP54
UHF RFID\t
Protocol:\tISO/IEC18000-6B / EPC C1Gen2
Frequency:\tUSA:902 MHz-928MHz (FCC part 15)
\tEU:865-868MHz (ETSI EN 302208)
\tCHN:920-925MHz
Output Power:\t(20W) 0dBm~33dBm(±1.5dBm) adjustable
Power adjustment:\t1dBm step-by-step
Channel bandwidth:\t<200KHz
Frequency stability\t≤±10ppm
Interface:\tRS-232, RJ45,RS-485
Work Mode:\tFixed/hop frequency optional
Communication speed\t10M/100M self-adaptable
Reading speed\t>100times/S
I/O interface\t1 optocoupler input/ One way relay output/Wiegand output
Anti-collision\tSupport multi-tag reading,intensive reading
Software\tSupport RSSI ,antenna detection, online update, data filtering
Antenna:\tCircular 6dBi built-in
Reading Distance:\t0-6m (depending on environment)
Writing Distance:\t0-3m(depending on environment)
Operational Environment\t
Working Temperature:\t-30 - +70°C
Storage Temperature:\t-45 - +85°C
Atmospheric Pressure:\t86kPa~108kPa
Relative Humidity:\t10%-95% RH no condensing
Packing & Delivery
Related Products

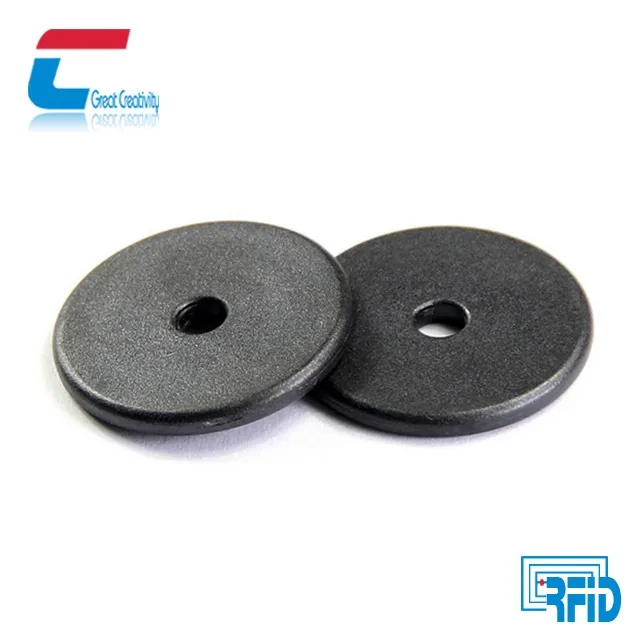

RFID ABS tag

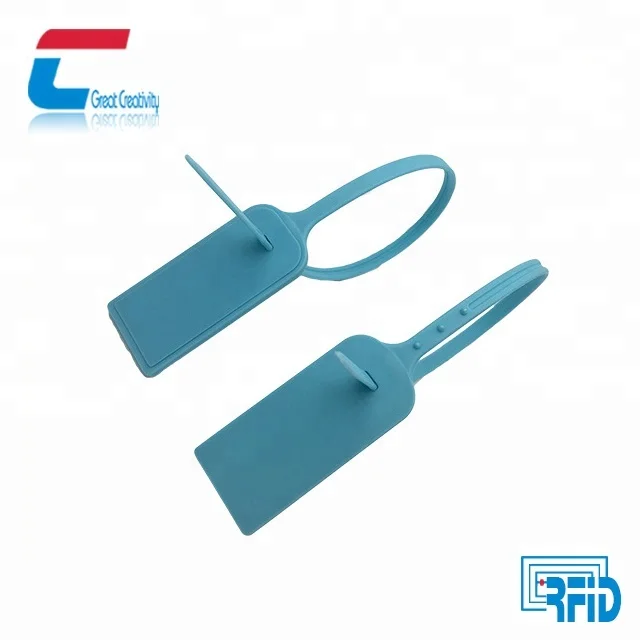

UHF Cable Tie tag

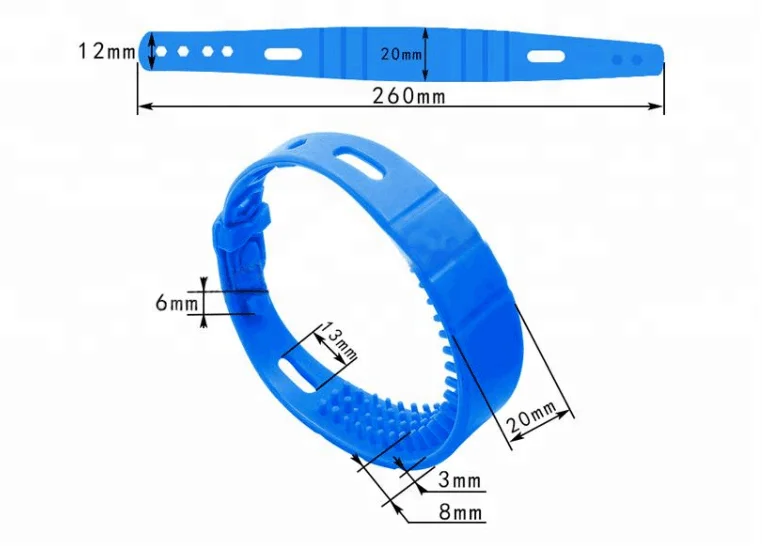

UHF Silicone Wristband

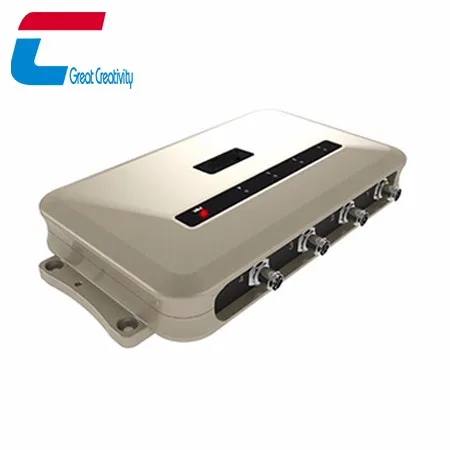

Four-Port UHF Reader

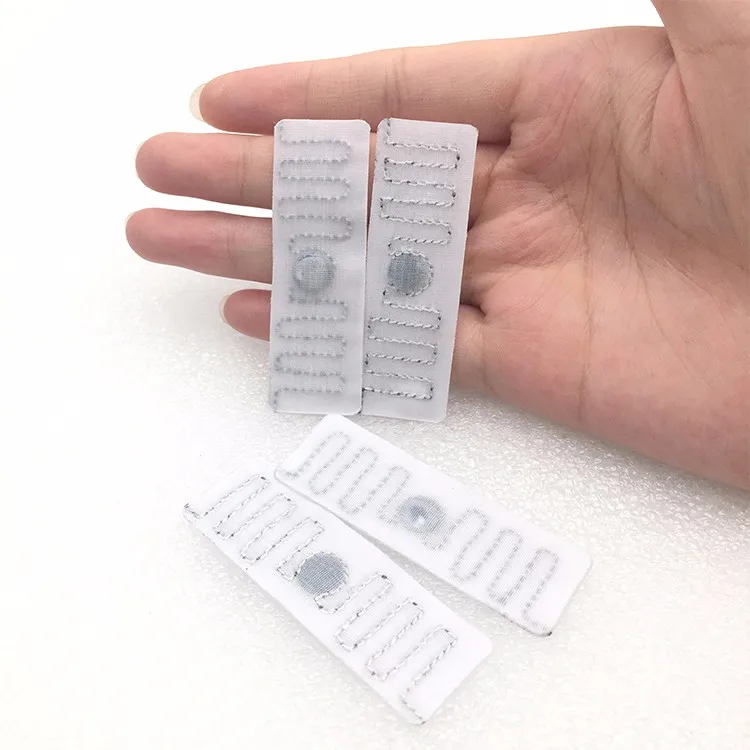

UHF Laundry tag

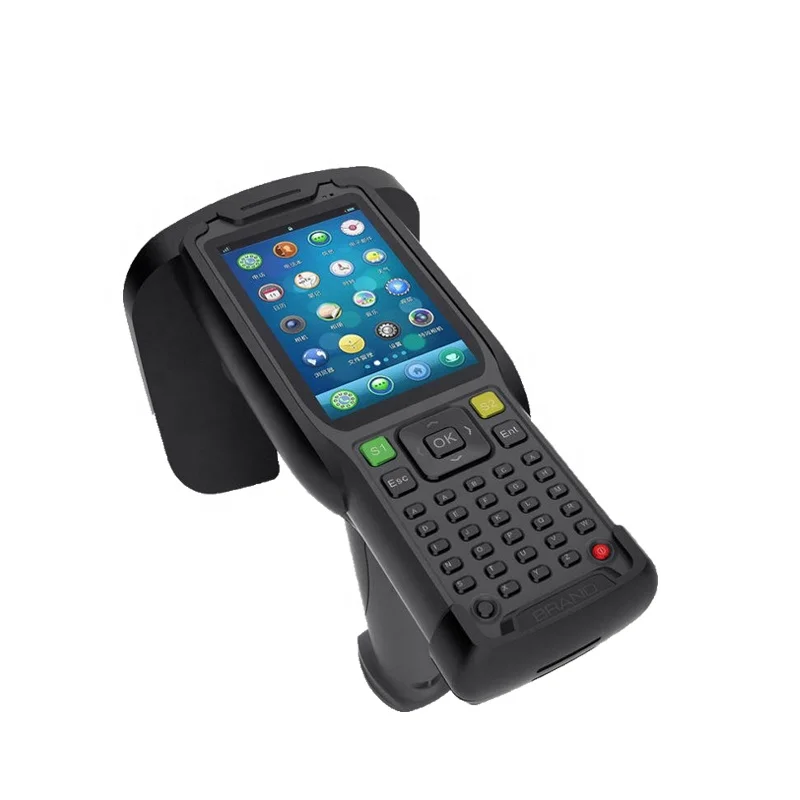

CJ2603B Handheld Reader
