Customized color BTB board to board connector SMT type,tin plating

Product Overview

Description

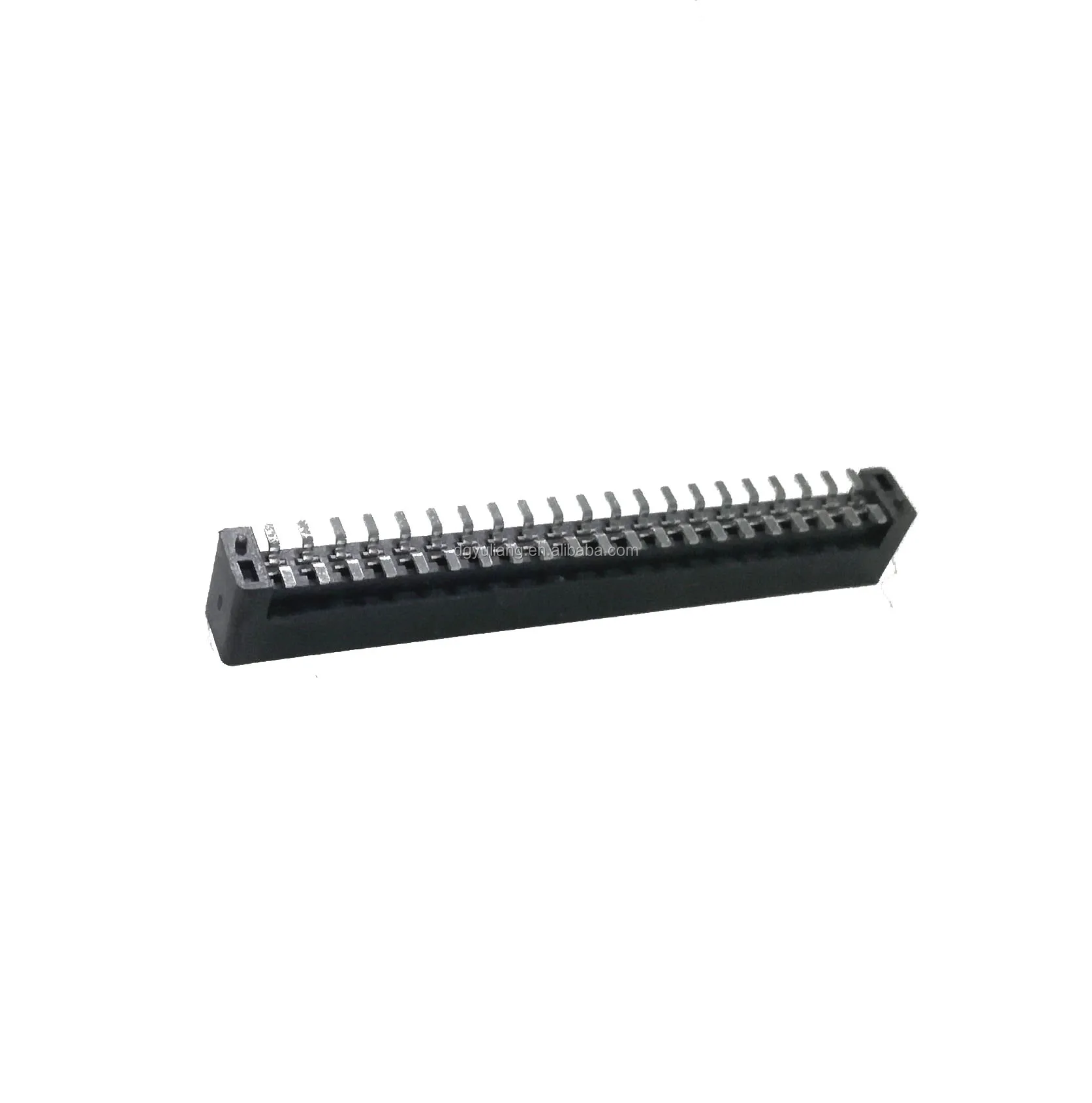

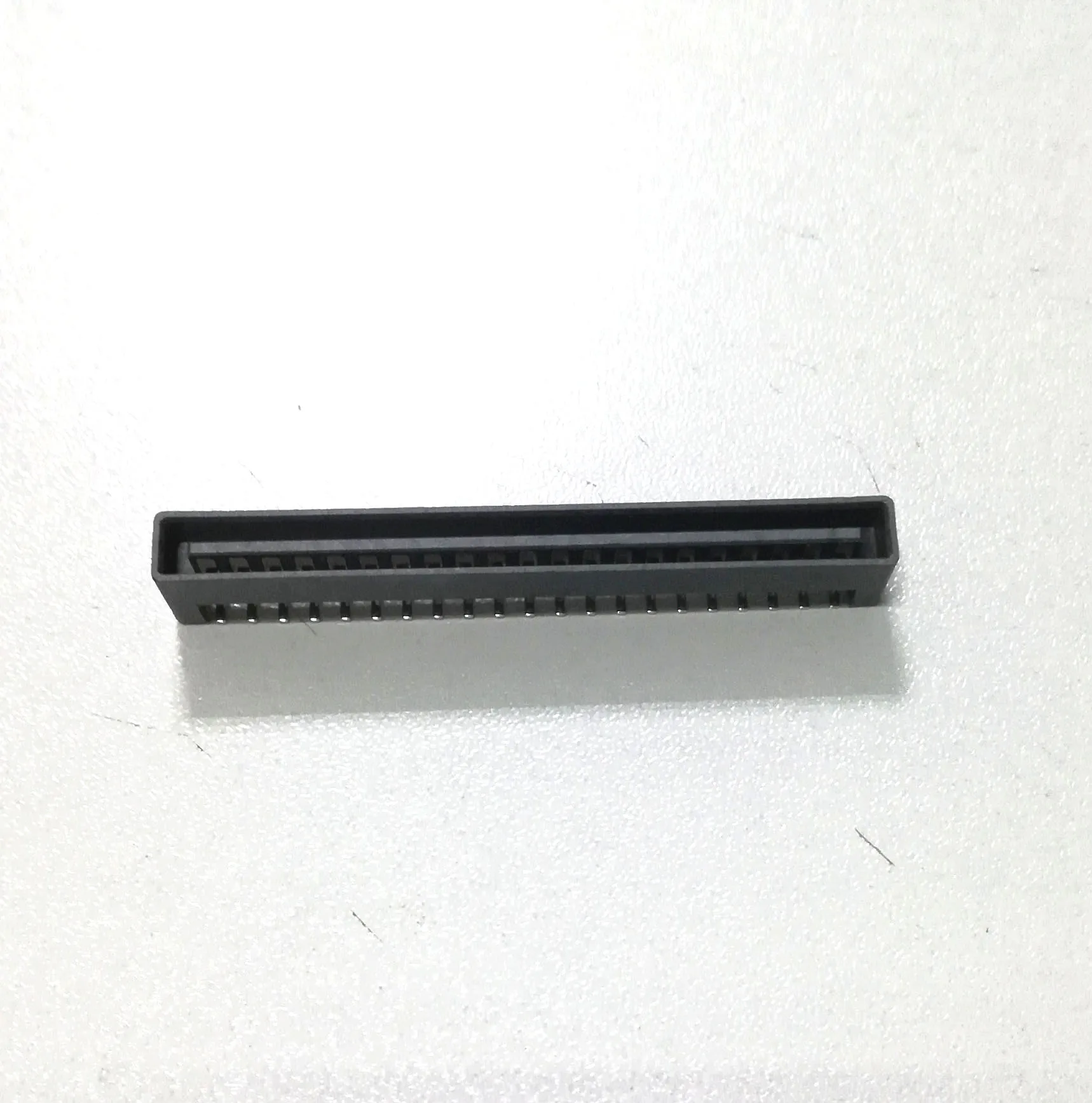

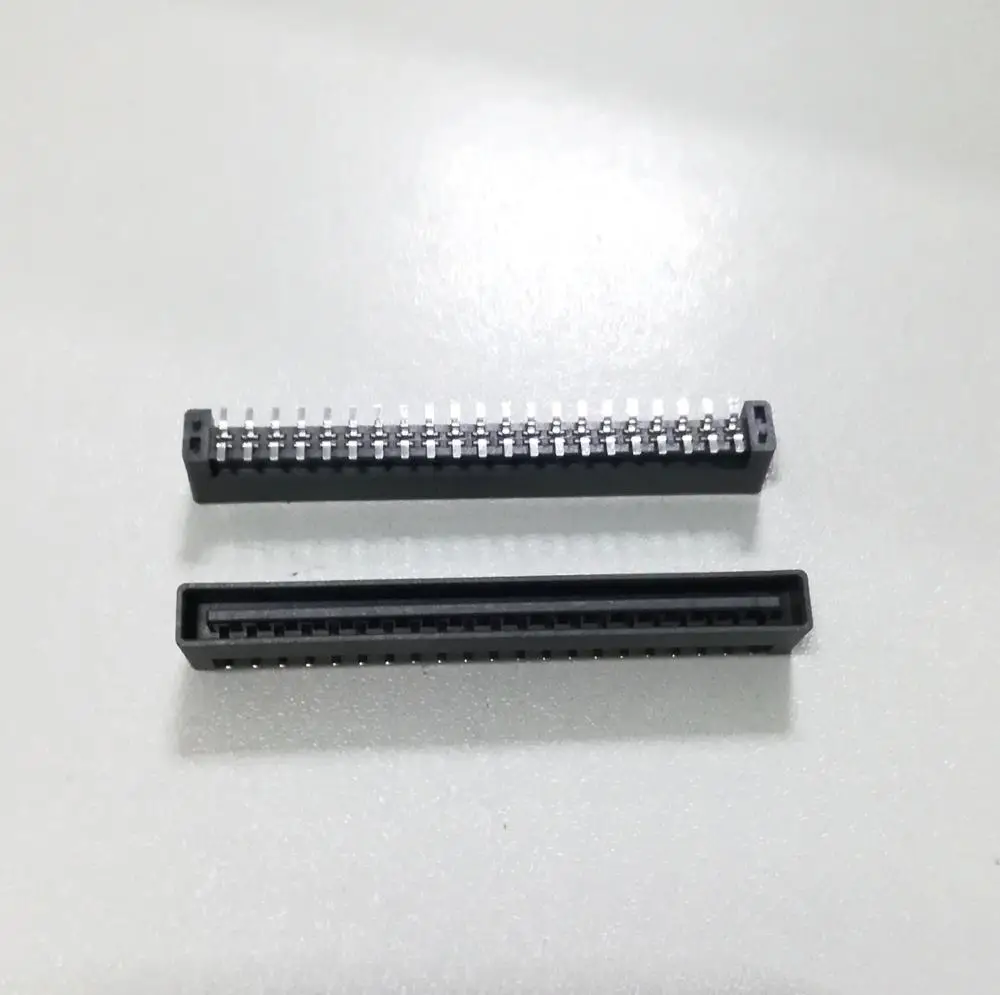

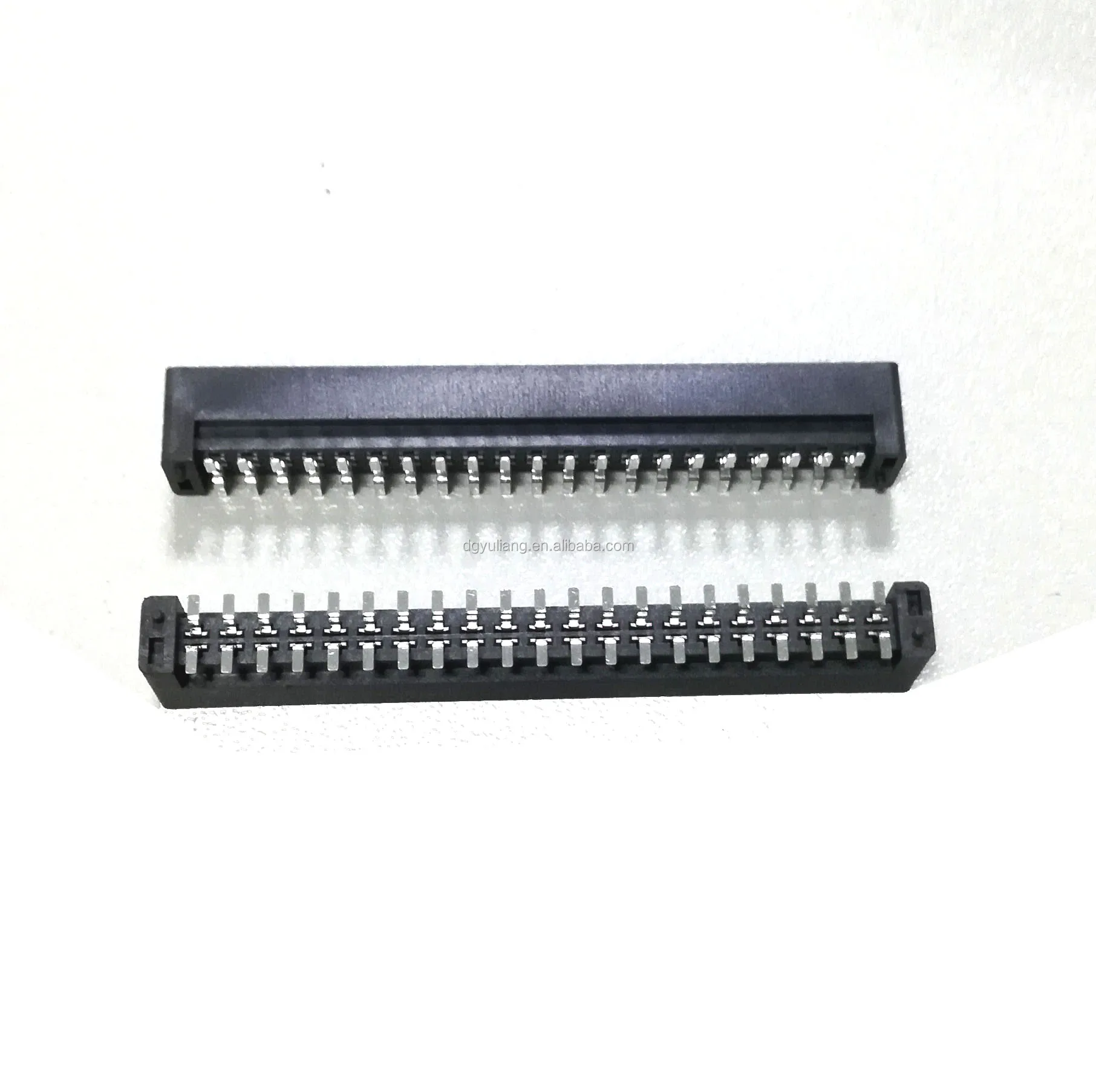

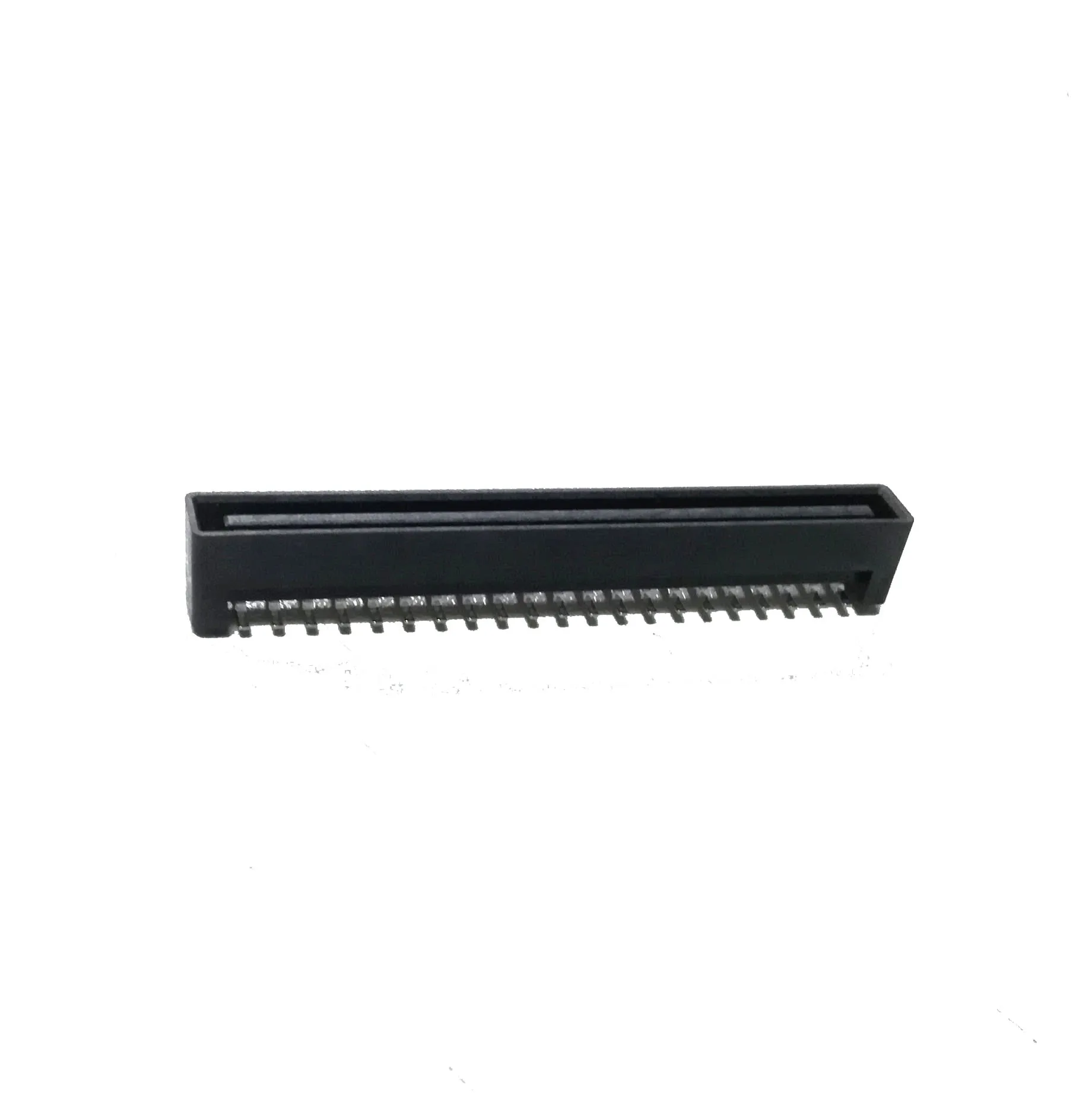

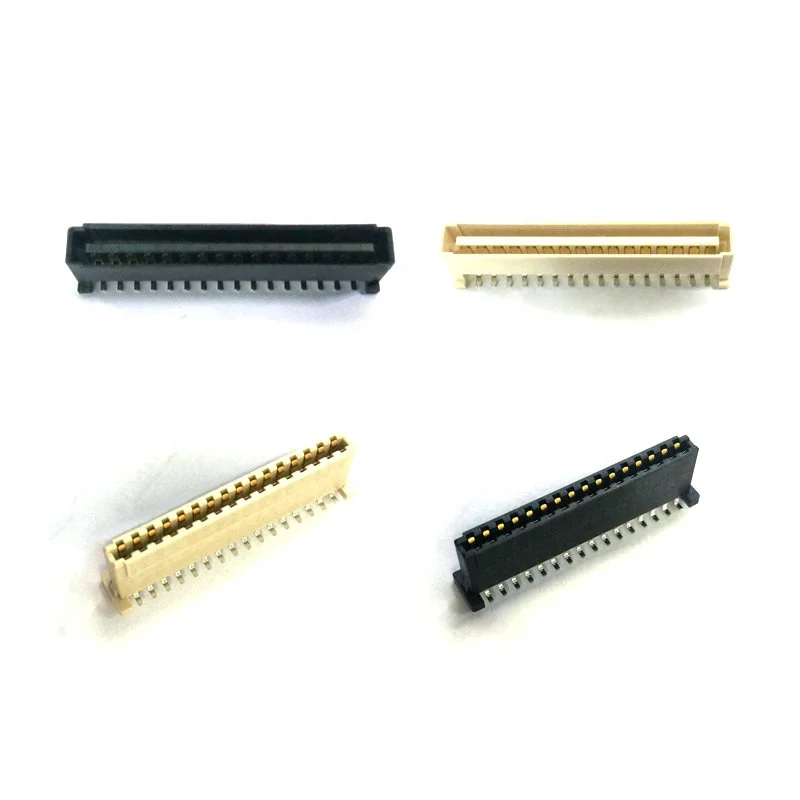

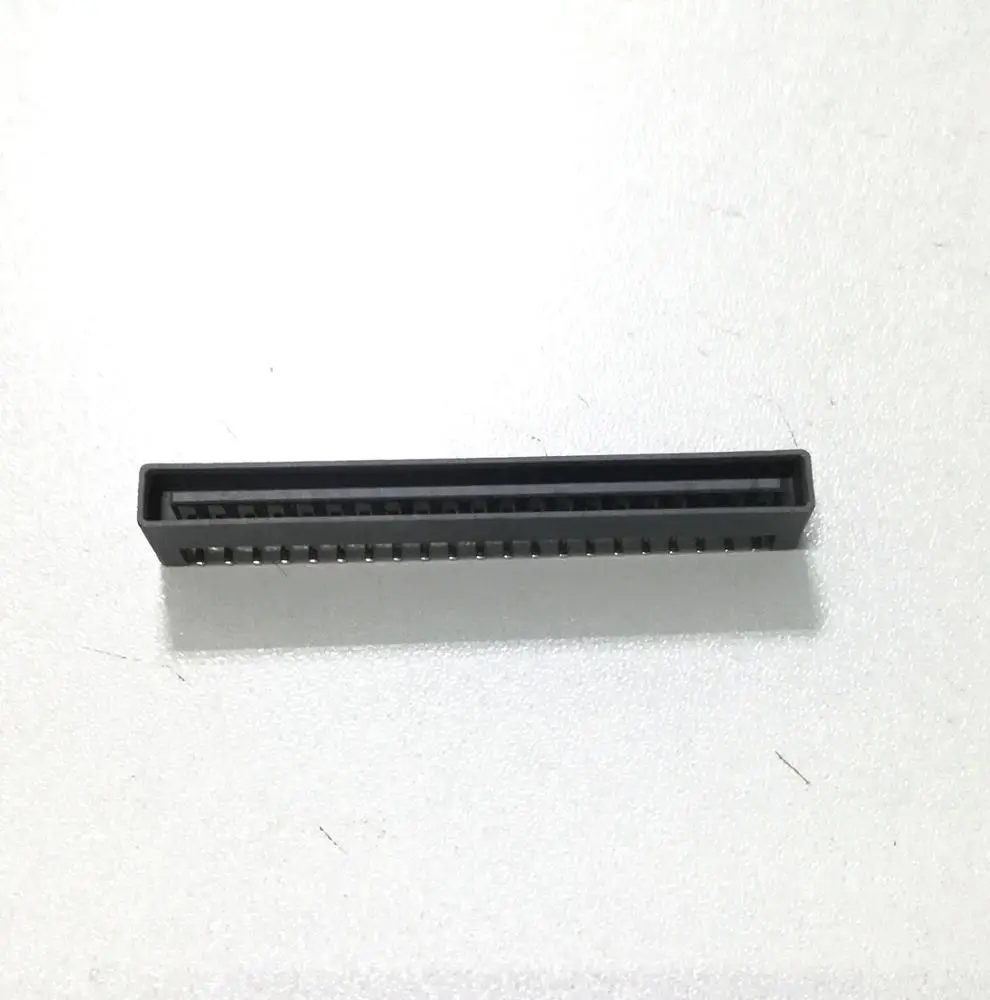

Customized color BTB board to board connector  SMT type,tin plating

Specifications:
01. Model: BTB254-220-001
02. Positions: 2x2- 2x50 Pins available
03. Plastics height:  Optional
04. Plastics width:  Optional
05. Pitch: 2.54mm

1.0mm  2.0mm 2.54mm available
06. Current rating: 3A
07. Insulation-resistance: 1000MΩ min
08. Dielectric withstanding voltage: 1000V AC
09. Contact-resistance: 20mΩ max
10. Operating temperature: -30 to +80°C
11. Insulation material: polyester UL94V-0
12. Contact material: copper alloy
13. Plating: Gold or tin
14. Max processing temperature: 260°C
15. Insertion force: 80-200g
16. Withdrawal force: 70-200g
17. Mechanical life/durability:
18. Packing: tube, tray, plastic bag, tape and reel optional
19. Carton size: customized
20. Carton quantity: customized
21. Carton weight: customized
22. Free sample is available
23. 100% tested before shipment
24. Payment terms: T/T, Western Union, L/C, MoneyGram, PayPal, Cash
25. Shipping ways: FedEx, DHL, UPS, TNT, Air, Sea
26. Delivery lead-time: within 5-30 days, depends on order quantity
27. We are professional manufacturer majoring in the board to board connectors, wire to board connector, pin header, female header, box header, ejector header, wafer, FFC, FPC, D-sub, USB, RJ45, SD card, SIM card, IC socket, terminal block, jumper cap, cables.
28. OEM/ODM/customized products are accepted.
29. If any questions, feel free to contact us.
30. For drawings, send an inquiry to Susan 's Email: sales04 [at] cylconn.com
