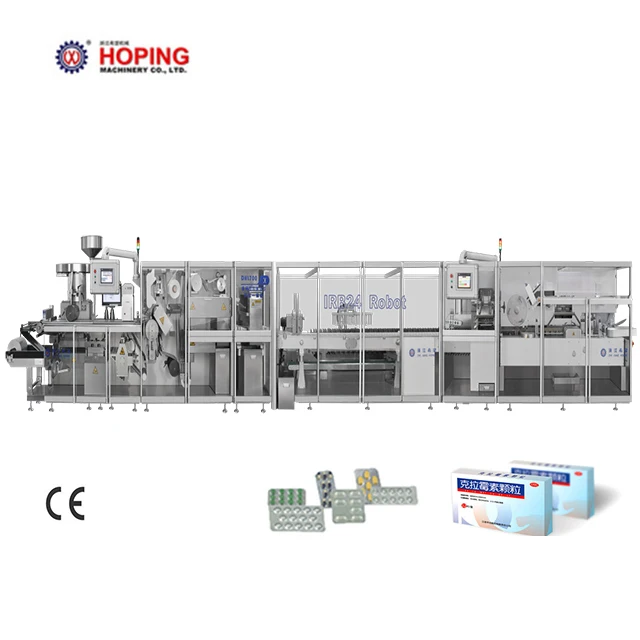

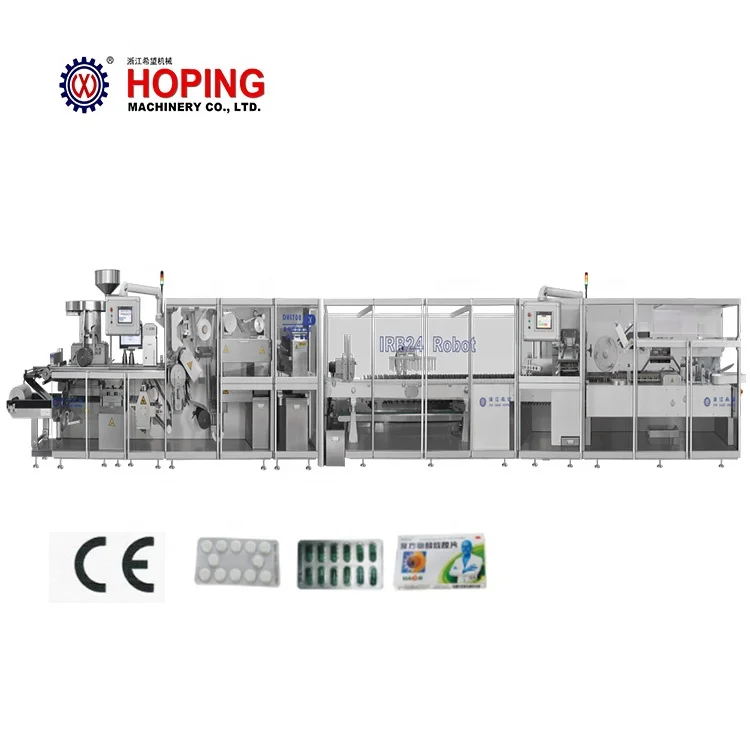

High Automatic speed pill blister box cartoning packing production line (DHL700)

* The maximum capacity of DHL700 Full Servo Superfast Blister-cartoner Link machine up to 700 blister/min and 400 carton/min. Transit by our company own R&D IBR24 parallel-type robot hand s trace& Transfer System to transfer the blisters on grid conveyor belt into parallel cartoner stock bin conveyor. This type of transfer not only shorten production line length, and max upgrade OEE max protect the stability. And it combines multichannel grid conveyor belt, can achieve mult-blisters overlay Compare with the original blister flat conveyor belt transfer to magazine then servo feed into stock bin, this linkage way production is doubled, also is a milestone span of pharmaceutical packaging way. This packaging way will certainly become a development trend of pharmaceutical industrial machinery. Feature of differ from other models is integrated every advantage of existing highspeed blister packing machine and cartoning machine, highlights of this machine is in the meantime of high speed prostion to protect fast mould replace and cleaning. Original creative(1-5 )blisters carton packing new mode, can switch 1-5 blisters carton packing in one minute. Leaflet folding device can achieve capacity 500PCS/Min for A4 paper. This link machine can achieve isolate roduction between inner and outer packing room. Break through this model machine international peers at present grid conveyor belt transfer inner and outer packing room is interconnected, creates a pharmaceutical packaging safety risks. Adopts balcony structure design, driving device located at back, easy for cleaning, accord with GMP requirements.

SPECIFICATIONS FOR DHL700
Capacity	blister	blister/min	300-700
		cartoning	box/min	100-400
		folding	page/min	500
Consumption	air	Mpa	0.5-0.7
		power	KW	46
		Power supply	380v	50hZ
Overall	dimension	mm	11650*1950*2100
		Weight	KG	9000

Main Features

* Simple structure in linear type ,easy in installation and maintation.

* Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

* High pressure double crank to control the die opening and closing.

* Running in a high automatization and intellectualization,no pollution

* Apply a linker to connect with the flow packing,check weighter,bundering and so on

Detailed Images

* Name: Forming station
* Use: AL/PL

* Blister speed: 300-700 blister/min
* Characteristics: It adopts positive pressure forming and rolling heat sealing, it has the characteristics of tiff and
smooth blister, flattened plate piece, aluminum plastic, aluminum-aluminum and other composite blister sealed packaging of foreign matter.

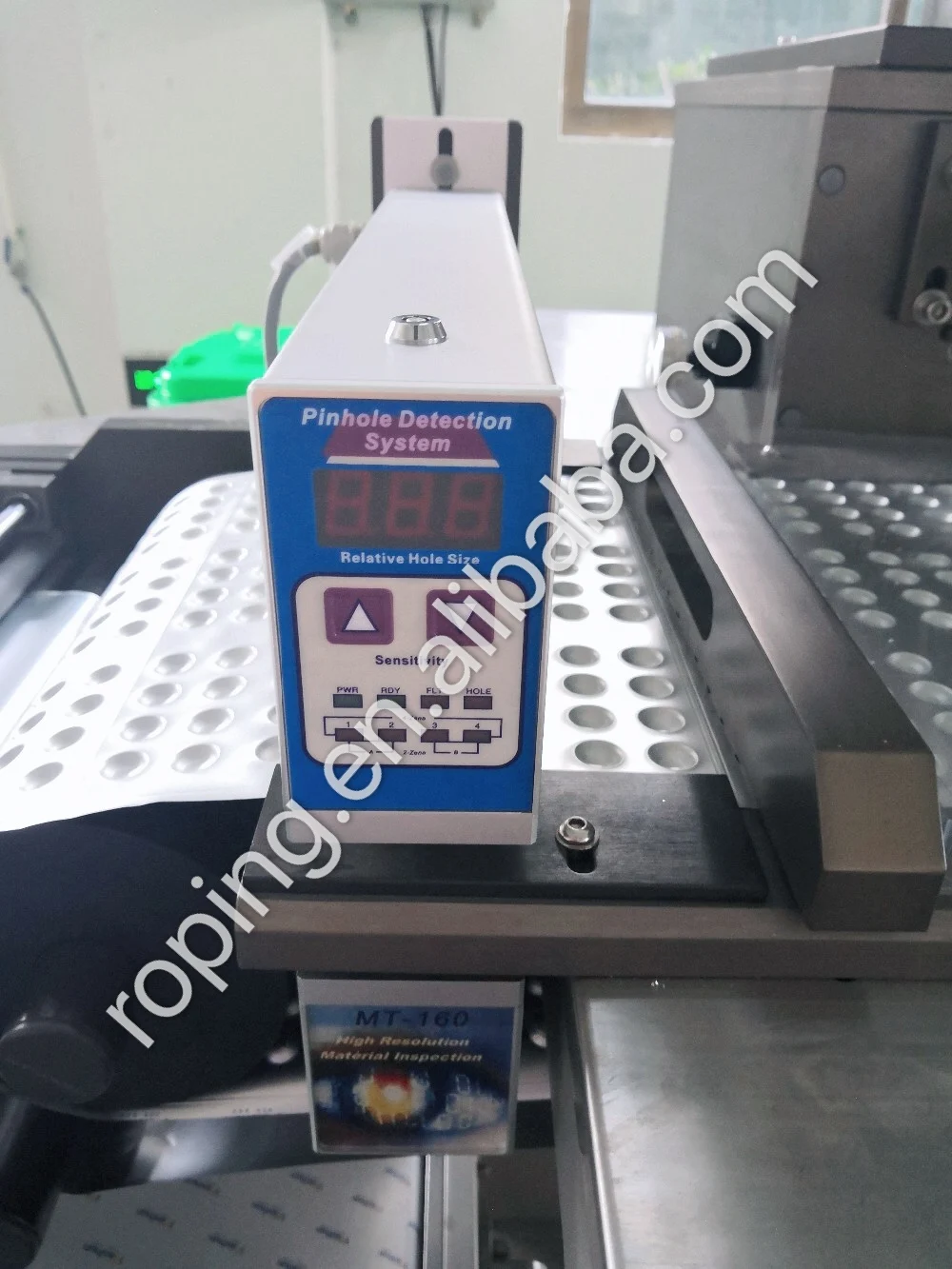

* Name: Pinhole Detection Sysytem

* Brand:ACG

* Original:America
* Characteristics:This equipment can be used for AL/AL and AL/PL production, and the pinhole detection system can be used for the detection of aluminum and aluminum forming bubbles (optional)

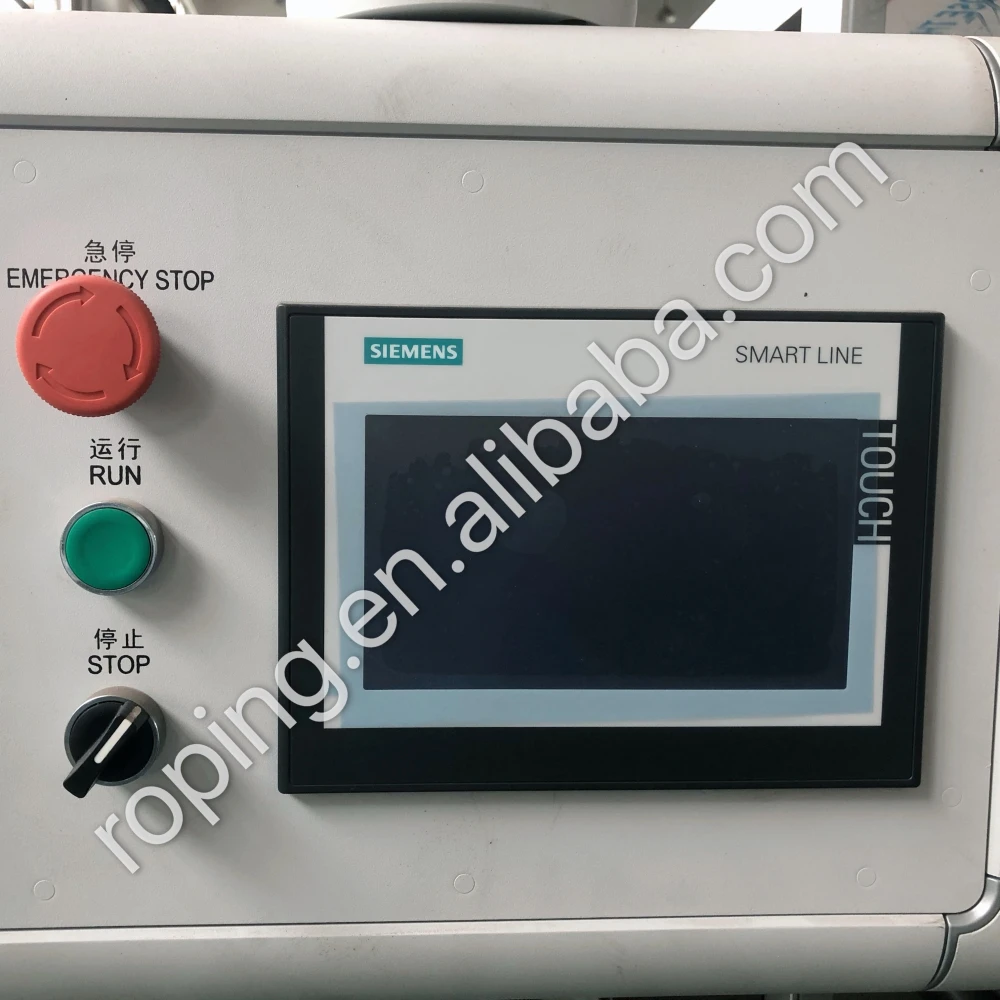

* Name: HMI
* Brand:Siemens
* Origina:Germany

* Characteristics:The equipment adopts the German Siemens touch screen, which has a beautiful and beautiful appearance. The swing arm can be rotated 180 degrees and the touch screen cover can be rotated 270 degrees, and the position is more flexible.

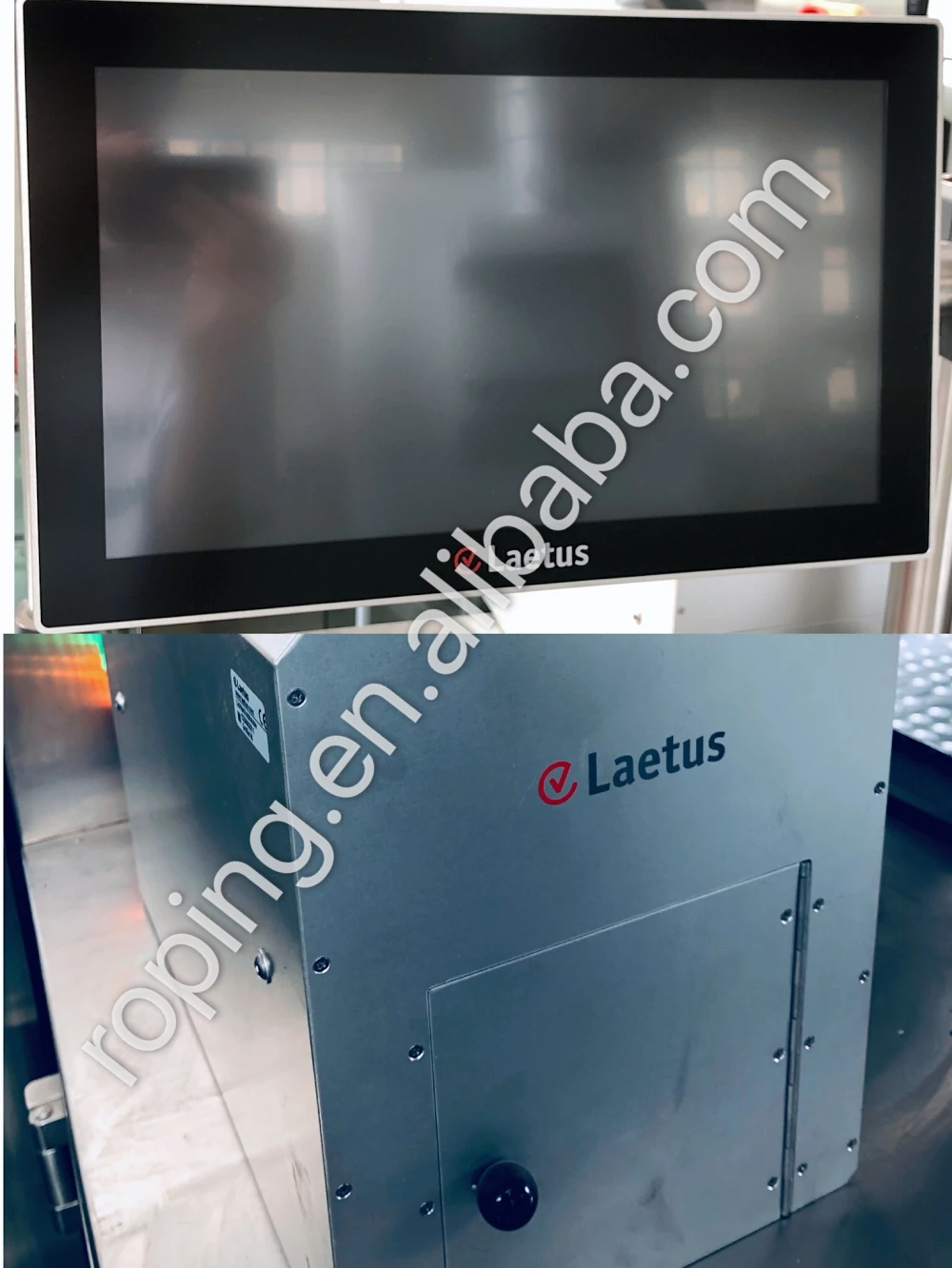

^{* Name: Germany Laetus Online Camera}

^{* Detection&Rejection System}

* Brand:Siemens

^{* Characteristics: The device adopts German Laetus camera detection and industrial control display, which can monitor and display the medicine detection status in real time. The upper light source camera detection method can avoid the lower light source detection of drug particles and dust falling on the light source that is difficult to clean and affect the camera effect.(optional)}

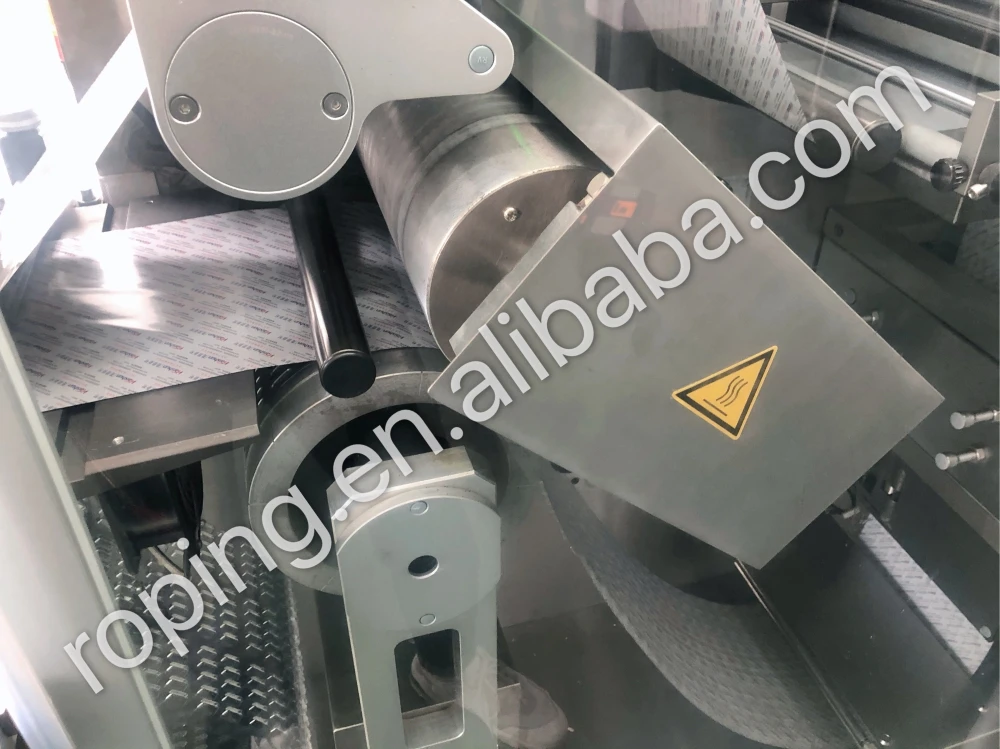

* Name: Sealing Station
* Characteristics: The heat-sealed bearing adopts Japan Seiko NSK, which has a long service life, high temperature resistance, and can withstand the axial heavy load under high-speed heat seal operation.

* Name: IBR 24

* Brand:Hoping

* Original: China

* Characteristics: Ouir company own R&B IBR24 paralllel-type robot hand system to transfer blister on grid conveyor belt into parallel cartoner stock bin conyetor.

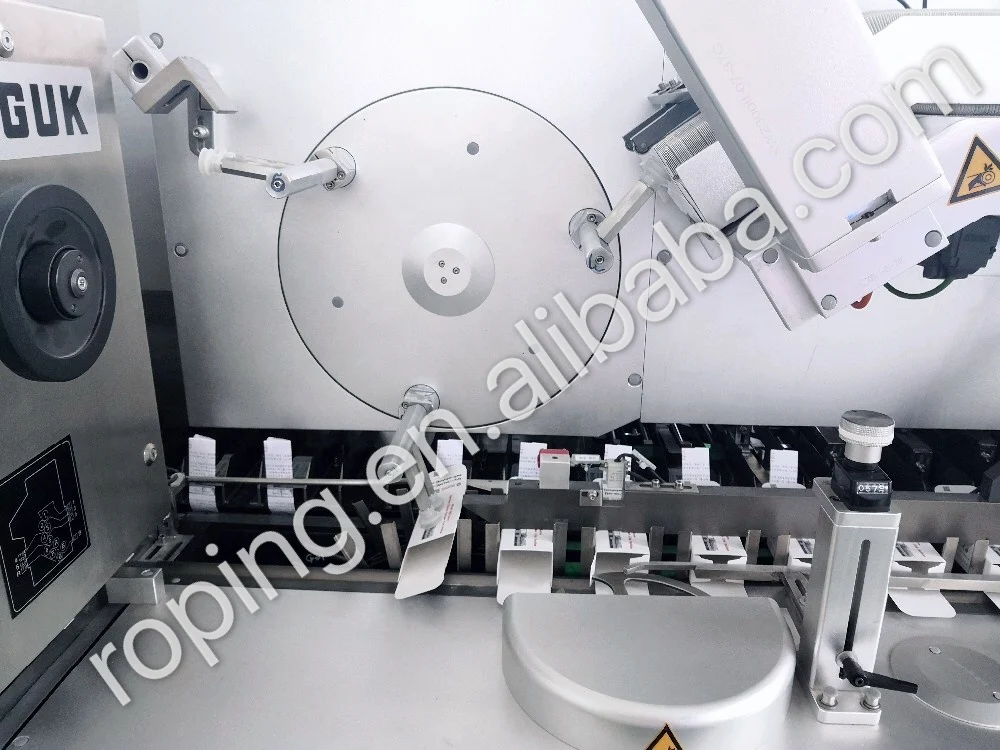

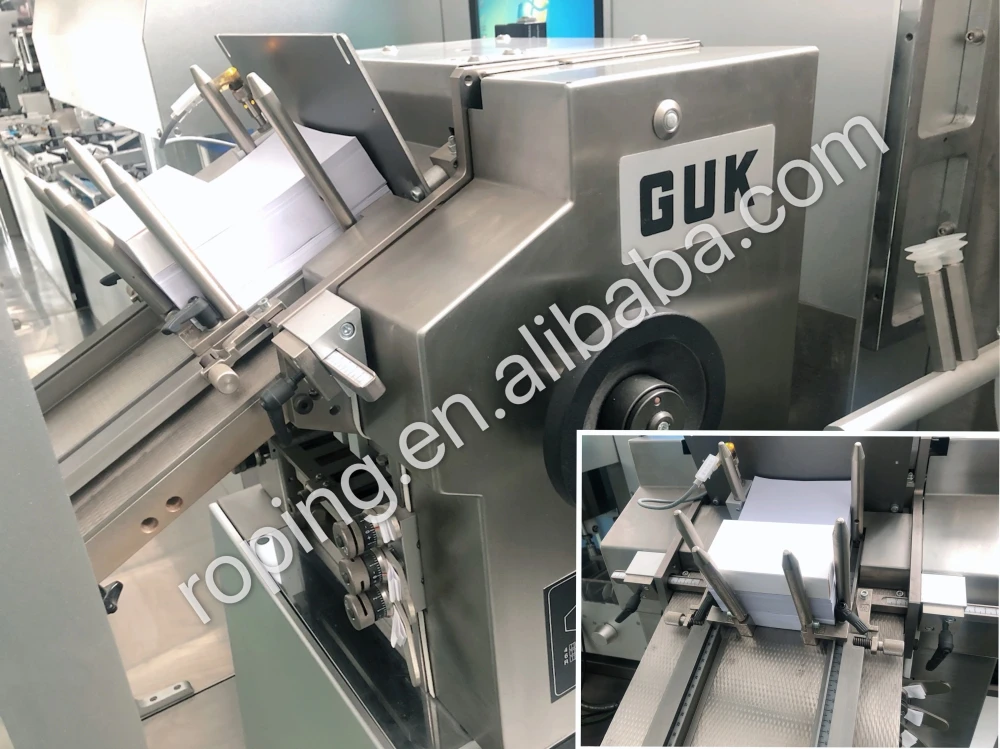

* Name: Germany GUK High-speed Leaflet Folding Machine
* Brand: GUK
* Original: Germany

* Characteristics: The equipment adopts German GUK folding machine to achieve 500 sheets/minute output of A4 paper, reliable performance, stable operation and low noise. (Optional)

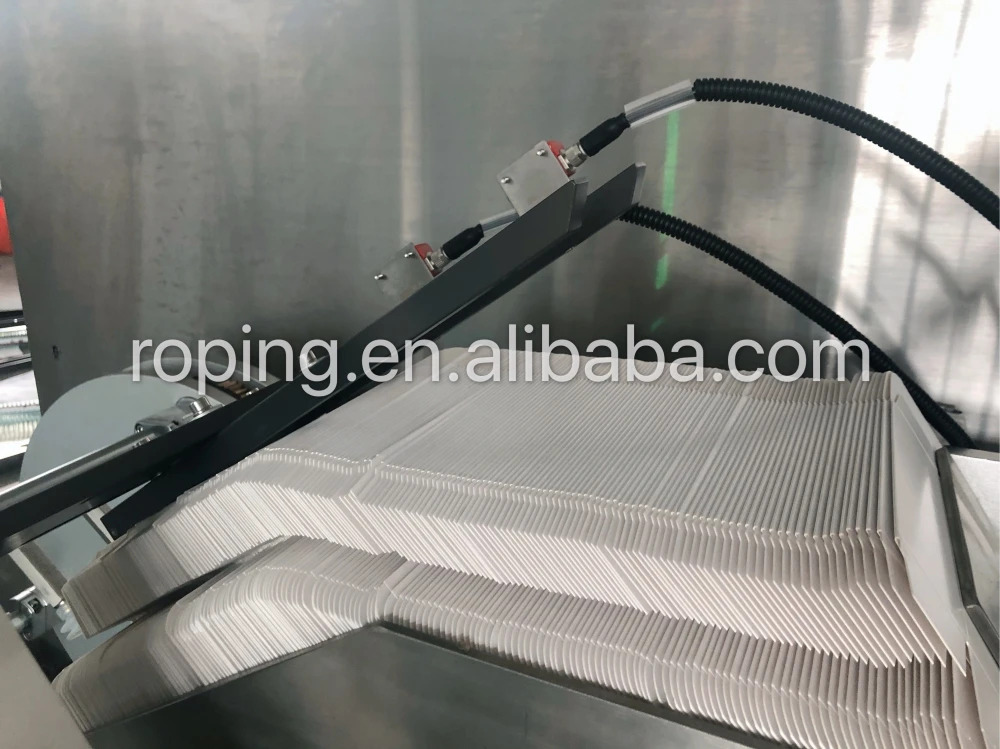

* Name: Servo Carton Convey * Characteristics: This equipment can accommodate 1500 cartons, guarantee the supply of 400 cartons/minute cartons according to the running speed, and the whole box library can be automatically raised and lowered, making the operation more convenient.

* Name: Box sucker
* Brand: Hoping
* Original: China

* Characteristics: Rotating the suction box opening device, the air path seal adopts imported o-ring, which can complete 400 boxes/min suction box, open box and stand box.

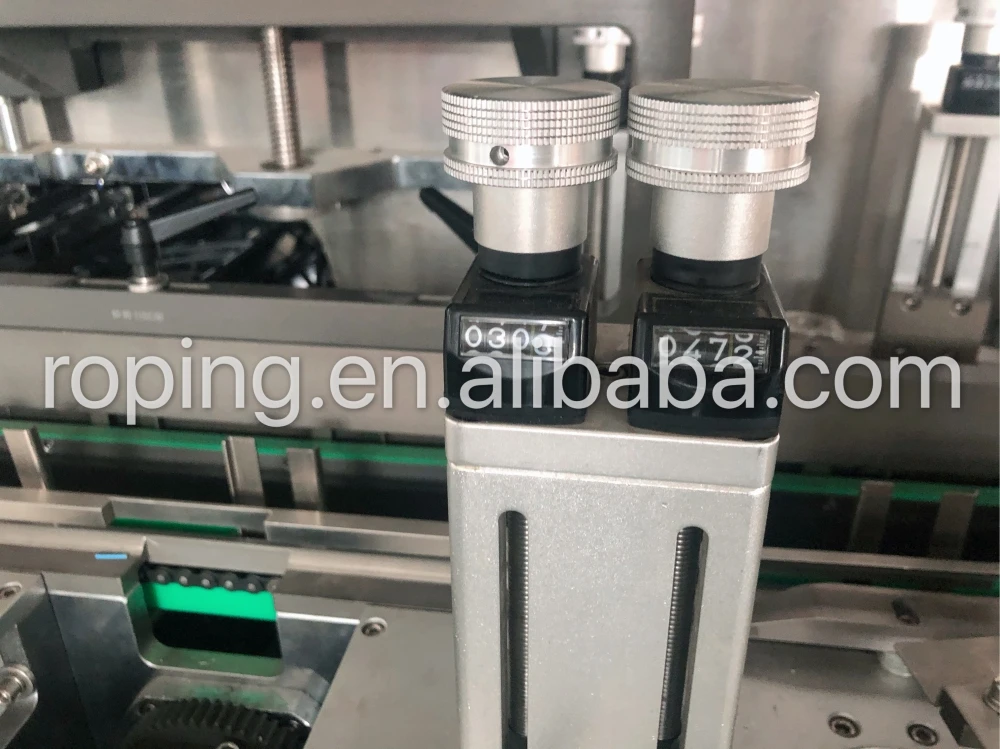

* Name: Adjusting device
* Brand: Hoping
* Original: China
* Characteristics: Rotating the suction box opening device, the air path seal adopts imported o-ring, which can complete 400
boxes/min suction box, open box and stand box.

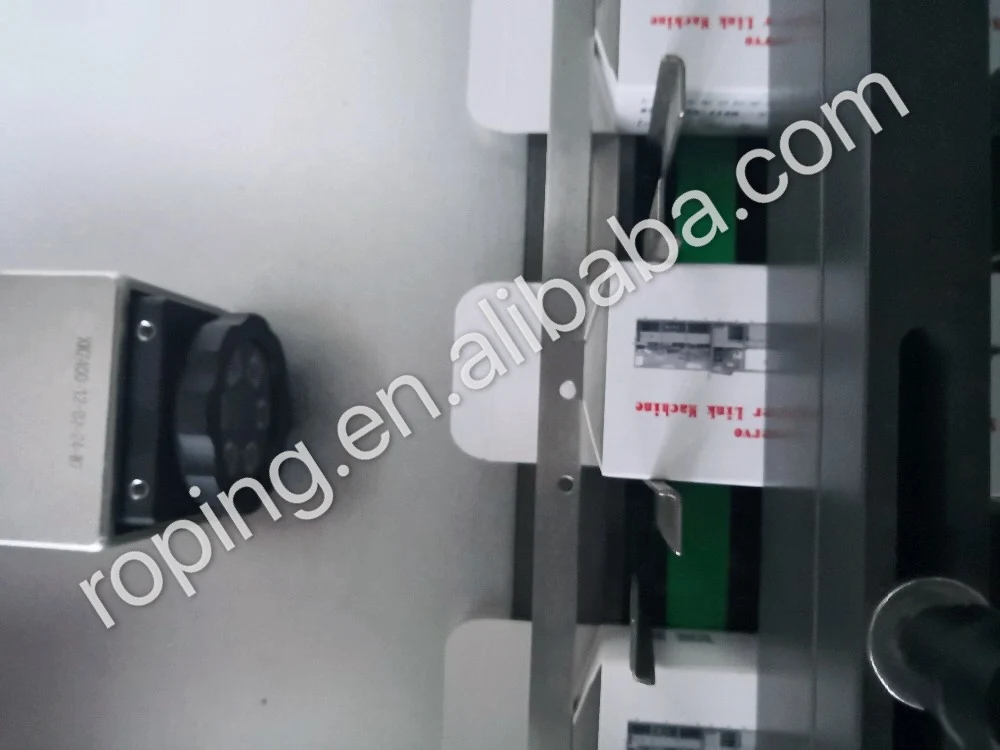

* Name:Camera detection

* Brand:Dalsa

* Original:America
* Characteristics:This equipment uses imported high-quality camera detection to ensure the quality of boxing.

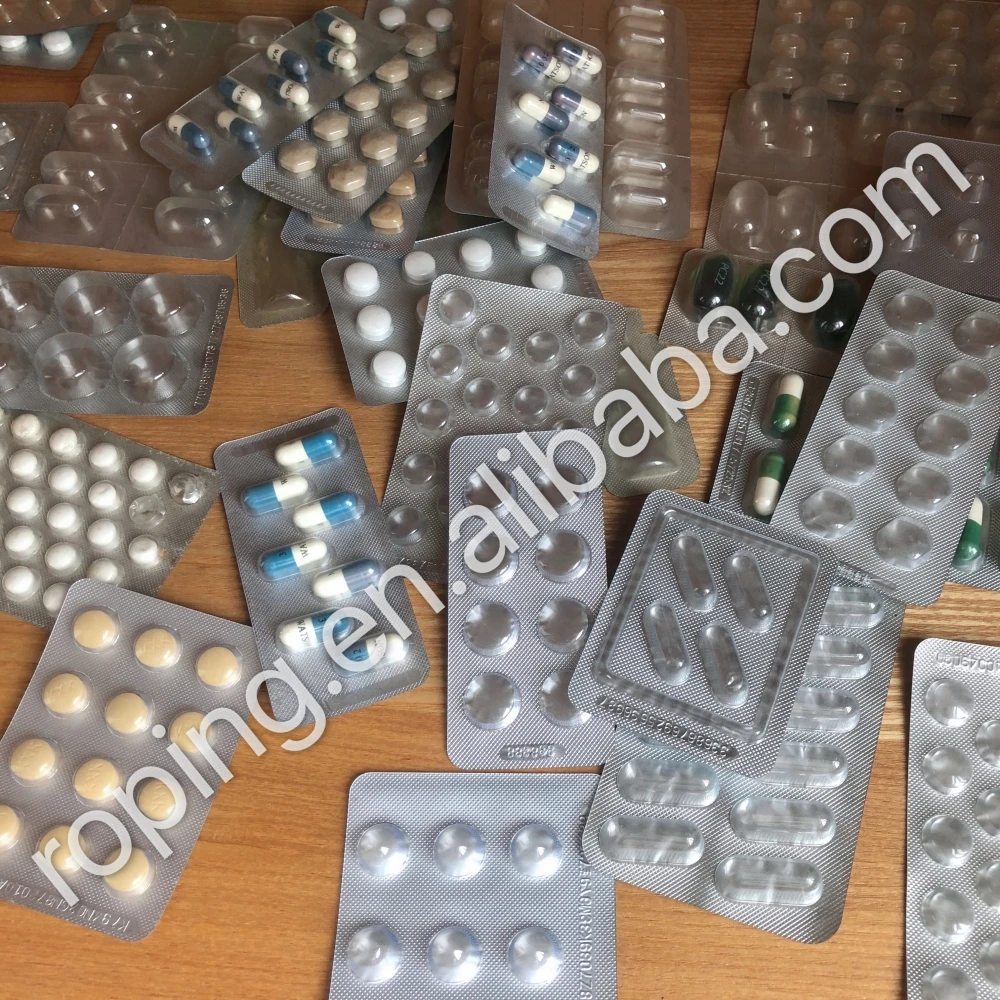

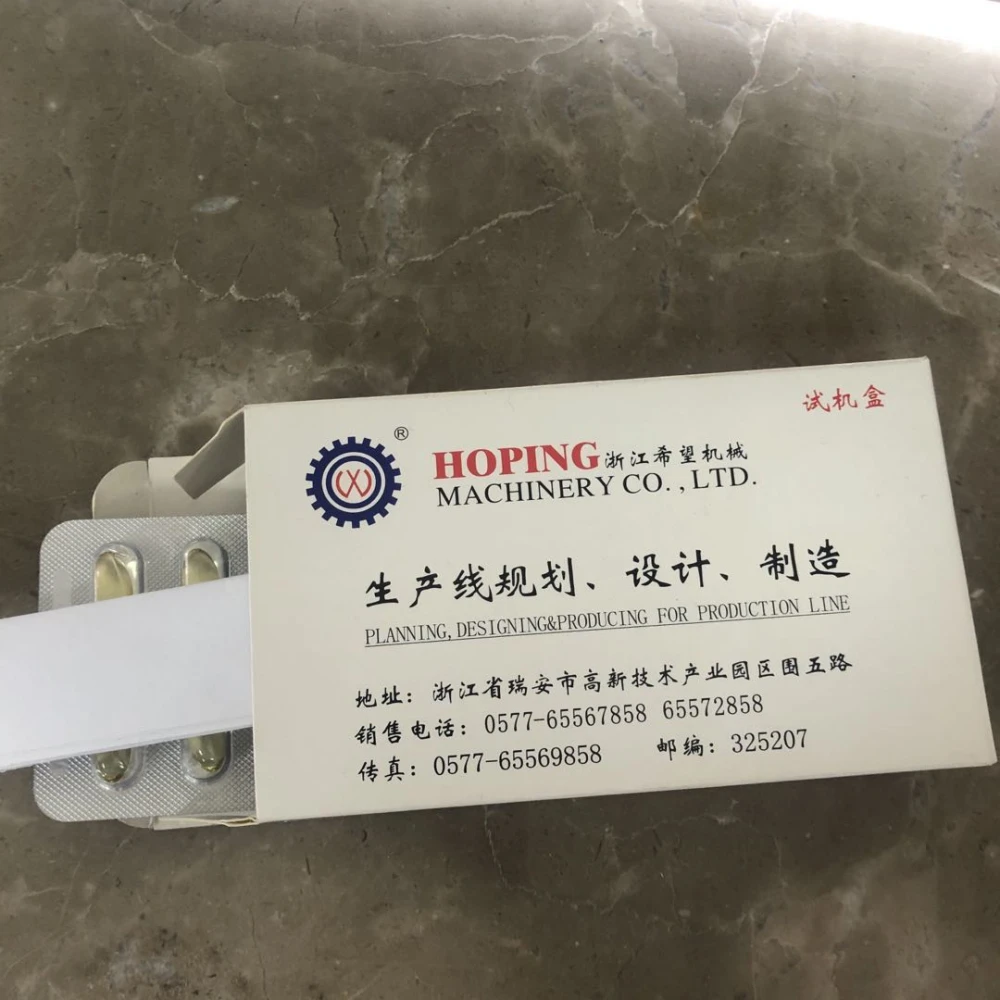

* Name: Sample
* Use: Paper

* Carton speed: 100-400 box/min
