Модель S130 S160 листогибочный станок для листового металла для рекламной рекламы
- Category: Channel Letter Bending Machine >>>
- Supplier: WEIFANG NEW HH EBIZ TECH CORP
Share on (60822983957):
Product Overview
Description

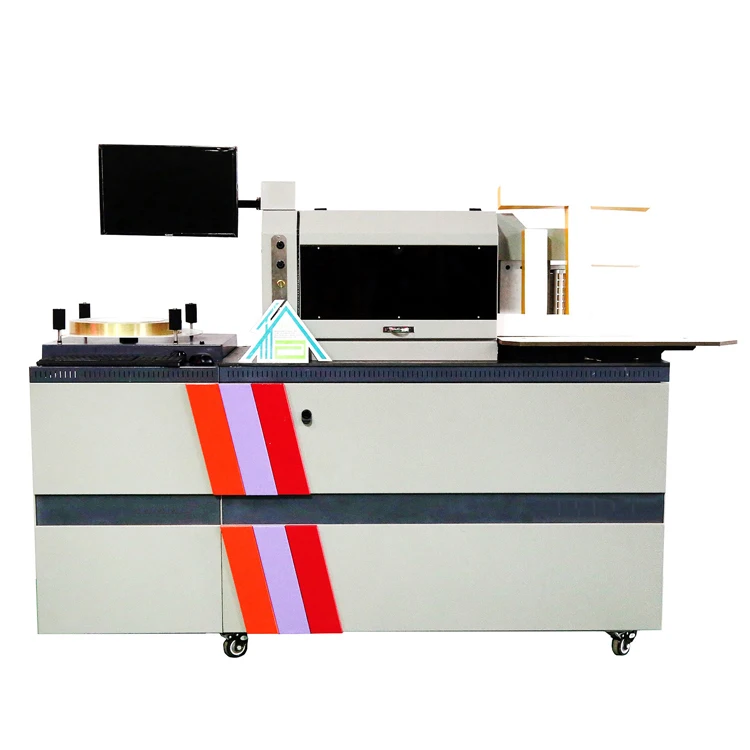

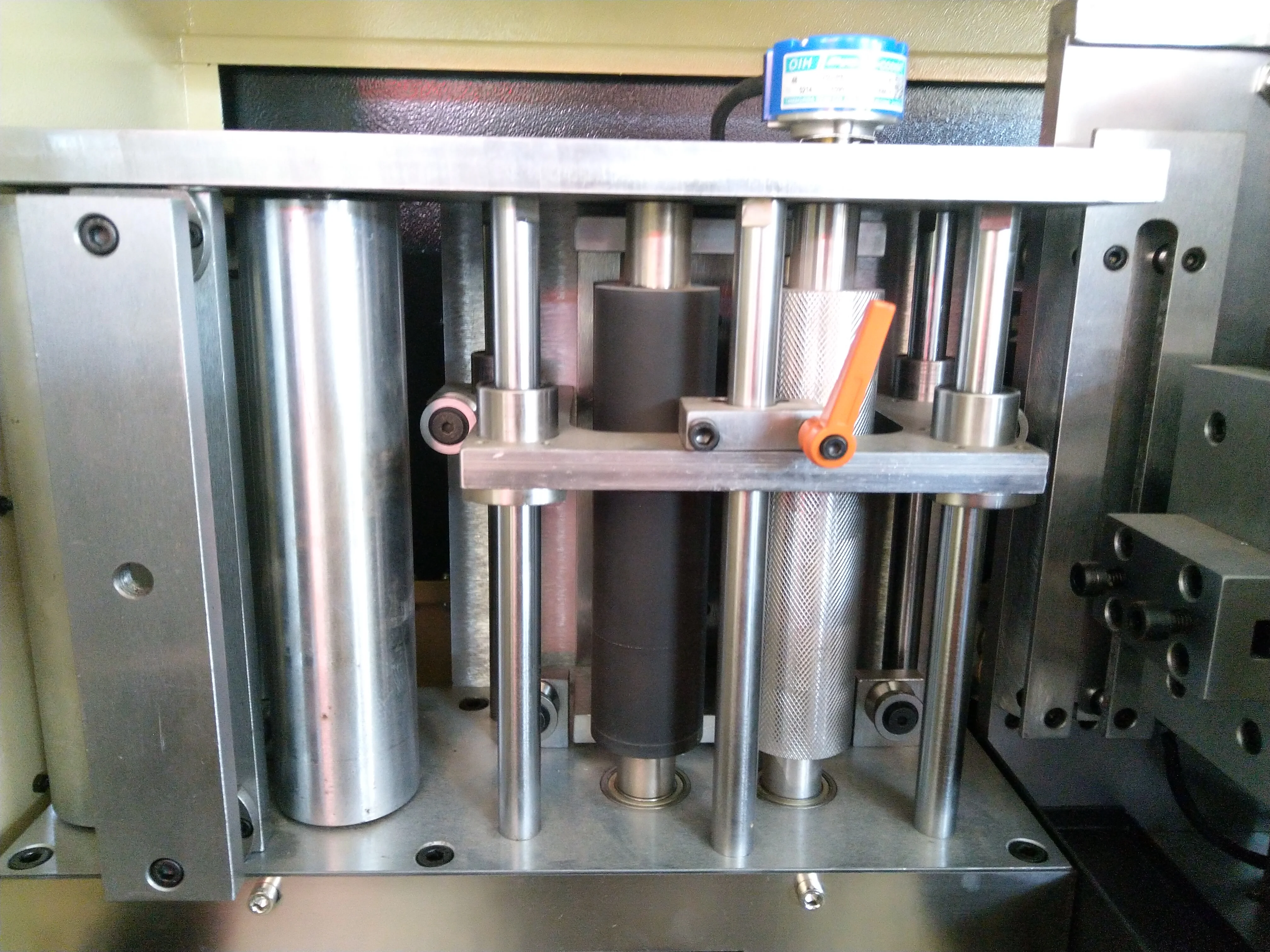

S160 Flat Metal Letter Bending Machine
Main Features
1. The planer is made with hard alloy finished,cutting stable and smooth, blade grain with a number of tips can be used separately, maintenance-free, and free grinding, low cost, Automatic adjust for plane blade, free adjust for slotting depth.
2.Double benders change freely; switch simply, no further testing on material replacement.

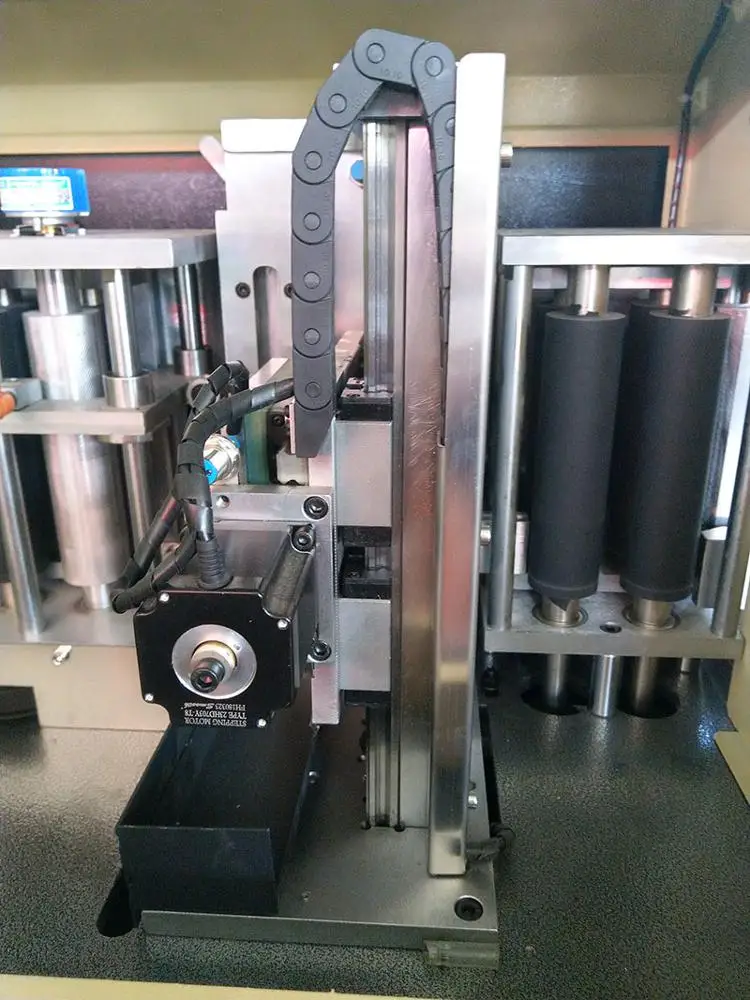

3.Guide Screw and double rail four slider posting transmission, greater intensity, cutting more stable.
4.High power servo control system, high precision, fast speed, high torque, improve working efficiency.
5.Independent material rack, to ensure the stability of equipment feeding.
6.Full chrome plating for machine, wear-resistant and corrosion-resistant.
7.Software can switch between two slotting system freely, simple interface, easy to learn and operate.
2.Double benders change freely; switch simply, no further testing on material replacement.
3.Guide Screw and double rail four slider posting transmission, greater intensity, cutting more stable.
4.High power servo control system, high precision, fast speed, high torque, improve working efficiency.
5.Independent material rack, to ensure the stability of equipment feeding.
6.Full chrome plating for machine, wear-resistant and corrosion-resistant.
7.Software can switch between two slotting system freely, simple interface, easy to learn and operate.
Technical Parameters
Model | High Speed Flat Metal Letter Bending Machine |
Working Principle | High accuracy auto feeding,auto straightening, auto cutting, auto bending |
Application Materials | Stainless Steel, Galvanized Sheet, Iron Sheet, Copper Metal, Flat aluminum coil |
Arc bending Torque Peak | >240Nm |
Planer Slotted Torque Peak | >80Nm |
Length Accuracy | 0.1mm |
Feeding Torque | >45Nm |
Minimum Bending radius | ≥3mm |
Material Width | ≤160mm |
Material Thickness | 0.3-1.2mm |
Total Power | 2000W |
File format | Dxf , ai , plt |
Machine size | 2200mm*700mm*1550mm |
Weight | 500KG |
voltage | AC220V |
Air pressure | 0.3-0.6Mpa |
Letters Making Steps
Applications

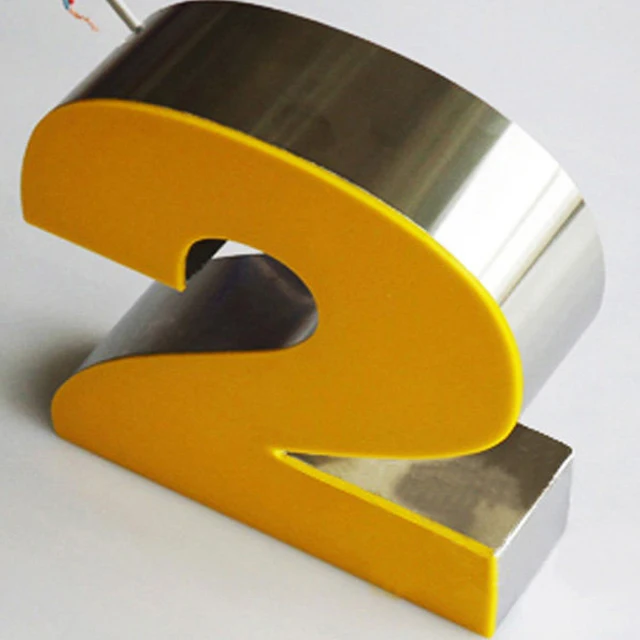

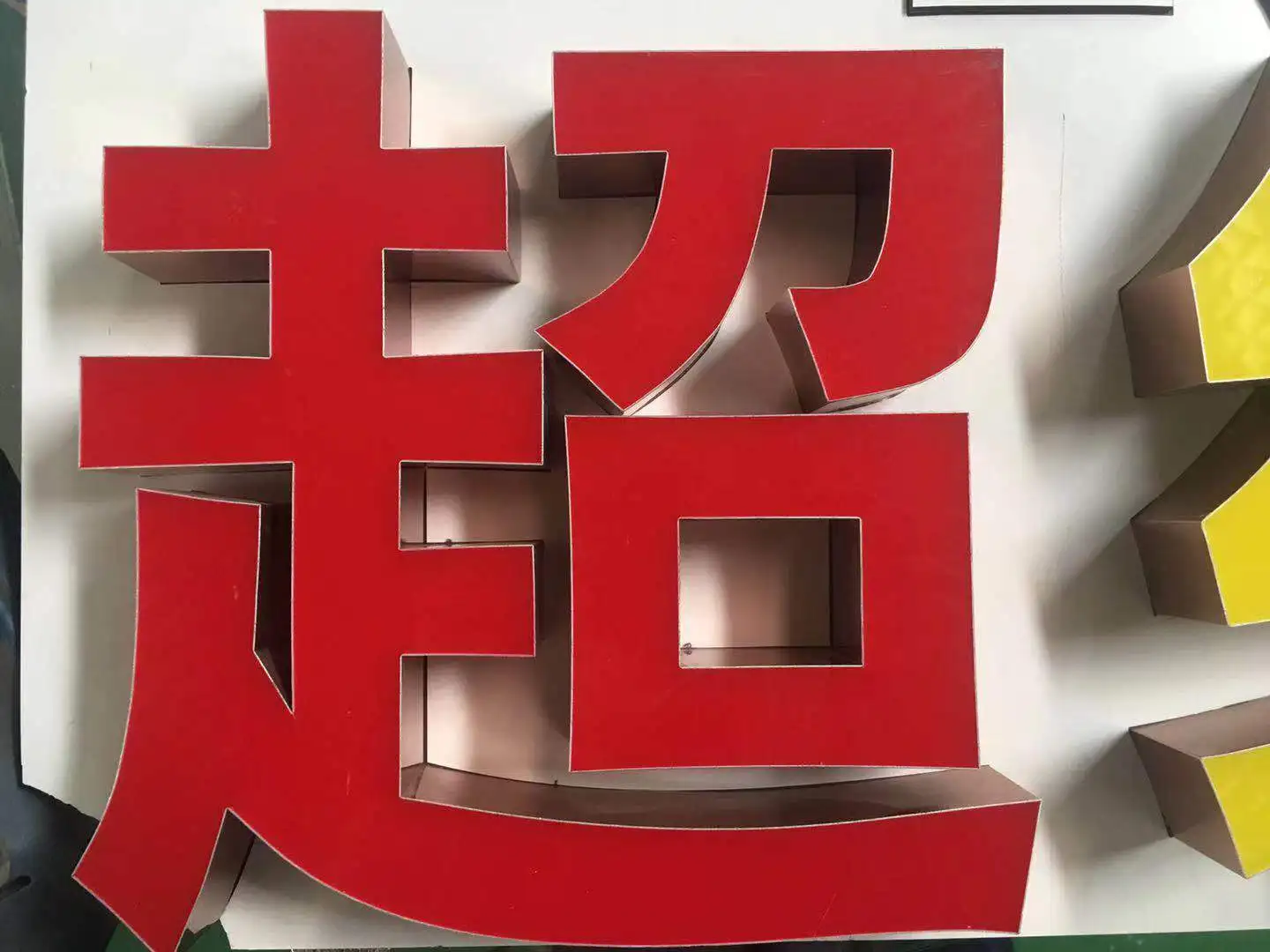

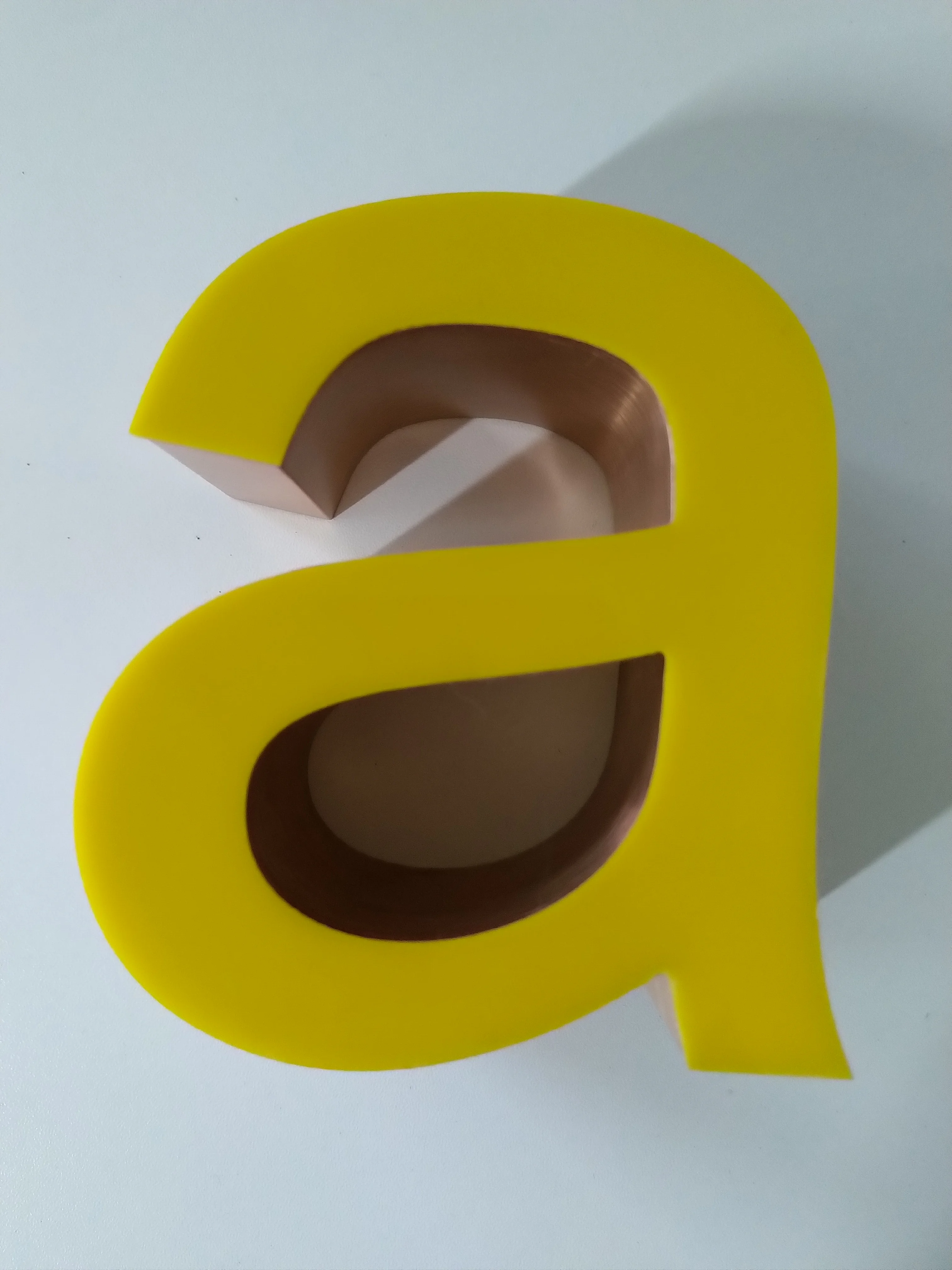

Rimless Letters,Aluminum Edge Letters,Resin Luminous Letters,Super Letters(Liquid Acrylic Letters),Aluminum Profile Letters,Aluminum Letters with Sponge, High Polymer Luminous Letters,Side Luminous Letters,LED Words and Various Aluminum Luminous Letters,SS Letters
Company and Certifcate
Our Service:Installation and Traning
A. Welcome customers to our factory for training. Our professional technicians will make direct and effective
face-to-face training.
B.Our engineer will do an on-site training service at customers' factory.
C.We provide detailed Videos for machine installation, Commissioning,Software Use and Operation Manual,then we will make training via whatsapp, wechat or email
face-to-face training.
B.Our engineer will do an on-site training service at customers' factory.
C.We provide detailed Videos for machine installation, Commissioning,Software Use and Operation Manual,then we will make training via whatsapp, wechat or email
We will ensure our machines running well in customers factory
Exhibitions Dispaly
FAQ
1.what's the package?
we use seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it.
2.what's the warranty?
12months for all machines and 24months for motors.
3.How to install and run the machine?
we will send the install and video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.

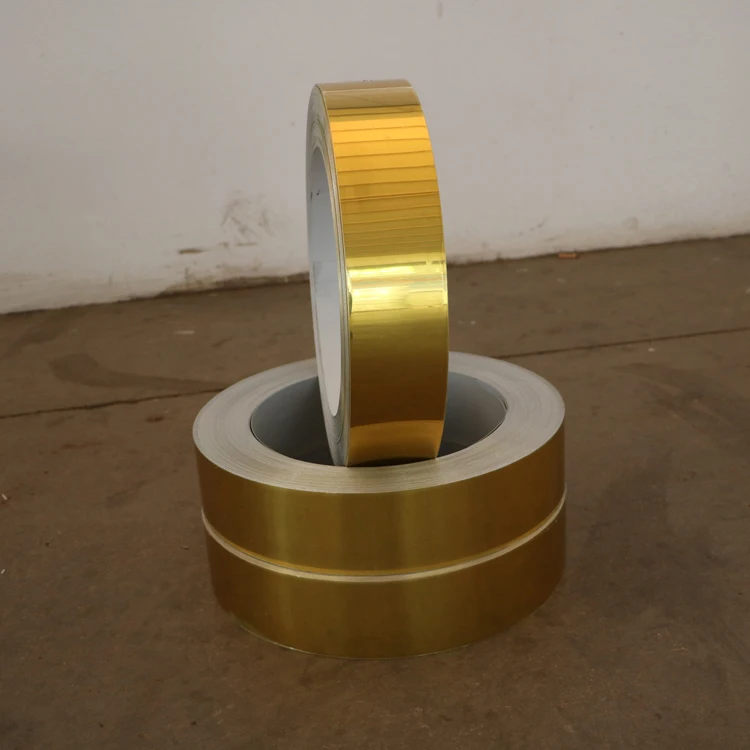

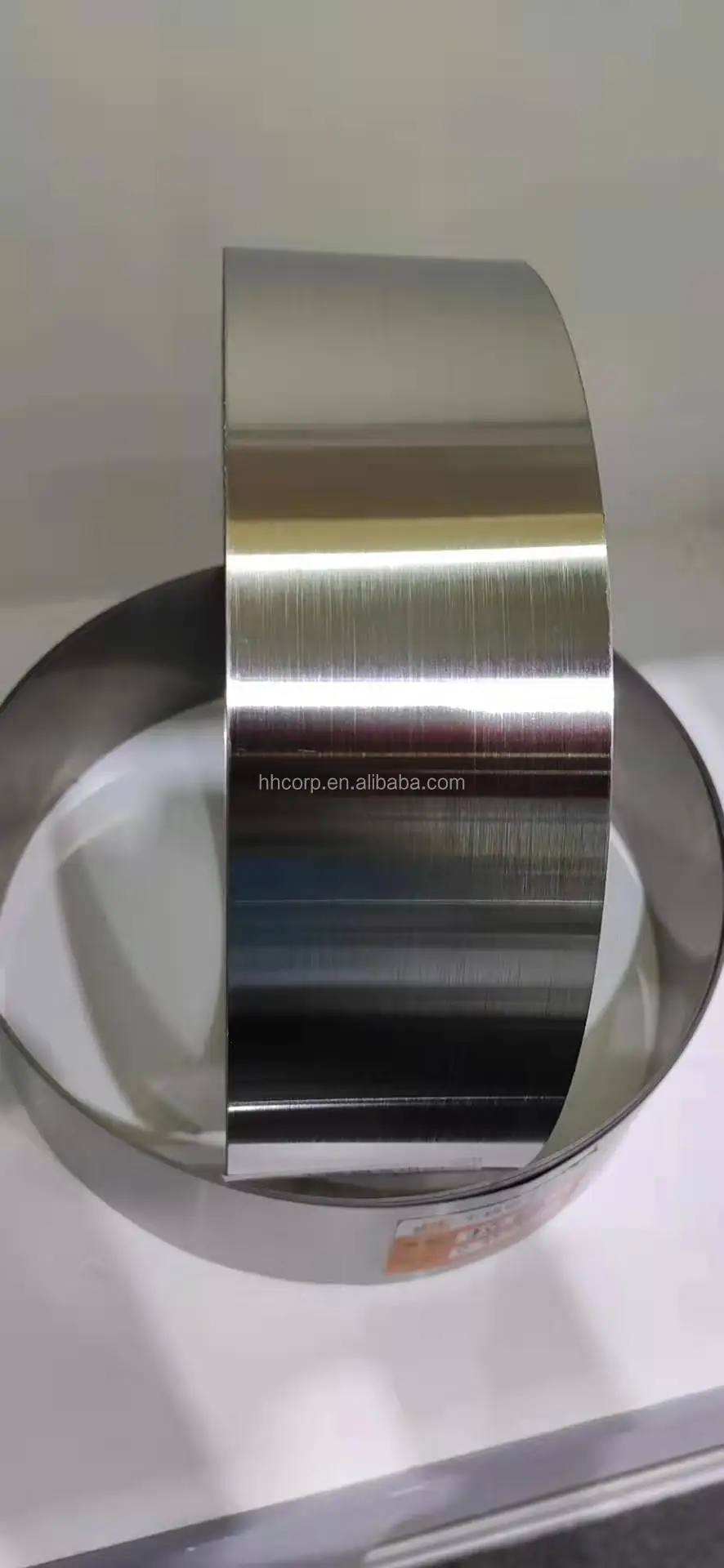

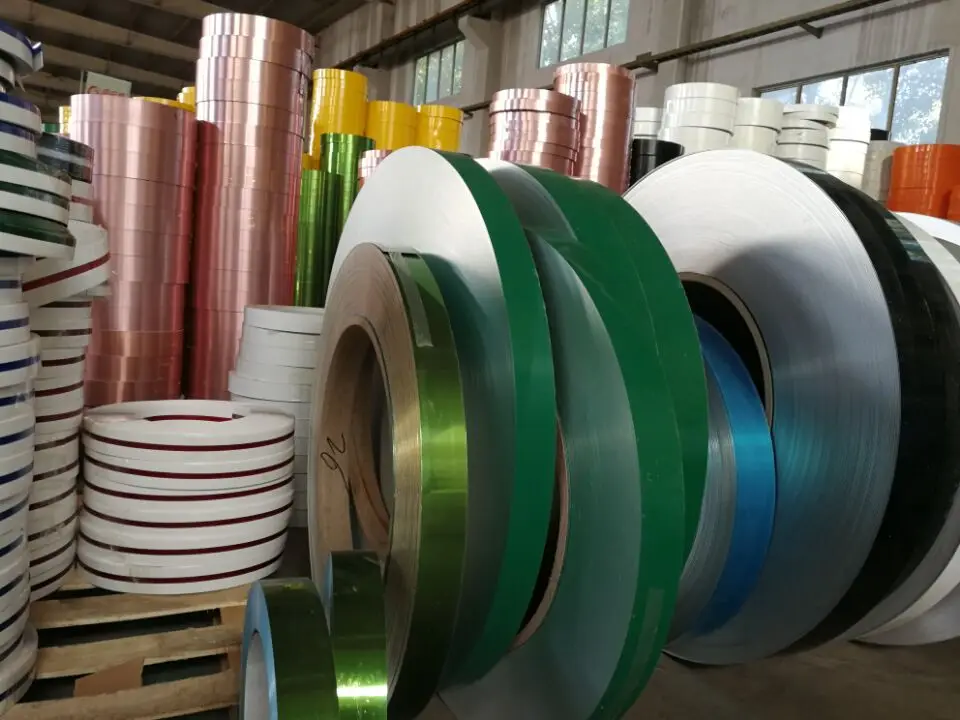

4.Do you have the any materials for sale?
Yes,we have all kinds of materials such as aluminum coil and stainless steel.
we use seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it.
2.what's the warranty?
12months for all machines and 24months for motors.
3.How to install and run the machine?
we will send the install and video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.
4.Do you have the any materials for sale?
Yes,we have all kinds of materials such as aluminum coil and stainless steel.
