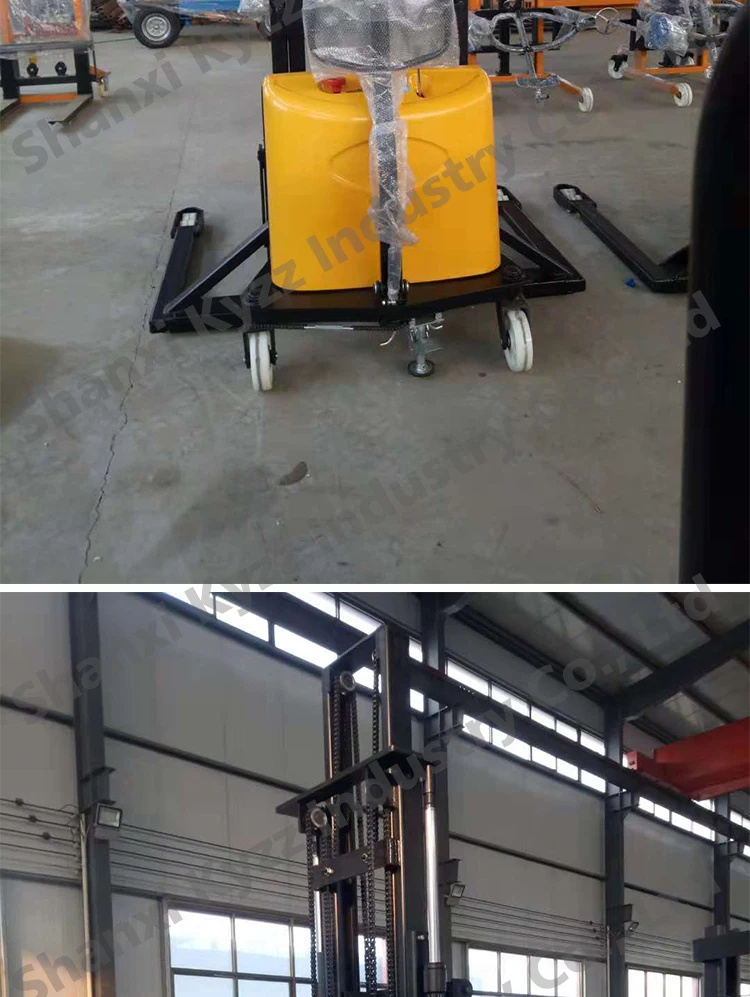

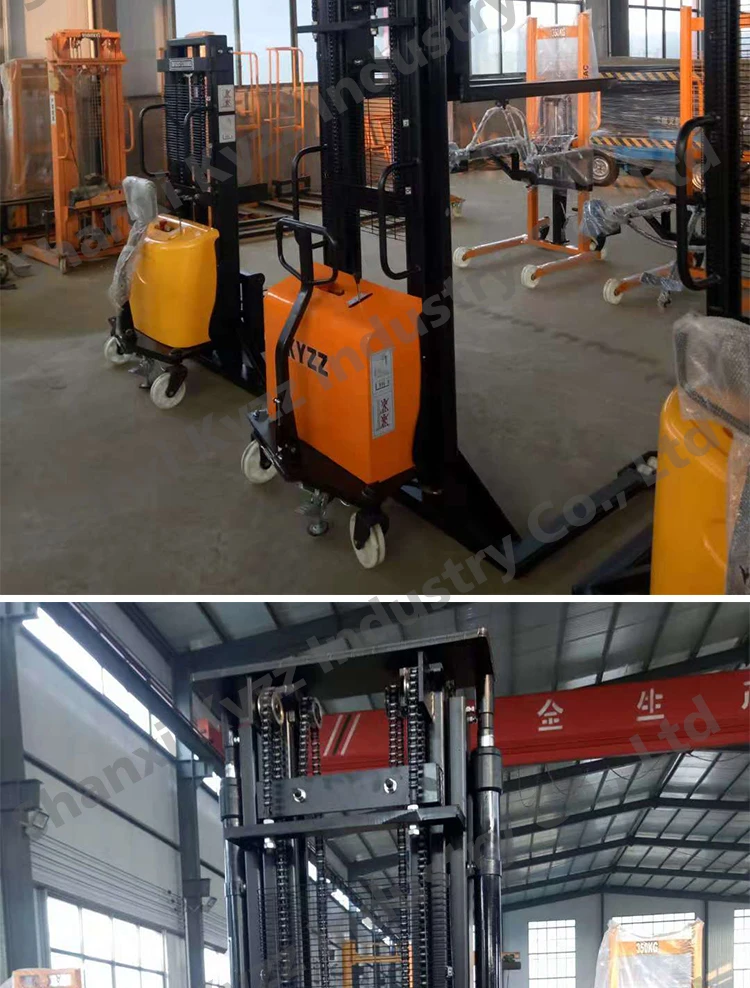

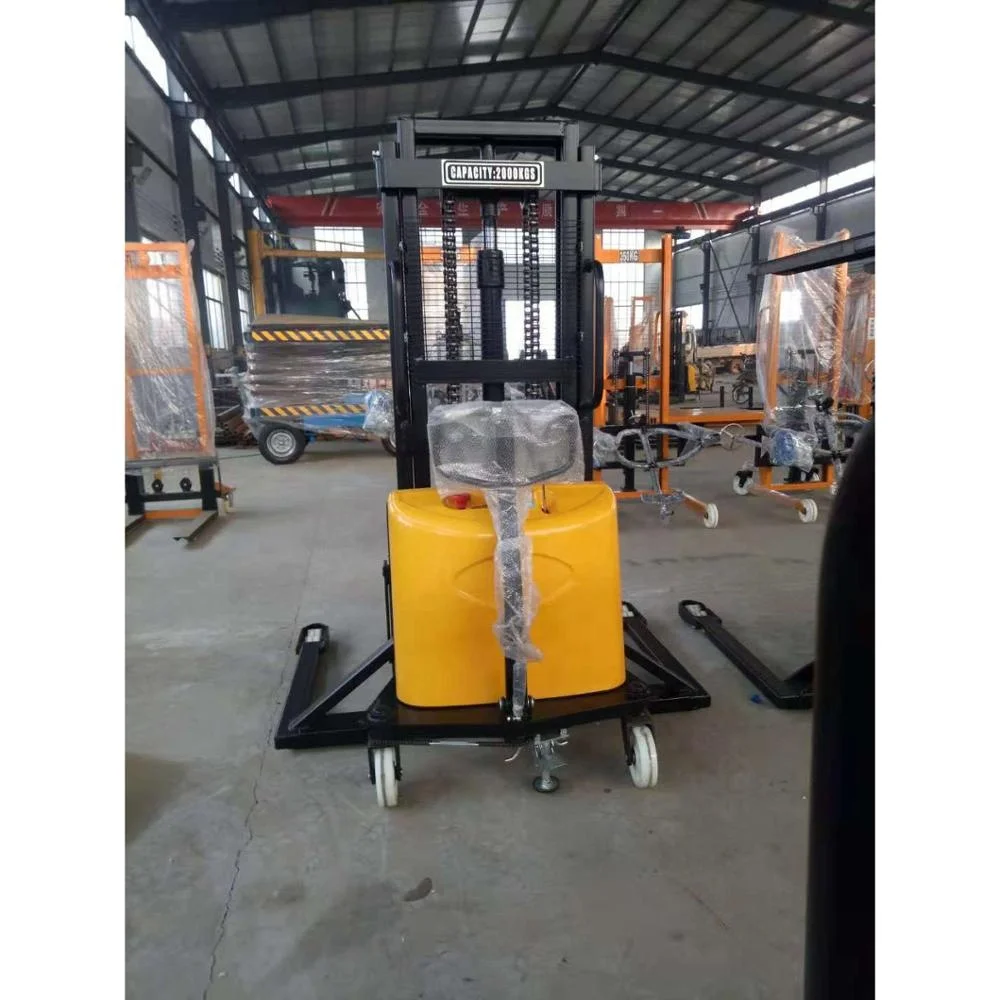

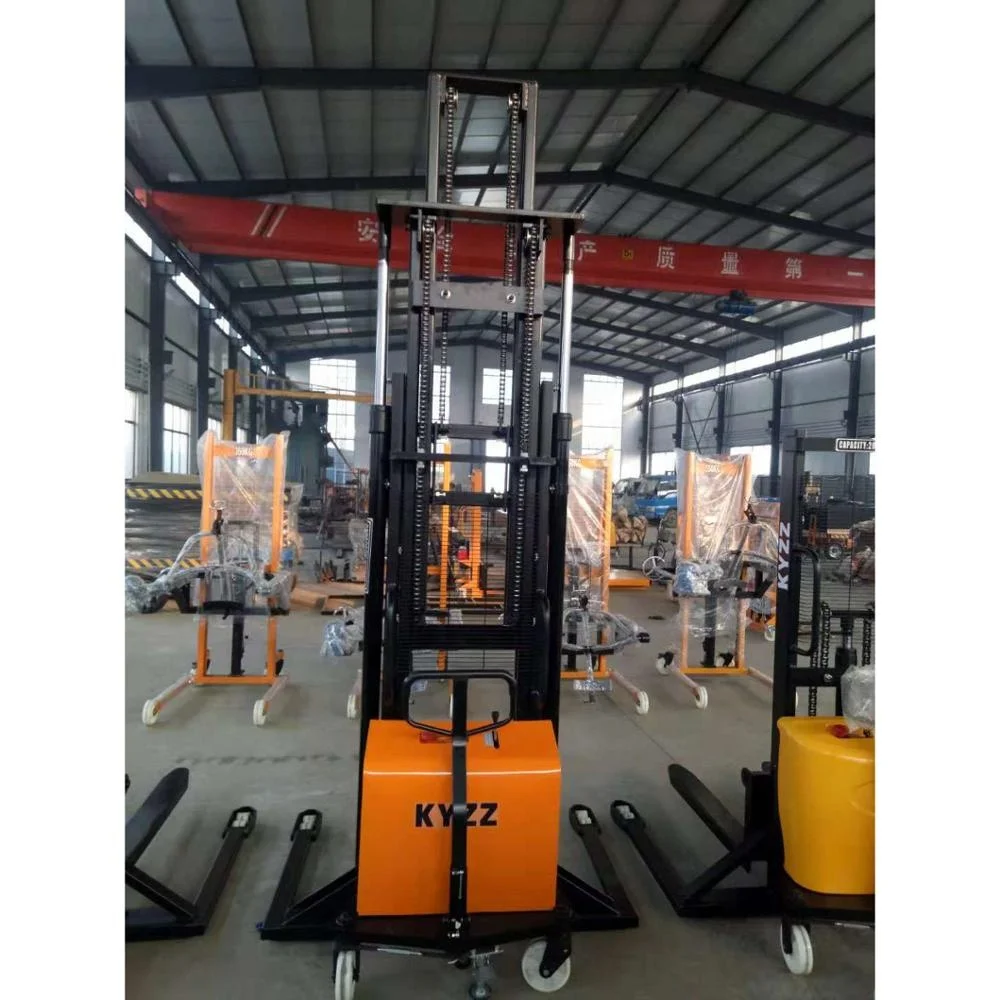

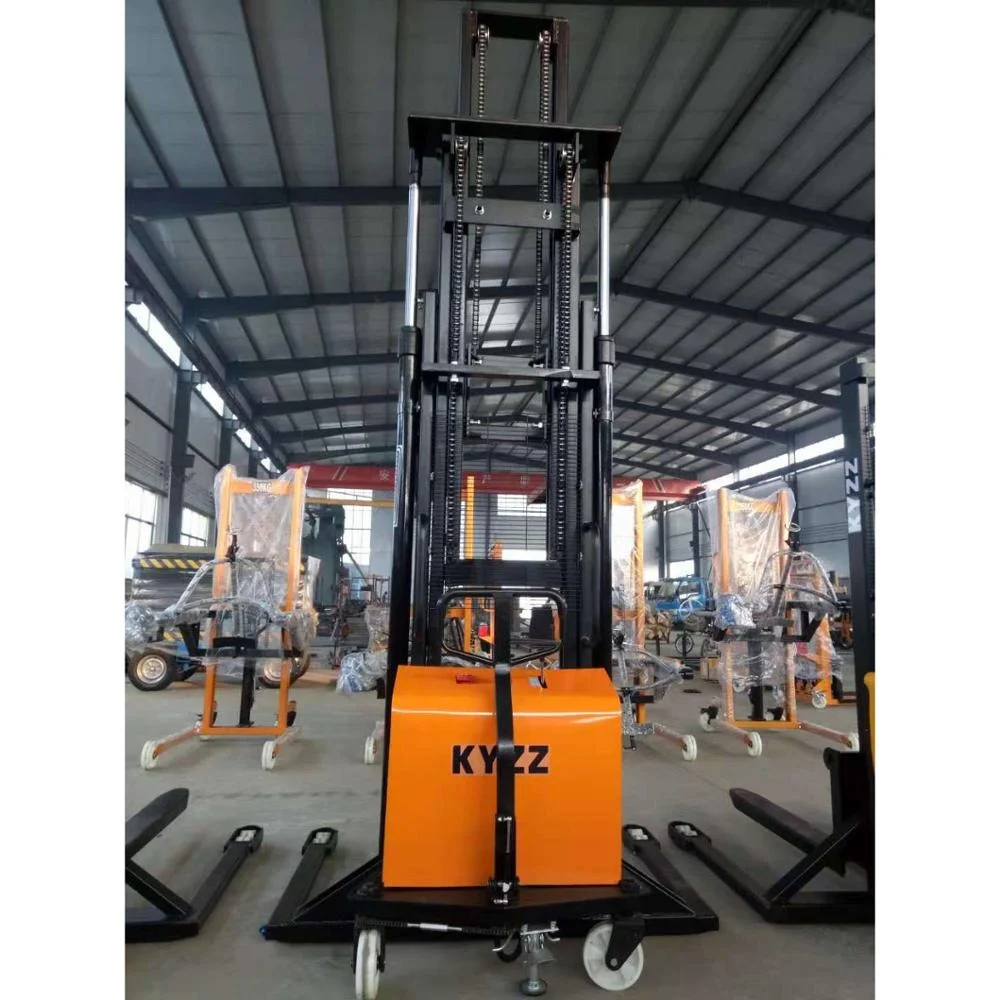

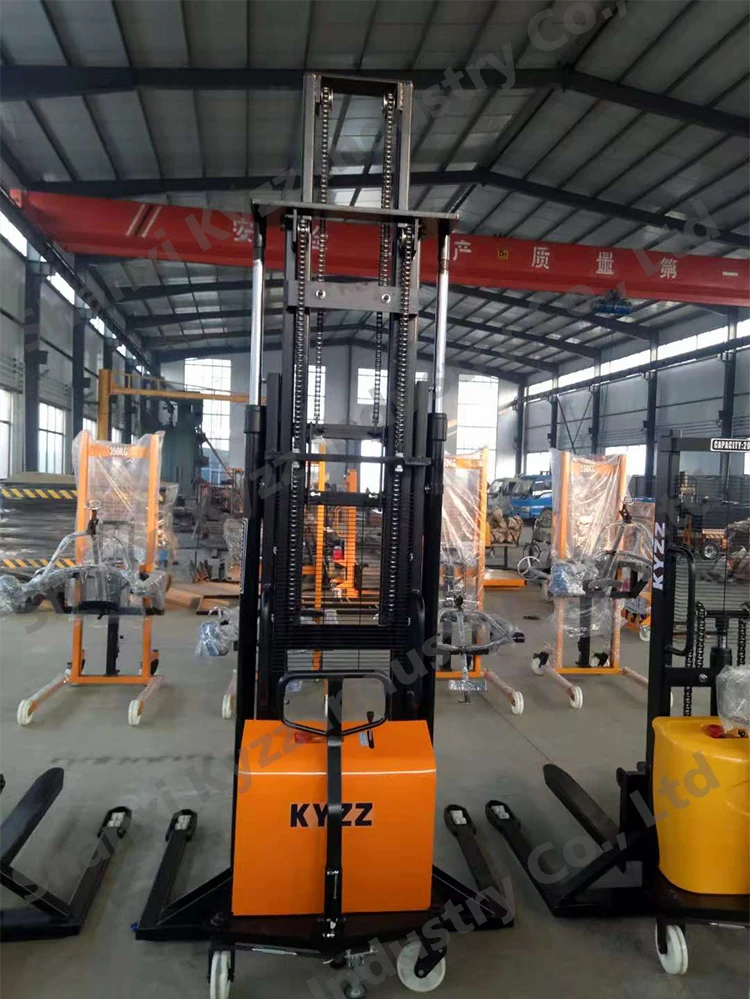

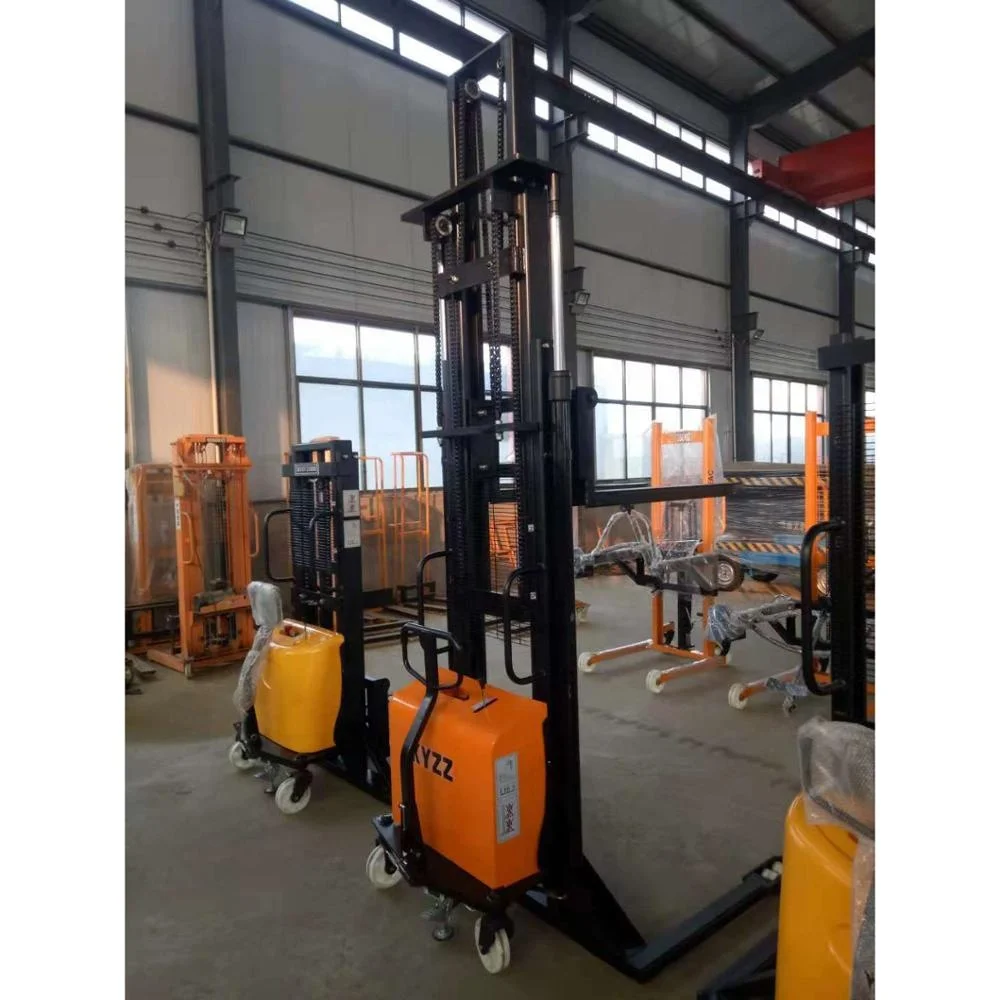

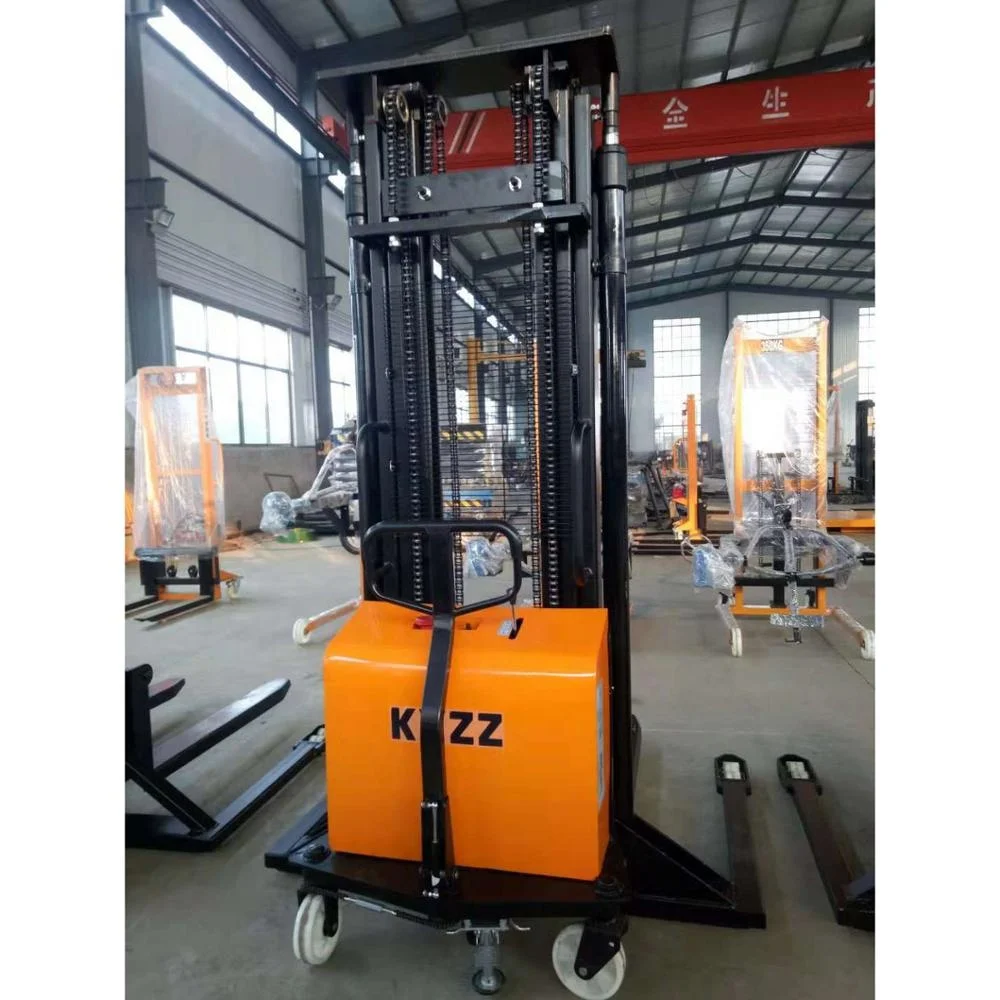

1T 2T electric stacker truck pallet lift stacker customizable
- Category: >>>
- Supplier: Shanxi Kyzz Industry Co. Ltd.
Share on (60822986287):
Product Overview
Description
1T 2T electric stacker truck pallet lift stacker customizable
| electric pallet stacker | ||||||||
| Rated load | 1000kg | 2000kg | ||||||
| Lifting height | 1.6m | 2.0m | 2.5m | 3.0m | 1.6m | 2.0m | 2.5m | 3.0m |
| Min. Fork Height | 85mm | 85mm | ||||||
| Fork effective length | 940mm | 940mm | ||||||
| Max. Fork outer width | customizable | customizable | ||||||
| Single fork width | 140mm | 140mm | ||||||
| Fork length | 800mm | 800mm | ||||||
| Fork leg outer width | 660mm | 700mm | 700mm | 700mm | 660mm | 700mm | 700mm | 700mm |
| Single fork leg width | 80mm | 80mm | ||||||
| Min. turning radius | 1200mm | 1200mm | ||||||
| Machine width | 900mm | 900mm | ||||||
| Machine length | 1550mm | 1550mm | ||||||
| Machine height | 2.1m | 1.6m | 1.95m | 2.1m | 2.1m | 1.6m | 1.95m | 2.1m |
| Front wheel specification | 70*80mm | 70*80mm | ||||||
| Rear wheel diameter | 180mm | 180mm | ||||||
| Lift motor | 12V/1.6kw | 12V/1.6kw | ||||||
| Battery | 12V/135Ah | 12V/135Ah | ||||||
| Charger | 12-24V/40-50A | 12-24V/40-50A | ||||||
| Fork legs inner wide | 480mm | 520mm | 520mm | 520mm | 480mm | 520mm | 520mm | 520mm |
| Rail material | Manganese steel Q345B | Manganese steel Q345B | ||||||
| Rail thickness | 6mm | 6mm | ||||||
| Single width of rail | 100mm | 120mm | ||||||
| Rail profile | C-Type steel | C-Type steel | ||||||
| Cylinder steel core thickness | 45mm | 45mm | ||||||
| Physical braking | Ground brake | Ground brake | ||||||
Related products 3
Certifications
company information
SHANXI KYZZ INDUSTRY CO.,LTD is located in Taiyuan,Shanxi,China,which has more than 20 years experiences in the lifting machinery industry.Our products is portal mobile gantry crane,chain hoist,pallet truck,pallet lifter,winch and so on. Specifically,Our company focus on new type mobile gantry crane designing,researching & developing,own many patents,and approved the CE and other certificates.Our portal gantry crane can be adjusted the height & span,drove to walk by electric .if u need,it also can be controlled by wireless remote.We has 20 scientific technicians, standardd testing equipment. We can provide satisfied solutions and drawings according your operating environment,customized your our gantry crane.Our products had been exported to Southeast Asia,Europe,the United States, Australia, South America and many other countries, and got much satisfied feedback from our clients.
