chinese manufacturing cheap punch down utp cat6 180 degree rj45 Keystone Jack short model

Product Overview

Description

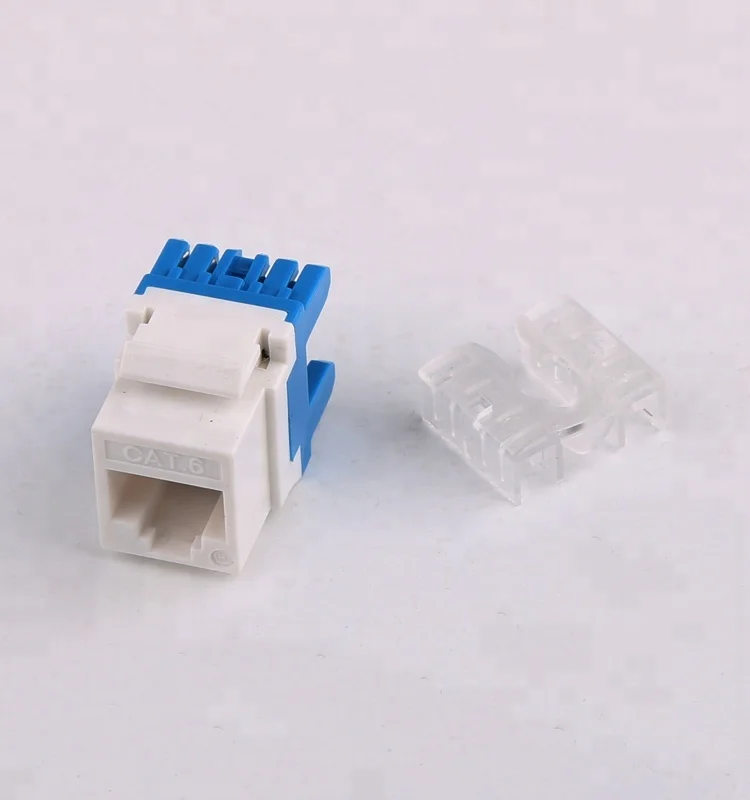

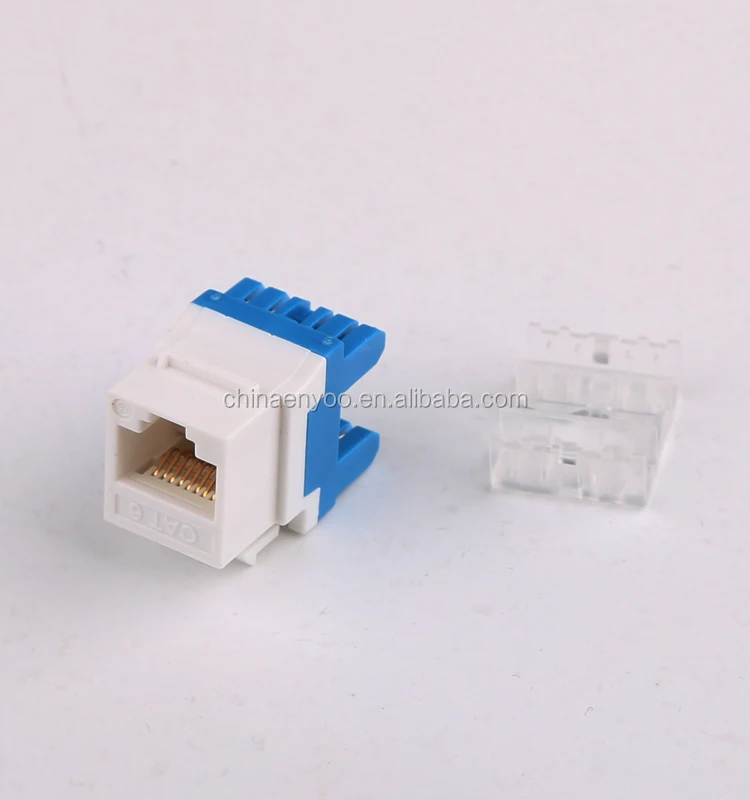

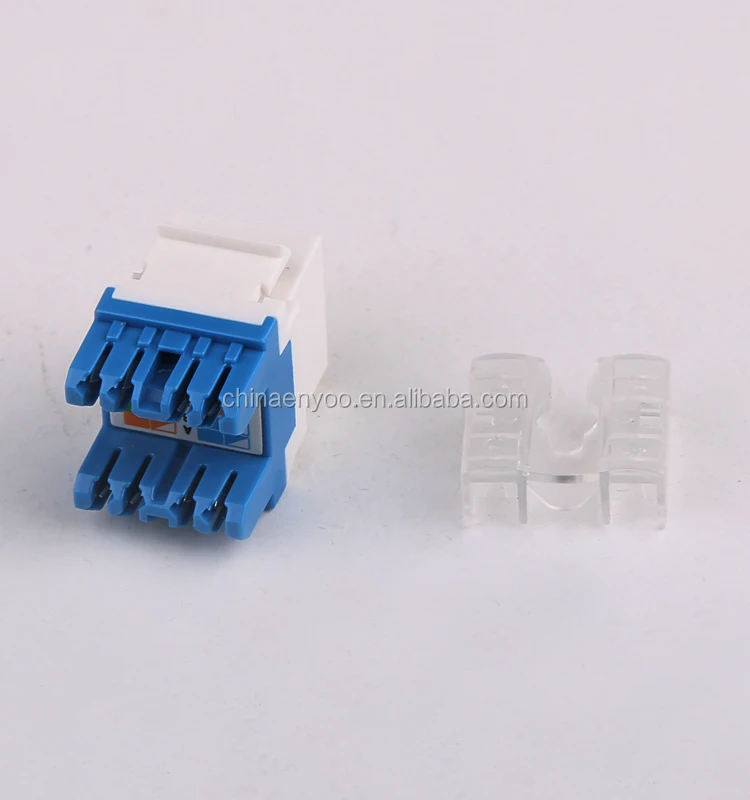

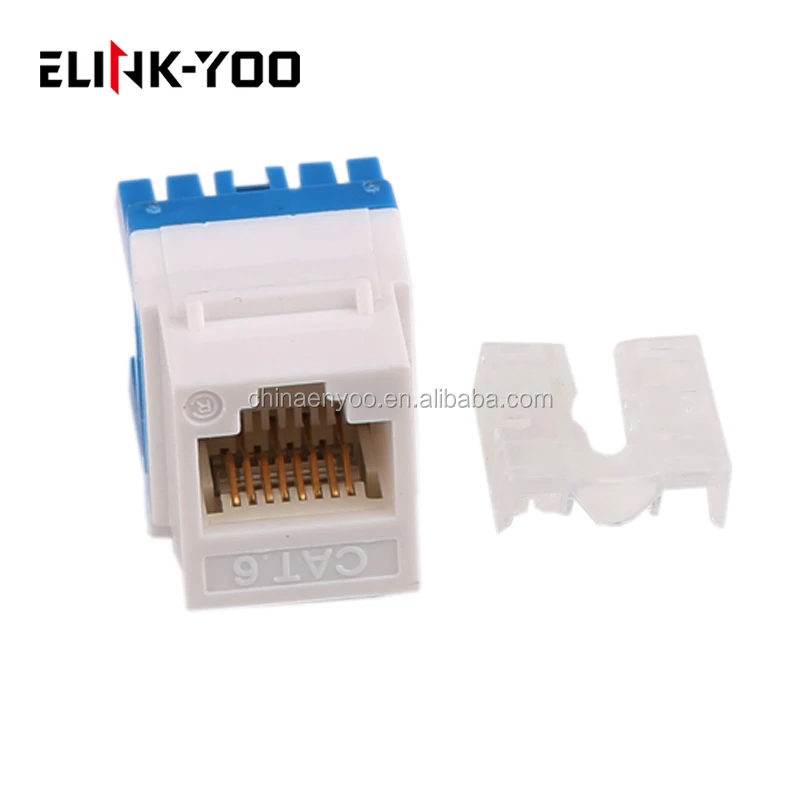

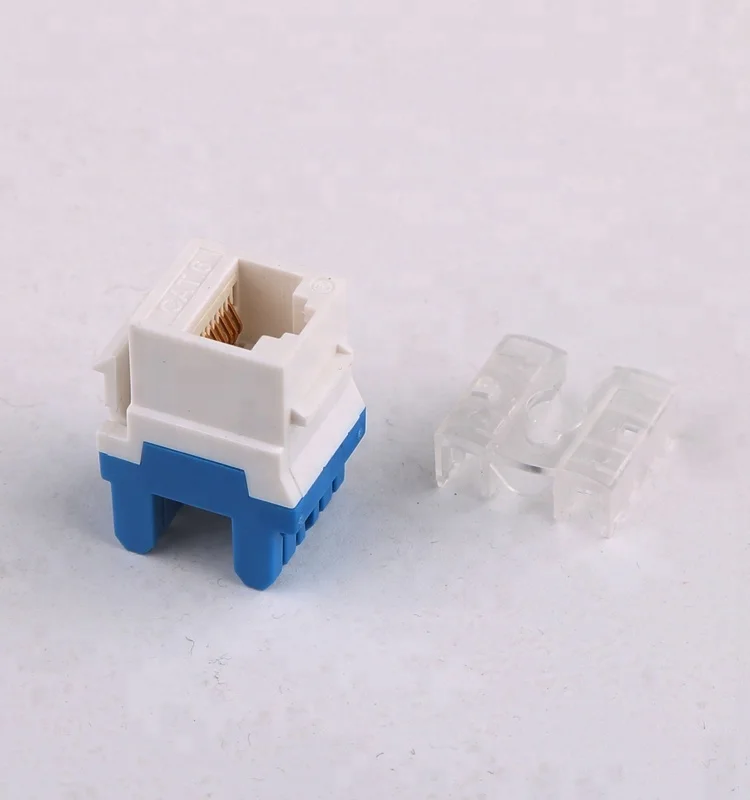

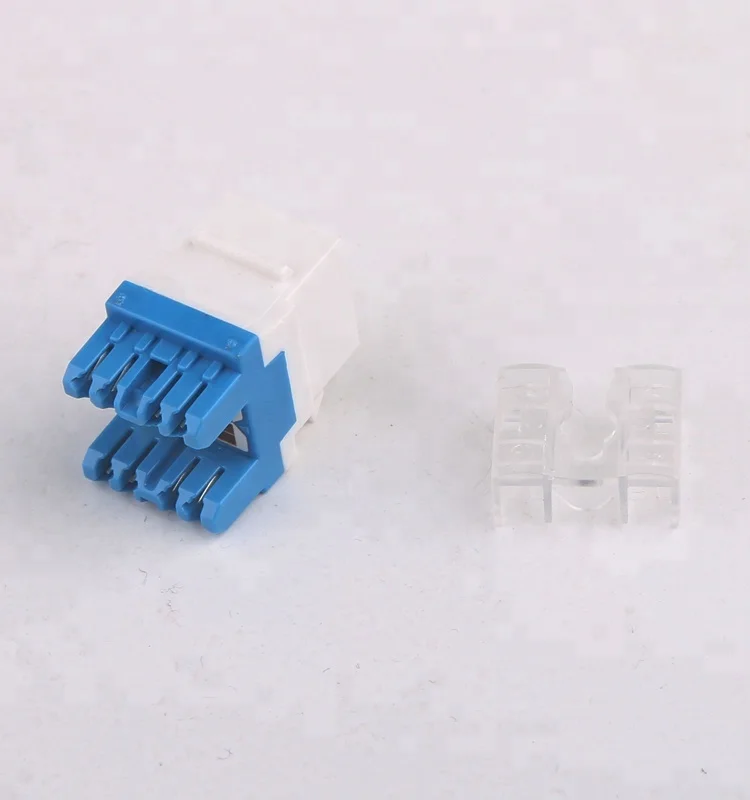

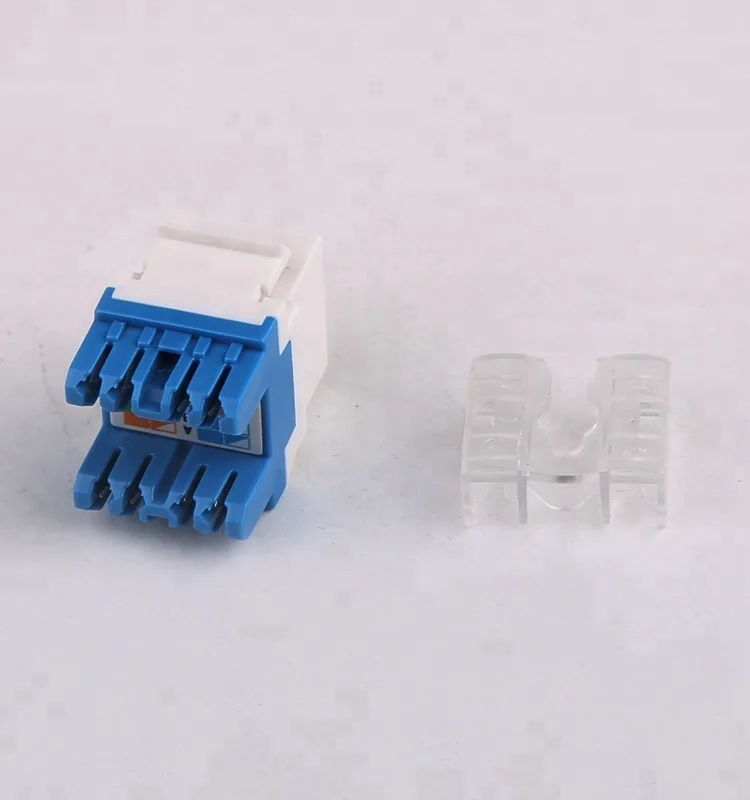

1.Pictures of Product

cheap punch down utp cat6 180 degree rj45 Keystone Jack short model







2.Products Description:

cheap punch down utp cat6 180 degree rj45 Keystone Jack short model

The punch down utp cat6 keystone jack short model features a high-impact, flame retardant (UL 94V0) plastic housing

Meets and exceeds the international standard ISO / IEC 11801 and the ANSI/TIA-568-C.2 requirements

Dual-type IDC connectors, situated 180° relative to the RJ45 ports, terminated using 110-type punch tool

Color coded for both T568A and T568B installations

The Cat6 Keystone Jack is designed to snap into wall plates, patch panels, and surface connection boxes for quick, seamless deployment.

Meeting and exceeding the international standard ISO / IEC 11801 and the ANSI/TIA-568-C.2 requirements, this RJ45 keystone jack provides the perfect solution for your Ethernet networks.

Durably constructed of only top quality materials, this Cat6 wall jack is backed by  2 year warranty.



Contact Material = Phosphor Bronze stamping pin at thickness of 0.35mm
Contact Mating Area Plating Material = Gold plating option (3U",6U",15U",30U",50U") over Nickel
PCB material: FR-4 T=1.6mm
IDC contact material: Phospor Bronze at thickness of 0.5mm and Nickel plating

Housing Color = White, Black or According to Customers' request
Housing Material = ABS or PC
Housing Flammability Rating = 94V-0

Workable wire gauge: AWG 22~26

Industry Standards:
RoHS compliant
TIA/CAT6

568A/568B

Angle: 180Degree,fit for loading a full STP/UTP 24/48 port patch panel

Termination: Dual IDC Type



Specification:

Electrinic	Voltage Rating :125 VAC  RMS
	Current Rating : 1.5AMP
	Contact  Resistance:110 Milliohs MAX.
	Insulation Resistance:1 000 megohms   MIN  500 VDC
	Dielectric Strength :750   VAC   RMS    60Hz ,1 MIN
Environment	Storge: -40~ 85°c
	Operation: 0~70°c
Machanical	Housing Material: PBT-90V-0
	Panel Fram: Carbon Steel, Powder Coating in black color
	Contact Material: PC-90V-0
	Contact: Phosphor Bronze with Nickel Plating
	RJ45 Jack:IFE:750 times MIN.
	IDC Life :200 times MIN.
	Wire:AWG 24-26
	Tia Cat.5e Perm Link Test: Worst Pair NEXT Margin ≥3dB
	Retentiveness of insertion structure:50N 60±5s
