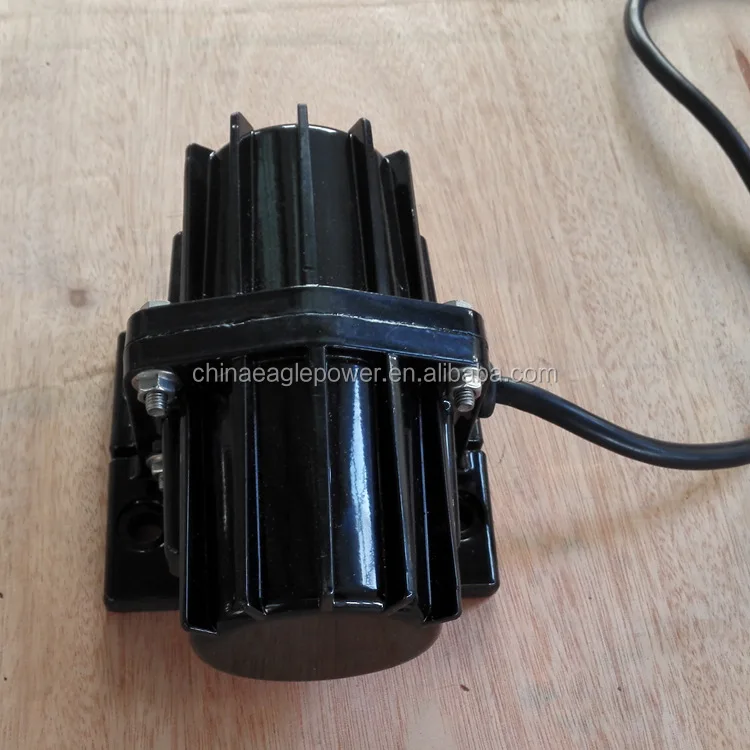

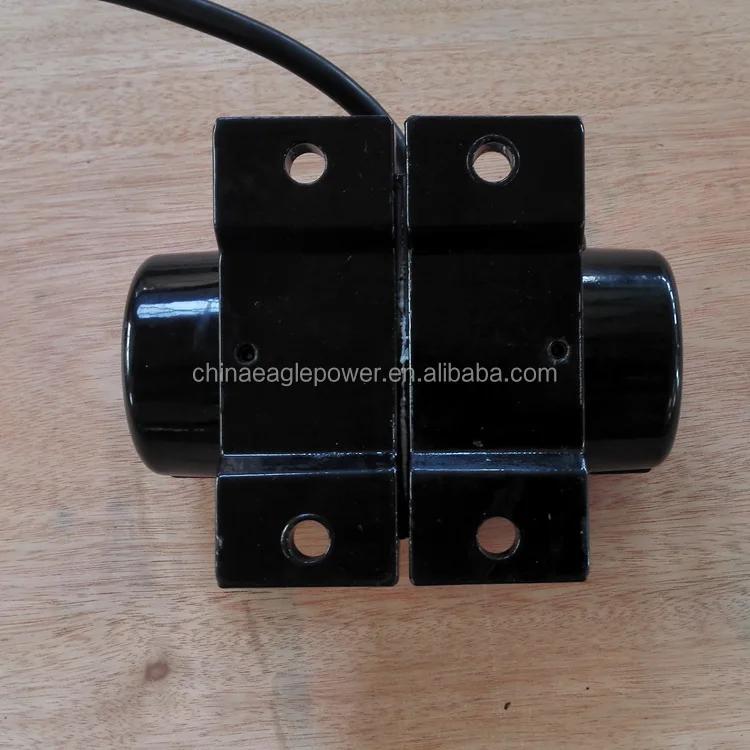

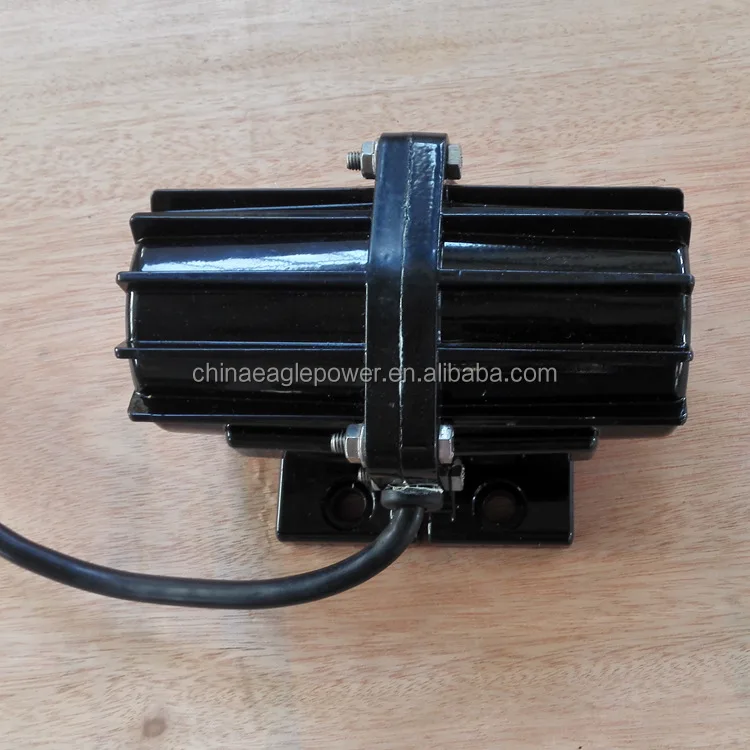

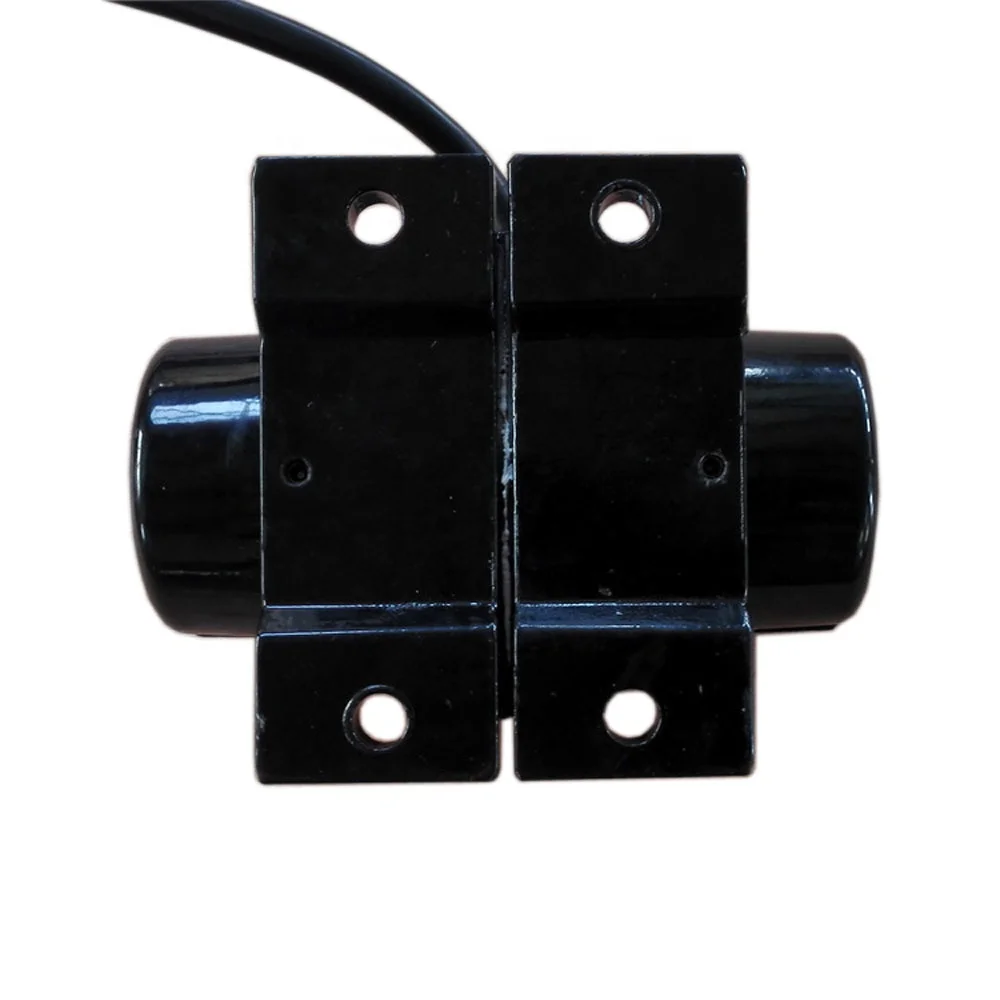

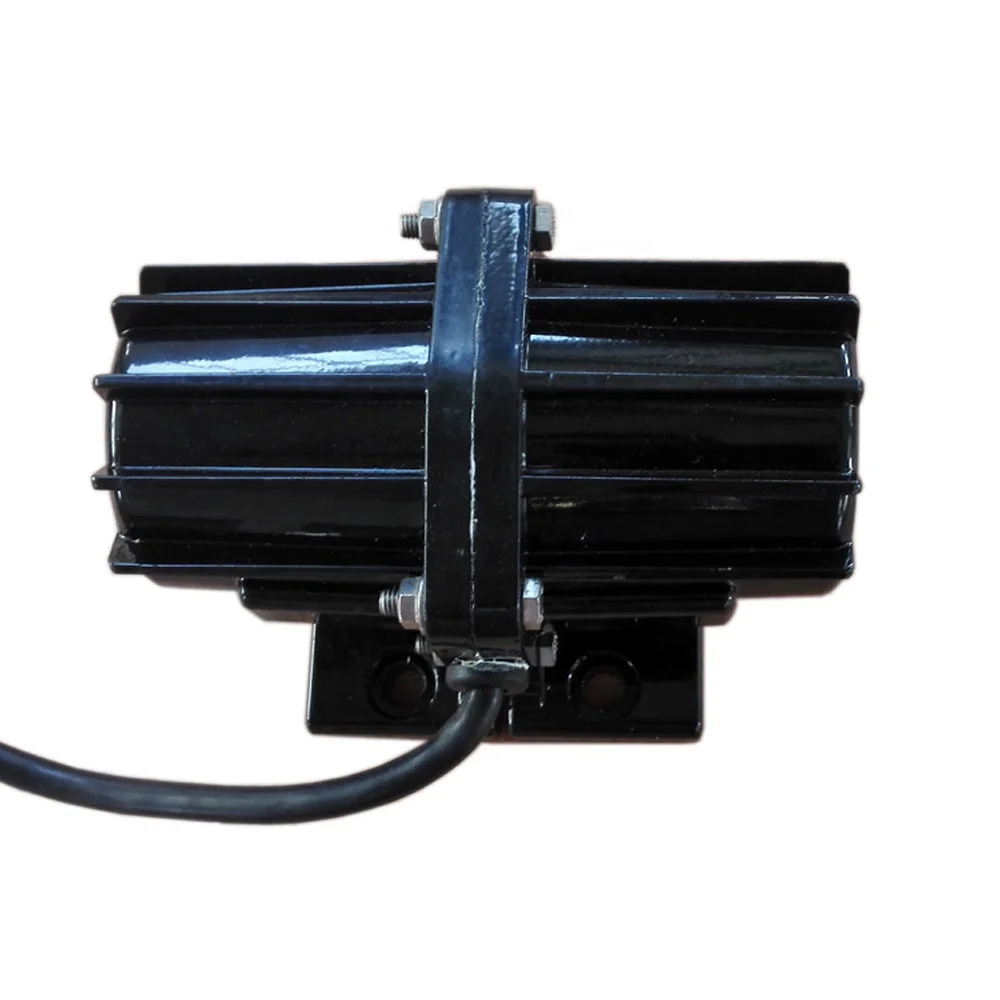

12V vibrator motor for spreader

Product Overview

Description

Introduction of 12V vibrator motor



Rated voltage 12V-24V (V)

Rated speed 4000 (rpm)



This kind of vibrating machine adopts aluminum alloy casing, the screws are all made of stainless steel screws, all sealed and assembled, the protection grade is IP66.

From the machining of the motor shaft to the delivery of the products, the company is processing and production, reducing the processing cost. Each process has been strictly tested and controlled.

Product cost, all materials are made of high quality silicon steel sheet, silver copper commutator, 99.99% oxygen-free copper rod enameled wire, using ferrite permanent magnet, closed self-cooling type, widely used in snow sweepers, electric screens , coagulation machinery equipment, etc.



Conditions of Use:

Ambient temperature: -25°C~+40°C

Relative humidity: ≤95°C (at +25°C)

Allowable temperature rise: no more than 75K (1000m above sea level)
