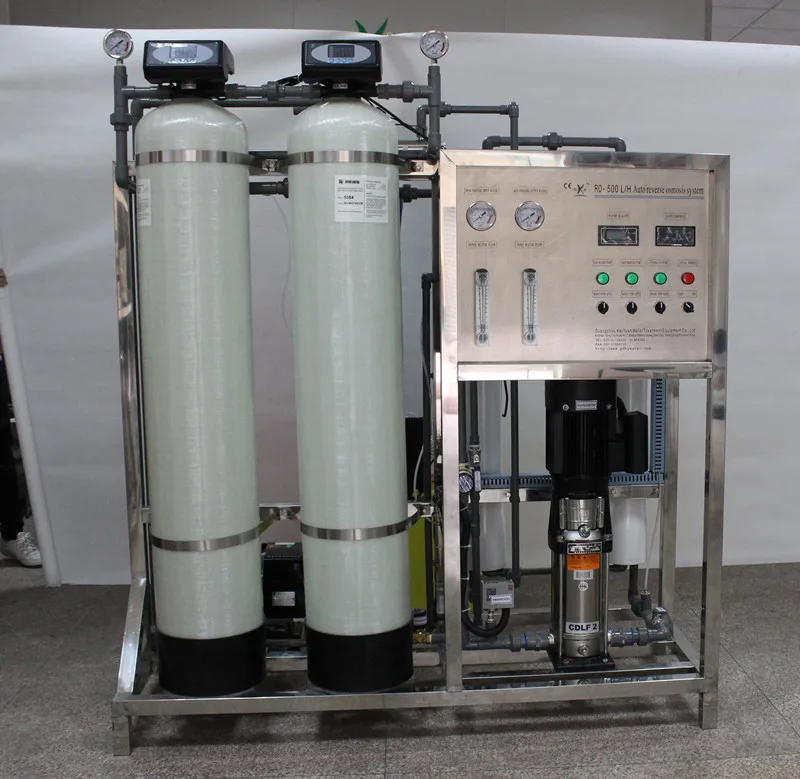

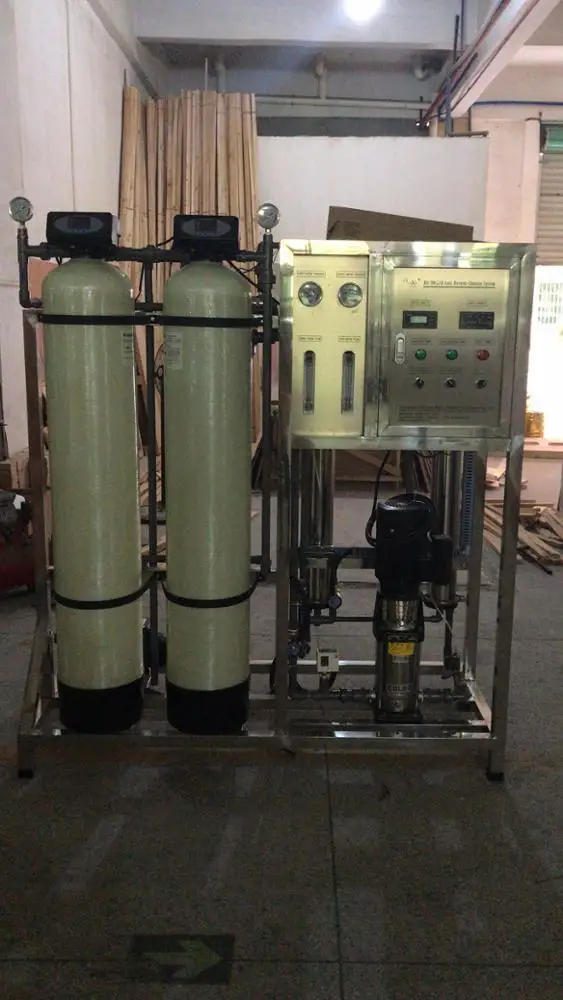

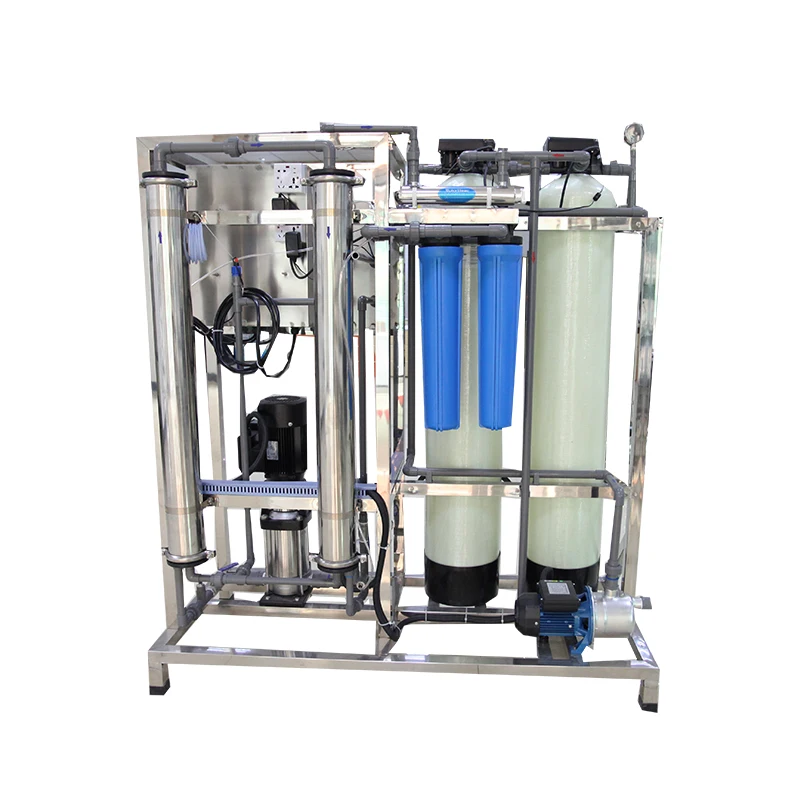

Factory reverse osmosis Sachet Water plant 0.5T/L manual flush RO water desalination treatment machine
Product Description
Product Description
Flow chart :

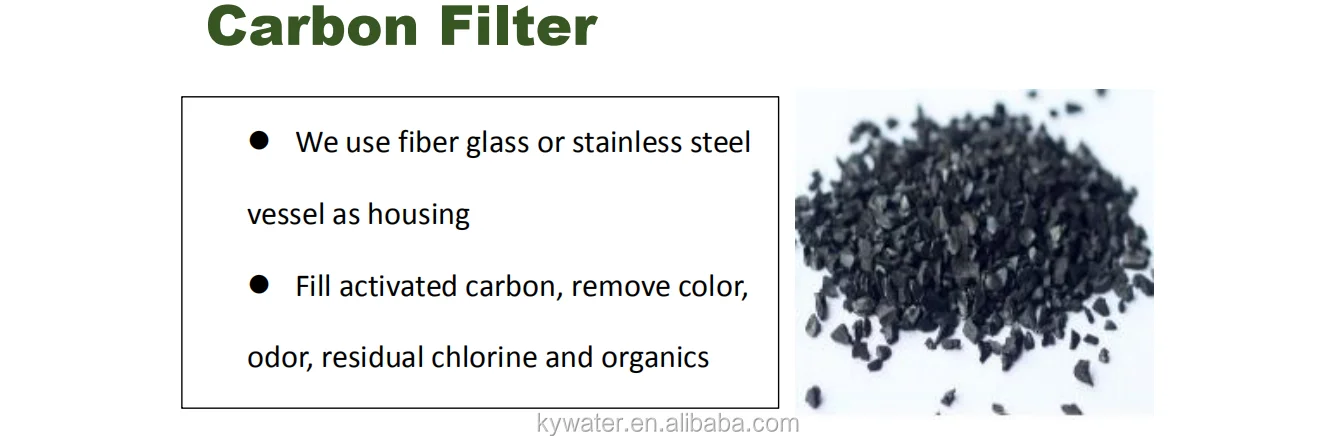

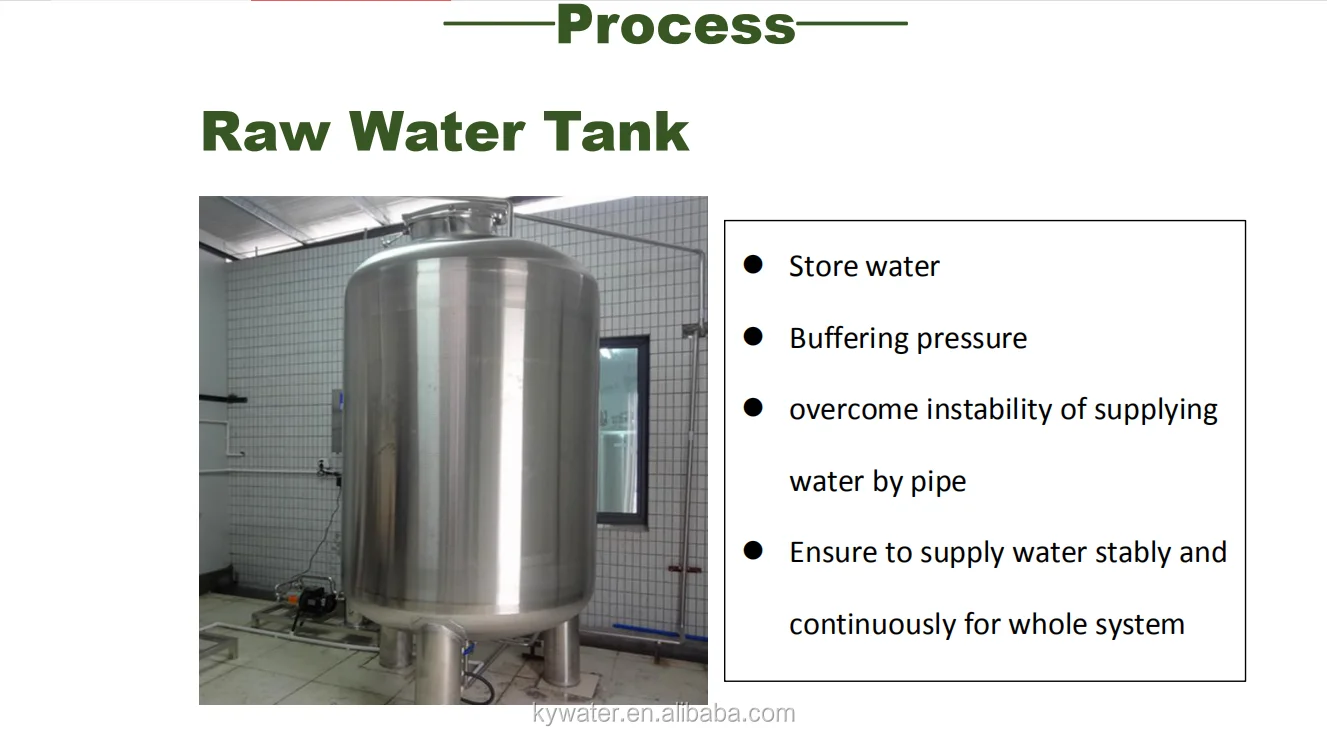

Raw water tank—raw water pump—multi-medium filter--active carbon filter –water softner
(Sodium Ion Exchanger)—precision filter—RO mainframe(including chemical cleaning device)—ozone generator—finished product water tank
Main Parameters of the Reverse Osmosis System
KYRO-500 | Remark | |
500L/H | ||
380V 50Hz 3Phase or customize | or 220v 50hz 3phase | |
3kw | ||
Nanfang Hangzhou | China famous brand | |
φ250×1650 fiber glass 1pc | Quartz sand:100kg | |
φ250×1650 fiber glass 1pc | Activated carbon:50kg | |
20 "× 5μm pp filter cartridges, 5pcs | Housing material:UPVC | |
Nanfang Hangzhou | ||
LCLE-4040 USA DOW | ||
4040 material: fiber glass | ||
Ultraviolet lamp or ozone machine |

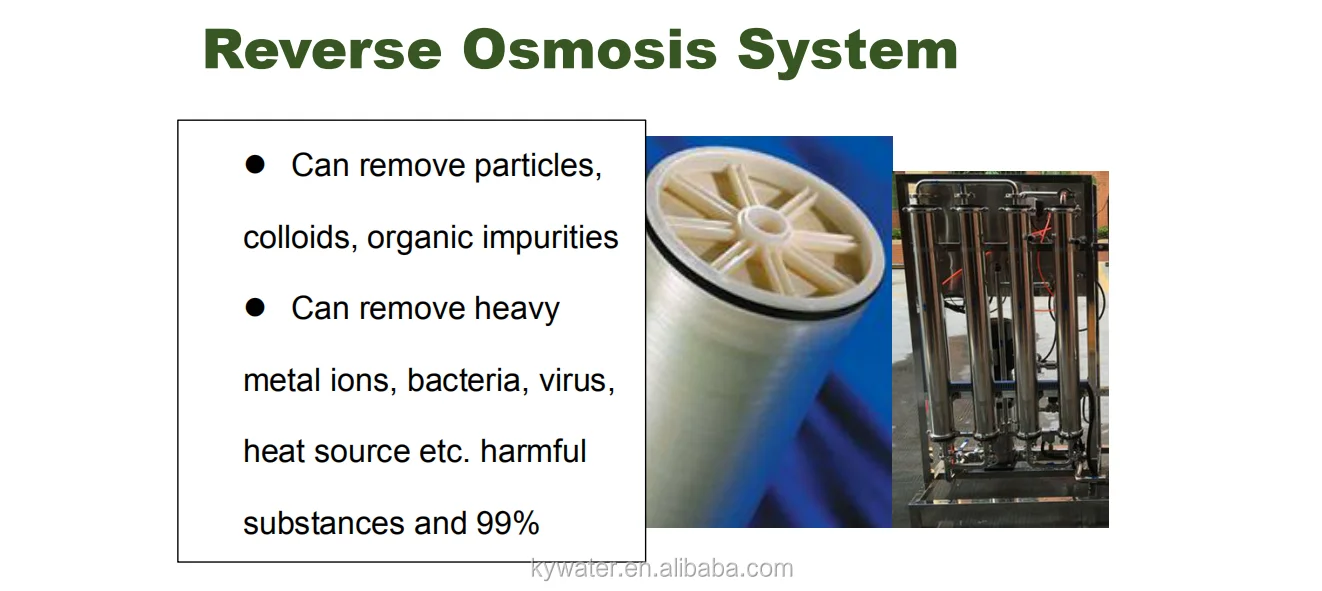

Reverse osmosis is one of the most advanced technologies to purifier water in the world.
It can remove more than 97% of deliquescent saline substance and 99% of colloid,
microbe, particulate,color,taste and organic substance in water.
1.Characteristic:
1). Capacity: 500L/H
2). Rated power: 2.5Kw/H
3). Voltage: 220V/50Hz, 380V/50Hz
4). Desalting rate: 97-98%
5). Water recovery rate: 50-70%
6). Conductivity of raw water: ≤ 400μ S
7). Conductivity of pure water: ≤ 10μ S
8). With water softener

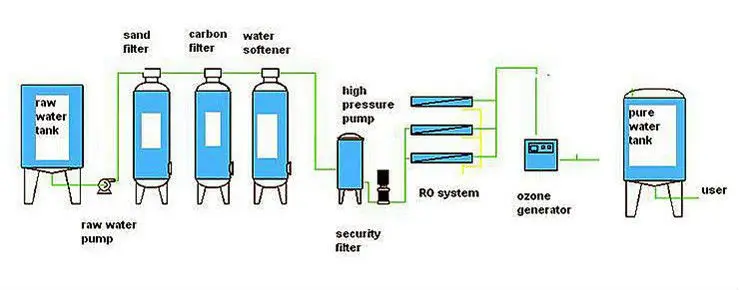

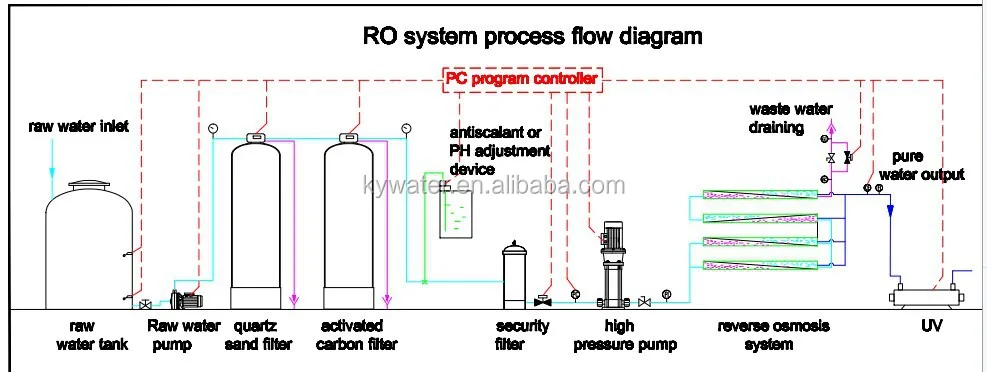

2.Working process:

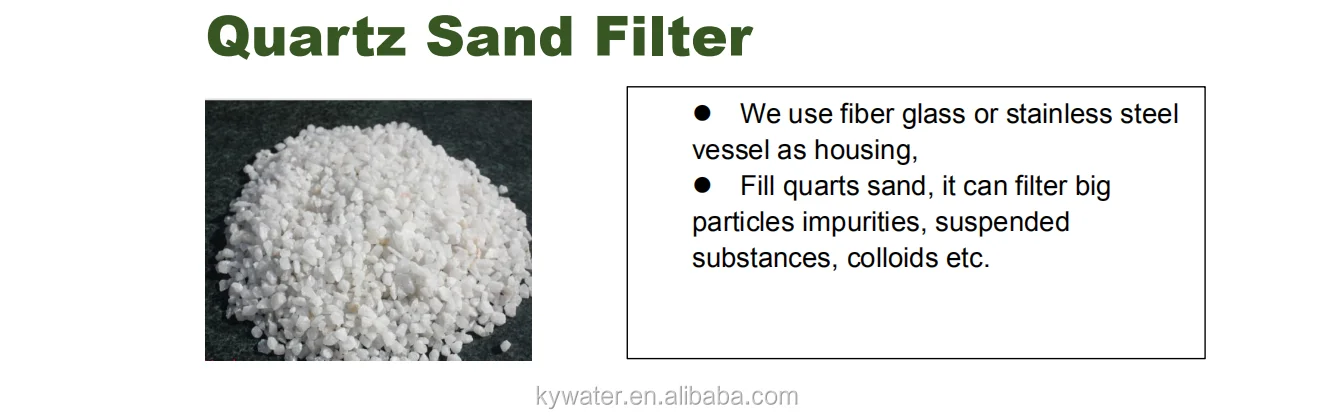

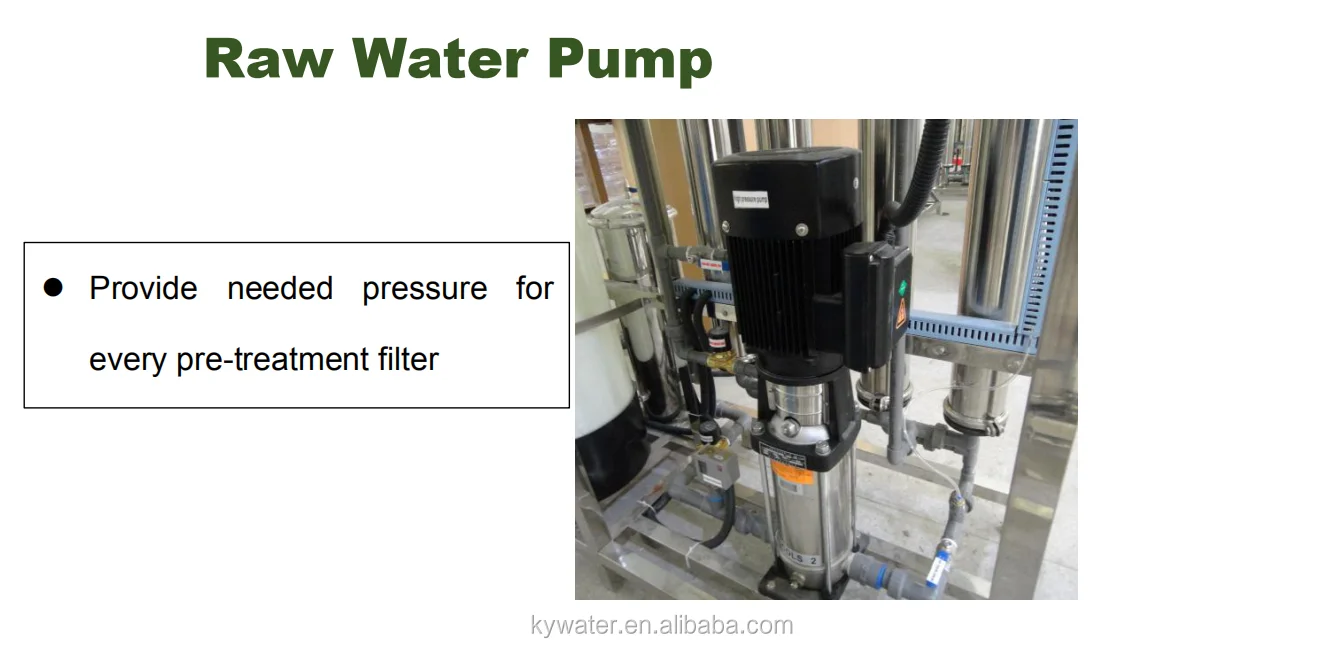

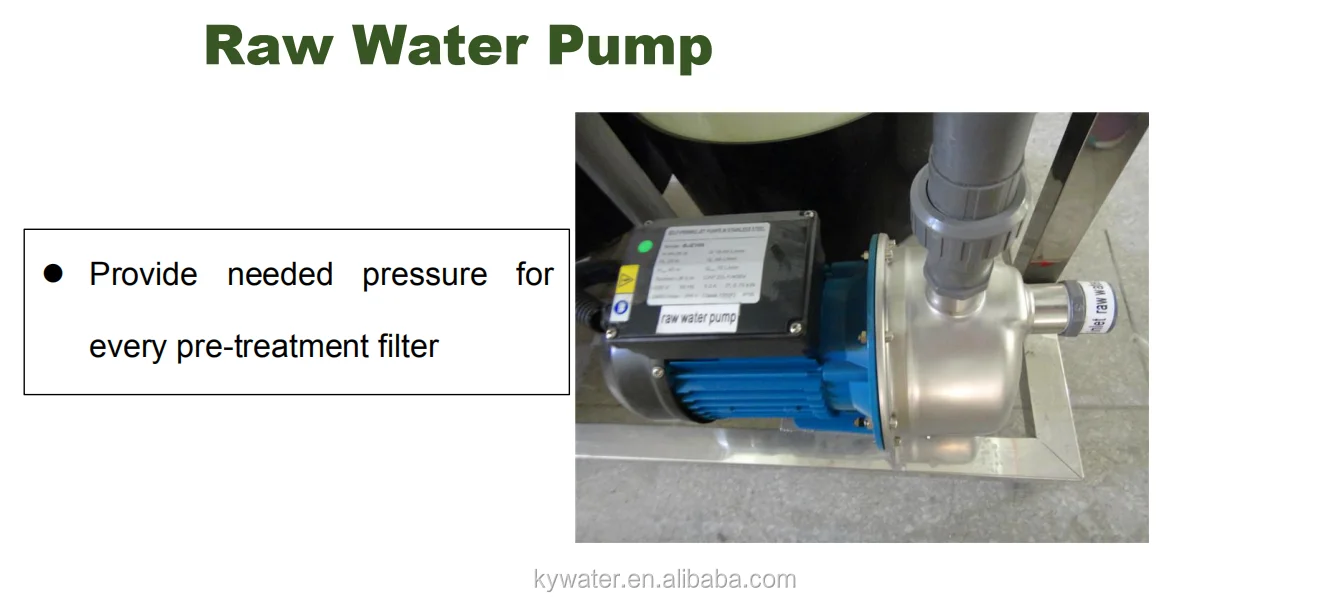

Raw water booster pump→quartz sand filter→activated carbon filter→water softener

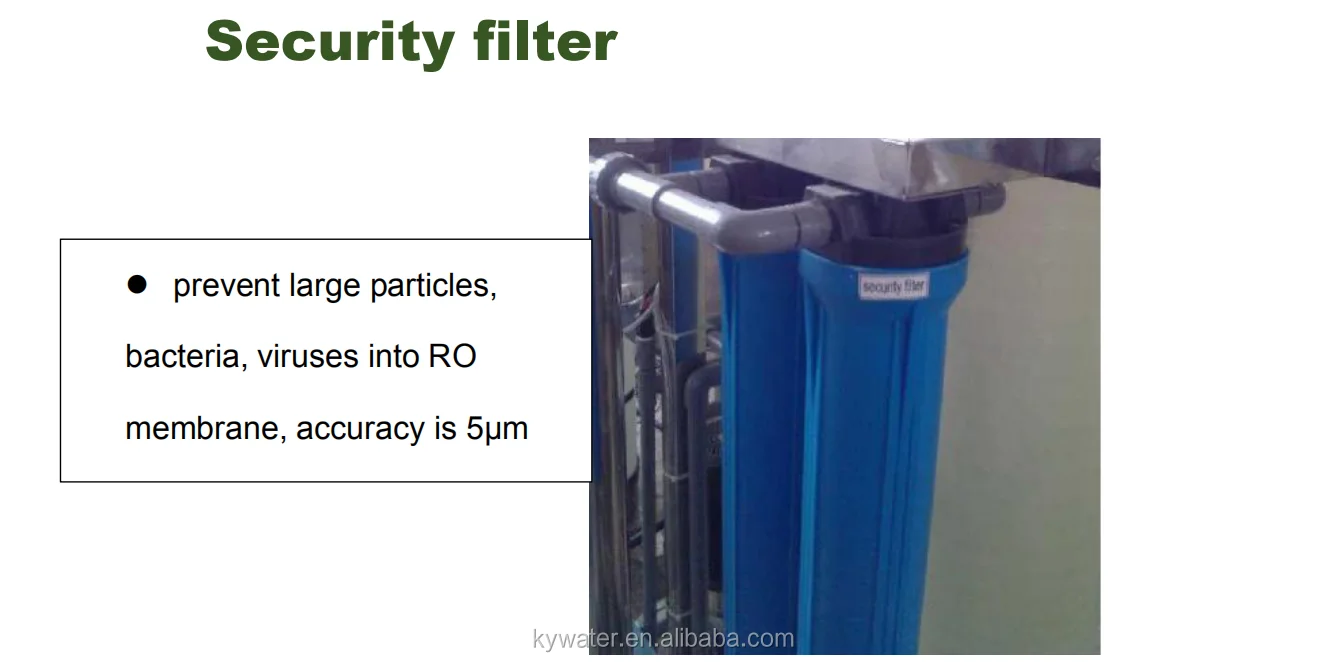

(optional)→security filter→high pressure pump→RO system→UV light(optional)→
pure water tank(or bottled water filling production line)
Details introduction
Details Introduction |
3.Advantages:
1).RO water purification system can produce pure water continuously and highly automatic
2).No need chemical to regenerate,easy operation
3).RO system membranes are imported USA DOW membranes.
4).Automatic switch on when low water level,and switch off when high water level
5).RO membrane can wash automatically and reduce pollution
6).Water shortage protection for multi-stage pump
7).Production water conductivity meter can test the monitoring quality on line contionuosly.
8).Low operation Cost and Long life span
9). It is PLC program controller
10).Easily control and Maintain
11).Auto membrane flushing
12).Environmental protection, Low power consumption
13) Auto flush/backwash
14) Low /high pressure protection
4.We can supply the following products :
Model No. | Capacity (M3/H) | Power (kw) | Recovery Rate (%) | Total land area LX W X H (mm) |
RO-250 | 0.25 | 1.5 | 50 | 2500X1000X2800 |
RO-500 | 0.5 | 1.5 | 50 | 2500X1000X2800 |
RO-1000 | 1 | 2 | 50 | 3500X1200X2800 |
RO-2000 | 2 | 4 | 50-60 | 6500X1500x2800 |
RO-3000 | 3 | 4.5 | 55-65 | 7500X1500X2800 |
RO-4000 | 4 | 6.5 | 55-65 | 7500X1500X2800 |
RO-5000 | 5 | 11 | 60-70 | 10000X2500X3500 |
RO-6000 | 6 | 11 | 60-70 | 10000X2500X3500 |
RO-8000 | 8 | 18 | 60-70 | 10000X3500X3500 |
RO-10000 | 10 | 20 | 60-70 | 10000X4000X3800 |
RO-20000 | 20 | 30 | 70-75 | 15000X5000X5000 |
5.Application:
1). Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2). Food and beverage industry: filter for mineral water, wines and fruit juice
3). Medicine industry: filter for drug liquid, gases
4). Chemical industry: filter for organic solvent
5). Petroleum industry: filter for oil-field flooding

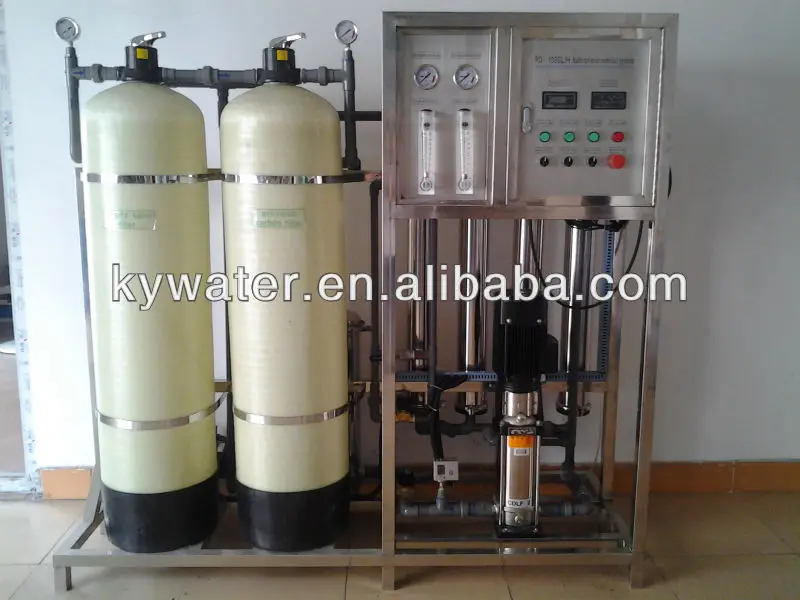

Fresh Drinking Water Plant : 1000 LPH
Details of Drinking Water Plant :
Company's trading activities :
Customers
Professional certification :
Certifications
Guangzhou Kaiyuan Water Treatment Equipment Co.,Ltd, is specialized in manufacturing reverse osmosis(RO) water treatment equipments. The RO system can purify tap water, underground water , river water and seawater to drinking pure water.Your visiting to our factory are warmly welcome !
FAQ
- 1.What is the Guarantee and after sale-service Kai yuan company can supply ?
it is one year guarantee ( except for Artificially damaged) Any problems with the accessories,like valves , pumps etc. within 1 year , we could delivery to you for free .
- 2.Does the machine/equipment difficult to install ?
Kai yuan factory already connect/adjust well for the machine before delivery ,and we will Provide the specific entire system”User Manual”,if need can take Video for how to operate machine. .
- 3.Does Kai yuan will help customer install the machine in their country ?
In additional , Kai yuan can also send their engineers to customer place to install this equipment and train staff, but the buyer should pay for the relevant cost for our workers.
- 4.What is the packing of this machine ? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you open wooden case to pick out of machine is ok .
- 5.what is the payment for the orders customer make ?
After we confirmed order, will send you contract sales/PI with our company bank information. You can transfer money to our company bank account by T/T.,Western Union or do L/C if it is accepted by both of us .
- 6. What is requirement information i need to provide for achieve the suitable ro machine/other relevant products i want ?
It is kindly that you could provide us a raw water analysis /water test report .
- 7.Why we need to choose Kai yuan from so many suppliers in China?
Guangzhou Kaiyuan Water Treatment Equipment Co.,ltd products are sold well not only in domestic, but also in UAE, Saudi Arabia, South Africa, Kazakhstan, Sri Lanka, Vietnam, Haiti, Spain, Australia, Nigeria, Uganda, New Caledonia, Ecuador, Sudan, Guatemala, Somalia, Cameroon, Malaysia ,Ghana, Lebanon etc. Countries.
we have bellowing :
- we have a big bright factory in GZ city , bai yun distric, which is near to GZ Bai yun air port .
- QC Team :we have professional QC team ,can guarantee stable quality for OEM production service.
- Installation : Easy operation with Video ,or we could arrange experienced
engineer to local place for installation .
4.Packing :Standard wooden packing will reinforce protect machine.
5.Competitive price :we are confident with our competitive price in the
international global market.
Note :
Any more details about our products , pls feel free to contact with us as below , we will write you back for RO water treatment within 24 hours .
